Replacement Parts For Nexgrill 920-0049 Sold at Costco USA in 2010

Find replacement grill parts for your 2010 Nexgrill 920-0049 Propane Gas Outdoor Patio Heater model number 920-0049 grill using the replacement parts diagram below. The Nexgrill 920-0049 grill was sold at Costco USA in 2010. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

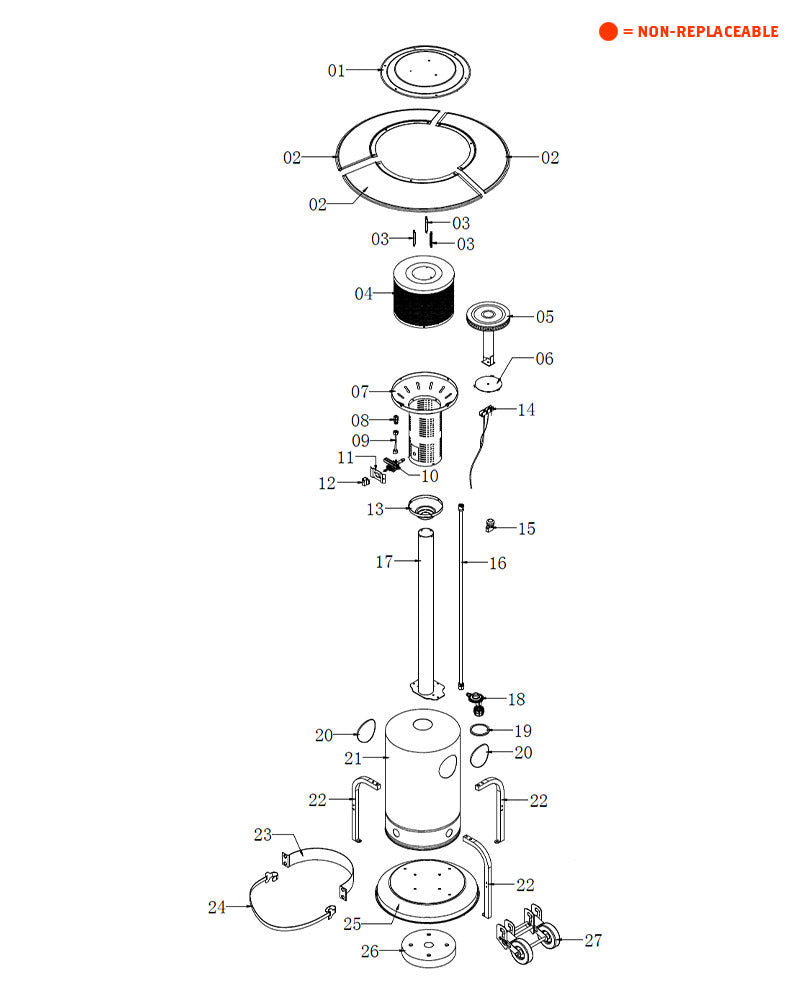

replacement grill parts for your Nexgrill 920-0049

Manual No. / Part

Price Each

Qty

  • 1 - Reflector Plate
    SKU #04005835A0

    Part #1Reflector Plate
    Length: 4.13Width: 1.77Height: 1.02

    $24.00

  • 2 - Reflector
    SKU #20001847A0

    Part #2Reflector
    Length: 17.16Width: 0.04Height: 15.11

    $18.00

  • 3 - Threaded Ends Stud
    SKU #06000947A0

    Part #3Threaded Ends Stud
    Length: 1.67Width: 2.42Height: 2.73

    $5.00

  • 4 - Emitter Grid
    SKU #20001848A0

    Part #4Emitter Grid
    Length: 9.13Width: 0.89Height: 0.47

    $18.00

  • 5 - Main Burner Assembly
    SKU #10001724A0

    Part #5Main Burner Assembly
    Length: 15Width: 1.3Height: 0.87

    $9.52

  • 6 - Fixing Tray of Switch
    SKU #04005836A0

    Part #6Fixing Tray of Switch
    Length: 27.99Width: 11.54Height: 3.94

    $5.00

  • 7 - Control House with Emitter Base
    SKU #20001843A0

    Part #7Control House with Emitter Base
    Length: 21.42Width: 9.84Height: 2.09

    $8.50

  • 8 - Orifice
    SKU #05000882A0

    Part #8Orifice
    Length: 1.38Width: 1.57Height: 1.93

    $5.50

  • 9 - Flex Gas Line
    SKU #11000848A0

    Part #9Flex Gas Line
    Length: 17.66Width: 9.17Height: 0.79

    $7.00

  • 10 - Gas Valve
    SKU #09000517A0

    Part #10Gas Valve
    Length: 3.8Width: 2.1Height: 1.6

    $24.00

  • 11 - Control Knob Bracket
    SKU #04005803A0

    Part #11Control Knob Bracket
    Length: 2.28Width: 1.26Height: 1.57

    $5.00

  • 12 - Control Knob
    SKU #14000130A0

    Part #12Control Knob
    Length: 0.2Width: 0.02Height: 1.61

    $14.00

  • 13 - Control House Base
    SKU #04005837A0

    Part #13Control House Base
    Length: 21.42Width: 9.84Height: 2.09

    $5.50

  • 14 - Igniter Wire with Pilot and Themocouple Assembly
    SKU #10001230A0

    Part #14Igniter Wire with Pilot and Themocouple Assembly
    Length: 0.14Width: 0.12Height: 0.16

    $5.00

  • 15 - Tip Switch
    SKU #20001851A0

    Part #15Tip Switch
    Length: 27.99Width: 11.54Height: 3.94

    $2.50

  • 16 - Gas Hose
    SKU #11000838A0

    Part #16Gas Hose
    Length: 0.2Width: 2.87Height: 1.97

    $5.50

  • 17 - Post
    SKU #20001844A0

    Part #17Post
    Length: 4.16Width: 1.96Height: 0.54

    $26.00

  • 18 - Regulator LP
    SKU #09000254A0

    Part #18Regulator LP
    Length: 6.26Width: 1.69Height: 2.56

    $6.44

  • 19 - Rubber Ring A
    SKU #17000241A0

    Part #19Rubber Ring A
    Length: 6.5Width: 0.75Height: 0.83

    $5.00

  • 20 - Rubber Ring B
    SKU #17000242A0

    Part #20Rubber Ring B
    Length: 6.5Width: 0.75Height: 0.83

    $5.00

  • 21 - Tank Enclosure
    SKU #20001845A0

    Part #21Tank Enclosure
    Length: 21.74Width: 2.94Height: 1.22

    $49.50

  • 22 - Tank Enclosure Support Leg
    SKU #20001846A0

    Part #22Tank Enclosure Support Leg
    Length: 9.45Width: 6.1Height: 0.98

    $14.00

  • 23 - Tank Supporting Ring
    SKU #04005802A0

    Part #23Tank Supporting Ring
    Length: 9.45Width: 6.1Height: 0.98

    $5.00

  • 24 - Tank Hook
    SKU #20001850A0

    Part #24Tank Hook
    Length: 9.45Width: 6.1Height: 0.98

    $5.00

  • 25 - Tank Base
    SKU #20001849A0

    Part #25Tank Base
    Length: 4.13Width: 1.77Height: 1.02

    $27.50

  • 26 - Weight Base
    SKU #05001238A0

    Part #26Weight Base
    Length: 0.14Width: 0.12Height: 0.16

    $13.50

  • 27 - Wheel Assembly
    SKU #20001799A0

    Part #27Wheel Assembly
    Length: 3.8Width: 3.8Height: 3.8

    $16.50

  • 28 - KD Hardware Pack
    SKU #20001858A0

    Part #28KD Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $5.32
