Replacement Parts For Nexgrill 810-0025 Sold at Home Depot USA in 2015

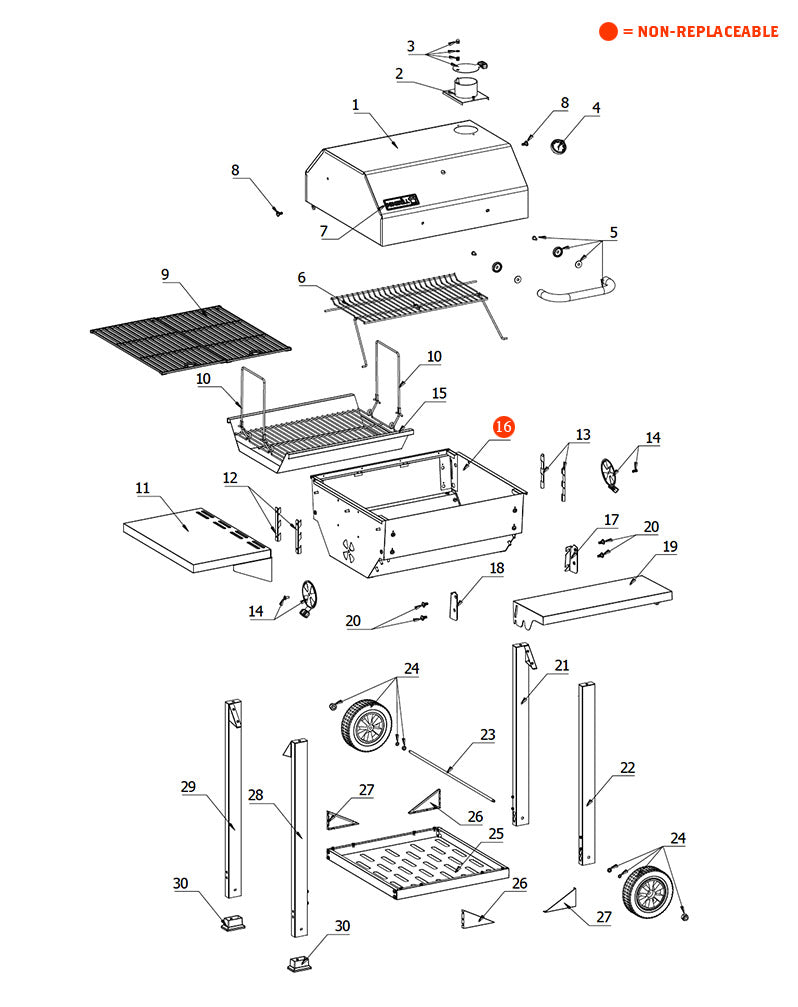

Find replacement grill parts for your 2015 Nexgrill 810-0025 Cart-Style Charcoal Grill in Black model number 810-0025 grill using the replacement parts diagram below. The Nexgrill 810-0025 grill was sold at Home Depot USA in 2015. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

replacement grill parts for your Nexgrill 810-0025

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #20003169A0

    Part #1Main Lid
    Length: 27.99Width: 17.64Height: 10.75

    $119.99

  • 2 - Charcoal Chimney
    SKU #20003170A0

    Part #2Charcoal Chimney
    Length: 5.12Width: 4.09Height: 4.92

    $5.78

  • 3 - Chimney Lid
    SKU #20002735A0

    Part #3Chimney Lid
    Length: 4.84Width: 3.46Height: 0.47

    $4.81

  • 4 - Temperature Gauge
    SKU #05000471A0

    Part #4Temperature Gauge
    Length: 2Width: 2Height: 1.77

    $9.99

  • 5 - Main Lid Handle Assembly
    SKU #20003175A0

    Part #5Main Lid Handle Assembly
    Length: 11.4Width: 3.9Height: 1.38

    $12.04

  • 6 - Warming Rack
    SKU #13000933A0

    Part #6Warming Rack
    Length: 33.23Width: 12.59Height: 1.24

    $10.71

  • 7 - Logo
    SKU #20002506A0

    Part #7Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 8 - Main Lid Screw
    SKU #20003176A0

    Part #8Main Lid Screw
    Length: 0.79Width: 0.63Height: 0.63

    $5.00

  • 9 - Cooking Grid with Hole
    SKU #13000934A0

    Part #9Cooking Grid with Hole
    Length: 19.25Width: 9.9Height: 0.35

    $36.79

  • 10 - Charcoal Tray Hook
    SKU #05001583A0

    Part #10Charcoal Tray Hook
    Length: 10.47Width: 7.6Height: 1.47

    $3.20

  • 11 - Side Shelf Left
    SKU #20003181A0

    Part #11Side Shelf Left
    Length: 18.66Width: 12.16Height: 4.57

    $32.00

  • 12 - Charcoal Tray Support Bracket Left
    SKU #04007791A0

    Part #12Charcoal Tray Support Bracket Left
    Length: 4.72Width: 0.67Height: 0.59

    $11.20

  • 13 - Charcoal Tray Support Bracket Right
    SKU #04007790A0

    Part #13Charcoal Tray Support Bracket Right
    Length: 4.72Width: 0.67Height: 0.59

    $11.20

  • 14 - Ventilation Adjustment Bracket
    SKU #20003174A0

    Part #14Ventilation Adjustment Bracket
    Length: 5.1Width: 3.78Height: 1.43

    $7.00

  • 15 - Charcoal Tray
    SKU #20003172A0

    Part #15Charcoal Tray
    Length: 19.2Width: 16Height: 3.69

    $35.00

  • 17 - Front Shelf Support Bracket Right
    SKU #04007798A0

    Part #17Front Shelf Support Bracket Right
    Length: 4.58Width: 1.96Height: 0.79

    $11.20

  • 18 - Front Shelf Support Bracket Left
    SKU #04007800A0

    Part #18Front Shelf Support Bracket Left
    Length: 4.58Width: 1.96Height: 0.79

    $11.20

  • 19 - Front Shelf
    SKU #20003173A0

    Part #19Front Shelf
    Length: 19.88Width: 7.99Height: 3.15

    $5.60

  • 20 - Side Shelf Stage Screw
    SKU #06000719A0

    Part #20Side Shelf Stage Screw
    Length: 0.63Width: 0.63Height: 0.69

    $5.00

  • 21 - Cart Leg Rear Right
    SKU #20003177A0

    Part #21Cart Leg Rear Right
    Length: 25.45Width: 3.23Height: 1.97

    $8.40

  • 22 - Cart Leg Front Right
    SKU #20003178A0

    Part #22Cart Leg Front Right
    Length: 25.45Width: 3.23Height: 1.97

    $16.00

  • 23 - Wheel Axle
    SKU #20003203A0

    Part #23Wheel Axle
    Length: 1.98Width: 21.06Height: 1.98

    $9.74

  • 24 - Wheel
    SKU #20003182A0

    Part #24Wheel
    Length: 7Width: 7Height: 2

    $19.99

  • 25 - Bottom Panel
    SKU #20003171A0

    Part #25Bottom Panel
    Length: 18.68Width: 17.28Height: 1.34

    $59.99

  • 26 - Triangle Bracket A
    SKU #04007372A0

    Part #26Triangle Bracket A
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 27 - Triangle Bracket B
    SKU #04007371A0

    Part #27Triangle Bracket B
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 28 - Cart Leg Front Left
    SKU #20003180A0

    Part #28Cart Leg Front Left
    Length: 27.7Width: 3.23Height: 1.97

    $16.00

  • 29 - Cart Leg Rear Left
    SKU #20003270A0

    Part #29Cart Leg Rear Left
    Length: 27.14Width: 2.13Height: 1.18

    $6.30

  • 30 - Cart Caster Insert
    SKU #17000062A1

    Part #30Cart Caster Insert
    Length: 2.76Width: 1.77Height: 1.38

    $8.42
