Replacement Parts For Nexgrill 720-0925S Sold at Home Depot USA in 2021

Find replacement grill parts for your 2021 Nexgrill 720-0925S 3 Burner Propane Gas Grill with Side Burner in Black model number 720-0925S grill using the replacement parts diagram below. The Nexgrill 720-0925S grill was sold at Home Depot USA in 2021. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

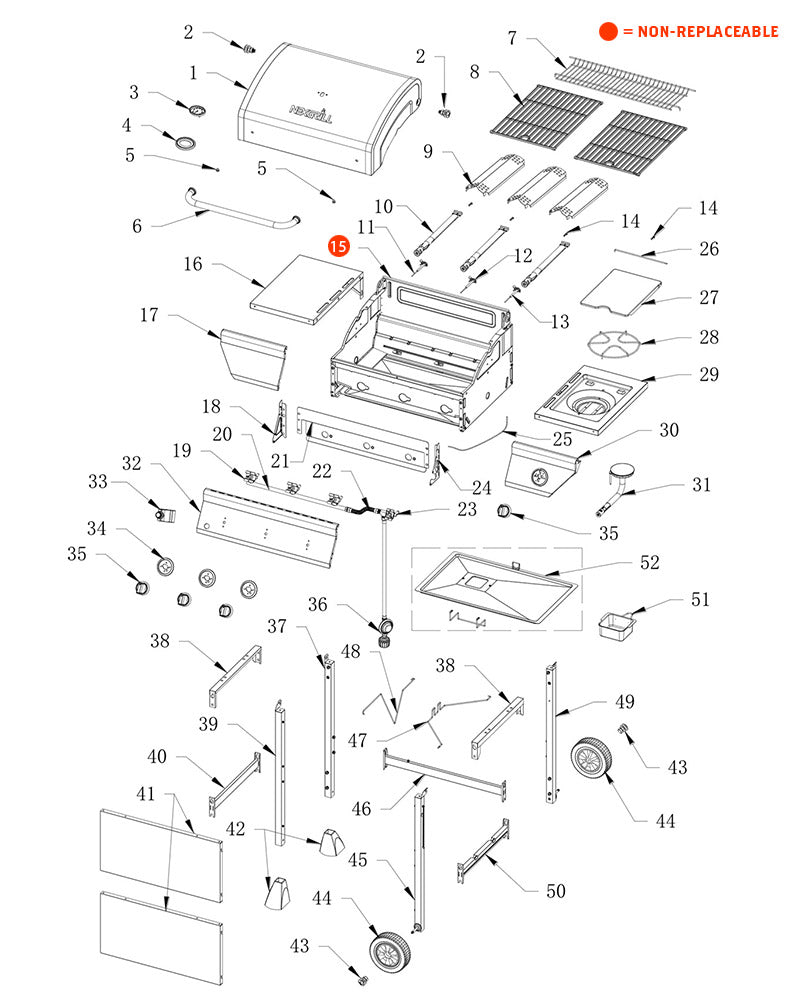

replacement grill parts for your Nexgrill 720-0925S

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850003438

    Part #1Main Lid
    Length: 25.17Width: 17.91Height: 10.3

    $65.52

  • 2 - Main Lid Screws
    SKU #0127507000AP

    Part #2Main Lid Screws
    Length: 0.94Width: 0.94Height: 0.63

    $5.00

  • 3 - Temperature Gauge
    SKU #05001256A0

    Part #3Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $5.76

  • 4 - Temperature Gauge Housing
    SKU #05000742A0

    Part #4Temperature Gauge Housing
    Length: 3.58Width: 2.52Height: 0.28

    $5.00

  • 5 - Hood Buffer A
    SKU #17000106A0

    Part #5Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 6 - Main Lid Handle
    SKU #0127472000AP

    Part #6Main Lid Handle
    Length: 0.95Width: 0.63Height: 0.63

    $12.04

  • 7 - Warming Rack
    SKU #120870002319

    Part #7Warming Rack
    Length: 23.58Width: 6.86Height: 1.18

    $13.44

  • 8 - Cooking Grid with Hole
    SKU #13000409A0

    Part #8Cooking Grid with Hole
    Length: 17.16Width: 12.25Height: 0.35

    $45.99

  • 9 - Flame Tamer
    SKU #04007620A0

    Part #9Flame Tamer
    Length: 14.567Width: 4.331Height: 1.417

    $7.00

  • 10 & 14 - Main Burner & Burner Pin Assembly
    SKU #120850002526

    Part #10 & 14Main Burner & Burner Pin Assembly
    Length: 14.84Width: 2.02Height: 1.04

    $9.25

  • 11 - Main Burner Igniter Wire A
    SKU #120850002527

    Part #11Main Burner Igniter Wire A
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 12 - Main Burner Igniter Wire B
    SKU #120850002595

    Part #12Main Burner Igniter Wire B
    Length: 1.1Width: 0.26Height: 1.42

    $6.99

  • 13 - Main Burner Igniter Wire C
    SKU #120850002530

    Part #13Main Burner Igniter Wire C
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 16 - Side Shelf Left
    SKU #120850002588

    Part #16Side Shelf Left
    Length: 17.72Width: 12.13Height: 4.85

    $28.00

  • 17 - Side Shelf Control Panel Left
    SKU #120870002320

    Part #17Side Shelf Control Panel Left
    Length: 12.01Width: 6.89Height: 4.41

    $30.00

  • 18 - Left Panel of Main Control Panel
    SKU #120870002281

    Part #18Left Panel of Main Control Panel
    Length: 6.73Width: 3.25Height: 0.81

    $8.61

  • 19 - Main Gas Valve
    SKU #09000578A0

    Part #19Main Gas Valve
    Length: 4.32Width: 1.55Height: 1.89

    $20.45

  • 20 - Main Manifold
    SKU #11000900A0

    Part #20Main Manifold
    Length: 19.53Width: 16.02Height: 6.93

    $35.00

  • 21 - Front Baffle
    SKU #120870002287

    Part #21Front Baffle
    Length: 6.72Width: 3.24Height: 1.38

    $21.00

  • 22 - Side Burner Flex Gas Line
    SKU #11000464A0

    Part #22Side Burner Flex Gas Line
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 23 - Side Burner Gas Valve
    SKU #0120850000AW

    Part #23Side Burner Gas Valve
    Length: 4.252Width: 3.15Height: 2.835

    $25.20

  • 24 - Right Panel of Main Control Panel
    SKU #120870000900

    Part #24Right Panel of Main Control Panel
    Length: 6.73Width: 3.25Height: 0.81

    $20.30

  • 25 - Side Burner Igniter Wire
    SKU #07000803A0

    Part #25Side Burner Igniter Wire
    Length: 39.37Width: 3.54Height: 0.91

    $6.99

  • 26 - Side Burner Lid Hinge Rod
    SKU #20002471A0

    Part #26Side Burner Lid Hinge Rod
    Length: 9.76Width: 0.59Height: 0.16

    $5.00

  • 27 - Side Burner Lid
    SKU #120870002026

    Part #27Side Burner Lid
    Length: 12.5Width: 9Height: 0.47

    $19.04

  • 28 - Side Burner Cooking Grid
    SKU #13000922A0

    Part #28Side Burner Cooking Grid
    Length: 8.86Width: 8.86Height: 0.91

    $7.39

  • 29 - Side Burner Bowl Assembly
    SKU #120850002589

    Part #29Side Burner Bowl Assembly
    Length: 17.72Width: 12.13Height: 4.85

    $36.12

  • 30 - Side Burner Control Panel Right
    SKU #120870002322

    Part #30Side Burner Control Panel Right
    Length: 12Width: 6.89Height: 4.77

    $17.64

  • 31 - Side Burner
    SKU #20003414A0

    Part #31Side Burner
    Length: 10.57Width: 4.72Height: 3.4

    $6.31

  • 32 - Main Control Panel
    SKU #120850002581

    Part #32Main Control Panel
    Length: 25.04Width: 1.61Height: 7.3

    $23.10

  • 33 - Pulse Igniter Module
    SKU #120870002321

    Part #33Pulse Igniter Module
    Length: 2.6Width: 2.6Height: 2

    $7.84

  • 34 - Bezel
    SKU #120870001870

    Part #34Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.30

  • 35 - Control Knob
    SKU #120850002533

    Part #35Control Knob
    Length: 1.94Width: 1.81Height: 1.25

    $4.48

  • 36 - LP Regulator with Hose
    SKU #09000262A0

    Part #36LP Regulator with Hose
    Length: 26.18Width: 2.97Height: 2.9

    $22.84

  • 37 - Cart Leg Rear Left
    SKU #120850002558

    Part #37Cart Leg Rear Left
    Length: 27.14Width: 1.18Height: 1.18

    $13.72

  • 38 - Cart Frame Top
    SKU #0212688902AQ

    Part #38Cart Frame Top
    Length: 16.46Width: 1.14Height: 3.18

    $18.90

  • 39 - Cart Leg Front Left
    SKU #120850002557

    Part #39Cart Leg Front Left
    Length: 27.14Width: 2.13Height: 1.18

    $13.72

  • 40 - Cart Frame Bottom Left
    SKU #0107417902AQ

    Part #40Cart Frame Bottom Left
    Length: 16.46Width: 0.95Height: 3.74

    $12.60

  • 41 - Cart Front Panel
    SKU #120870002295

    Part #41Cart Front Panel
    Length: 22.64Width: 11.59Height: 0.81

    $12.04

  • 42 - Cart Caster Insert
    SKU #120870002296

    Part #42Cart Caster Insert
    Length: 4.33Width: 3.15Height: 3.94

    $8.42

  • 43 & 44 - Wheel & Wheel Screw Assembly
    SKU #20003119A0

    Part #43 & 44Wheel & Wheel Screw Assembly
    Length: 6.8Width: 6.8Height: 1.98

    $12.00

  • 45 - Cart Leg Front Right
    SKU #120850002559

    Part #45Cart Leg Front Right
    Length: 27.14Width: 1.18Height: 3.98

    $13.72

  • 46 - Cart Frame Rear
    SKU #120850002555

    Part #46Cart Frame Rear
    Length: 22.62Width: 0.95Height: 3.74

    $15.40

  • 47 - Tank Wire
    SKU #0907075002AX

    Part #47Tank Wire
    Length: 18.89Width: 5.35Height: 1.65

    $10.00

  • 48 - Second Tank Wire
    SKU #120870002294

    Part #48Second Tank Wire
    Length: 18.5Width: 8.5Height: 0.47

    $6.99

  • 49 - Cart Leg Rear Right
    SKU #120850002560

    Part #49Cart Leg Rear Right
    Length: 27.14Width: 1.18Height: 3.23

    $13.72

  • 50 - Cart Frame Bottom Right
    SKU #0107418902AQ

    Part #50Cart Frame Bottom Right
    Length: 16.46Width: 3.74Height: 0.95

    $14.91

  • 51 - Grease Cup
    SKU #120870001716

    Part #51Grease Cup
    Length: 10.44Width: 5.16Height: 2.17

    $8.92

  • 52 - Grease Tray Assembly
    SKU #120850002592

    Part #52Grease Tray Assembly
    Length: 23.55Width: 14.25Height: 2.95

    $9.39

  • 54 - Hardware Pack
    SKU #120850002591

    Part #54Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $6.00
