Replacement Parts For Nexgrill 720-0896X Sold at Home Depot USA in 2021

Find replacement grill parts for your 2021 Nexgrill 720-0896X Deluxe 6 Burner Propane Gas Grill with Searing Side Burner & Rotisserie Kit in Stainless Steel model number 720-0896X grill using the replacement parts diagram below. The Nexgrill 720-0896X grill was sold at Home Depot USA in 2021. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

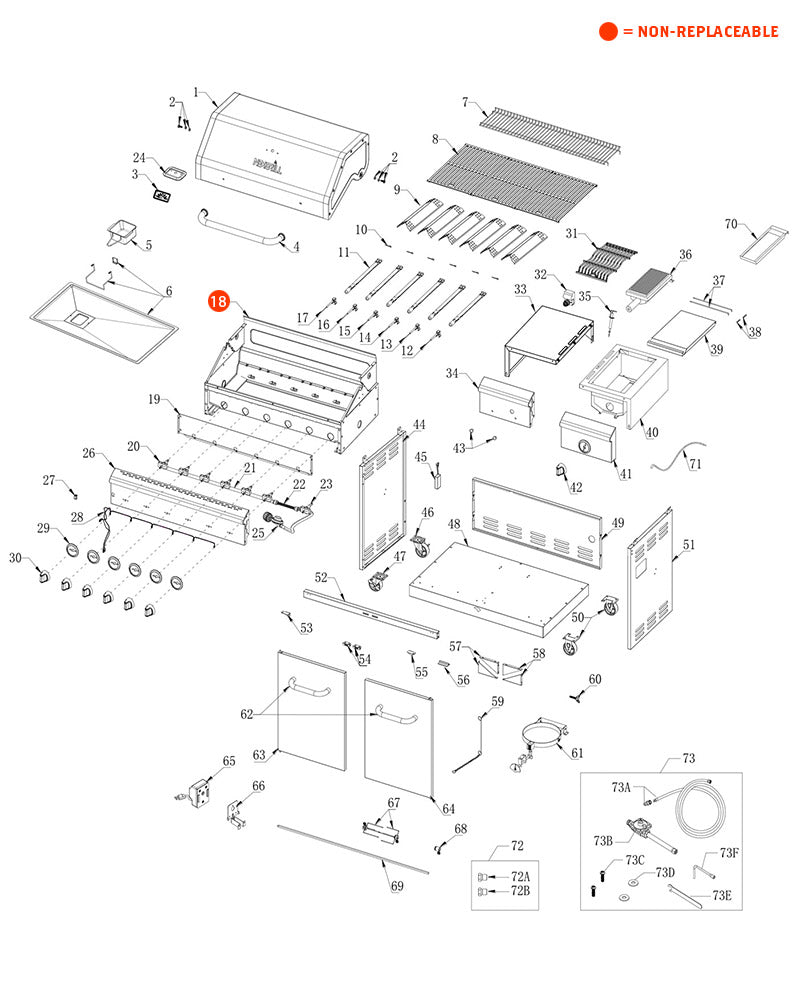

replacement grill parts for your Nexgrill 720-0896X

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850003138

    Part #1Main Lid
    Length: 34Width: 17.77Height: 11.55

    $45.50

  • 2 - Main Lid Screw
    SKU #0127507000AP

    Part #2Main Lid Screw
    Length: 0.94Width: 0.94Height: 0.63

    $5.00

  • 3 - Temperature Gauge
    SKU #2002063000AW

    Part #3Temperature Gauge
    Length: 3.74Width: 1.85Height: 2.42

    $5.76

  • 4 - Main Lid Handle Assembly
    SKU #0127522000AP

    Part #4Main Lid Handle Assembly
    Length: 20.94Width: 3.96Height: 1.25

    $12.04

  • 5 - Grease Box
    SKU #120870002774

    Part #5Grease Box
    Length: 7.61Width: 5.51Height: 2.17

    $12.04

  • 6 - Grease Pan Assembly
    SKU #120850002098

    Part #6Grease Pan Assembly
    Length: 31.65Width: 14.25Height: 4.43

    $18.45

  • 7 - Warming Rack
    SKU #0903143900AE

    Part #7Warming Rack
    Length: 32.46Width: 1.38Height: 7.09

    $15.59

  • 8 - Cooking Grid
    SKU #1021074901AE

    Part #8Cooking Grid
    Length: 17.16Width: 0.04Height: 15.11

    $18.00

  • 9 - Flame Tamer
    SKU #120870000848

    Part #9Flame Tamer
    Length: 14.57Width: 3.34Height: 1.32

    $9.10

  • 10 - Main Burner Pin Assembly
    SKU #06000865A0

    Part #10Main Burner Pin Assembly
    Length: 1.1Width: 0.26Height: 1.42

    $3.50

  • 11 - Main Burner
    SKU #120850002586

    Part #11Main Burner
    Length: 28.54Width: 0.85Height: 0.43

    $9.25

  • 12 - Main Burner Igniter Wire A
    SKU #2001671000AW

    Part #12Main Burner Igniter Wire A
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 13 - Main Burner Igniter Wire B
    SKU #2001670000AW

    Part #13Main Burner Igniter Wire B
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 14 - Main Burner Igniter Wire C
    SKU #2001668000AW

    Part #14Main Burner Igniter Wire C
    Length: 29.92Width: 1.18Height: 1.18

    $6.99

  • 15 - Main Burner Igniter Wire D
    SKU #2001666000AW

    Part #15Main Burner Igniter Wire D
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 16 - Main Burner Igniter Wire E
    SKU #2001664000AW

    Part #16Main Burner Igniter Wire E
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 17 - Main Burner Igniter Wire F
    SKU #2001661000AW

    Part #17Main Burner Igniter Wire F
    Length: 16.26Width: 1.18Height: 1.18

    $6.99

  • 19 - Front Baffle
    SKU #0125356000AP

    Part #19Front Baffle
    Length: 33.94Width: 2.17Height: 5.89

    $21.00

  • 20 - Main Gas Valve
    SKU #0120787000AW

    Part #20Main Gas Valve
    Length: 4.22Width: 1.91Height: 1.56

    $20.45

  • 21 - Main Manifold
    SKU #0116208900AW

    Part #21Main Manifold
    Length: 29.92Width: 0.75Height: 0.83

    $35.00

  • 22 - Searing Side Burner Flex Gas Line
    SKU #11000454A0

    Part #22Searing Side Burner Flex Gas Line
    Length: 6.5Width: 0.75Height: 0.87

    $8.57

  • 23 - Searing Side Burner Gas Valve
    SKU #0120821000AW

    Part #23Searing Side Burner Gas Valve
    Length: 4.45Width: 2.01Height: 3.37

    $9.00

  • 24 - Temperature Gauge Seat
    SKU #0308217000BH

    Part #24Temperature Gauge Seat
    Length: 5.12Width: 3.25Height: 0.43

    $5.00

  • 25 - Regulator LP
    SKU #0119158000AW

    Part #25Regulator LP
    Length: 21.65Width: 2.53Height: 2.5

    $14.00

  • 26 - Main Control Panel
    SKU #120850003139

    Part #26Main Control Panel
    Length: 34.11Width: 2.66Height: 7.3

    $31.50

  • 27 - Light Switch
    SKU #2004115000AW

    Part #27Light Switch
    Length: 31.69Width: 0.87Height: 0.63

    $5.00

  • 28 - Led Light
    SKU #2001675000AW

    Part #28Led Light
    Length: 48.43Width: 10.24Height: 0.39

    $7.25

  • 29 - Main Burner Bezel
    SKU #0308031000AH

    Part #29Main Burner Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $3.50

  • 30 - Control Knob A
    SKU #120850003140

    Part #30Control Knob A
    Length: 2.28Width: 2.28Height: 1.61

    $5.88

  • 31 - Searing Side Burner Cooking Grid
    SKU #1021076901AE

    Part #31Searing Side Burner Cooking Grid
    Length: 13.76Width: 8.42Height: 0.88

    $17.40

  • 32 - Pulse Igniter Module
    SKU #2001648000AW

    Part #32Pulse Igniter Module
    Length: 2.64Width: 2.05Height: 2.64

    $9.36

  • 33 - Side Shelf
    SKU #120850000983

    Part #33Side Shelf
    Length: 17.8Width: 12.8Height: 7.2

    $21.28

  • 34 - Side Shelf Control Panel
    SKU #120850003146

    Part #34Side Shelf Control Panel
    Length: 12.83Width: 2.66Height: 7.3

    $23.52

  • 35 - Searing Side Burner Igniter Wire
    SKU #0127840000AP

    Part #35Searing Side Burner Igniter Wire
    Length: 9.13Width: 3.55Height: 1.19

    $4.90

  • 36 - Searing Side Burner
    SKU #20001486A0

    Part #36Searing Side Burner
    Length: 10.79Width: 5.47Height: 2.78

    $30.00

  • 37 - Searing Side Burner Lid Hinge Rod
    SKU #20002785A0

    Part #37Searing Side Burner Lid Hinge Rod
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 38 - Searing Side Burner Lid Hinge Rod Pin
    SKU #20002785A0

    Part #38Searing Side Burner Lid Hinge Rod Pin
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 39 - Searing Side Burner Lid
    SKU #0302049000AH

    Part #39Searing Side Burner Lid
    Length: 14.84Width: 0.79Height: 8.89

    $16.20

  • 40 - Searing Side Burner Bowl Assembly
    SKU #0127989000AP

    Part #40Searing Side Burner Bowl Assembly
    Length: 12.83Width: 2.66Height: 12.83

    $33.04

  • 41 - Ceramic Side Burner Control Panel
    SKU #120850003147

    Part #41Ceramic Side Burner Control Panel
    Length: 12.83Width: 2.66Height: 7.3

    $20.30

  • 42 - Control Knob B
    SKU #120850003140

    Part #42Control Knob B
    Length: 2.28Width: 2.28Height: 1.61

    $5.88

  • 43 - Utensil Hook
    SKU #0127212000AP

    Part #43Utensil Hook
    Length: 0.78Width: 0.75Height: 0.75

    $5.00

  • 44 - Side Panel Left
    SKU #120850003143

    Part #44Side Panel Left
    Length: 24.76Width: 18.39Height: 0.79

    $20.30

  • 45 - Battery Box
    SKU #1201143900AW

    Part #45Battery Box
    Length: 4.33Width: 2.36Height: 1.89

    $6.30

  • 46 - Swivel Caster with Brake
    SKU #2005064000AW

    Part #46Swivel Caster with Brake
    Length: 3.66Width: 3.26Height: 2.67

    $5.88

  • 47 - Swivel Caster
    SKU #2005031000AW

    Part #47Swivel Caster
    Length: 3.66Width: 3.26Height: 2.28

    $9.52

  • 48 - Bottom Panel
    SKU #120850003141

    Part #48Bottom Panel
    Length: 34.13Width: 20.08Height: 2.56

    $25.48

  • 49 - Rear Panel
    SKU #120870002773

    Part #49Rear Panel
    Length: 32.48Width: 11.77Height: 0.79

    $20.30

  • 50 - Caster
    SKU #2005033000AW

    Part #50Caster
    Length: 3.66Width: 2.32Height: 2.99

    $8.68

  • 51 - Side Panel Right
    SKU #120850003144

    Part #51Side Panel Right
    Length: 24.76Width: 18.39Height: 0.79

    $20.30

  • 52 - Cart Frame Front
    SKU #120850003145

    Part #52Cart Frame Front
    Length: 34Width: 1.38Height: 0.98

    $17.64

  • 53 - Door Hinge Fixed Plate Left
    SKU #120870002312

    Part #53Door Hinge Fixed Plate Left
    Length: 1.87Width: 0.87Height: 0.87

    $13.44

  • 54 - Door Magnet
    SKU #05000010A0

    Part #54Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 55 - Door Hinge Fixed Plate Right
    SKU #120870002313

    Part #55Door Hinge Fixed Plate Right
    Length: 1.87Width: 0.87Height: 0.87

    $12.88

  • 56 - Door Iron Piece
    SKU #0309368000AC

    Part #56Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.55

    $4.06

  • 57 - Triangle Bracket A
    SKU #120870002309

    Part #57Triangle Bracket A
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 58 - Triangle Bracket B
    SKU #120870002308

    Part #58Triangle Bracket B
    Length: 23.03Width: 19.96Height: 0.79

    $5.00

  • 59 - Lighting Rod
    SKU #05000011A0

    Part #59Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $5.00

  • 60 - Tank Bolt
    SKU #0127232000AP

    Part #60Tank Bolt
    Length: 5.1Width: 2.5Height: 2

    $6.44

  • 61 - Tank Frame Assembly
    SKU #120850003142

    Part #61Tank Frame Assembly
    Length: 12.33Width: 8.43Height: 1.28

    $15.82

  • 62 - Door Handle Assembly
    SKU #0125611000AP

    Part #62Door Handle Assembly
    Length: 9.84Width: 1Height: 3.18

    $2.73

  • 63 - Door Left
    SKU #0125407000AP

    Part #63Door Left
    Length: 22.91Width: 16.54Height: 0.79

    $22.20

  • 64 - Door Right
    SKU #0127257000AP

    Part #64Door Right
    Length: 22.91Width: 16.54Height: 0.79

    $22.20

  • 65 - Rotisserie Motor
    SKU #2004091001AW

    Part #65Rotisserie Motor
    Length: 4.72Width: 2.61Height: 3.54

    $24.00

  • 66 - Rotisserie Motor Bracket
    SKU #20002722A0

    Part #66Rotisserie Motor Bracket
    Length: 4.83Width: 3.35Height: 2.91

    $10.20

  • 67 - Spit Forks
    SKU #0904143002AW

    Part #67Spit Forks
    Length: 40Width: 0.4Height: 0.4

    $7.70

  • 68 - Shaft Collar
    SKU #0904042002AW

    Part #68Shaft Collar
    Length: 4.2Width: 3.6Height: 3.6

    $2.94

  • 69 - Spit Rod
    SKU #0904142002AW

    Part #69Spit Rod
    Length: 40Width: 0.4Height: 0.4

    $10.00

  • 70 - Searing Side Burner Grease Tray
    SKU #0211045902AQ

    Part #70Searing Side Burner Grease Tray
    Length: 15.66Width: 0.78Height: 4.4

    $17.50

  • 71 - Side Burner Igniter Connecting Wire
    SKU #2001589000AW

    Part #71Side Burner Igniter Connecting Wire
    Length: 47.24Width: 0.37Height: 0.12

    $7.00

  • 72 - NG Orifice Pack
    SKU #120850003150

    Part #72NG Orifice Pack
    Length: 0.02Width: 0.02Height: 0.02

    $5.00

  • 74 - K/D Hardware Pack
    SKU #120850003148

    Part #74K/D Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $2.94
