Replacement Parts For Nexgrill 720-0896 Sold at Home Depot USA in 2017

Find replacement grill parts for your 2017 Nexgrill 720-0896 Deluxe 5 Burner Propane Gas Grill with Sear Zone & Side Burner in Stainless Steel model number 720-0896 grill using the replacement parts diagram below. The Nexgrill 720-0896 grill was sold at Home Depot USA in 2017. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

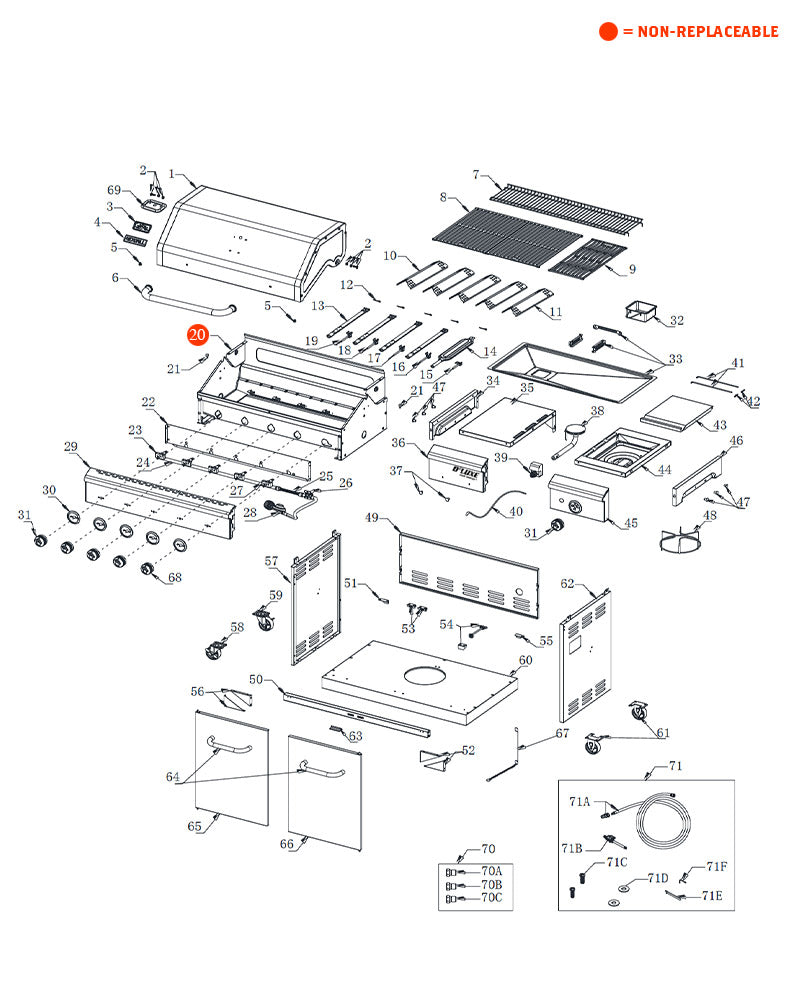

replacement grill parts for your Nexgrill 720-0896

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127198000AP

    Part #1Main Lid
    Length: 33.85Width: 18.13Height: 11.5

    $69.60

  • 2 - Main Lid Screw
    SKU #20002997A0

    Part #2Main Lid Screw
    Length: 0.95Width: 0.63Height: 0.63

    $5.00

  • 3 - Temperature Gauge
    SKU #2002059000AW

    Part #3Temperature Gauge
    Length: 3.74Width: 2.42Height: 1.85

    $5.76

  • 4 - Logo
    SKU #20002506A0

    Part #4Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 5 - Hood Buffer A
    SKU #1306050000AW

    Part #5Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $17.50

  • 6 - Main Lid Handle Assembly
    SKU #0127522000AP

    Part #6Main Lid Handle Assembly
    Length: 20.94Width: 3.96Height: 1.25

    $12.04

  • 7 - Warming Rack
    SKU #0903143900AE

    Part #7Warming Rack
    Length: 32.46Width: 1.38Height: 7.09

    $15.59

  • 8 - Straight Cooking Grid with Hole
    SKU #1021073901AE

    Part #8Straight Cooking Grid with Hole
    Length: 17.17Width: 12.64Height: 0.35

    $18.00

  • 9 - Wave Shape Cooking Grid
    SKU #1021075901AE

    Part #9Wave Shape Cooking Grid
    Length: 17.17Width: 8.27Height: 0.35

    $18.00

  • 10 - Flame Tamer A
    SKU #0315132000AC

    Part #10Flame Tamer A
    Length: 14.57Width: 3.35Height: 1.32

    $8.27

  • 11 - Flame Tamer B
    SKU #0406041900AE

    Part #11Flame Tamer B
    Length: 14.57Width: 3.35Height: 1.32

    $5.40

  • 12 & 13 - Main Burner & Burner Pin Assembly
    SKU #0127199000AP

    Part #12 & 13Main Burner & Burner Pin Assembly
    Length: 14.9Width: 1.3Height: 0.83

    $9.25

  • 14 - Pancake Burner
    SKU #0127200000AP

    Part #14Pancake Burner
    Length: 13.76Width: 2.72Height: 0.69

    $9.84

  • 15 - Main Burner Igniter Wire A
    SKU #0127224000AP

    Part #15Main Burner Igniter Wire A
    Length: 16.24Width: 1.3Height: 0.59

    $6.99

  • 16 - Main Burner Igniter Wire B
    SKU #2001664000AW

    Part #16Main Burner Igniter Wire B
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 17 - Main Burner Igniter Wire C
    SKU #2001666000AW

    Part #17Main Burner Igniter Wire C
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 18 - Main Burner Igniter Wire D
    SKU #2001668000AW

    Part #18Main Burner Igniter Wire D
    Length: 29.92Width: 1.18Height: 1.18

    $6.99

  • 19 - Main Burner Igniter Wire E
    SKU #2001670000AW

    Part #19Main Burner Igniter Wire E
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 21 - Hood Buffer B
    SKU #17000001A0

    Part #21Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 22 - Front Baffle
    SKU #0125321000AP

    Part #22Front Baffle
    Length: 33.94Width: 5.89Height: 2.17

    $21.00

  • 23 - Main Gas Valve A
    SKU #0120784000BW

    Part #23Main Gas Valve A
    Length: 2.91Width: 2.01Height: 2.01

    $20.45

  • 24 - Main Manifold
    SKU #0116206900AW

    Part #24Main Manifold
    Length: 29.13Width: 0.83Height: 0.75

    $35.00

  • 25 - Side Burner Flex Gas Line
    SKU #11000454A0

    Part #25Side Burner Flex Gas Line
    Length: 6.5Width: 0.75Height: 0.87

    $8.57

  • 26 - Side Burner Gas Valve
    SKU #0120792000AW

    Part #26Side Burner Gas Valve
    Length: 3.78Width: 3.37Height: 2.4

    $24.50

  • 27 - Main Gas Valve B
    SKU #0120785000BW

    Part #27Main Gas Valve B
    Length: 2.91Width: 2.01Height: 2.01

    $20.45

  • 28 - Regulator LP
    SKU #0119158000AW

    Part #28Regulator LP
    Length: 21.65Width: 2.53Height: 2.5

    $14.00

  • 29 - Main Control Panel
    SKU #0127539000AP

    Part #29Main Control Panel
    Length: 27.07Width: 7.2Height: 3.88

    $37.10

  • 30 - Main Burner Bezel
    SKU #14000023A0

    Part #30Main Burner Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 31 - Control Knob A
    SKU #0108069000AP

    Part #31Control Knob A
    Length: 1.94Width: 1.81Height: 1.25

    $5.22

  • 32 - Grease Box
    SKU #0145237901AQ

    Part #32Grease Box
    Length: 9.76Width: 0.59Height: 2.17

    $6.48

  • 33 - Grease Pan Assembly
    SKU #0127202000AP

    Part #33Grease Pan Assembly
    Length: 31.65Width: 14.25Height: 4.43

    $30.85

  • 34 - Side Shelf Trim Panel Left
    SKU #0208278501AQ

    Part #34Side Shelf Trim Panel Left
    Length: 17.72Width: 4.92Height: 0.78

    $11.76

  • 35 - Side Shelf
    SKU #0127203000AP

    Part #35Side Shelf
    Length: 17.72Width: 12.01Height: 0.98

    $13.80

  • 36 - Side Shelf Control Panel
    SKU #0145259501AS

    Part #36Side Shelf Control Panel
    Length: 12.83Width: 7.3Height: 2.66

    $14.40

  • 37 - Utensil Hook A
    SKU #0127212000AP

    Part #37Utensil Hook A
    Length: 0.78Width: 0.75Height: 0.75

    $5.00

  • 38 - Side Burner
    SKU #0117219000AP

    Part #38Side Burner
    Length: 10.62Width: 3.97Height: 3.89

    $8.64

  • 39 - Pulse Igniter Module
    SKU #07800057A0

    Part #39Pulse Igniter Module
    Length: 2.78Width: 2.67Height: 2.05

    $8.99

  • 40 - Side Burner Igniter Wire
    SKU #2001649000AW

    Part #40Side Burner Igniter Wire
    Length: 13.77Width: 3.54Height: 0.91

    $6.99

  • 41 & 42 - Side Burner Lid Hinge Rod & Pin
    SKU #20003125A0

    Part #41 & 42Side Burner Lid Hinge Rod & Pin
    Length: 5.43Width: 0.79Height: 8.19

    $5.00

  • 43 - Side Burner Lid
    SKU #0202033501AQ

    Part #43Side Burner Lid
    Length: 12.5Width: 9.55Height: 0.78

    $15.60

  • 44 - Side Burner Bowl Assembly
    SKU #0127204000AP

    Part #44Side Burner Bowl Assembly
    Length: 17.72Width: 12.01Height: 3.09

    $30.00

  • 45 - Side Burner Control Panel
    SKU #0125661000AP

    Part #45Side Burner Control Panel
    Length: 13.91Width: 7.2Height: 0.03

    $35.00

  • 46 - Side Shelf Trim Panel Right
    SKU #0208279501AQ

    Part #46Side Shelf Trim Panel Right
    Length: 17.72Width: 4.92Height: 0.78

    $10.68

  • 47 - Utensil Hook B
    SKU #0127213000AP

    Part #47Utensil Hook B
    Length: 0.78Width: 0.75Height: 0.75

    $5.00

  • 48 - Side Burner Cooking Grid
    SKU #13000606A0

    Part #48Side Burner Cooking Grid
    Length: 8.42Width: 8.42Height: 2

    $30.62

  • 49 - Rear Panel
    SKU #0145274501AQ

    Part #49Rear Panel
    Length: 25.43Width: 11.81Height: 0.79

    $18.72

  • 50 - Cart Frame Front
    SKU #0127205000AP

    Part #50Cart Frame Front
    Length: 34Width: 1.38Height: 0.98

    $14.16

  • 51 - Door Hinge Fixed Plate Left
    SKU #0210246501AQ

    Part #51Door Hinge Fixed Plate Left
    Length: 1.87Width: 0.87Height: 0.87

    $5.85

  • 52 - Triangle Bracket A
    SKU #0212343505AQ

    Part #52Triangle Bracket A
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 53 - Door Magnet
    SKU #05000010A0

    Part #53Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 54 - Tank Bolt
    SKU #0127206000AP

    Part #54Tank Bolt
    Length: 5.94Width: 1.6Height: 0.87

    $6.44

  • 55 - Door Hinge Fixed Plate Right
    SKU #0210247501AQ

    Part #55Door Hinge Fixed Plate Right
    Length: 1.87Width: 0.87Height: 0.87

    $6.76

  • 56 - Triangle Bracket B
    SKU #0212342505AQ

    Part #56Triangle Bracket B
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 57 - Side Panel Left
    SKU #0127630000AP

    Part #57Side Panel Left
    Length: 24.53Width: 19.69Height: 0.79

    $23.52

  • 58 - Swivel Caster
    SKU #05001574A0

    Part #58Swivel Caster
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 59 - Swivel Caster with Brake
    SKU #05000733A0

    Part #59Swivel Caster with Brake
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 60 - Bottom Panel
    SKU #0127526000AP

    Part #60Bottom Panel
    Length: 27.05Width: 19.29Height: 2.56

    $37.52

  • 61 - Caster
    SKU #05000734A0

    Part #61Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 62 - Side Panel Right
    SKU #0127631000AP

    Part #62Side Panel Right
    Length: 24.53Width: 19.69Height: 0.79

    $23.52

  • 63 - Door Iron Piece
    SKU #04007695A0

    Part #63Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.93

    $4.99

  • 64 - Door Handle Assembly
    SKU #0125612000AP

    Part #64Door Handle Assembly
    Length: 0.54Width: 0.41Height: 1.54

    $9.10

  • 65 - Door Left
    SKU #0125334000AP

    Part #65Door Left
    Length: 22.91Width: 16.54Height: 0.71

    $20.16

  • 66 - Door Right
    SKU #0127211000AP

    Part #66Door Right
    Length: 22.91Width: 16.54Height: 0.71

    $20.16

  • 67 - Lighting Rod
    SKU #0904133081AW

    Part #67Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 68 - Control Knob B
    SKU #0108070000AP

    Part #68Control Knob B
    Length: 2.28Width: 1.26Height: 2.28

    $7.00

  • 69 - Temperature Gauge Housing
    SKU #0308217000BH

    Part #69Temperature Gauge Housing
    Length: 5.12Width: 3.25Height: 0.43

    $5.00

  • 70 - NG Orifice Pack
    SKU #2006438000AP

    Part #70NG Orifice Pack
    Length: 0.02Width: 0.02Height: 0.02

    $5.00

  • 72 - K/D Hardware Pack
    SKU #2006430000AP

    Part #72K/D Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $4.90

  • 73 - Manual
    SKU #19000586A3

    Part #73Manual
    Length: 12.8Width: 8.66Height: 1.57

    $5.00
