Replacement Parts For Nexgrill 720-0888S Sold at Home Depot USA in 2021

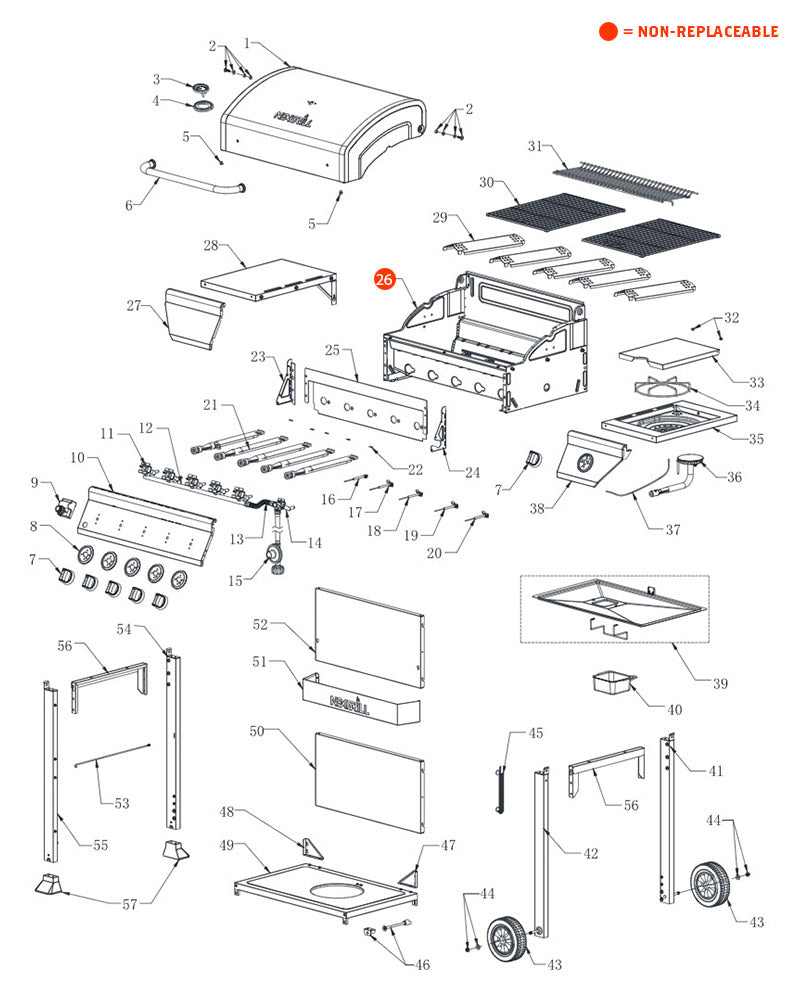

Find replacement grill parts for your 2021 Nexgrill 720-0888S 5 Burner Propane Gas Grill with Side Burner & Condiment Rack in Black/Stainless Steel model number 720-0888S grill using the replacement parts diagram below. The Nexgrill 720-0888S grill was sold at Home Depot USA in 2021. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual
720-0888S

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850002524

    Part #1Main Lid
    Length: 27.17Width: 17.9Height: 10.3

    $50.12

  • 2 - Main Lid Screws
    SKU #0127507000AP

    Part #2Main Lid Screws
    Length: 0.94Width: 0.94Height: 0.63

    $5.00

  • 3 - Temperature Gauge
    SKU #20002403A0

    Part #3Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $5.76

  • 4 - Temperature Gauge Housing
    SKU #05000742A0

    Part #4Temperature Gauge Housing
    Length: 3.58Width: 2.52Height: 0.28

    $5.00

  • 5 - Hood Buffer A
    SKU #17000106A0

    Part #5Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 6 - Main Lid Handle Assembly
    SKU #0127472000AP

    Part #6Main Lid Handle Assembly
    Length: 0.95Width: 0.63Height: 0.63

    $12.04

  • 7 - Control Knob
    SKU #120850002533

    Part #7Control Knob
    Length: 1.94Width: 1.81Height: 1.25

    $4.48

  • 8 - Bezel
    SKU #14000213A0

    Part #8Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.24

  • 9 - Pulse Igniter Module
    SKU #120870002283

    Part #9Pulse Igniter Module
    Length: 2.64Width: 2Height: 2.63

    $5.60

  • 10 - Main Control Panel
    SKU #120850002532

    Part #10Main Control Panel
    Length: 27.07Width: 3.35Height: 6.46

    $32.90

  • 11 - Main Gas Valve
    SKU #0120742000BW

    Part #11Main Gas Valve
    Length: 4.22Width: 1.91Height: 1.56

    $20.45

  • 12 - Main Manifold
    SKU #11000891A0

    Part #12Main Manifold
    Length: 23.15Width: 0.86Height: 0.75

    $35.00

  • 13 - Side Burner Flex Gas Line
    SKU #11000454A0

    Part #13Side Burner Flex Gas Line
    Length: 6.5Width: 0.75Height: 0.87

    $8.57

  • 14 - Side Burner Gas Valve
    SKU #0120850000AW

    Part #14Side Burner Gas Valve
    Length: 4.252Width: 3.15Height: 2.835

    $25.20

  • 15 - LP Regulator
    SKU #09000262A0

    Part #15LP Regulator
    Length: 26.18Width: 2.97Height: 2.9

    $22.84

  • 16 - Main Burner Igniter Wire A L=200mm
    SKU #120850002527

    Part #16Main Burner Igniter Wire A L=200mm
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 16 - Main Burner Igniter Wire A
    SKU #120850002527

    Part #16Main Burner Igniter Wire A
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 17 - Main Burner Igniter Wire B L=330mm
    SKU #120850002528

    Part #17Main Burner Igniter Wire B L=330mm
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 17 - Main Burner Igniter Wire B
    SKU #120850002528

    Part #17Main Burner Igniter Wire B
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 18 - Main Burner Igniter Wire C L=475mm
    SKU #120850002529

    Part #18Main Burner Igniter Wire C L=475mm
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 18 - Main Burner Igniter Wire C
    SKU #120850002529

    Part #18Main Burner Igniter Wire C
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 19 - Main Burner Igniter Wire D L=600mm
    SKU #120850002530

    Part #19Main Burner Igniter Wire D L=600mm
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 19 - Main Burner Igniter Wire D
    SKU #120850002530

    Part #19Main Burner Igniter Wire D
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 20 - Main Burner Igniter Wire E L=710mm
    SKU #120850002531

    Part #20Main Burner Igniter Wire E L=710mm
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 20 - Main Burner Igniter Wire E
    SKU #120850002531

    Part #20Main Burner Igniter Wire E
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 21 & 22 - Main Burner & Burner Pin Assembly
    SKU #120850002526

    Part #21 & 22Main Burner & Burner Pin Assembly
    Length: 14.84Width: 2.02Height: 1.04

    $9.25

  • 23 - Left Panel of Main Control Panel
    SKU #120870002281

    Part #23Left Panel of Main Control Panel
    Length: 6.73Width: 3.25Height: 0.81

    $8.61

  • 24 - Right Panel of Main Control Panel
    SKU #120870000900

    Part #24Right Panel of Main Control Panel
    Length: 6.73Width: 3.25Height: 0.81

    $20.30

  • 25 - Front Baffle
    SKU #120870002282

    Part #25Front Baffle
    Length: 26.77Width: 7.15Height: 1.02

    $21.00

  • 27 - Side Shelf Control Panel Left
    SKU #0151489000AP

    Part #27Side Shelf Control Panel Left
    Length: 12Width: 6.89Height: 4.4

    $30.00

  • 28 - Side Shelf Left
    SKU #120850002541

    Part #28Side Shelf Left
    Length: 17.7Width: 12Height: 4.84

    $25.48

  • 29 - Flame Tamer
    SKU #04007620A0

    Part #29Flame Tamer
    Length: 14.567Width: 4.331Height: 1.417

    $7.00

  • 30 - Cooking Grid with Hole
    SKU #13000421A0

    Part #30Cooking Grid with Hole
    Length: 17.21Width: 13.23Height: 0.35

    $45.99

  • 31 - Warming Rack
    SKU #120870002284

    Part #31Warming Rack
    Length: 25.59Width: 6.93Height: 0.98

    $13.44

  • 32 & 35 - Side Burner Bowl Assembly & M4 Stepped Screw
    SKU #120850002543

    Part #32 & 35Side Burner Bowl Assembly & M4 Stepped Screw
    Length: 17.7Width: 12Height: 4.84

    $31.64

  • 33 - Side Burner Lid
    SKU #120870002286

    Part #33Side Burner Lid
    Length: 12.49Width: 8.41Height: 0.78

    $19.04

  • 34 - Side Burner Cooking Grid
    SKU #120870002285

    Part #34Side Burner Cooking Grid
    Length: 8.45Width: 8.45Height: 1.54

    $13.20

  • 36 - Side Burner Assembly
    SKU #120850001124

    Part #36Side Burner Assembly
    Length: 10.57Width: 4.72Height: 3.4

    $28.00

  • 37 - Side Burner Igniter Wire
    SKU #07000803A0

    Part #37Side Burner Igniter Wire
    Length: 39.37Width: 3.54Height: 0.91

    $6.99

  • 38 - Side Burner Control Panel Right
    SKU #120850002544

    Part #38Side Burner Control Panel Right
    Length: 12Width: 6.89Height: 4.77

    $15.59

  • 39 - Grease Tray Assembly
    SKU #120850002540

    Part #39Grease Tray Assembly
    Length: 24.5Width: 14.25Height: 5.63

    $8.91

  • 40 - Grease Cup
    SKU #120870001716

    Part #40Grease Cup
    Length: 10.44Width: 5.16Height: 2.17

    $8.92

  • 41 - Cart Leg Rear Right
    SKU #120850002537

    Part #41Cart Leg Rear Right
    Length: 27.22Width: 3.19Height: 2

    $16.66

  • 42 - Cart Leg Front Right
    SKU #120850002536

    Part #42Cart Leg Front Right
    Length: 27.22Width: 3.19Height: 2

    $16.66

  • 43 & 44 - Wheel & Wheel Screw Assembly
    SKU #20003119A0

    Part #43 & 44Wheel & Wheel Screw Assembly
    Length: 6.8Width: 6.8Height: 1.98

    $12.00

  • 45 - Lighting Rod
    SKU #05001137A0

    Part #45Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 46 - Tank Bolt
    SKU #120850002546

    Part #46Tank Bolt
    Length: 4.96Width: 1.57Height: 0.87

    $6.44

  • 47 - Triangle Bracket Right
    SKU #120870001360

    Part #47Triangle Bracket Right
    Length: 6.8Width: 6.8Height: 1.98

    $6.00

  • 48 - Triangle Bracket Left
    SKU #120870001359

    Part #48Triangle Bracket Left
    Length: 3.5Width: 2.64Height: 2.32

    $9.52

  • 49 - Bottom Panel
    SKU #120850002538

    Part #49Bottom Panel
    Length: 24.53Width: 15.67Height: 1.93

    $35.28

  • 50 - Front Panel A
    SKU #120870001332

    Part #50Front Panel A
    Length: 23.07Width: 11.59Height: 0.8

    $22.96

  • 51 - Condiment Box
    SKU #120850002539

    Part #51Condiment Box
    Length: 22.83Width: 3.95Height: 3.39

    $4.56

  • 52 - Front Panel B
    SKU #120870002289

    Part #52Front Panel B
    Length: 23.07Width: 11.59Height: 0.8

    $18.00

  • 53 - Second Tank Wire
    SKU #120870002288

    Part #53Second Tank Wire
    Length: 16.58Width: 0.49Height: 0.14

    $6.99

  • 54 - Cart Leg Rear Left
    SKU #120850002535

    Part #54Cart Leg Rear Left
    Length: 28.68Width: 2Height: 1

    $10.00

  • 55 - Cart Leg Front Left
    SKU #120850002534

    Part #55Cart Leg Front Left
    Length: 28.68Width: 2Height: 1

    $10.00

  • 56 - Cart Frame Assembly
    SKU #120870002290

    Part #56Cart Frame Assembly
    Length: 15.67Width: 1Height: 4.95

    $16.10

  • 57 - Cart Caster Insert
    SKU #1201134000AW

    Part #57Cart Caster Insert
    Length: 3.5Width: 2.64Height: 2.32

    $8.42

  • 59 - Hardware Pack
    SKU #120850002545

    Part #59Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $6.00
