Replacement Parts For Nexgrill 720-0888N Sold at Home Depot USA in 2018

Find replacement grill parts for your 2018 Nexgrill 720-0888N 5 Burner Propane Gas Grill with Side Burner in Black/Stainless Steel model number 720-0888N grill using the replacement parts diagram below. The Nexgrill 720-0888N grill was sold at Home Depot USA in 2018. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

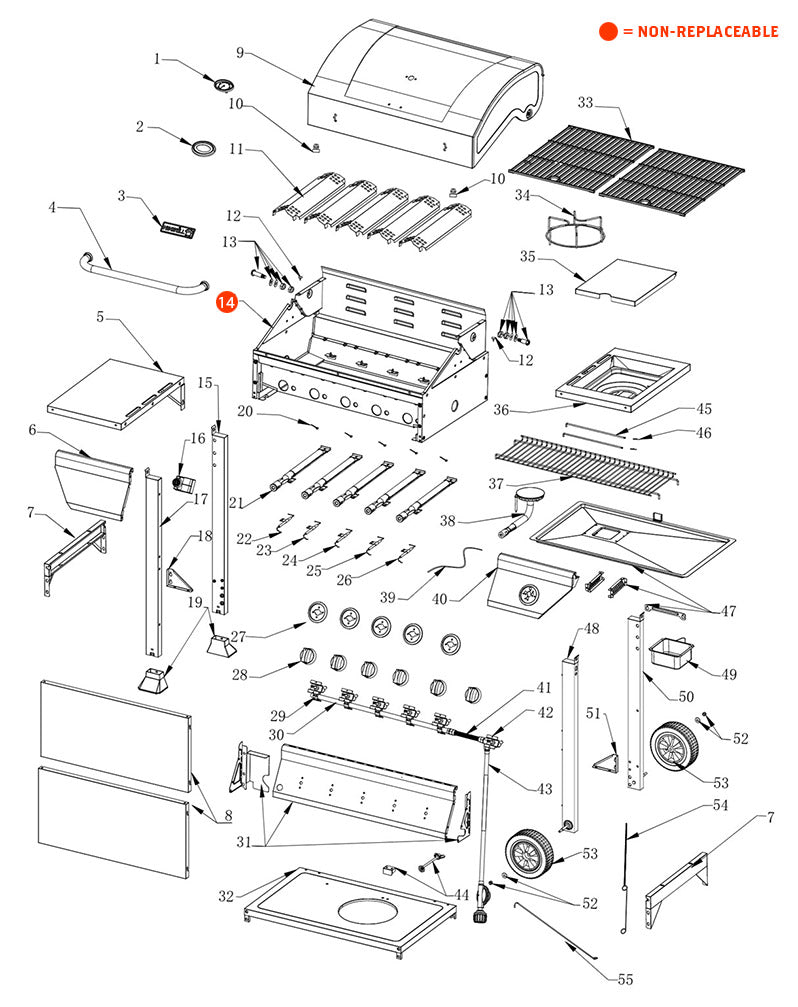

replacement grill parts for your Nexgrill 720-0888N

Manual No. / Part

Price Each

Qty

  • 1 - Temperature Gauge
    SKU #05000572A0

    Part #1Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $14.00

  • 2 - Temperature Gauge Housing
    SKU #05000742A0

    Part #2Temperature Gauge Housing
    Length: 3.58Width: 2.52Height: 0.28

    $5.00

  • 3 - Logo
    SKU #20002506A0

    Part #3Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 4 - Main Lid Handle Assembly
    SKU #0127485000AP

    Part #4Main Lid Handle Assembly
    Length: 18.9Width: 3.23Height: 1.38

    $12.04

  • 5 - Side Shelf Left
    SKU #0127486000AP

    Part #5Side Shelf Left
    Length: 12.01Width: 17.72Height: 1.18

    $18.72

  • 6 - Side Shelf Control Panel
    SKU #0151489000AP

    Part #6Side Shelf Control Panel
    Length: 12Width: 6.89Height: 4.4

    $30.00

  • 7 - Cart Frame Assembly
    SKU #20003318A0

    Part #7Cart Frame Assembly
    Length: 15.67Width: 5.12Height: 0.79

    $13.44

  • 8 - Front Panel
    SKU #04007673A0

    Part #8Front Panel
    Length: 23.94Width: 11.59Height: 0.81

    $9.04

  • 9 - Main Lid
    SKU #0127487000AP

    Part #9Main Lid
    Length: 27.95Width: 17.55Height: 10.69

    $112.00

  • 10 - Hood Buffer A
    SKU #17000106A0

    Part #10Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 11 - Flame Tamer
    SKU #04007620A0

    Part #11Flame Tamer
    Length: 14.567Width: 4.331Height: 1.417

    $7.00

  • 12 - Hood Buffer B
    SKU #17000001A0

    Part #12Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 13 - Main Lid Screw
    SKU #0127488000AP

    Part #13Main Lid Screw
    Length: 1Width: 0.63Height: 0.94

    $5.00

  • 15 - Cart Leg Rear Left
    SKU #0127181000AP

    Part #15Cart Leg Rear Left
    Length: 28.68Width: 2Height: 1

    $10.00

  • 16 - Pulse Igniter Module
    SKU #07800057A0

    Part #16Pulse Igniter Module
    Length: 2.78Width: 2.67Height: 2.05

    $8.99

  • 17 - Cart Leg Front Left
    SKU #20003313A0

    Part #17Cart Leg Front Left
    Length: 28.68Width: 2Height: 1

    $12.04

  • 18 - Triangle Bracket Left
    SKU #04007675A0

    Part #18Triangle Bracket Left
    Length: 3.94Width: 2.56Height: 0.51

    $5.00

  • 19 - Cart Caster Insert
    SKU #1201134000AW

    Part #19Cart Caster Insert
    Length: 3.5Width: 2.64Height: 2.32

    $8.42

  • 20 & 21 - Main Burner & Burner Pin Assembly
    SKU #20003087A0

    Part #20 & 21Main Burner & Burner Pin Assembly
    Length: 14.96Width: 1.97Height: 0.04

    $9.25

  • 22 - Main Burner Igniter Wire A
    SKU #10001728A0

    Part #22Main Burner Igniter Wire A
    Length: 10.7Width: 1.19Height: 3.5

    $6.99

  • 23 - Main Burner Igniter Wire B
    SKU #10001729A0

    Part #23Main Burner Igniter Wire B
    Length: 16.77Width: 1.22Height: 0.32

    $6.99

  • 24 - Main Burner Igniter Wire C
    SKU #10001730A0

    Part #24Main Burner Igniter Wire C
    Length: 22.84Width: 1.22Height: 0.32

    $6.99

  • 25 - Main Burner Igniter Wire D
    SKU #10001731A0

    Part #25Main Burner Igniter Wire D
    Length: 26.46Width: 1.22Height: 0.32

    $6.99

  • 26 - Main Burner Igniter Wire E
    SKU #10001732A0

    Part #26Main Burner Igniter Wire E
    Length: 32.56Width: 1.22Height: 0.32

    $6.99

  • 27 - Bezel
    SKU #14000023A0

    Part #27Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 28 - Control Knob
    SKU #14000062A0

    Part #28Control Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.09

  • 29 - Main Gas Valve
    SKU #0120742000BW

    Part #29Main Gas Valve
    Length: 4.22Width: 1.91Height: 1.56

    $20.45

  • 30 - Main Manifold
    SKU #11000891A0

    Part #30Main Manifold
    Length: 23.15Width: 0.86Height: 0.75

    $35.00

  • 31 - Main Control Panel
    SKU #0127489000AP

    Part #31Main Control Panel
    Length: 28Width: 6.9Height: 3.35

    $22.20

  • 32 - Bottom Panel
    SKU #0125275000AP

    Part #32Bottom Panel
    Length: 25.4Width: 15.67Height: 1.93

    $25.80

  • 33 - Cooking Grid with Hole
    SKU #13000384A1

    Part #33Cooking Grid with Hole
    Length: 17.17Width: 13.74Height: 0.35

    $13.51

  • 34 - Side Burner Cooking Grid
    SKU #13000606A0

    Part #34Side Burner Cooking Grid
    Length: 8.42Width: 8.42Height: 2

    $30.62

  • 35 - Side Burner Lid
    SKU #0302053001AS

    Part #35Side Burner Lid
    Length: 12.5Width: 9.55Height: 0.75

    $23.52

  • 36 - Side Burner Bowl Assembly
    SKU #0127490000AP

    Part #36Side Burner Bowl Assembly
    Length: 17.72Width: 12Height: 5

    $27.00

  • 37 - Warming Rack
    SKU #13000925A0

    Part #37Warming Rack
    Length: 26.63Width: 7.08Height: 1.38

    $8.00

  • 38 - Side Burner
    SKU #0117219000AP

    Part #38Side Burner
    Length: 10.62Width: 3.97Height: 3.89

    $8.64

  • 39 - Side Burner Igniter Wire
    SKU #07000803A0

    Part #39Side Burner Igniter Wire
    Length: 39.37Width: 3.54Height: 0.91

    $6.99

  • 40 - Side Burner Control Panel
    SKU #0125695000AP

    Part #40Side Burner Control Panel
    Length: 12Width: 6.89Height: 4.4

    $15.36

  • 41 - Side Burner Flex Gas Line
    SKU #11000464A0

    Part #41Side Burner Flex Gas Line
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 42 - Side Burner Gas Valve
    SKU #0120850000AW

    Part #42Side Burner Gas Valve
    Length: 4.252Width: 3.15Height: 2.835

    $25.20

  • 43 - Regulator LP
    SKU #0119160000AW

    Part #43Regulator LP
    Length: 21.65Width: 2.53Height: 2.5

    $13.80

  • 44 - Tank Bolt
    SKU #20003108A0

    Part #44Tank Bolt
    Length: 6.26Width: 1.69Height: 2.56

    $6.44

  • 45 & 46 - Side Burner Lid Hinge Rod & Pin
    SKU #0126169000AP

    Part #45 & 46Side Burner Lid Hinge Rod & Pin
    Length: 9.92Width: 0.47Height: 0.16

    $5.40

  • 47 - Grease Tray
    SKU #20003122A0

    Part #47Grease Tray
    Length: 25.56Width: 14.25Height: 3.82

    $10.91

  • 48 - Cart Leg Front Right
    SKU #0127183000AP

    Part #48Cart Leg Front Right
    Length: 27.38Width: 2Height: 3.19

    $7.20

  • 49 - Grease Cup
    SKU #0145237902AQ

    Part #49Grease Cup
    Length: 7.6Width: 5.16Height: 2.17

    $7.54

  • 50 - Cart Leg Rear Right
    SKU #0127182000AP

    Part #50Cart Leg Rear Right
    Length: 27.38Width: 2Height: 3.19

    $7.20

  • 51 - Triangle Bracket Right
    SKU #04007674A0

    Part #51Triangle Bracket Right
    Length: 3.94Width: 2.56Height: 0.51

    $5.00

  • 52 & 53 - Wheel & Wheel Screw
    SKU #20003119A0

    Part #52 & 53Wheel & Wheel Screw
    Length: 6.8Width: 6.8Height: 1.98

    $12.00

  • 54 - Lighting Rod
    SKU #0904133081AW

    Part #54Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 55 - Second Tank Wire
    SKU #0907069901AQ

    Part #55Second Tank Wire
    Length: 18.81Width: 0.5Height: 0.5

    $6.99

  • 57 - Hardware Pack
    SKU #2006444000AP

    Part #57Hardware Pack
    Length: 6.22Width: 4.6Height: 3.8

    $3.84
