Replacement Parts For Nexgrill 720-0888B Sold at Bi-Mart Corporation USA in 2017

Find replacement grill parts for your 2017 Nexgrill 720-0888B 5 Burner Propane Gas Grill with Side Burner in Stainless Steel model number 720-0888B grill using the replacement parts diagram below. The Nexgrill 720-0888B grill was sold at Bi-Mart Corporation USA in 2017. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

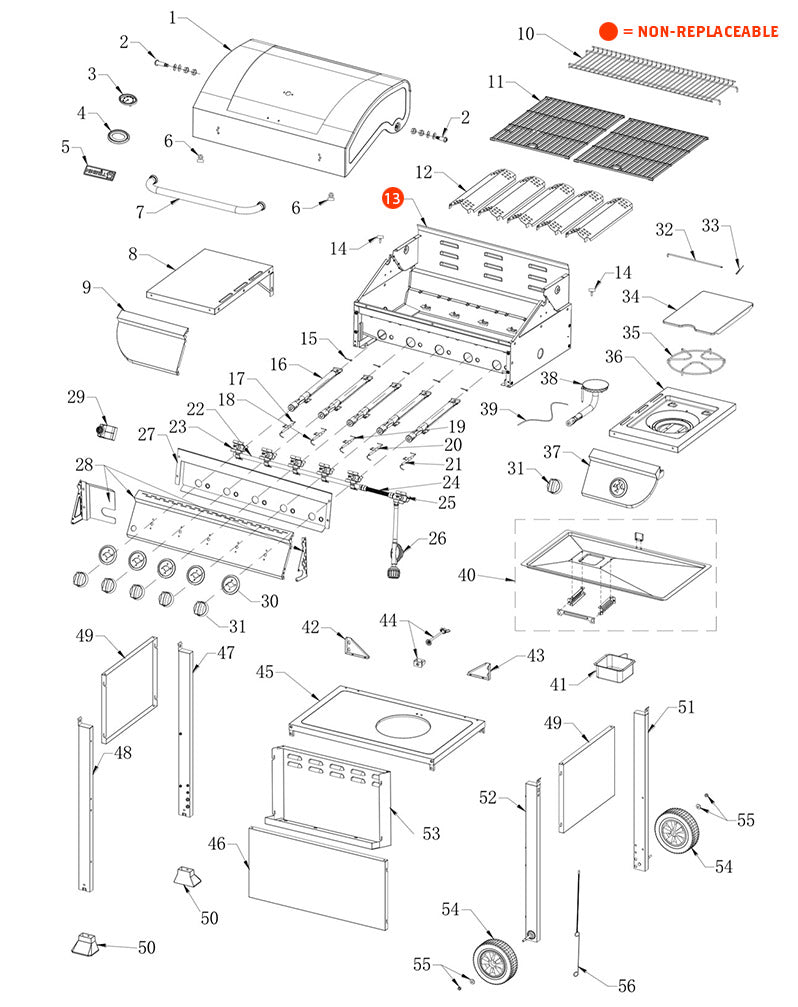

replacement grill parts for your Nexgrill 720-0888B

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127487000AP

    Part #1Main Lid
    Length: 27.95Width: 17.55Height: 10.69

    $112.00

  • 2 - Main Lid Screw
    SKU #20002991A0

    Part #2Main Lid Screw
    Length: 0.95Width: 0.63Height: 0.63

    $5.00

  • 3 - Temperature Gauge
    SKU #05000572A0

    Part #3Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $14.00

  • 4 - Temperature Gauge Housing
    SKU #05000742A0

    Part #4Temperature Gauge Housing
    Length: 3.58Width: 2.52Height: 0.28

    $5.00

  • 5 - Logo
    SKU #20002506A0

    Part #5Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 6 - Hood Buffer A
    SKU #17000106A0

    Part #6Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 7 - Main Lid Handle Assembly
    SKU #0127485000AP

    Part #7Main Lid Handle Assembly
    Length: 18.9Width: 3.23Height: 1.38

    $12.04

  • 8 - Side Shelf Assembly
    SKU #20003109A0

    Part #8Side Shelf Assembly
    Length: 17.71Width: 12Height: 4.76

    $32.00

  • 9 - Side Shelf Control Panel Left
    SKU #0145164901AQ

    Part #9Side Shelf Control Panel Left
    Length: 12.57Width: 7.48Height: 2.76

    $12.60

  • 10 - Warming Rack
    SKU #13000925A0

    Part #10Warming Rack
    Length: 26.63Width: 7.08Height: 1.38

    $8.00

  • 11 - Cooking Grid with Hole
    SKU #13000384A1

    Part #11Cooking Grid with Hole
    Length: 17.17Width: 13.74Height: 0.35

    $13.51

  • 12 - Flame Tamer
    SKU #04007620A0

    Part #12Flame Tamer
    Length: 14.567Width: 4.331Height: 1.417

    $7.00

  • 14 - Hood Buffer B
    SKU #17000001A0

    Part #14Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 15 & 16 - Main Burner & Burner Pin Assembly
    SKU #20003087A0

    Part #15 & 16Main Burner & Burner Pin Assembly
    Length: 14.96Width: 1.97Height: 0.04

    $9.25

  • 17 - Main Burner Igniter Wire A
    SKU #10001728A0

    Part #17Main Burner Igniter Wire A
    Length: 10.7Width: 1.19Height: 3.5

    $6.99

  • 18 - Main Burner Igniter Wire B
    SKU #10001729A0

    Part #18Main Burner Igniter Wire B
    Length: 16.77Width: 1.22Height: 0.32

    $6.99

  • 19 - Main Burner Igniter Wire C
    SKU #10001730A0

    Part #19Main Burner Igniter Wire C
    Length: 22.84Width: 1.22Height: 0.32

    $6.99

  • 20 - Main Burner Igniter Wire D
    SKU #10001731A0

    Part #20Main Burner Igniter Wire D
    Length: 26.46Width: 1.22Height: 0.32

    $6.99

  • 21 - Main Burner Igniter Wire E
    SKU #10001732A0

    Part #21Main Burner Igniter Wire E
    Length: 32.56Width: 1.22Height: 0.32

    $6.99

  • 22 - Main Manifold Assembly
    SKU #11000891A0

    Part #22Main Manifold Assembly
    Length: 23.15Width: 0.86Height: 0.75

    $35.00

  • 23 - Main Gas Valve Assembly
    SKU #0120742000BW

    Part #23Main Gas Valve Assembly
    Length: 4.22Width: 1.91Height: 1.56

    $20.45

  • 24 - Sear Side Burner Flex Gas Line
    SKU #11000464A0

    Part #24Sear Side Burner Flex Gas Line
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 25 - Side Burner Gas Valve
    SKU #0120850000AW

    Part #25Side Burner Gas Valve
    Length: 4.252Width: 3.15Height: 2.835

    $25.20

  • 26 - Regulator LP
    SKU #09000262A0

    Part #26Regulator LP
    Length: 26.18Width: 2.97Height: 2.9

    $22.84

  • 27 - Front Baffle
    SKU #0503407000AC

    Part #27Front Baffle
    Length: 26.91Width: 5.35Height: 0.61

    $42.00

  • 28 - Main Control Panel
    SKU #0127764000AP

    Part #28Main Control Panel
    Length: 27.07Width: 7.2Height: 3.88

    $59.99

  • 29 - Pulse Igniter Module
    SKU #07800057A0

    Part #29Pulse Igniter Module
    Length: 2.78Width: 2.67Height: 2.05

    $8.99

  • 30 - Bezel
    SKU #14000023A0

    Part #30Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 31 - Main Burner Knob
    SKU #14000062A0

    Part #31Main Burner Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.09

  • 32 & 33 - Side Burner Lid Hinge Rod & Pin
    SKU #20002471A0

    Part #32 & 33Side Burner Lid Hinge Rod & Pin
    Length: 9.76Width: 0.59Height: 0.16

    $5.00

  • 34 - Side Burner Lid
    SKU #0202052903AS

    Part #34Side Burner Lid
    Length: 12.5Width: 9.55Height: 0.78

    $10.00

  • 35 - Side Burner Cooking Grid
    SKU #13000922A0

    Part #35Side Burner Cooking Grid
    Length: 8.86Width: 8.86Height: 0.91

    $7.39

  • 36 - Side Burner Bowl Assembly
    SKU #0127131000AP

    Part #36Side Burner Bowl Assembly
    Length: 17.7Width: 12Height: 4.76

    $28.20

  • 37 - Side Burner Control Panel
    SKU #0170034000AP

    Part #37Side Burner Control Panel
    Length: 13.91Width: 7.2Height: 0.03

    $35.00

  • 38 - Side Burner
    SKU #20003414A0

    Part #38Side Burner
    Length: 10.57Width: 4.72Height: 3.4

    $6.31

  • 39 - Side Burner Igniter Wire
    SKU #07000803A0

    Part #39Side Burner Igniter Wire
    Length: 39.37Width: 3.54Height: 0.91

    $6.99

  • 40 - Grease Tray
    SKU #20003113A0

    Part #40Grease Tray
    Length: 7.6Width: 5.16Height: 4.06

    $10.61

  • 41 - Grease Cup
    SKU #0145237901AQ

    Part #41Grease Cup
    Length: 9.76Width: 0.59Height: 2.17

    $6.48

  • 42 - Triangle Bracket Left
    SKU #04007675A0

    Part #42Triangle Bracket Left
    Length: 3.94Width: 2.56Height: 0.51

    $5.00

  • 43 - Triangle Bracket Right
    SKU #04007674A0

    Part #43Triangle Bracket Right
    Length: 3.94Width: 2.56Height: 0.51

    $5.00

  • 44 - Tank Bolt
    SKU #20003108A0

    Part #44Tank Bolt
    Length: 6.26Width: 1.69Height: 2.56

    $6.44

  • 45 - Bottom Panel
    SKU #0124903000AP

    Part #45Bottom Panel
    Length: 27.05Width: 19.29Height: 2.56

    $33.75

  • 46 - Front Panel
    SKU #04007673A0

    Part #46Front Panel
    Length: 23.94Width: 11.59Height: 0.81

    $9.04

  • 47 - Cart Leg Rear Left
    SKU #20003106A0

    Part #47Cart Leg Rear Left
    Length: 28.68Width: 2Height: 1

    $12.04

  • 48 - Cart Leg Front Left
    SKU #0127130000AP

    Part #48Cart Leg Front Left
    Length: 28.68Width: 2Height: 1

    $12.04

  • 49 - Cart Frame Assembly
    SKU #0205183901AQ

    Part #49Cart Frame Assembly
    Length: 15.67Width: 5.12Height: 0.79

    $13.44

  • 50 - Cart Caster Insert
    SKU #17000334A0

    Part #50Cart Caster Insert
    Length: 3.5Width: 2.64Height: 2.32

    $8.42

  • 51 - Cart Leg Rear Right
    SKU #0127132000AP

    Part #51Cart Leg Rear Right
    Length: 27.38Width: 2Height: 3.19

    $16.00

  • 52 - Cart Leg Front Right
    SKU #0127133000AP

    Part #52Cart Leg Front Right
    Length: 27.14Width: 3.39Height: 1.18

    $6.30

  • 53 - Condiment Tray
    SKU #0211136901AQ

    Part #53Condiment Tray
    Length: 27.99Width: 11.54Height: 3.94

    $10.98

  • 54 & 55 - Caster & Caster Screw
    SKU #20003119A0

    Part #54 & 55Caster & Caster Screw
    Length: 6.8Width: 6.8Height: 1.98

    $12.00

  • 56 - Lighting Rod
    SKU #0904133081AW

    Part #56Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 58 - Hardware Pack
    SKU #2006497000AP

    Part #58Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $6.72
