Replacement Parts For Nexgrill 720-0888A Sold at Home Depot USA in 2018

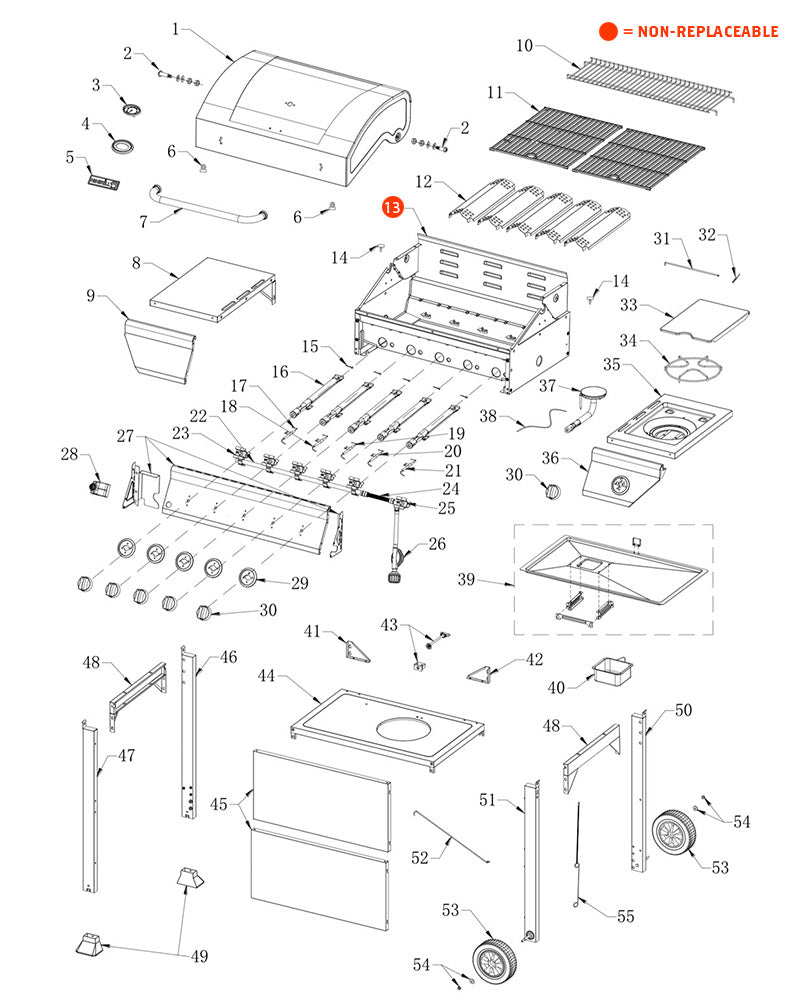

Find replacement grill parts for your 2018 Nexgrill 720-0888A 5 Burner Propane Gas Grill with Side Burner in Black/Stainless Steel model number 720-0888A grill using the replacement parts diagram below. The Nexgrill 720-0888A grill was sold at Home Depot USA in 2018. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.


Manual No. / Part
Price Each
Qty
1 - Main Lid
SKU #0127487000APPart #1Main LidLength: 27.95Width: 17.55Height: 10.69$112.00
2 - Main Lid Screw
SKU #0127488000APPart #2Main Lid ScrewLength: 1Width: 0.63Height: 0.94$5.00
3 - Temperature Gauge
SKU #05000572A0Part #3Temperature GaugeLength: 2.95Width: 1.89Height: 1.53$14.00
4 - Temperature Gauge Housing
SKU #05000742A0Part #4Temperature Gauge HousingLength: 3.58Width: 2.52Height: 0.28$5.00
5 - Logo
SKU #20002506A0Part #5LogoLength: 5Width: 1.57Height: 1.8$5.00
6 - Hood Buffer A
SKU #17000106A0Part #6Hood Buffer ALength: 0.47Width: 0.47Height: 0.47$4.29
7 - Main Lid Handle Assembly
SKU #0127485000APPart #7Main Lid Handle AssemblyLength: 18.9Width: 3.23Height: 1.38$12.04
8 - Side Shelf Left
SKU #20003109A0Part #8Side Shelf LeftLength: 17.71Width: 12Height: 4.76$32.00
9 - Side Shelf Control Panel
SKU #0151489000APPart #9Side Shelf Control PanelLength: 12Width: 6.89Height: 4.4$30.00
10 - Warming Rack
SKU #13000925A0Part #10Warming RackLength: 26.63Width: 7.08Height: 1.38$8.00
11 - Cooking Grid with Hole
SKU #13000384A1Part #11Cooking Grid with HoleLength: 17.17Width: 13.74Height: 0.35$13.51
12 - Flame Tamer
SKU #04007620A0Part #12Flame TamerLength: 14.567Width: 4.331Height: 1.417$7.00
14 - Hood Buffer B
SKU #17000001A0Part #14Hood Buffer BLength: 0.47Width: 0.47Height: 0.47$4.78
15 & 16 - Main Burner & Burner Pin Assembly
SKU #20003087A0Part #15 & 16Main Burner & Burner Pin AssemblyLength: 14.96Width: 1.97Height: 0.04$9.25
17 - Main Burner Igniter Wire A
SKU #10001728A0Part #17Main Burner Igniter Wire ALength: 10.7Width: 1.19Height: 3.5$6.99
18 - Main Burner Igniter Wire B
SKU #10001729A0Part #18Main Burner Igniter Wire BLength: 16.77Width: 1.22Height: 0.32$6.99
19 - Main Burner Igniter Wire C
SKU #10001730A0Part #19Main Burner Igniter Wire CLength: 22.84Width: 1.22Height: 0.32$6.99
20 - Main Burner Igniter Wire D
SKU #10001731A0Part #20Main Burner Igniter Wire DLength: 26.46Width: 1.22Height: 0.32$6.99
21 - Main Burner Igniter Wire E
SKU #10001732A0Part #21Main Burner Igniter Wire ELength: 32.56Width: 1.22Height: 0.32$6.99
22 - Main Manifold
SKU #11000891A0Part #22Main ManifoldLength: 23.15Width: 0.86Height: 0.75$35.00
23 - Main Gas Valve
SKU #0120742000BWPart #23Main Gas ValveLength: 4.22Width: 1.91Height: 1.56$20.45
24 - Side Burner Flex Gas Line
SKU #11000464A0Part #24Side Burner Flex Gas LineLength: 6.5Width: 0.83Height: 0.75$5.15
25 - Side Burner Gas Valve
SKU #0120850000AWPart #25Side Burner Gas ValveLength: 4.252Width: 3.15Height: 2.835$25.20
26 - Regulator LP
SKU #09000262A0Part #26Regulator LPLength: 26.18Width: 2.97Height: 2.9$22.84
27 - Main Control Panel
SKU #0127489000APPart #27Main Control PanelLength: 28Width: 6.9Height: 3.35$22.20
28 - Pulse Igniter Module
SKU #07800057A0Part #28Pulse Igniter ModuleLength: 2.78Width: 2.67Height: 2.05$8.99
29 - Bezel
SKU #14000023A0Part #29BezelLength: 2.28Width: 2.28Height: 0.28$9.99
30 - Control Knob
SKU #14000062A0Part #30Control KnobLength: 2.28Width: 2.28Height: 1.58$7.09
31 & 32 - Side Burner Lid Hinge Rod & Pin
SKU #20002471A0Part #31 & 32Side Burner Lid Hinge Rod & PinLength: 9.76Width: 0.59Height: 0.16$5.00
33 - Side Burner Lid
SKU #0202052902ASPart #33Side Burner LidLength: 12.5Width: 9.07Height: 0.75$20.72
34 - Side Burner Cooking Grid
SKU #13000922A0Part #34Side Burner Cooking GridLength: 8.86Width: 8.86Height: 0.91$7.39
35 - Side Burner Bowl Assembly
SKU #0127131000APPart #35Side Burner Bowl AssemblyLength: 17.7Width: 12Height: 4.76$28.20
36 - Side Burner Control Panel
SKU #0125695000APPart #36Side Burner Control PanelLength: 12Width: 6.89Height: 4.4$15.36
37 - Side Burner
SKU #20003414A0Part #37Side BurnerLength: 10.57Width: 4.72Height: 3.4$6.31
38 - Side Burner Igniter Wire
SKU #07000803A0Part #38Side Burner Igniter WireLength: 39.37Width: 3.54Height: 0.91$6.99
39 - Grease Tray
SKU #20003113A0Part #39Grease TrayLength: 7.6Width: 5.16Height: 4.06$10.61
40 - Grease Cup
SKU #0145237902AQPart #40Grease CupLength: 7.6Width: 5.16Height: 2.17$7.54
41 - Triangle Bracket Left
SKU #04007675A0Part #41Triangle Bracket LeftLength: 3.94Width: 2.56Height: 0.51$5.00
42 - Triangle Bracket Right
SKU #04007674A0Part #42Triangle Bracket RightLength: 3.94Width: 2.56Height: 0.51$5.00
43 - Tank Bolt
SKU #20003108A0Part #43Tank BoltLength: 6.26Width: 1.69Height: 2.56$6.44
44 - Bottom Panel
SKU #0125275000APPart #44Bottom PanelLength: 25.4Width: 15.67Height: 1.93$25.80
45 - Front Panel
SKU #04007673A0Part #45Front PanelLength: 23.94Width: 11.59Height: 0.81$9.04
46 - Cart Leg Rear Left
SKU #0127181000APPart #46Cart Leg Rear LeftLength: 28.68Width: 2Height: 1$10.00
47 - Cart Leg Front Left
SKU #20003313A0Part #47Cart Leg Front LeftLength: 28.68Width: 2Height: 1$12.04
48 - Cart Frame Assembly
SKU #20003318A0Part #48Cart Frame AssemblyLength: 15.67Width: 5.12Height: 0.79$13.44
49 - Cart Caster Insert
SKU #1201134000AWPart #49Cart Caster InsertLength: 3.5Width: 2.64Height: 2.32$8.42
50 - Cart Leg Rear Right
SKU #0127182000APPart #50Cart Leg Rear RightLength: 27.38Width: 2Height: 3.19$7.20
51 - Cart Leg Front Right
SKU #0127649000APPart #51Cart Leg Front RightLength: 27.38Width: 2Height: 3.19$16.10
52 - Second Tank Wire
SKU #0907069901AQPart #52Second Tank WireLength: 18.81Width: 0.5Height: 0.5$6.99
53 & 54 - Wheel & Wheel Screw
SKU #20003119A0Part #53 & 54Wheel & Wheel ScrewLength: 6.8Width: 6.8Height: 1.98$12.00
55 - Lighting Rod
SKU #0904133081AWPart #55Lighting RodLength: 7.87Width: 0.79Height: 0.39$5.00
57 - Hardware Pack
SKU #2006444000APPart #57Hardware PackLength: 6.22Width: 4.6Height: 3.8$3.84
