Replacement Parts For Nexgrill 720-0830X Sold at Home Depot USA in 2021

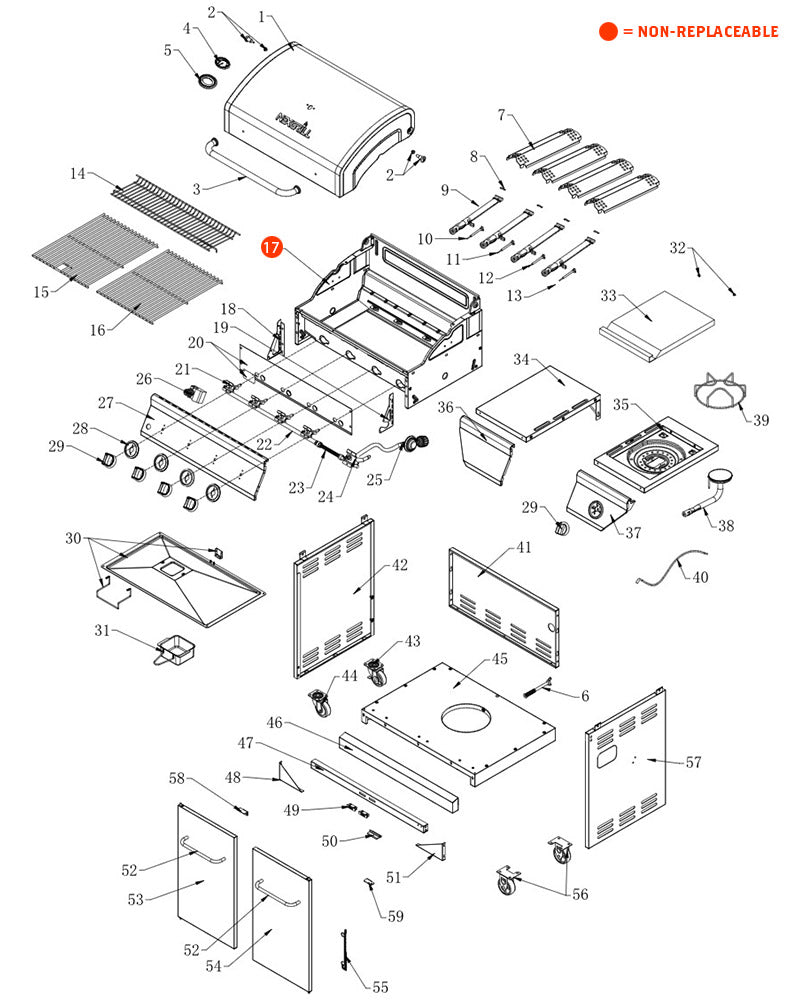

Find replacement grill parts for your 2021 Nexgrill 720-0830X 4 Burner Propane Gas Grill with Side Burner in Stainless Steel model number 720-0830X grill using the replacement parts diagram below. The Nexgrill 720-0830X grill was sold at Home Depot USA in 2021. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual
720-0830X

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850003095

    Part #1Main Lid
    Length: 23.22Width: 13.38Height: 9.84

    $40.46

  • 2 - Main Lid Screw
    SKU #20002998A0

    Part #2Main Lid Screw
    Length: 0.63Width: 0.63Height: 0.97

    $4.00

  • 3 - Main Lid Handle
    SKU #0127522000AP

    Part #3Main Lid Handle
    Length: 20.94Width: 3.96Height: 1.25

    $12.04

  • 4 - Temperature Gauge
    SKU #05000572A0

    Part #4Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $14.00

  • 5 - Temperature Gauge Housing
    SKU #05000742A0

    Part #5Temperature Gauge Housing
    Length: 3.58Width: 2.52Height: 0.28

    $5.00

  • 6 - Tank Bolt
    SKU #0127552000AP

    Part #6Tank Bolt
    Length: 6.1Width: 1.77Height: 0.87

    $6.44

  • 7 - Flame Tamer
    SKU #04007677A0

    Part #7Flame Tamer
    Length: 14.57Width: 4.26Height: 1.40

    $7.00

  • 8 - Burner Pin Assembly
    SKU #06000868A0

    Part #8Burner Pin Assembly
    Length: 1.13Width: 0.04Height: 0.31

    $3.50

  • 9 - Main Burner
    SKU #120850002526

    Part #9Main Burner
    Length: 14.84Width: 2.02Height: 1.04

    $9.25

  • 10 - Main Burner Igniter Wire A
    SKU #120850002527

    Part #10Main Burner Igniter Wire A
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 11 - Main Burner Igniter Wire B
    SKU #120850002528

    Part #11Main Burner Igniter Wire B
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 12 - Main Burner Igniter Wire C
    SKU #120850002529

    Part #12Main Burner Igniter Wire C
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 13 - Main Burner Igniter Wire D
    SKU #120850002530

    Part #13Main Burner Igniter Wire D
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 14 - Warming Rack
    SKU #120870002758

    Part #14Warming Rack
    Length: 16.85Width: 6.86Height: 1.18

    $18.90

  • 15 - Cooking Grid with Hole
    SKU #0901138081AP

    Part #15Cooking Grid with Hole
    Length: 17.13Width: 13.31Height: 0.55

    $18.72

  • 16 - Cooking Grid without Hole
    SKU #0901150081AP

    Part #16Cooking Grid without Hole
    Length: 17.13Width: 13.31Height: 0.55

    $18.72

  • 18 - Left Panel Of Main Control Panel
    SKU #120870002281

    Part #18Left Panel Of Main Control Panel
    Length: 6.73Width: 3.25Height: 0.81

    $8.61

  • 19 - Right Panel Of Main Control Panel
    SKU #120870000900

    Part #19Right Panel Of Main Control Panel
    Length: 6.73Width: 3.25Height: 0.81

    $20.30

  • 20 - Control Panel Heat Shield
    SKU #120870002241

    Part #20Control Panel Heat Shield
    Length: 24.76Width: 6.72Height: 1.38

    $21.00

  • 21 - Main Gas Valve
    SKU #120870002242

    Part #21Main Gas Valve
    Length: 3.82Width: 2.09Height: 1.55

    $20.45

  • 22 - Main Manifold
    SKU #0116172900AW

    Part #22Main Manifold
    Length: 26.75Width: 3.78Height: 0.94

    $55.99

  • 23 - Corrugated Pipe
    SKU #11000464A0

    Part #23Corrugated Pipe
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 24 - Side Burner Gas Valve
    SKU #0120850000AW

    Part #24Side Burner Gas Valve
    Length: 4.252Width: 3.15Height: 2.835

    $25.20

  • 25 - LP Regulator
    SKU #09000262A0

    Part #25LP Regulator
    Length: 26.18Width: 2.97Height: 2.9

    $22.84

  • 26 - Pulse Igniter Module
    SKU #07800058A0

    Part #26Pulse Igniter Module
    Length: 3.78Width: 1.76Height: 2.84

    $6.48

  • 27 - Main Control Panel
    SKU #120850003096

    Part #27Main Control Panel
    Length: 18.2Width: 6.9Height: 3.28

    $17.50

  • 28 - Bezel
    SKU #14000213A0

    Part #28Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.24

  • 29 - Control Knob
    SKU #120850002533

    Part #29Control Knob
    Length: 1.94Width: 1.81Height: 1.25

    $4.48

  • 30 - Grease Tray Assembly
    SKU #120850002459

    Part #30Grease Tray Assembly
    Length: 25.56Width: 14.25Height: 3.82

    $16.24

  • 31 - Grease Box
    SKU #120870001945

    Part #31Grease Box
    Length: 7.6Width: 5.16Height: 2.17

    $10.34

  • 32 - Side Burner Lid Hinge Rod
    SKU #120850003082

    Part #32Side Burner Lid Hinge Rod
    Length: 0.57Width: 0.31Height: 0.31

    $3.50

  • 33 - Side Burner Lid
    SKU #120870002370

    Part #33Side Burner Lid
    Length: 12.46Width: 9.58Height: 0.79

    $23.52

  • 34 - Side Shelf Left
    SKU #120850002480

    Part #34Side Shelf Left
    Length: 12.01Width: 17.72Height: 1.18

    $20.72

  • 35 - Side Burner Bowl Assembly
    SKU #120850003097

    Part #35Side Burner Bowl Assembly
    Length: 17.7Width: 12Height: 3.93

    $27.30

  • 36 - Side Shelf Front Panel Left
    SKU #0151489000AP

    Part #36Side Shelf Front Panel Left
    Length: 12Width: 6.89Height: 4.4

    $30.00

  • 37 - Side Burner Control Panel Right
    SKU #120850002544

    Part #37Side Burner Control Panel Right
    Length: 12Width: 6.89Height: 4.77

    $15.59

  • 38 - Side Burner
    SKU #20003414A0

    Part #38Side Burner
    Length: 10.57Width: 4.72Height: 3.4

    $6.31

  • 39 - Side Burner Cooking Grid
    SKU #120870002755

    Part #39Side Burner Cooking Grid
    Length: 8.45Width: 8.45Height: 1.54

    $15.68

  • 40 - Side Burner Igniter Wire
    SKU #07000805A0

    Part #40Side Burner Igniter Wire
    Length: 27.01Width: 3.54Height: 0.91

    $6.99

  • 41 - Rear Panel
    SKU #120870002243

    Part #41Rear Panel
    Length: 25.45Width: 11.77Height: 0.79

    $17.50

  • 42 - Side Panel Left
    SKU #120850001985

    Part #42Side Panel Left
    Length: 24.76Width: 18.39Height: 0.93

    $12.60

  • 43 - Swivel Caster with Brake
    SKU #05001574A0

    Part #43Swivel Caster with Brake
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 44 - Swivel Caster
    SKU #05000733A0

    Part #44Swivel Caster
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 45 - Bottom Panel
    SKU #120850003080

    Part #45Bottom Panel
    Length: 27.05Width: 19.29Height: 2.56

    $25.90

  • 46 - Bottom Panel Trim Piece
    SKU #0170170000AP

    Part #46Bottom Panel Trim Piece
    Length: 27.05Width: 1.38Height: 2.56

    $20.30

  • 47 - Cart Frame
    SKU #120850001964

    Part #47Cart Frame
    Length: 26.89Width: 1.38Height: 0.98

    $3.96

  • 48 - Triangle Bracket Left
    SKU #04007701A0

    Part #48Triangle Bracket Left
    Length: 0.98Width: 3.66Height: 2.95

    $5.00

  • 49 - Door Magnet
    SKU #05000010A0

    Part #49Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 50 - Door Iron Piece
    SKU #04007695A0

    Part #50Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.93

    $4.99

  • 51 - Triangle Bracket Right
    SKU #04007700A0

    Part #51Triangle Bracket Right
    Length: 1.22Width: 0.49Height: 2.36

    $5.00

  • 52 - Door Handle Assembly
    SKU #120850002386

    Part #52Door Handle Assembly
    Length: 9.61Width: 0.75Height: 2.15

    $8.26

  • 53 - Door Left
    SKU #120850001983

    Part #53Door Left
    Length: 23.38Width: 13.42Height: 0.75

    $21.75

  • 54 - Door Right
    SKU #120850001984

    Part #54Door Right
    Length: 23.38Width: 13.42Height: 0.75

    $21.75

  • 55 - Lighting Rod
    SKU #05001137AO

    Part #55Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 56 - Caster
    SKU #05000734A0

    Part #56Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 57 - Side Panel Right
    SKU #120850001986

    Part #57Side Panel Right
    Length: 24.76Width: 18.39Height: 0.93

    $12.60

  • 58 - Door Hinge Fixed Plate Left
    SKU #0210246501AQ

    Part #58Door Hinge Fixed Plate Left
    Length: 1.87Width: 0.87Height: 0.87

    $5.85

  • 59 - Door Hinge Fixed Plate Right
    SKU #0210247501AQ

    Part #59Door Hinge Fixed Plate Right
    Length: 1.87Width: 0.87Height: 0.87

    $6.76

  • 61 - Hardware Pack
    SKU #120850003099

    Part #61Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $2.94

  • 62 - PVC Cover
    SKU #120870001731

    Part #62PVC Cover
    Length: 28.74Width: 45.65Height: 58.46

    $47.49
