Replacement Parts For Nexgrill 720-0830HR Sold at Home Depot USA in 2019

Find replacement grill parts for your 2019 Nexgrill 720-0830HR 4 Burner Propane Gas Grill with Side Burner in Red model number 720-0830HR grill using the replacement parts diagram below. The Nexgrill 720-0830HR grill was sold at Home Depot USA in 2019. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

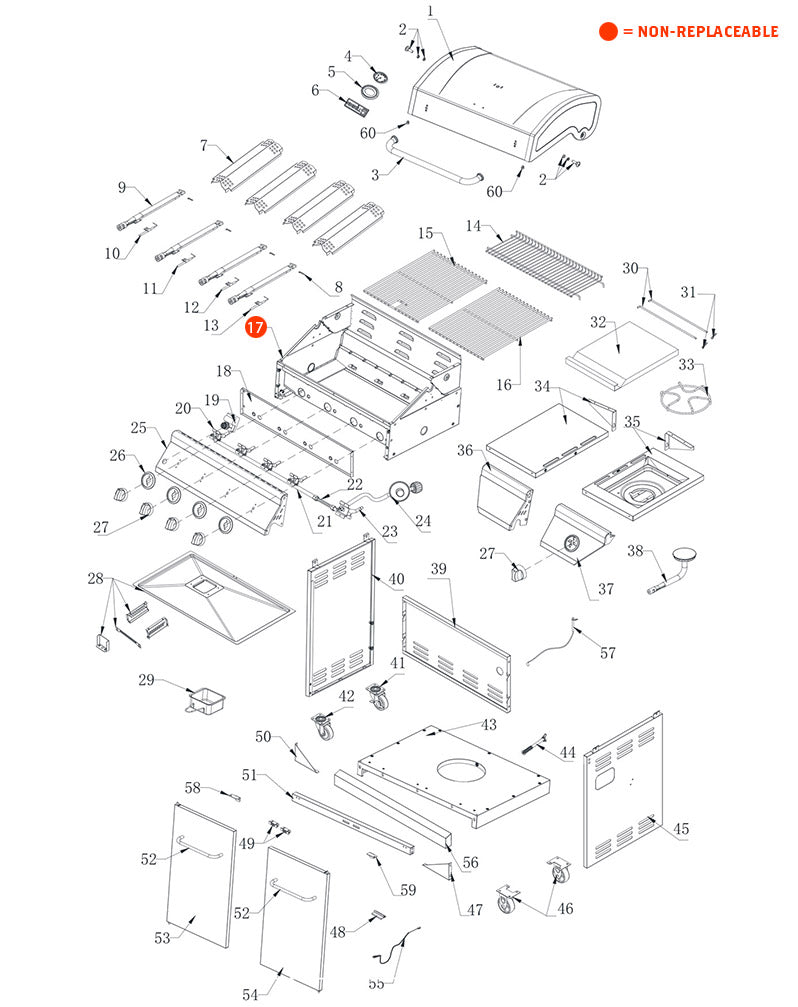

replacement grill parts for your Nexgrill 720-0830HR

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0129181000AP

    Part #1Main Lid
    Length: 27.03Width: 18.05Height: 10.75

    $39.76

  • 2 - Main Lid Screw
    SKU #0127507000AP

    Part #2Main Lid Screw
    Length: 0.94Width: 0.94Height: 0.63

    $5.00

  • 3 - Main Lid Handle
    SKU #0127511000AP

    Part #3Main Lid Handle
    Length: 20.94Width: 1.26Height: 3.54

    $12.04

  • 4 - Temperature Gauge
    SKU #05000572A0

    Part #4Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $14.00

  • 5 - Temperature Gauge Housing
    SKU #05000742A0

    Part #5Temperature Gauge Housing
    Length: 3.58Width: 2.52Height: 0.28

    $5.00

  • 6 - Logo
    SKU #20002506A0

    Part #6Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 7 - Flame Tamer
    SKU #04007677A0

    Part #7Flame Tamer
    Length: 14.57Width: 4.26Height: 1.40

    $7.00

  • 8 & 9 - Main Burner & Burner Pin Assembly
    SKU #120850001981

    Part #8 & 9Main Burner & Burner Pin Assembly
    Length: 14.84Width: 1.96Height: 0.98

    $9.25

  • 10 - Main Burner Igniter Wire A
    SKU #10001735A0

    Part #10Main Burner Igniter Wire A
    Length: 12.05Width: 1.22Height: 0.32

    $6.99

  • 11 - Main Burner Igniter Wire B
    SKU #10001729A0

    Part #11Main Burner Igniter Wire B
    Length: 16.77Width: 1.22Height: 0.32

    $6.99

  • 12 - Main Burner Igniter Wire C
    SKU #10001730A0

    Part #12Main Burner Igniter Wire C
    Length: 22.84Width: 1.22Height: 0.32

    $6.99

  • 13 - Main Burner Igniter Wire D
    SKU #10001736A0

    Part #13Main Burner Igniter Wire D
    Length: 29.19Width: 1.22Height: 0.32

    $6.99

  • 14 - Warming Rack
    SKU #0903131081AJ

    Part #14Warming Rack
    Length: 25.55Width: 7.28Height: 1.79

    $12.00

  • 15 - Cooking Grid with Hole
    SKU #0901138081AP

    Part #15Cooking Grid with Hole
    Length: 17.13Width: 13.31Height: 0.55

    $18.72

  • 16 - Cooking Grid without Hole
    SKU #0901150081AP

    Part #16Cooking Grid without Hole
    Length: 17.13Width: 13.31Height: 0.55

    $18.72

  • 18 - Front Baffle
    SKU #04006877A0

    Part #18Front Baffle
    Length: 2.68Width: 2.05Height: 0.61

    $21.00

  • 19 - Pulse Igniter Module
    SKU #07800058A0

    Part #19Pulse Igniter Module
    Length: 3.78Width: 1.76Height: 2.84

    $6.48

  • 20 - Main Gas Valve
    SKU #09000566A0

    Part #20Main Gas Valve
    Length: 3.78Width: 1.76Height: 1.56

    $20.45

  • 21 - Main Manifold
    SKU #11000226A0

    Part #21Main Manifold
    Length: 22.44Width: 0.87Height: 0.75

    $35.00

  • 22 - Side Burner Flex Gas Line
    SKU #11000464A0

    Part #22Side Burner Flex Gas Line
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 23 - Side Burner Gas Valve
    SKU #0120847000AW

    Part #23Side Burner Gas Valve
    Length: 4.49Width: 3.37Height: 2

    $11.48

  • 24 - Regulator LP
    SKU #09000262A0

    Part #24Regulator LP
    Length: 26.18Width: 2.97Height: 2.9

    $22.84

  • 25 - Main Control Panel
    SKU #0127510000AP

    Part #25Main Control Panel
    Length: 27.07Width: 7.2Height: 3.88

    $20.16

  • 26 - Bezel
    SKU #14000023A0

    Part #26Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 27 - Control Knob
    SKU #14000062A0

    Part #27Control Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.09

  • 28 - Grease Tray Assembly
    SKU #20003122A0

    Part #28Grease Tray Assembly
    Length: 25.56Width: 14.25Height: 3.82

    $10.91

  • 29 - Grease Box
    SKU #0145237501AQ

    Part #29Grease Box
    Length: 7.6Width: 5.16Height: 2.17

    $8.40

  • 30 & 31 - Side Burner Lid Hinge Rod & Pin
    SKU #20003125A0

    Part #30 & 31Side Burner Lid Hinge Rod & Pin
    Length: 5.43Width: 0.79Height: 8.19

    $5.00

  • 32 - Side Burner Lid
    SKU #0302048000AH

    Part #32Side Burner Lid
    Length: 12.5Width: 9.55Height: 0.78

    $6.99

  • 33 - Side Burner Cooking Grid
    SKU #13000927A0

    Part #33Side Burner Cooking Grid
    Length: 8.86Width: 8.86Height: 0.91

    $7.39

  • 34 - Side Shelf Left
    SKU #0127486000AP

    Part #34Side Shelf Left
    Length: 12.01Width: 17.72Height: 1.18

    $18.72

  • 35 - Side Burner Bowl Assembly
    SKU #0127515000AP

    Part #35Side Burner Bowl Assembly
    Length: 12.01Width: 17.72Height: 3.06

    $27.00

  • 36 - Side Shelf Front Panel Left
    SKU #0151481000AP

    Part #36Side Shelf Front Panel Left
    Length: 12.01Width: 7.2Height: 3.88

    $18.96

  • 37 - Side Burner Control Panel Right
    SKU #0125608000AP

    Part #37Side Burner Control Panel Right
    Length: 12.01Width: 7.2Height: 3.88

    $20.16

  • 38 - Side Burner
    SKU #0117219000AP

    Part #38Side Burner
    Length: 10.62Width: 3.97Height: 3.89

    $8.64

  • 39 - Rear Panel
    SKU #0145179501AQ

    Part #39Rear Panel
    Length: 25.45Width: 11.77Height: 0.79

    $18.72

  • 40 - Side Panel Left
    SKU #120850001985

    Part #40Side Panel Left
    Length: 24.76Width: 18.39Height: 0.93

    $12.60

  • 41 - Swivel Caster with Brake
    SKU #05001574A0

    Part #41Swivel Caster with Brake
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 42 - Swivel Caster
    SKU #05000733A0

    Part #42Swivel Caster
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 43 - Bottom Panel
    SKU #120850001982

    Part #43Bottom Panel
    Length: 27.05Width: 19.29Height: 2.56

    $25.00

  • 44 - Tank Bolt
    SKU #06000731A0

    Part #44Tank Bolt
    Length: 6.26Width: 1.69Height: 8.07

    $6.44

  • 45 - Side Panel Right
    SKU #120850001986

    Part #45Side Panel Right
    Length: 24.76Width: 18.39Height: 0.93

    $12.60

  • 46 - Caster
    SKU #05000734A0

    Part #46Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 47 - Triangle Bracket Right
    SKU #04007701A0

    Part #47Triangle Bracket Right
    Length: 0.98Width: 3.66Height: 2.95

    $5.00

  • 48 - Door Iron Piece
    SKU #04007695A0

    Part #48Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.93

    $4.99

  • 49 - Door Magnet
    SKU #05000010A0

    Part #49Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 50 - Triangle Bracket Left
    SKU #04007700A0

    Part #50Triangle Bracket Left
    Length: 1.22Width: 0.49Height: 2.36

    $5.00

  • 51 - Cart Frame
    SKU #120850001964

    Part #51Cart Frame
    Length: 26.89Width: 1.38Height: 0.98

    $3.96

  • 52 - Door Handle Assembly
    SKU #0125605000AP

    Part #52Door Handle Assembly
    Length: 9.61Width: 0.75Height: 0.73

    $8.16

  • 53 - Door Left
    SKU #120850001988

    Part #53Door Left
    Length: 23.38Width: 13.42Height: 0.75

    $21.75

  • 54 - Door Right
    SKU #120850001989

    Part #54Door Right
    Length: 23.38Width: 13.42Height: 0.75

    $21.75

  • 55 - Lighting Rod
    SKU #05001137A0

    Part #55Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 56 - Bottom Panel Trim Piece
    SKU #0170170000AP

    Part #56Bottom Panel Trim Piece
    Length: 27.05Width: 1.38Height: 2.56

    $20.30

  • 57 - Side Burner Igniter Wire
    SKU #07000805A0

    Part #57Side Burner Igniter Wire
    Length: 27.01Width: 3.54Height: 0.91

    $6.99

  • 58 - Door Hinge Fixed Plate Left
    SKU #0210246501AQ

    Part #58Door Hinge Fixed Plate Left
    Length: 1.87Width: 0.87Height: 0.87

    $5.85

  • 59 - Door Hinge Fixed Plate Right
    SKU #0210247501AQ

    Part #59Door Hinge Fixed Plate Right
    Length: 1.87Width: 0.87Height: 0.87

    $6.76

  • 60 - Hood Buffer
    SKU #17000106A0

    Part #60Hood Buffer
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 62 - Hardware Pack
    SKU #120850001987

    Part #62Hardware Pack
    Length: 9.65Width: 5.91Height: 0.87

    $3.75
