Replacement Parts For Nexgrill 720-0786A Sold at Home Depot USA in 2019

Find replacement grill parts for your 2019 Nexgrill 720-0786A 4 Burner Propane Gas Grill with Griddle Top in Stainless Steel model number 720-0786A grill using the replacement parts diagram below. The Nexgrill 720-0786A grill was sold at Home Depot USA in 2019. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

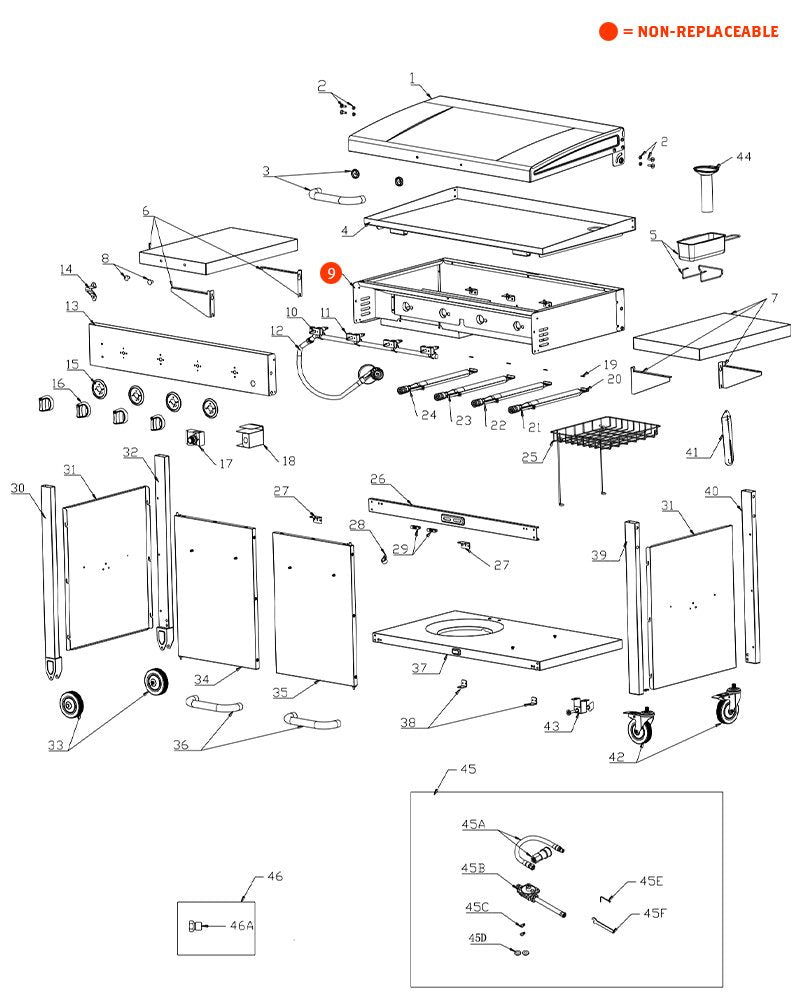

replacement grill parts for your Nexgrill 720-0786A

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850002817

    Part #1Main Lid
    Length: 36.6Width: 21.5Height: 5.7

    $49.84

  • 2 - Main Lid Screw
    SKU #20001428A0

    Part #2Main Lid Screw
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Main Lid Handle
    SKU #120850002834

    Part #3Main Lid Handle
    Length: 9.8Width: 3.2Height: 1

    $12.04

  • 4 - Griddle
    SKU #120870002545

    Part #4Griddle
    Length: 36Width: 20.9Height: 3.3

    $70.00

  • 5 - Grease Box
    SKU #120850002815

    Part #5Grease Box
    Length: 12.3Width: 4Height: 2.8

    $8.90

  • 6 - Side Shelf Left
    SKU #120850002831

    Part #6Side Shelf Left
    Length: 20.5Width: 14.2Height: 5.3

    $21.28

  • 7 - Side Shelf Right
    SKU #120850002832

    Part #7Side Shelf Right
    Length: 20.5Width: 14.2Height: 5.3

    $21.28

  • 8 - Utensil Hook
    SKU #0127212000AP

    Part #8Utensil Hook
    Length: 0.78Width: 0.75Height: 0.75

    $5.00

  • 10 - Gas Valve
    SKU #120870002547

    Part #10Gas Valve
    Length: 3.8Width: 2.1Height: 1.6

    $24.00

  • 11 - Manifold
    SKU #120870002546

    Part #11Manifold
    Length: 26.8Width: 2.4Height: 0.7

    $13.72

  • 12 - LP Regulator
    SKU #120870002548

    Part #12LP Regulator
    Length: 28.7Width: 3.9Height: 3.5

    $17.50

  • 13 - Control Panel
    SKU #120850002820

    Part #13Control Panel
    Length: 35.8Width: 6.3Height: 1.2

    $30.10

  • 14 - Bottle Opener
    SKU #04001557A0

    Part #14Bottle Opener
    Length: 2.81Width: 1.53Height: 1.27

    $5.00

  • 15 - Bezel
    SKU #14000213A0

    Part #15Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.24

  • 16 - Control Knob
    SKU #120850002533

    Part #16Control Knob
    Length: 1.94Width: 1.81Height: 1.25

    $4.48

  • 17 - Igniter Module
    SKU #120870002321

    Part #17Igniter Module
    Length: 2.6Width: 2.6Height: 2

    $7.84

  • 18 - Igniter Heat Shield
    SKU #120870002549

    Part #18Igniter Heat Shield
    Length: 3.4Width: 2.8Height: 2.6

    $16.52

  • 19 - Burner Pin Assembly
    SKU #06000865A0

    Part #19Burner Pin Assembly
    Length: 1.1Width: 0.26Height: 1.42

    $3.50

  • 20 - Main Burner
    SKU #120850002821

    Part #20Main Burner
    Length: 16.6Width: 2Height: 1

    $9.25

  • 21 - Burner Igniter Wire A
    SKU #120850002000

    Part #21Burner Igniter Wire A
    Length: 11.02Width: 0.85Height: 0.43

    $6.99

  • 22 - Burner Igniter Wire B
    SKU #120850002009

    Part #22Burner Igniter Wire B
    Length: 16.14Width: 0.85Height: 0.43

    $6.99

  • 23 - Burner Igniter Wire C
    SKU #120850002010

    Part #23Burner Igniter Wire C
    Length: 23.62Width: 0.85Height: 0.43

    $6.99

  • 24 - Burner Igniter Wire D
    SKU #120850002011

    Part #24Burner Igniter Wire D
    Length: 31.1Width: 0.85Height: 0.43

    $6.99

  • 25 - Cart Basket
    SKU #120850002836

    Part #25Cart Basket
    Length: 13Width: 11Height: 1.6

    $16.24

  • 26 - Cart Frame Front
    SKU #120850002829

    Part #26Cart Frame Front
    Length: 33.9Width: 2Height: 0.6

    $17.08

  • 27 - Door Hinge Fixed Plate A
    SKU #120850002830

    Part #27Door Hinge Fixed Plate A
    Length: 1.8Width: 1Height: 0.9

    $8.12

  • 28 - Regulator Hose Clip
    SKU #1206013900AW

    Part #28Regulator Hose Clip
    Length: 1.43Width: 0.5Height: 0.83

    $5.00

  • 29 - Door Magnet
    SKU #05000010A0

    Part #29Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 30 - Cart Leg Assembly Left Front
    SKU #120850002822

    Part #30Cart Leg Assembly Left Front
    Length: 29.7Width: 2Height: 1.6

    $16.10

  • 31 - Cart Side Panel
    SKU #120870002551

    Part #31Cart Side Panel
    Length: 21.9Width: 18.5Height: 0.8

    $19.04

  • 32 - Cart Leg Assembly Left Rear
    SKU #120850002823

    Part #32Cart Leg Assembly Left Rear
    Length: 29.7Width: 2Height: 1.6

    $16.10

  • 33 - Caster
    SKU #120850002833

    Part #33Caster
    Length: 3.9Width: 3.9Height: 2

    $7.00

  • 34 - Door Left
    SKU #120850002827

    Part #34Door Left
    Length: 21.7Width: 13.4Height: 0.8

    $25.62

  • 35 - Door Right
    SKU #120850002828

    Part #35Door Right
    Length: 21.7Width: 13.4Height: 0.8

    $25.62

  • 36 - Door Handle Assembly
    SKU #120850002859

    Part #36Door Handle Assembly
    Length: 9.8Width: 3.2Height: 1

    $9.52

  • 37 - Bottom Panel
    SKU #120850002826

    Part #37Bottom Panel
    Length: 33.7Width: 18.5Height: 1.4

    $27.72

  • 38 - Door Hinge Fixed Plate B
    SKU #120870002550

    Part #38Door Hinge Fixed Plate B
    Length: 1.2Width: 1Height: 0.9

    $8.12

  • 39 - Cart Leg Assembly Right Front
    SKU #120850002824

    Part #39Cart Leg Assembly Right Front
    Length: 26.4Width: 2Height: 1

    $16.10

  • 40 - Cart Leg Assembly Right Rear
    SKU #120850002825

    Part #40Cart Leg Assembly Right Rear
    Length: 26.4Width: 2Height: 1

    $16.10

  • 41 - Lighting Rod
    SKU #05000011A0

    Part #41Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $5.00

  • 42 - Swivel Caster with Brake
    SKU #120870002553

    Part #42Swivel Caster with Brake
    Length: 5.9Width: 5.2Height: 2

    $3.50

  • 43 - Tank Bolt
    SKU #120850002835

    Part #43Tank Bolt
    Length: 5.1Width: 2.5Height: 2

    $6.44

  • 44 - Grease Funnel
    SKU #120870002552

    Part #44Grease Funnel
    Length: 6.6Width: 4.1Height: 3.5

    $12.30

  • 46 - NG Orifice Pack
    SKU #120850002838

    Part #46NG Orifice Pack
    Length: 2Width: 2Height: 0.4

    $5.00

  • 48 - Hardware Pack
    SKU #120850002837

    Part #48Hardware Pack
    Length: 8.76Width: 3.82Height: 0.51

    $6.00
