Replacement Parts For Member's Mark 720-0582B Sold at Sam's Club USA in 2008

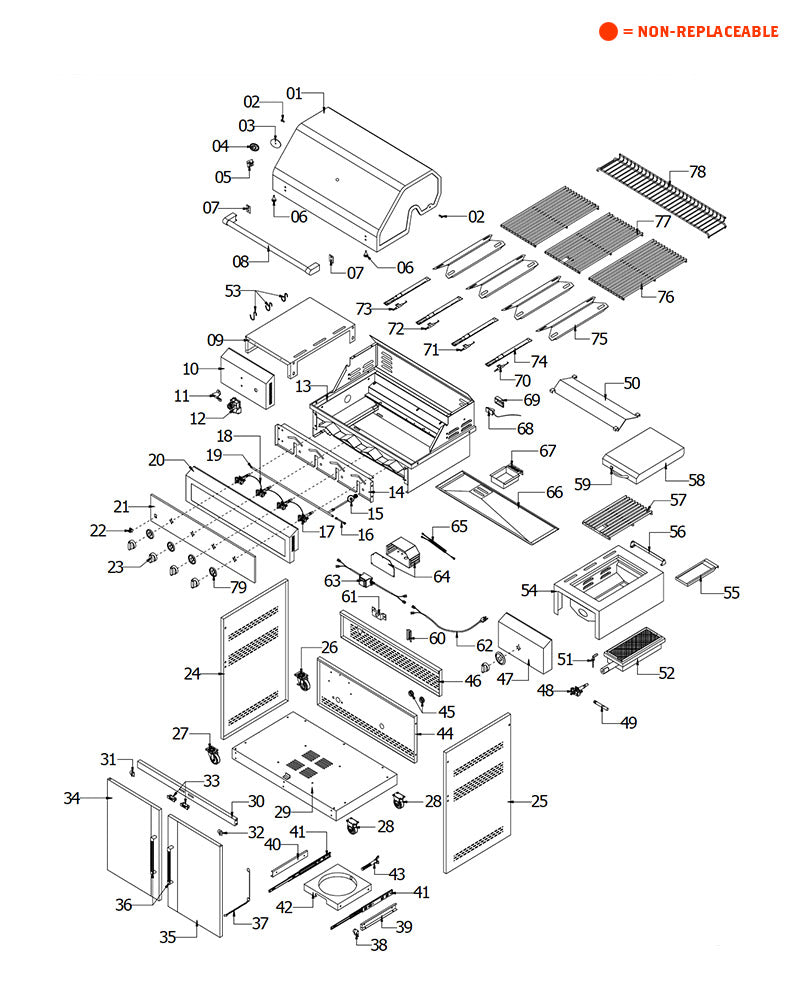

Find replacement grill parts for your 2008 Member's Mark 720-0582B 4 Burner Propane Gas Grill with Searing Side Burner in Stainless Steel model number 720-0582B grill using the replacement parts diagram below. The Member's Mark 720-0582B grill was sold at Sam's Club USA in 2008. If this is not your grill model, you can view all Member's Mark Replacement Parts or use the button below to search for your model number.


Manual No. / Part
Price Each
Qty
1 - Main Lid
SKU #20000750A0Part #1Main LidLength: 27.99Width: 17.64Height: 10.75$112.00
2 - Main Lid Screw
SKU #06000671A0Part #2Main Lid ScrewLength: 2.36Width: 1.73Height: 2.36$5.00
3 - Temperature Gauge Heat Insulating Spacer
SKU #05000038A0Part #3Temperature Gauge Heat Insulating SpacerLength: 2.91Width: 1.85Height: 0.04$5.76
4 - Temperature Gauge
SKU #05000572A0Part #4Temperature GaugeLength: 2.95Width: 1.89Height: 1.53$14.00
5 - Logo
SKU #08000042A0Part #5LogoLength: 2.36Width: 2.36Height: 0.17$5.00
6 - Hood Buffer
SKU #17000104A0Part #6Hood BufferLength: 0.47Width: 0.47Height: 0.47$5.00
7 - Main Lid Handle Heat Insulating Spacer
SKU #05000068A0Part #7Main Lid Handle Heat Insulating SpacerLength: 1.34Width: 1.14Height: 0.08$5.00
8 - Main Lid Handle
SKU #20000751A0Part #8Main Lid HandleLength: 20.94Width: 1.26Height: 3.54$23.99
9 - Side Shelf Left
SKU #20000752A0Part #9Side Shelf LeftLength: 18.66Width: 12.16Height: 4.57$32.00
10 - Side Shelf Front Panel Left
SKU #04004001A0Part #10Side Shelf Front Panel LeftLength: 55.39Width: 2.7Height: 1.3$35.99
11 - Bottle Opener
SKU #04003958A0Part #11Bottle OpenerLength: 2.81Width: 1.53Height: 1.27$5.00
12 - Electronic Igniter Module
SKU #07000192A0Part #12Electronic Igniter ModuleLength: 2.64Width: 2.36Height: 2.74$10.92
14 - Front Baffle
SKU #04003989A0Part #14Front BaffleLength: 26.91Width: 5.35Height: 0.61$42.00
15 - Regulator LP
SKU #09000123A0Part #15Regulator LPLength: 4.25Width: 3.15Height: 2.84$35.87
16 - Side Manifold
SKU #11000053A0Part #16Side ManifoldLength: 0.74Width: 0.03Height: 0.02$15.00
17 - Main Gas Valve
SKU #09000061A0Part #17Main Gas ValveLength: 3.82Width: 2.09Height: 1.55$35.99
18 - Igniter Junction Wire
SKU #07000059A0Part #18Igniter Junction WireLength: 3.74Width: 2.24Height: 2.36$6.30
19 - Main Manifold
SKU #11000016A0Part #19Main ManifoldLength: 26.75Width: 3.78Height: 0.94$55.99
20 - Main Control Panel
SKU #04003990A0Part #20Main Control PanelLength: 27.07Width: 7.2Height: 3.88$59.99
21 - Main Control Trim Panel
SKU #04003991A0Part #21Main Control Trim PanelLength: 26.81Width: 4.88Height: 0.39$13.33
22 - Light Switch
SKU #07000008A0Part #22Light SwitchLength: 2.5Width: 0.87Height: 0.63$5.00
23 - Control Knob
SKU #20000754A0Part #23Control KnobLength: 2.28Width: 2.28Height: 1.46$10.00
24 - Side Panel Left
SKU #20000795A0Part #24Side Panel LeftLength: 22.63Width: 12.2Height: 3.3$30.00
25 - Side Panel Right
SKU #04004017A0Part #25Side Panel RightLength: 30.3Width: 19.69Height: 0.79$59.99
26 - Swivel Caster with Brake
SKU #05000732A0Part #26Swivel Caster with BrakeLength: 3.35Width: 2.28Height: 1.38$21.00
27 - Swivel Caster
SKU #05000733A0Part #27Swivel CasterLength: 3.35Width: 2.28Height: 1.38$14.37
28 - Caster
SKU #05000734A0Part #28CasterLength: 3.66Width: 2.32Height: 3.66$4.50
29 - Bottom Panel
SKU #20000755A0Part #29Bottom PanelLength: 27.05Width: 19.29Height: 2.56$33.75
30 - Cart Frame Front
SKU #04004015A0Part #30Cart Frame FrontLength: 29.96Width: 1.38Height: 0.98$11.20
31 - Left Door Hinge Bracket Top
SKU #20000798A0Part #31Left Door Hinge Bracket TopLength: 2.36Width: 1.85Height: 1.57$7.00
32 - Right Door Hinge Bracket Top
SKU #20000799A0Part #32Right Door Hinge Bracket TopLength: 2.36Width: 1.85Height: 1.57$7.00
33 - Door Magnet
SKU #05000010A0Part #33Door MagnetLength: 1.58Width: 0.57Height: 1.01$3.00
34 - Front Door Left
SKU #20000756A0Part #34Front Door LeftLength: 25.12Width: 12.28Height: 1.57$56.00
35 - Front Door Right
SKU #20000757A0Part #35Front Door RightLength: 25.12Width: 12.28Height: 1.57$56.00
36 - Door Handle
SKU #12000074A0Part #36Door HandleLength: 7.87Width: 0.67Height: 1.1$14.00
37 - Lighting Rod
SKU #05000590A0Part #37Lighting RodLength: 22.76Width: 0.71Height: 0.12$5.00
38 - Tank Tray Block Piece
SKU #04004071A0Part #38Tank Tray Block PieceLength: 1.1Width: 1.5Height: 0.59$16.00
39 - Gas Tank Tray Slide Bracket Right
SKU #20000758A0Part #39Gas Tank Tray Slide Bracket RightLength: 20.47Width: 18.7Height: 1.26$21.28
40 - Gas Tank Tray Slide Bracket Left
SKU #04004033A0Part #40Gas Tank Tray Slide Bracket LeftLength: 10.23Width: 10.23Height: 1.77$21.28
41 - Gas Tank Tray Slide
SKU #05000171A0Part #41Gas Tank Tray SlideLength: 12.99Width: 2.44Height: 1.2$9.74
42 - Gas Tank Tray
SKU #20000759A0Part #42Gas Tank TrayLength: 10Width: 1.77Height: 0.49$25.99
43 - Tank Bolt
SKU #20000760A0Part #43Tank BoltLength: 8.07Width: 1.97Height: 0.01$6.44
44 - Back Panel
SKU #04004019A0Part #44Back PanelLength: 30.3Width: 25.51Height: 0.79$70.00
45 - Rubber Grommet
SKU #17000006A0Part #45Rubber GrommetLength: 5.94Width: 1.61Height: 0.75$5.00
46 - Back Panel Top
SKU #04004018A0Part #46Back Panel TopLength: 25.43Width: 11.77Height: 0.78$17.22
47 - Side Burner Control Panel
SKU #04004004A0Part #47Side Burner Control PanelLength: 13.91Width: 7.2Height: 0.03$35.00
48 - Sear Gas Valve
SKU #09000112A0Part #48Sear Gas ValveLength: 2.09Width: 1.89Height: 5.12$28.00
49 - Side Burner Hose
SKU #11000099A0Part #49Side Burner HoseLength: 6.5Width: 0.75Height: 0.87$8.57
51 - Sear Burner Igniter Wire
SKU #10000138A0Part #51Sear Burner Igniter WireLength: 0.11Width: 11.81Height: 8.61$6.99
52 - Sear Burner
SKU #10000298A0Part #52Sear BurnerLength: 10.79Width: 5.47Height: 2.78$60.00
53 - Utensil Hook
SKU #05000440A0Part #53Utensil HookLength: 0.14Width: 0.12Height: 0.16$5.00
54 - Side Burner Bowl Assembly
SKU #20000762A0Part #54Side Burner Bowl AssemblyLength: 17.72Width: 12.01Height: 2.17$21.50
55 - Side Burner Grease Tray
SKU #04004013A0Part #55Side Burner Grease TrayLength: 15.66Width: 4.4Height: 0.78$21.00
56 - Side Burner Lid Bracket
SKU #20000763A0Part #56Side Burner Lid BracketLength: 2.36Width: 1.85Height: 1.57$7.00
57 - Side Burner Cooking Grid
SKU #13000224A0Part #57Side Burner Cooking GridLength: 14.88Width: 8.82Height: 0.55$14.00
58 - Side Burner Lid
SKU #20000764A0Part #58Side Burner LidLength: 12.5Width: 9.55Height: 0.78$10.00
59 - Side Burner Lid Handle
SKU #12000083A0Part #59Side Burner Lid HandleLength: 1.09Width: 0.43Height: 4.39$14.00
60 - Igniter Wire Cover
SKU #04000017A0Part #60Igniter Wire CoverLength: 9.92Width: 0.47Height: 0.16$10.66
61 - Power Cord Fix Bracket
SKU #04004025A0Part #61Power Cord Fix BracketLength: 4.13Width: 1.93Height: 0.51$7.00
62 - Power Cord
SKU #07000002A0Part #62Power CordLength: 0.58Width: 0.65Height: 10$14.00
63 - Transformer
SKU #07000052A0Part #63TransformerLength: 4.33Width: 1.97Height: 0.24$25.00
64 - Transformer Supporting Box
SKU #20000796A0Part #64Transformer Supporting BoxLength: 15.75Width: 7.87Height: 0.79$5.00
65 - Lamp Wire
SKU #07000066A0Part #65Lamp WireLength: 0.14Width: 0.12Height: 0.16$25.00
66 - Grease Slide Panel Bottom
SKU #04003993A0Part #66Grease Slide Panel BottomLength: 24.61Width: 9.45Height: 3.02$10.00
67 - Grease Tray
SKU #20000774A0Part #67Grease TrayLength: 25.56Width: 14.25Height: 4.06$26.00
68 - Lamp
SKU #07000197A0Part #68LampLength: 26.3Width: 2.8Height: 1.18$9.74
69 - Lamp Case
SKU #04003909A0Part #69Lamp CaseLength: 4.72Width: 2.52Height: 1.18$5.00
70 - Main Burner Igniter Wire A
SKU #10000323A0Part #70Main Burner Igniter Wire ALength: 1.22Width: 0.26Height: 23.62$6.99
71 - Main Burner Igniter Wire B
SKU #10000320A0Part #71Main Burner Igniter Wire BLength: 0.06Width: 9.84Height: 0.02$6.99
72 - Main Burner Igniter Wire C
SKU #10000321A0Part #72Main Burner Igniter Wire CLength: 0.06Width: 15.75Height: 0.02$6.99
73 - Main Burner Igniter Wire D
SKU #10000322A0Part #73Main Burner Igniter Wire DLength: 30.71Width: 1.22Height: 0.06$6.99
74 - Main Burner
SKU #10000012A0Part #74Main BurnerLength: 16.6Width: 2.45Height: 1.06$35.99
75 - Flame Tamer
SKU #04003975A0Part #75Flame TamerLength: 14.57Width: 4.26Height: 1.4$28.00
76 - Cooking Grid
SKU #13000070A0Part #76Cooking GridLength: 17.32Width: 9.72Height: 4.84$45.99
77 - Cooking Grid with Hole
SKU #13000050A0Part #77Cooking Grid with HoleLength: 17.17Width: 13.82Height: 0.35$20.00
78 - Warming Rack
SKU #13000015A0Part #78Warming RackLength: 33.23Width: 12.59Height: 1.24$35.00
79 - Bezel
SKU #14000015A0Part #79BezelLength: 32.09Width: 4.65Height: 0.24$7.00
80 - PVC Cover
SKU #18001694A0Part #80PVC CoverLength: 15.35Width: 12.6Height: 12.6$40.00
81 - Hardware
SKU #20000797A0Part #81HardwareLength: 1Width: 1Height: 1$7.00
