Replacement Parts For Megamaster 720-0786F Sold at Online Retailers in 2021

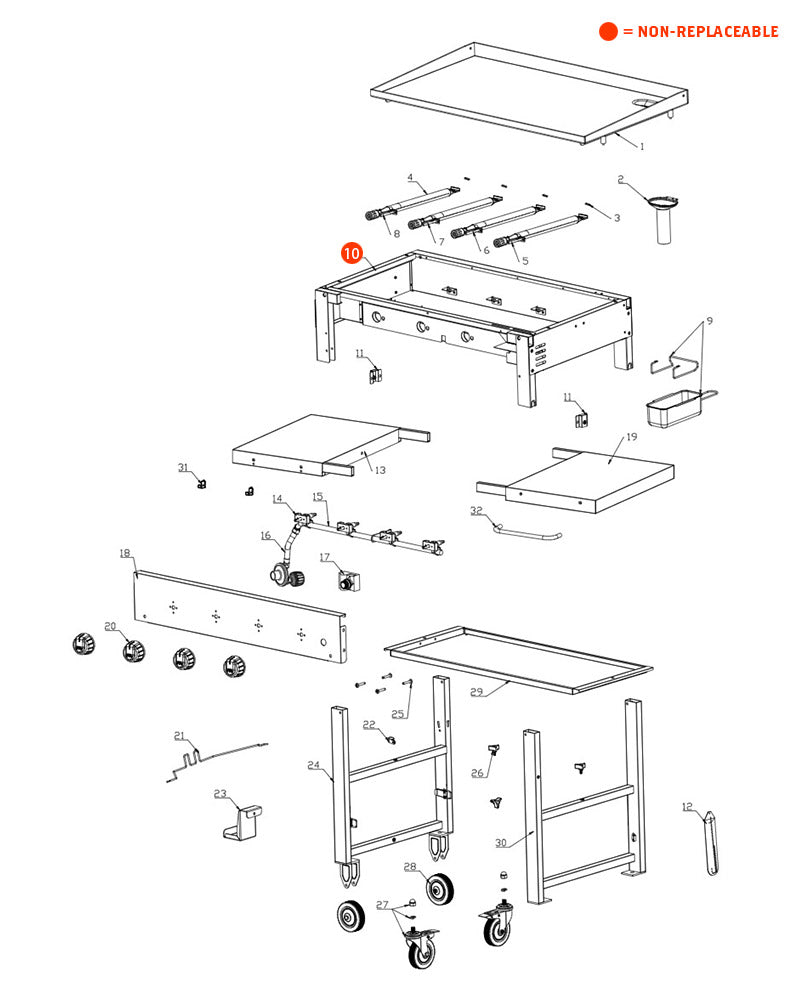

Find replacement grill parts for your 2021 Megamaster 720-0786F 4 Burner Propane Gas Grill with Griddle Top in Black model number 720-0786F grill using the replacement parts diagram below. The Megamaster 720-0786F grill was sold at Online Retailers in 2021. If this is not your grill model, you can view all Megamaster Replacement Parts or use the button below to search for your model number.

View Parts Download Manual
replacement grill parts for your Megamaster 720-0786F

Manual No. / Part

Price Each

Qty

  • 1 - Griddle
    SKU #120870002544

    Part #1Griddle
    Length: 36.02Width: 20.89Height: 3.15

    $70.00

  • 2 - Grease Funnel
    SKU #120870002542

    Part #2Grease Funnel
    Length: 5.46Width: 4.13Height: 3.44

    $14.70

  • 3 - Burner Pin Assembly
    SKU #06000865A0

    Part #3Burner Pin Assembly
    Length: 1.1Width: 0.26Height: 1.42

    $3.50

  • 4 - Main Burner
    SKU #120850002008

    Part #4Main Burner
    Length: 16.6Width: 2.45Height: 1.06

    $9.25

  • 5 - Main Burner Igniter Wire A
    SKU #120850002000

    Part #5Main Burner Igniter Wire A
    Length: 11.02Width: 0.85Height: 0.43

    $6.99

  • 6 - Main Burner Igniter Wire B
    SKU #120850002009

    Part #6Main Burner Igniter Wire B
    Length: 16.14Width: 0.85Height: 0.43

    $6.99

  • 7 - Main Burner Igniter Wire C
    SKU #120850002010

    Part #7Main Burner Igniter Wire C
    Length: 23.62Width: 0.85Height: 0.43

    $6.99

  • 8 - Main Burner Igniter Wire D
    SKU #120850002011

    Part #8Main Burner Igniter Wire D
    Length: 31.1Width: 0.85Height: 0.43

    $6.99

  • 9 - Grease Box
    SKU #120850002815

    Part #9Grease Box
    Length: 12.3Width: 4Height: 2.8

    $8.90

  • 11 - Side Shelf Bracket
    SKU #120850002017

    Part #11Side Shelf Bracket
    Length: 2.1Width: 1.54Height: 0.51

    $5.40

  • 12 - Lighting Rod
    SKU #05001137A0

    Part #12Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 13 - Side Shelf Left
    SKU #120870002658

    Part #13Side Shelf Left
    Length: 20.28Width: 17.72Height: 1.77

    $15.20

  • 14 - Main Gas Valve
    SKU #120870002543

    Part #14Main Gas Valve
    Length: 3.82Width: 2.09Height: 1.55

    $24.00

  • 15 - Main Manifold
    SKU #120850002013

    Part #15Main Manifold
    Length: 26.75Width: 3.78Height: 0.94

    $35.00

  • 16 - LP Regulator
    SKU #120870001881

    Part #16LP Regulator
    Length: 25.98Width: 2.8Height: 3.15

    $18.75

  • 17 - Igniter Module
    SKU #120870001712

    Part #17Igniter Module
    Length: 2.64Width: 2.64Height: 2.05

    $5.00

  • 18 - Control Panel
    SKU #120850002967

    Part #18Control Panel
    Length: 36.17Width: 6.35Height: 1.24

    $25.20

  • 19 - Side Shelf Right
    SKU #120850002966

    Part #19Side Shelf Right
    Length: 20.28Width: 17.72Height: 1.77

    $15.20

  • 20 - Control Knob
    SKU #120850001878

    Part #20Control Knob
    Length: 1.6Width: 1.6Height: 1.6

    $43.20

  • 21 - Cylinder Fixing Line
    SKU #120870001886

    Part #21Cylinder Fixing Line
    Length: 19.59Width: 4.86Height: 1.65

    $3.75

  • 22 - Regulator Hose Buckle
    SKU #1206013900AW

    Part #22Regulator Hose Buckle
    Length: 1.43Width: 0.5Height: 0.83

    $5.00

  • 23 - Cylinder Hanger
    SKU #120870001875

    Part #23Cylinder Hanger
    Length: 4.61Width: 4.13Height: 2.99

    $6.30

  • 24 - Left Cart Leg Assembly
    SKU #120850002963

    Part #24Left Cart Leg Assembly
    Length: 24.07Width: 20.39Height: 1.97

    $12.90

  • 25 - Pin Combination
    SKU #120850001997

    Part #25Pin Combination
    Length: 1.54Width: 1.1Height: 0.5

    $4.50

  • 26 - Cylinder Hanging Connecting Knob
    SKU #120870001876

    Part #26Cylinder Hanging Connecting Knob
    Length: 0.2Width: 0.02Height: 1.22

    $6.30

  • 27 - Swivel Caster with Brake
    SKU #120850002016

    Part #27Swivel Caster with Brake
    Length: 5.83Width: 5.16Height: 2.13

    $14.00

  • 28 - Caster
    SKU #120850002006

    Part #28Caster
    Length: 1.26Width: 1.26Height: 2.05

    $9.52

  • 29 - Frame Bottom Panel
    SKU #120870002657

    Part #29Frame Bottom Panel
    Length: 34.15Width: 14.17Height: 0.83

    $12.15

  • 30 - Right Cart Leg Assembly
    SKU #120850002964

    Part #30Right Cart Leg Assembly
    Length: 22.83Width: 20.39Height: 1.97

    $12.90

  • 31 - Hooks
    SKU #120850002341

    Part #31Hooks
    Length: 1.19Width: 0.57Height: 0.98

    $7.84

  • 32 - Tower Bar
    SKU #120850002965

    Part #32Tower Bar
    Length: 9.61Width: 0.75Height: 2.15

    $6.72
