Replacement Parts For Megamaster 720-0783T Sold at Sams.com in 2017

Find replacement grill parts for your 2017 Megamaster 720-0783T 4 Burner Propane Gas Grill with Side Burner in Stainless Steel model number 720-0783T grill using the replacement parts diagram below. The Megamaster 720-0783T grill was sold at Sams.com in 2017. If this is not your grill model, you can view all Megamaster Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

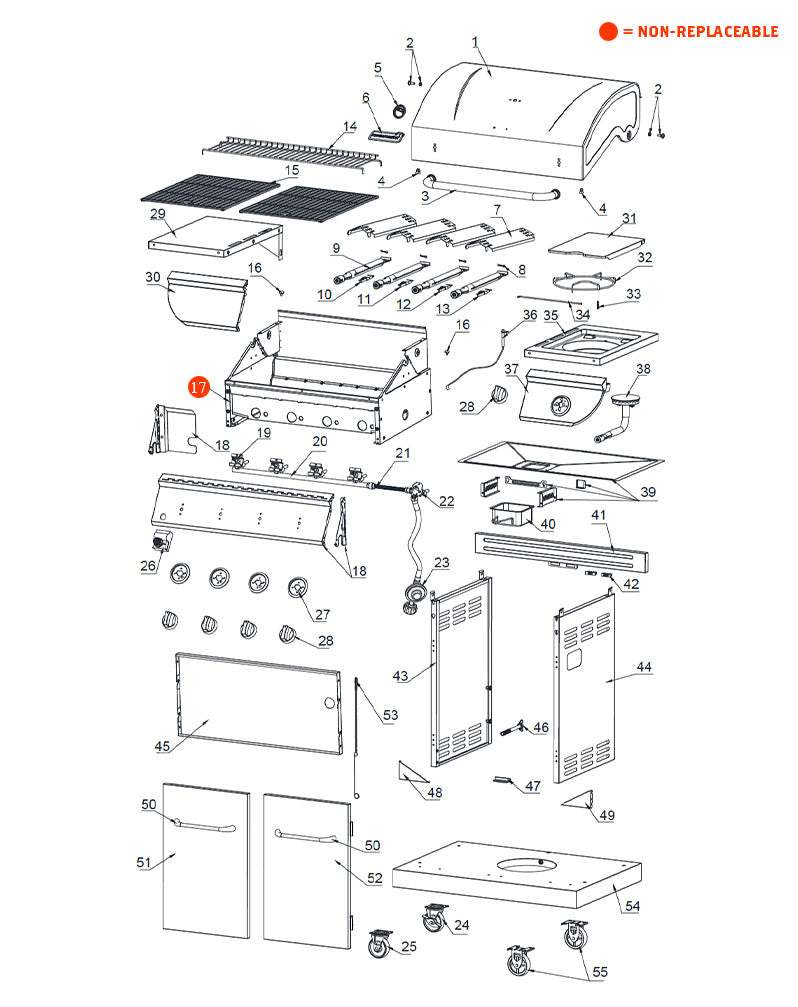

replacement grill parts for your Megamaster 720-0783T

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127473000AP

    Part #1Main Lid
    Length: 27.05Width: 19.25Height: 8.66

    $82.59

  • 2 - Main Lid Screw
    SKU #20002991A0

    Part #2Main Lid Screw
    Length: 0.95Width: 0.63Height: 0.63

    $5.00

  • 3 - Main Lid Handle
    SKU #0127472000AP

    Part #3Main Lid Handle
    Length: 0.95Width: 0.63Height: 0.63

    $12.04

  • 4 - Hood Buffer A
    SKU #17000106A0

    Part #4Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 5 - Temperature Gauge
    SKU #2002062000AW

    Part #5Temperature Gauge
    Length: 2.36Width: 2.36Height: 1.81

    $6.72

  • 6 - Logo
    SKU #0126112000AP

    Part #6Logo
    Length: 5.24Width: 1.77Height: 0.39

    $5.00

  • 7 - Flame Tamer
    SKU #04007620A0

    Part #7Flame Tamer
    Length: 14.567Width: 4.331Height: 1.417

    $7.00

  • 8 & 9 - Main Burner & Burner Pin Assembly
    SKU #20003087A0

    Part #8 & 9Main Burner & Burner Pin Assembly
    Length: 14.96Width: 1.97Height: 0.04

    $9.25

  • 10 - Main Burner Igniter Wire A
    SKU #10001735A0

    Part #10Main Burner Igniter Wire A
    Length: 12.05Width: 1.22Height: 0.32

    $6.99

  • 11 - Main Burner Igniter Wire B
    SKU #10001729A0

    Part #11Main Burner Igniter Wire B
    Length: 16.77Width: 1.22Height: 0.32

    $6.99

  • 12 - Main Burner Igniter Wire C
    SKU #10001730A0

    Part #12Main Burner Igniter Wire C
    Length: 22.84Width: 1.22Height: 0.32

    $6.99

  • 13 - Main Burner Igniter Wire D
    SKU #10001736A0

    Part #13Main Burner Igniter Wire D
    Length: 29.19Width: 1.22Height: 0.32

    $6.99

  • 14 - Warming Rack
    SKU #13000292A0

    Part #14Warming Rack
    Length: 25.59Width: 6.1Height: 0.32

    $24.99

  • 15 - Cooking Grid
    SKU #13000421A0

    Part #15Cooking Grid
    Length: 17.21Width: 13.23Height: 0.35

    $45.99

  • 16 - Hood Buffer B
    SKU #17000001A0

    Part #16Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 18 - Main Control Panel
    SKU #0127474000AP

    Part #18Main Control Panel
    Length: 27.09Width: 7.09Height: 4.53

    $30.10

  • 19 - Main Gas Valve
    SKU #0120849000AW

    Part #19Main Gas Valve
    Length: 4.33Width: 1.58Height: 1.97

    $20.45

  • 20 - Main Manifold
    SKU #11000226A0

    Part #20Main Manifold
    Length: 22.44Width: 0.87Height: 0.75

    $35.00

  • 21 - Side Burner Flex Gas Line
    SKU #11000454A0

    Part #21Side Burner Flex Gas Line
    Length: 6.5Width: 0.75Height: 0.87

    $8.57

  • 22 - Side Burner Gas Valve
    SKU #0120850000AW

    Part #22Side Burner Gas Valve
    Length: 4.252Width: 3.15Height: 2.835

    $25.20

  • 23 - Regulator LP
    SKU #0119153000AW

    Part #23Regulator LP
    Length: 21.65Width: 2.53Height: 2.5

    $32.98

  • 24 - Swivel Caster with Brake
    SKU #05001574A0

    Part #24Swivel Caster with Brake
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 25 - Swivel Caster
    SKU #05000733A0

    Part #25Swivel Caster
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 26 - Pulse Igniter Module
    SKU #07800058A0

    Part #26Pulse Igniter Module
    Length: 3.78Width: 1.76Height: 2.84

    $6.48

  • 27 - Bezel
    SKU #14000023A0

    Part #27Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 28 - Control Knob
    SKU #14000062A0

    Part #28Control Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.09

  • 29 - Side Shelf Left
    SKU #0127483000AP

    Part #29Side Shelf Left
    Length: 17.72Width: 12.01Height: 4.76

    $22.40

  • 30 - Side Shelf Front Panel Left
    SKU #0151208000AP

    Part #30Side Shelf Front Panel Left
    Length: 12.01Width: 7.48Height: 2.68

    $15.59

  • 31 - Side Burner Lid
    SKU #0202052501AQ

    Part #31Side Burner Lid
    Length: 12.52Width: 9.02Height: 0.75

    $18.20

  • 32 - Side Burner Cooking Grid
    SKU #13000922A0

    Part #32Side Burner Cooking Grid
    Length: 8.86Width: 8.86Height: 0.91

    $7.39

  • 33 & 34 - Side Burner Lid Hinge Rod & Pin
    SKU #20002471A0

    Part #33 & 34Side Burner Lid Hinge Rod & Pin
    Length: 9.76Width: 0.59Height: 0.16

    $5.00

  • 35 - Side Burner Bowl Assembly
    SKU #0127482000AP

    Part #35Side Burner Bowl Assembly
    Length: 17.72Width: 12.01Height: 4.76

    $35.00

  • 36 - Side Burner Igniter Wire
    SKU #0127481000AP

    Part #36Side Burner Igniter Wire
    Length: 0.95Width: 0.95Height: 43.7

    $5.59

  • 37 - Side Burner Control Panel Right
    SKU #0125720000AP

    Part #37Side Burner Control Panel Right
    Length: 12.01Width: 7.48Height: 2.68

    $25.20

  • 38 - Side Burner
    SKU #20003311A0

    Part #38Side Burner
    Length: 10.63Width: 4.72Height: 3.98

    $6.72

  • 39 - Grease Tray
    SKU #0124726000AP

    Part #39Grease Tray
    Length: 24.61Width: 14.25Height: 3.19

    $23.52

  • 40 - Grease Box
    SKU #0145237901AQ

    Part #40Grease Box
    Length: 9.76Width: 0.59Height: 2.17

    $6.48

  • 41 - Cart Frame
    SKU #0126612000AP

    Part #41Cart Frame
    Length: 27.01Width: 3.54Height: 0.91

    $14.39

  • 42 - Door Magnet
    SKU #05000010A0

    Part #42Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 43 - Side Panel Left
    SKU #0127476000AP

    Part #43Side Panel Left
    Length: 24.76Width: 16.81Height: 0.79

    $21.84

  • 44 - Side Panel Right
    SKU #0127477000AP

    Part #44Side Panel Right
    Length: 24.76Width: 16.81Height: 0.79

    $21.84

  • 45 - Rear Panel
    SKU #0145294501AQ

    Part #45Rear Panel
    Length: 25.43Width: 11.81Height: 0.79

    $23.52

  • 46 - Tank Bolt
    SKU #1534075093AW

    Part #46Tank Bolt
    Length: 5.95Width: 1.6Height: 0.75

    $6.44

  • 47 - Door Iron Piece
    SKU #04007695A0

    Part #47Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.93

    $4.99

  • 48 - Triangle Bracket Left
    SKU #0212343502AQ

    Part #48Triangle Bracket Left
    Length: 4.72Width: 2.56Height: 0.53

    $5.00

  • 49 - Triangle Bracket Right
    SKU #0212342502AQ

    Part #49Triangle Bracket Right
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 50 - Door Handle Assembly
    SKU #0127479000AP

    Part #50Door Handle Assembly
    Length: 9.69Width: 1.69Height: 0.83

    $6.72

  • 51 - Door Left
    SKU #0125147000AP

    Part #51Door Left
    Length: 20.59Width: 13.7Height: 0.85

    $17.99

  • 52 - Door Right
    SKU #0126536000AP

    Part #52Door Right
    Length: 22.44Width: 14.94Height: 0.71

    $17.92

  • 53 - Lighting Rod
    SKU #0904133081AW

    Part #53Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 54 - Bottom Panel
    SKU #0127475000AP

    Part #54Bottom Panel
    Length: 29.13Width: 19.69Height: 2.56

    $39.20

  • 55 - Caster
    SKU #05000734A0

    Part #55Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 57 - Hardware Pack
    SKU #2006437000AP

    Part #57Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $6.72
