Replacement Parts For KitchenAid 740-0781 Sold at Sears Kmart USA and Home Depot USA in 2018

Find replacement grill parts for your 2018 KitchenAid 740-0781 4 Burner Propane Gas 36" Built-In Island Grill Head with Searing Burner & Rear Burner in Stainless Steel model number 740-0781 grill using the replacement parts diagram below. The KitchenAid 740-0781 grill was sold at Sears Kmart USA and Home Depot USA in 2018. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

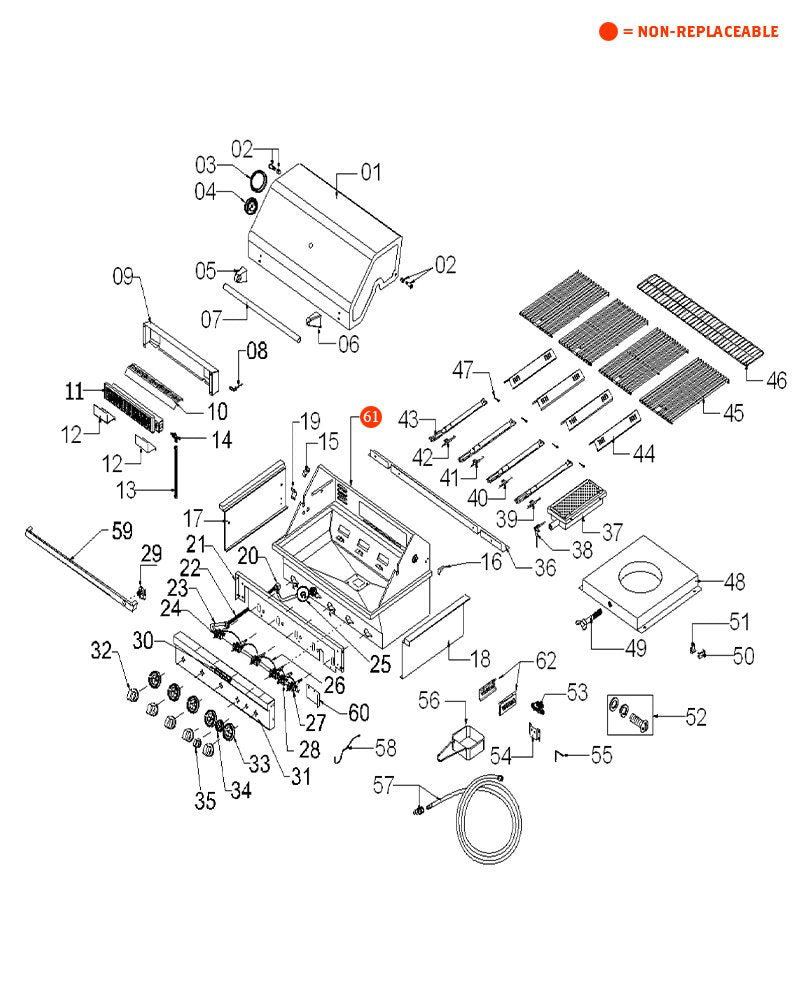

replacement grill parts for your KitchenAid 740-0781

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #20002443A0

    Part #1Main Lid
    Length: 36.86Width: 16.93Height: 12.6

    $111.42

  • 2 - Main Lid Screw with Screw Cover
    SKU #20001428A0

    Part #2Main Lid Screw with Screw Cover
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Temperature Gauge Housing
    SKU #05001280A0

    Part #3Temperature Gauge Housing
    Length: 3.9Width: 3.9Height: 0.75

    $5.00

  • 4 - Temperature Gauge
    SKU #05001263A0

    Part #4Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 5 - Main Lid Handle Seat with Heat Insulating Spacer Left
    SKU #20001939A0

    Part #5Main Lid Handle Seat with Heat Insulating Spacer Left
    Length: 3.27Width: 2.72Height: 1.65

    $10.87

  • 6 - Main Lid Handle Seat with Heat Insulating Spacer Right
    SKU #20001940A0

    Part #6Main Lid Handle Seat with Heat Insulating Spacer Right
    Length: 3.27Width: 2.72Height: 1.65

    $10.87

  • 7 - Main Lid Handle Tube
    SKU #12000413A0

    Part #7Main Lid Handle Tube
    Length: 3.15Width: 2.72Height: 2.32

    $22.40

  • 8 - Rotisserie Burner Igniter Wire
    SKU #10001511A1

    Part #8Rotisserie Burner Igniter Wire
    Length: 55.39Width: 2.7Height: 1.3

    $6.99

  • 9 - Rear Baffle
    SKU #04004260A1

    Part #9Rear Baffle
    Length: 0.81Width: 0.14Height: 0.07

    $36.54

  • 10 - Rotisserie Heat Shield
    SKU #20002429A0

    Part #10Rotisserie Heat Shield
    Length: 20.47Width: 3.54Height: 1.77

    $22.40

  • 11 - Rotisserie Burner
    SKU #20001648A0

    Part #11Rotisserie Burner
    Length: 0.13Width: 0.09Height: 0.61

    $55.81

  • 12 - Rotisserie Burner Igniter Bracket
    SKU #04006333A0

    Part #12Rotisserie Burner Igniter Bracket
    Length: 15.55Width: 3.35Height: 2.36

    $5.00

  • 13 - Rotisserie Burner Flex Gas Line
    SKU #11000011A0

    Part #13Rotisserie Burner Flex Gas Line
    Length: 39.37Width: 1.96Height: 0.9

    $10.00

  • 14 - Rotisserie Orifice with Brass Elbow
    SKU #05000865A0

    Part #14Rotisserie Orifice with Brass Elbow
    Length: 1.97Width: 1.5Height: 0.91

    $5.31

  • 15 - Main Lid Bracket Left
    SKU #04005186A0

    Part #15Main Lid Bracket Left
    Length: 1.57Width: 1.18Height: 0.47

    $5.00

  • 16 - Main Lid Bracket Right
    SKU #04005187A0

    Part #16Main Lid Bracket Right
    Length: 1.57Width: 1.18Height: 0.47

    $5.00

  • 17 - Flange Left
    SKU #04006334A0

    Part #17Flange Left
    Length: 19.69Width: 9.45Height: 2.95

    $22.40

  • 18 - Flange Right
    SKU #04006335A0

    Part #18Flange Right
    Length: 3.74Width: 0.79Height: 0.59

    $22.40

  • 19 - Main Burner Flex Gas Clamp
    SKU #04001936A1

    Part #19Main Burner Flex Gas Clamp
    Length: 0.06Width: 0.04Height: 0.02

    $9.97

  • 20 - 90 Degree Brass Adaptor
    SKU #05001006A0

    Part #2090 Degree Brass Adaptor
    Length: 0.05Width: 0.05Height: 0.04

    $12.94

  • 21 - Front Baffle
    SKU #20002430A0

    Part #21Front Baffle
    Length: 35.91Width: 5.91Height: 0.02

    $21.00

  • 22 - Main Burner Flex Gas Line
    SKU #11000461A0

    Part #22Main Burner Flex Gas Line
    Length: 7.87Width: 0.74Height: 0.82

    $9.97

  • 23 - Main Manifold
    SKU #11000279A0

    Part #23Main Manifold
    Length: 0.63Width: 29.02Height: 31.5

    $35.00

  • 24 - Main Gas Valve
    SKU #09000544A0

    Part #24Main Gas Valve
    Length: 3.74Width: 2.09Height: 1.89

    $20.45

  • 25 - Regulator LP
    SKU #09000123A0

    Part #25Regulator LP
    Length: 4.25Width: 3.15Height: 2.84

    $35.87

  • 26 - Igniter Junction Wire
    SKU #07000723A0

    Part #26Igniter Junction Wire
    Length: 5.91Width: 5.91Height: 5.91

    $6.99

  • 27 - Sear Gas Valve
    SKU #09000398A0

    Part #27Sear Gas Valve
    Length: 1.26Width: 3.15Height: 2.09

    $28.00

  • 28 - Rotisserie Gas Valve
    SKU #09000422A0

    Part #28Rotisserie Gas Valve
    Length: 3.66Width: 2.08Height: 2

    $22.84

  • 29 - Electronic Igniter Module
    SKU #07000030A3

    Part #29Electronic Igniter Module
    Length: 2.95Width: 2.6Height: 1.97

    $16.79

  • 30 - Logo
    SKU #20001941A0

    Part #30Logo
    Length: 5.12Width: 1.42Height: 0.59

    $5.00

  • 31 - Main Control Panel
    SKU #20002431A0

    Part #31Main Control Panel
    Length: 37.05Width: 7.48Height: 2.76

    $59.99

  • 32 - Control Knob Main Burner
    SKU #14000133A0

    Part #32Control Knob Main Burner
    Length: 2.28Width: 2.28Height: 1.58

    $7.47

  • 33 - Control Knob Bezel Main Burner
    SKU #14000240A0

    Part #33Control Knob Bezel Main Burner
    Length: 2.95Width: 2.95Height: 0.59

    $9.99

  • 34 - Control Knob Bezel Rotisserie Burner
    SKU #14000241A0

    Part #34Control Knob Bezel Rotisserie Burner
    Length: 4Width: 2.09Height: 1.91

    $9.99

  • 35 - Control Knob Rotisserie Burner
    SKU #14000134A0

    Part #35Control Knob Rotisserie Burner
    Length: 1.79Width: 1.44Height: 0.96

    $7.70

  • 36 - Trim Piece Rear
    SKU #04006341A0

    Part #36Trim Piece Rear
    Length: 39.92Width: 1.65Height: 0.98

    $11.20

  • 37 - Sear Burner
    SKU #20001652A0

    Part #37Sear Burner
    Length: 14.2Width: 7.22Height: 2.76

    $42.99

  • 38 - Sear Burner Igniter Wire
    SKU #10001526A0

    Part #38Sear Burner Igniter Wire
    Length: 1.57Width: 1.18Height: 0.47

    $6.99

  • 39 - Main Burner Igniter Wire A
    SKU #10001443A0

    Part #39Main Burner Igniter Wire A
    Length: 16.2Width: 3.5Height: 1.77

    $6.99

  • 40 - Main Burner Igniter Wire B
    SKU #10001444A0

    Part #40Main Burner Igniter Wire B
    Length: 20.47Width: 1.07Height: 0.31

    $6.99

  • 41 - Main Burner Igniter Wire C
    SKU #10001445A0

    Part #41Main Burner Igniter Wire C
    Length: 19.53Width: 1.85Height: 1.18

    $6.99

  • 42 - Main Burner Igniter Wire D
    SKU #10001446A0

    Part #42Main Burner Igniter Wire D
    Length: 12.64Width: 2.44Height: 1.18

    $6.99

  • 43 & 47 - Main Burner & Burner Pin Assembly
    SKU #20002439A0

    Part #43 & 47Main Burner & Burner Pin Assembly
    Length: 16.89Width: 1.54Height: 0.98

    $9.25

  • 44 - Flame Tamer
    SKU #0315154000AC

    Part #44Flame Tamer
    Length: 16.14Width: 3.35Height: 1.32

    $14.28

  • 45 - Cooking Grid with Hole
    SKU #13000399A0

    Part #45Cooking Grid with Hole
    Length: 18.819Width: 8.898Height: 0.591

    $30.91

  • 46 - Warming Rack
    SKU #13000270A0

    Part #46Warming Rack
    Length: 34.88Width: 6.14Height: 0.39

    $25.88

  • 48 - Tank Tray
    SKU #20002433A0

    Part #48Tank Tray
    Length: 14.17Width: 12.2Height: 1.77

    $11.20

  • 49 - Tank Tray Bolt
    SKU #20000784A0

    Part #49Tank Tray Bolt
    Length: 5.35Width: 1.85Height: 0.74

    $10.00

  • 50 - 90 Degree Clamp Right
    SKU #04005180A0

    Part #5090 Degree Clamp Right
    Length: 0.05Width: 0.05Height: 0.04

    $7.31

  • 51 - 90 Degree Clamp Left
    SKU #04005179A0

    Part #5190 Degree Clamp Left
    Length: 0.05Width: 0.05Height: 0.04

    $7.31

  • 52 - Preassembly Hardware Pack
    SKU #20002435A0

    Part #52Preassembly Hardware Pack
    Length: 1.38Width: 1.3Height: 1

    $6.72

  • 53 - Regulator with Brass Connector Natural Gas
    SKU #20001525A0

    Part #53Regulator with Brass Connector Natural Gas
    Length: 0.16Width: 0.1Height: 0.09

    $13.70

  • 54 - Natural Gas Regulator Clamp
    SKU #04000381A0

    Part #54Natural Gas Regulator Clamp
    Length: 0.14Width: 0.09Height: 0.02

    $5.00

  • 55 - Nut Driver
    SKU #06000623A0

    Part #55Nut Driver
    Length: 0.01Width: 0.16Height: 0.08

    $5.00

  • 56 - Grease Cup
    SKU #20002434A0

    Part #56Grease Cup
    Length: 29.92Width: 5.91Height: 1.18

    $16.20

  • 57 - 10Ft 3.0m PVC Flexible Gas Supply Hose with Quick Connector
    SKU #20000730A0

    Part #5710Ft 3.0m PVC Flexible Gas Supply Hose with Quick Connector
    Length: 0.06Width: 10Height: 0.06

    $53.00

  • 58 - Lighting Rod
    SKU #05001153A0

    Part #58Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 59 - Trim Piece Front
    SKU #04006347A0

    Part #59Trim Piece Front
    Length: 4.72Width: 2.56Height: 0.47

    $11.20

  • 60 - Electronic Igniter Module Heat Shield Panel
    SKU #04006544A0

    Part #60Electronic Igniter Module Heat Shield Panel
    Length: 34.09Width: 1.65Height: 0.98

    $23.00

  • 62 - Grease Cup Supporting Bracket
    SKU #0126935000AP

    Part #62Grease Cup Supporting Bracket
    Length: 18.27Width: 16.38Height: 1.77

    $9.52
