Replacement Parts For KitchenAid 740-0780 Sold at Online Retailers and Home Depot USA in 2021

Find replacement grill parts for your 2021 KitchenAid 740-0780 4 Burner Propane Gas 30" Built-In Island Grill Head with Rear Burner in Stainless Steel model number 740-0780 grill using the replacement parts diagram below. The KitchenAid 740-0780 grill was sold at Online Retailers and Home Depot USA in 2021. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

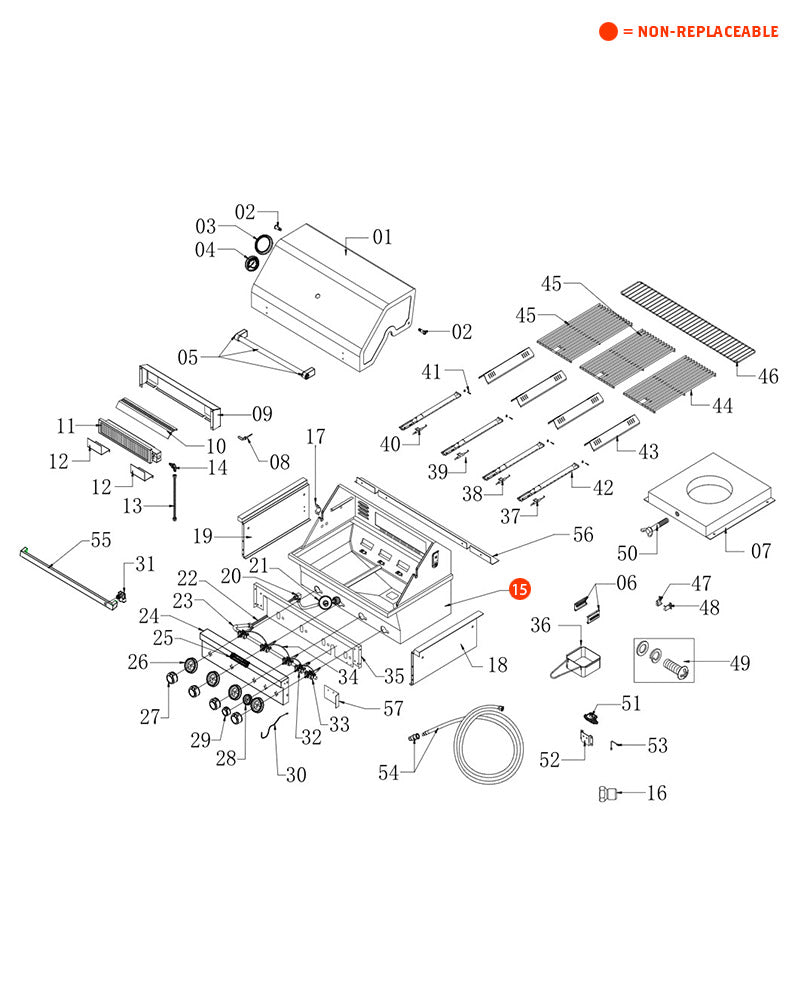

replacement grill parts for your KitchenAid 740-0780

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850002787

    Part #1Main Lid
    Length: 31Width: 22.53Height: 12.6

    $63.70

  • 2 - Main Lid Screw with Screw Cover
    SKU #20001428A0

    Part #2Main Lid Screw with Screw Cover
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Temperature Gauge Housing
    SKU #05001280A0

    Part #3Temperature Gauge Housing
    Length: 3.9Width: 3.9Height: 0.75

    $5.00

  • 4 - Temperature Gauge
    SKU #05001263A0

    Part #4Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 5 - Lid Handle Assembly
    SKU #120850002788

    Part #5Lid Handle Assembly
    Length: 26.36Width: 3.61Height: 1.65

    $17.88

  • 6 - Grease Cup Bracket
    SKU #0126935000AP

    Part #6Grease Cup Bracket
    Length: 18.27Width: 16.38Height: 1.77

    $9.52

  • 7 - Tank Tray
    SKU #20002433A0

    Part #7Tank Tray
    Length: 14.17Width: 12.2Height: 1.77

    $11.20

  • 8 - Rotisserie Burner Igniter Wire
    SKU #10001511A1

    Part #8Rotisserie Burner Igniter Wire
    Length: 55.39Width: 2.7Height: 1.3

    $6.99

  • 9 - Rear Baffle
    SKU #04004260A0

    Part #9Rear Baffle
    Length: 2.47Width: 3.54Height: 1.77

    $38.00

  • 10 - Rotisserie Heat Shield
    SKU #20002429A0

    Part #10Rotisserie Heat Shield
    Length: 20.47Width: 3.54Height: 1.77

    $22.40

  • 11 - Rotisserie Burner
    SKU #20001519A0

    Part #11Rotisserie Burner
    Length: 3.27Width: 2.72Height: 1.65

    $46.36

  • 12 - Rotisserie Burner Igniter Bracket
    SKU #04006333A0

    Part #12Rotisserie Burner Igniter Bracket
    Length: 15.55Width: 3.35Height: 2.36

    $5.00

  • 13 - Rotisserie Burner Flex Gas Line
    SKU #11000025A0

    Part #13Rotisserie Burner Flex Gas Line
    Length: 36.22Width: 0.64Height: 0.55

    $10.00

  • 14 - Rotisserie Orifice with Brass Elbow
    SKU #05000865A0

    Part #14Rotisserie Orifice with Brass Elbow
    Length: 1.97Width: 1.5Height: 0.91

    $5.31

  • 17 - Main Burner Flex Gas Clamp
    SKU #04001936A1

    Part #17Main Burner Flex Gas Clamp
    Length: 0.06Width: 0.04Height: 0.02

    $9.97

  • 18 - Flange Right
    SKU #04006335A0

    Part #18Flange Right
    Length: 3.74Width: 0.79Height: 0.59

    $22.40

  • 19 - Flange Left
    SKU #04006334A0

    Part #19Flange Left
    Length: 19.69Width: 9.45Height: 2.95

    $22.40

  • 20 - 90 Degree Brass Adaptor
    SKU #05001006A0

    Part #2090 Degree Brass Adaptor
    Length: 0.05Width: 0.05Height: 0.04

    $12.94

  • 21 - Regulator LP
    SKU #0119162000AW

    Part #21Regulator LP
    Length: 21.65Width: 2.53Height: 2.5

    $17.92

  • 22 - Main Burner Flex Gas Line
    SKU #11000461A0

    Part #22Main Burner Flex Gas Line
    Length: 7.87Width: 0.74Height: 0.82

    $9.97

  • 23 - Main Manifold
    SKU #11000280A0

    Part #23Main Manifold
    Length: 0.63Width: 29.02Height: 31.5

    $35.00

  • 24 - Main Control Panel
    SKU #20002432A0

    Part #24Main Control Panel
    Length: 30.1Width: 3.15Height: 0.83

    $59.99

  • 25 - Logo
    SKU #0127261000AP

    Part #25Logo
    Length: 19.92Width: 6.52Height: 0.82

    $5.00

  • 26 - Main Control Knob Bezel Main Burner
    SKU #0308186001AH

    Part #26Main Control Knob Bezel Main Burner
    Length: 4.96Width: 1.26Height: 0.59

    $3.36

  • 27 - Control Knob
    SKU #0108066000AP

    Part #27Control Knob
    Length: 4.96Width: 1.26Height: 0.52

    $10.68

  • 28 - Control Knob Bezel Rotisserie Burner
    SKU #0308187001AH

    Part #28Control Knob Bezel Rotisserie Burner
    Length: 2.28Width: 2.28Height: 0.46

    $7.80

  • 29 - Control Knob Rotisserie Burner
    SKU #0108067000AP

    Part #29Control Knob Rotisserie Burner
    Length: 1Width: 0.75Height: 0.78

    $8.54

  • 30 - Lighting Rod
    SKU #05001153A0

    Part #30Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 31 - Electronic Igniter Module
    SKU #07000662A1

    Part #31Electronic Igniter Module
    Length: 4.72Width: 2.56Height: 0.47

    $12.60

  • 32 - Rotisserie Gas Valve
    SKU #09000422A0

    Part #32Rotisserie Gas Valve
    Length: 3.66Width: 2.08Height: 2

    $22.84

  • 33 - Main Gas Valve
    SKU #09000543A0

    Part #33Main Gas Valve
    Length: 4.99Width: 1.91Height: 1.56

    $20.45

  • 34 - Ignition Wire
    SKU #07000724A0

    Part #34Ignition Wire
    Length: 3.74Width: 2.09Height: 1.97

    $6.99

  • 35 - Front Baffle
    SKU #20002494A0

    Part #35Front Baffle
    Length: 30Width: 5.9Height: 0.02

    $21.00

  • 36 - Grease Cup
    SKU #20002434A0

    Part #36Grease Cup
    Length: 29.92Width: 5.91Height: 1.18

    $16.20

  • 37 - Main Burner Igniter Wire A
    SKU #10001447A0

    Part #37Main Burner Igniter Wire A
    Length: 10.43Width: 5.16Height: 2.17

    $6.99

  • 38 - Main Burner Igniter Wire B
    SKU #10001443A0

    Part #38Main Burner Igniter Wire B
    Length: 16.2Width: 3.5Height: 1.77

    $6.99

  • 39 - Main Burner Igniter Wire C
    SKU #10001444A0

    Part #39Main Burner Igniter Wire C
    Length: 20.47Width: 1.07Height: 0.31

    $6.99

  • 40 - Main Burner Igniter Wire D
    SKU #10001445A0

    Part #40Main Burner Igniter Wire D
    Length: 19.53Width: 1.85Height: 1.18

    $6.99

  • 41 - Burner Pin Assembly
    SKU #06000865A0

    Part #41Burner Pin Assembly
    Length: 1.1Width: 0.26Height: 1.42

    $3.50

  • 42 - Main Burner
    SKU #20002439A0

    Part #42Main Burner
    Length: 16.89Width: 1.54Height: 0.98

    $9.25

  • 43 - Flame Tamer
    SKU #0315154000AC

    Part #43Flame Tamer
    Length: 16.14Width: 3.35Height: 1.32

    $14.28

  • 44 - Cooking Grid with Hole A
    SKU #13000399A0

    Part #44Cooking Grid with Hole A
    Length: 18.819Width: 8.898Height: 0.591

    $30.91

  • 45 - Cooking Grid with Hole B
    SKU #13000382A0

    Part #45Cooking Grid with Hole B
    Length: 18.82Width: 10.43Height: 0.59

    $35.02

  • 46 - Warming Rack
    SKU #13000271A0

    Part #46Warming Rack
    Length: 18.82Width: 10.08Height: 0.59

    $27.18

  • 47 - 90 Degree Clamp Left
    SKU #04005179A0

    Part #4790 Degree Clamp Left
    Length: 0.05Width: 0.05Height: 0.04

    $7.31

  • 48 - 90 Degree Clamp Right
    SKU #04005180A0

    Part #4890 Degree Clamp Right
    Length: 0.05Width: 0.05Height: 0.04

    $7.31

  • 49 - Preassembly Hardware Pack
    SKU #20002435A0

    Part #49Preassembly Hardware Pack
    Length: 1.38Width: 1.3Height: 1

    $6.72

  • 50 - Tank Tray Bolt
    SKU #20000784A0

    Part #50Tank Tray Bolt
    Length: 5.35Width: 1.85Height: 0.74

    $10.00

  • 51 - Regulator with Brass Connector Natural Gas
    SKU #20001525A0

    Part #51Regulator with Brass Connector Natural Gas
    Length: 0.16Width: 0.1Height: 0.09

    $13.70

  • 52 - Natural Gas Regulator Clamp
    SKU #04000381A0

    Part #52Natural Gas Regulator Clamp
    Length: 0.14Width: 0.09Height: 0.02

    $5.00

  • 54 - 10 ft 3.0 m PVC Flexible Gas Supply Hose with Quick Connector
    SKU #20000730A0

    Part #5410 ft 3.0 m PVC Flexible Gas Supply Hose with Quick Connector
    Length: 0.06Width: 10Height: 0.06

    $53.00

  • 55 - Trim Piece Front
    SKU #04006550A0

    Part #55Trim Piece Front
    Length: 1.97Width: 1.97Height: 100

    $11.20

  • 56 - Trim Piece Rear
    SKU #04006329A0

    Part #56Trim Piece Rear
    Length: 30.12Width: 1.97Height: 1.97

    $11.20

  • 57 - Electronic Igniter Module Heat Shield Panel
    SKU #04006544A0

    Part #57Electronic Igniter Module Heat Shield Panel
    Length: 34.09Width: 1.65Height: 0.98

    $23.00

  • 59 - Tank Tray
    SKU #20002433A0

    Part #59Tank Tray
    Length: 14.17Width: 12.2Height: 1.77

    $11.20

  • 60 - Grease Cup Supporting Bracket
    SKU #0126935000AP

    Part #60Grease Cup Supporting Bracket
    Length: 18.27Width: 16.38Height: 1.77

    $9.52

  • 61 - Natural Gas Orifice Kit
    SKU #20002608A0

    Part #61Natural Gas Orifice Kit
    Length: 9.45Width: 6.1Height: 0.98

    $5.00

  • 62 - PVC Cover
    SKU #18002317A0

    Part #62PVC Cover
    Length: 11.81Width: 1.97Height: 11.81

    $29.99
