Replacement Parts For KitchenAid 720-0954GA Sold at Costco USA in 2021

Find replacement grill parts for your 2021 KitchenAid 720-0954GA 4 Burner Propane Gas Grill with Searing Side Burner in Stainless Steel model number 720-0954GA grill using the replacement parts diagram below. The KitchenAid 720-0954GA grill was sold at Costco USA in 2021. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

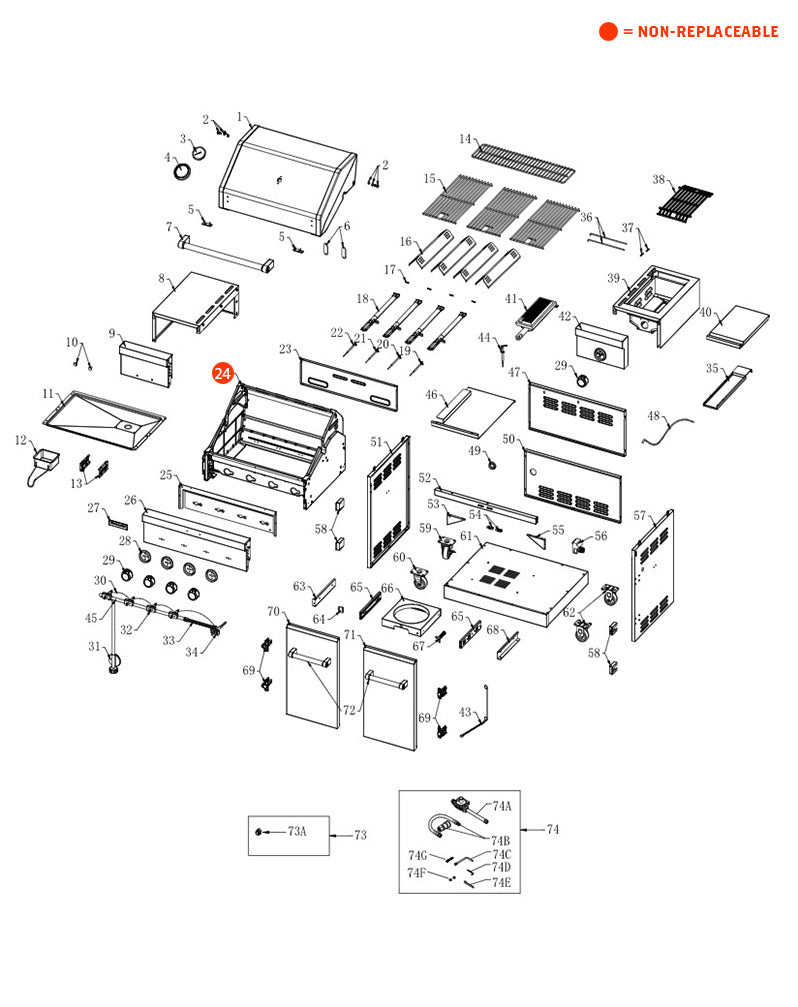

replacement grill parts for your KitchenAid 720-0954GA

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850002627

    Part #1Main Lid
    Length: 27.13Width: 18.5Height: 11.77

    $48.30

  • 2 - Main Lid Screw
    SKU #120850002291

    Part #2Main Lid Screw
    Length: 0.94Width: 0.63Height: 1

    $5.00

  • 3 - Temperature Gauge
    SKU #05001263A0

    Part #3Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 4 - Temperature Gauge Housing
    SKU #0308185000AC

    Part #4Temperature Gauge Housing
    Length: 5.12Width: 3.25Height: 0.74

    $3.92

  • 5 - Hood Buffer
    SKU #120870002091

    Part #5Hood Buffer
    Length: 2.36Width: 0.79Height: 0.93

    $4.53

  • 6 - Main Lid Handle Heat Insulating Spacer
    SKU #120870002198

    Part #6Main Lid Handle Heat Insulating Spacer
    Length: 3.03Width: 1.26Height: 0.02

    $5.00

  • 7 - Main Lid Handle Assembly
    SKU #120850002628

    Part #7Main Lid Handle Assembly
    Length: 23.46Width: 3.62Height: 1.61

    $17.22

  • 8 - Side Shelf Left
    SKU #120850002635

    Part #8Side Shelf Left
    Length: 19.69Width: 12.59Height: 7.48

    $25.90

  • 9 - Side Shelf Front Panel Left
    SKU #120870002357

    Part #9Side Shelf Front Panel Left
    Length: 12.6Width: 7.48Height: 2.76

    $21.18

  • 10 - Tool Hook
    SKU #0127750000AP

    Part #10Tool Hook
    Length: 1.06Width: 0.75Height: 0.75

    $17.08

  • 11 - Grease Tray Assembly
    SKU #120850002629

    Part #11Grease Tray Assembly
    Length: 24.83Width: 15.95Height: 1.89

    $19.88

  • 12 - Grease Cup
    SKU #20002323A0

    Part #12Grease Cup
    Length: 10.44Width: 5.15Height: 3.39

    $18.27

  • 13 - Grease Cup Bracket
    SKU #0212661901AQ

    Part #13Grease Cup Bracket
    Length: 4.13Width: 1.97Height: 0.43

    $8.68

  • 14 - Warming Rack
    SKU #120870002351

    Part #14Warming Rack
    Length: 23.43Width: 6.14Height: 0.39

    $13.30

  • 15 - Cooking Grid with Hole
    SKU #120870002360

    Part #15Cooking Grid with Hole
    Length: 18.82Width: 8.9Height: 1.18

    $14.28

  • 16 - Flame Tamer
    SKU #120870002361

    Part #16Flame Tamer
    Length: 16.14Width: 3.54Height: 2.95

    $9.52

  • 17 & 18 - Main Burner & Burner Pin Assembly
    SKU #120850002292

    Part #17 & 18Main Burner & Burner Pin Assembly
    Length: 16.89Width: 1.34Height: 1

    $9.25

  • 19 - Main Burner Igniter Wire A
    SKU #120850002293

    Part #19Main Burner Igniter Wire A
    Length: 18.82Width: 0.79Height: 0.2

    $6.99

  • 20 - Main Burner Igniter Wire B
    SKU #120850002294

    Part #20Main Burner Igniter Wire B
    Length: 24.72Width: 0.79Height: 0.2

    $6.99

  • 21 - Main Burner Igniter Wire C
    SKU #120850002295

    Part #21Main Burner Igniter Wire C
    Length: 31.02Width: 0.79Height: 0.2

    $6.99

  • 22 - Main Burner Igniter Wire D
    SKU #120850002296

    Part #22Main Burner Igniter Wire D
    Length: 38.9Width: 0.79Height: 0.2

    $6.99

  • 23 - Firebox Rear Cover
    SKU #120870002365

    Part #23Firebox Rear Cover
    Length: 25.55Width: 6.42Height: 0.55

    $11.48

  • 25 - Front Baffle
    SKU #120870002662

    Part #25Front Baffle
    Length: 25.55Width: 6.22Height: 1.3

    $18.90

  • 26 - Main Control Panel
    SKU #120850003185

    Part #26Main Control Panel
    Length: 27.24Width: 7.48Height: 2.75

    $32.90

  • 27 - Logo
    SKU #0127261000AP

    Part #27Logo
    Length: 19.92Width: 6.52Height: 0.82

    $5.00

  • 28 - Control Knob Bezel
    SKU #0308186001AH

    Part #28Control Knob Bezel
    Length: 4.96Width: 1.26Height: 0.59

    $3.36

  • 29 - Control Knob
    SKU #0108066000AP

    Part #29Control Knob
    Length: 4.96Width: 1.26Height: 0.52

    $10.68

  • 30 - Igniter Junction Wire
    SKU #120870002362

    Part #30Igniter Junction Wire
    Length: 6.88Width: 0.59Height: 0.59

    $7.00

  • 31 - LP Regulator with Hose
    SKU #0119151000AW

    Part #31LP Regulator with Hose
    Length: 21.65Width: 2.53Height: 2.5

    $17.50

  • 32 - Main Gas Valve
    SKU #120870002363

    Part #32Main Gas Valve
    Length: 3.82Width: 2.09Height: 2.36

    $20.45

  • 33 - Searing Side Burner Flex Gas Line 5/8"
    SKU #11000894A0

    Part #33Searing Side Burner Flex Gas Line 5/8"
    Length: 7.87Width: 0.74Height: 0.82

    $9.97

  • 34 - Searing Side Burner Gas Valve
    SKU #0120865000AW

    Part #34Searing Side Burner Gas Valve
    Length: 5.32Width: 2.62Height: 1.42

    $12.04

  • 35 - Searing Side Burner Grease Tray
    SKU #120870001891

    Part #35Searing Side Burner Grease Tray
    Length: 4.45Width: 16.85Height: 0.79

    $21.30

  • 36 & 37 - Searing Side Burner Lid Hinge Rod & Pin
    SKU #20002785A0

    Part #36 & 37Searing Side Burner Lid Hinge Rod & Pin
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 38 - Searing Side Burner Cooking Grid
    SKU #13000939A0

    Part #38Searing Side Burner Cooking Grid
    Length: 13.78Width: 8.43Height: 0.75

    $22.40

  • 39 - Searing Side Burner Bowl Assembly
    SKU #120850002850

    Part #39Searing Side Burner Bowl Assembly
    Length: 19.68Width: 12.59Height: 7.48

    $37.10

  • 40 - Searing Side Burner Lid
    SKU #120870002356

    Part #40Searing Side Burner Lid
    Length: 14.82Width: 8.9Height: 0.79

    $17.50

  • 41 - Searing Side Burner
    SKU #20001486A0

    Part #41Searing Side Burner
    Length: 10.79Width: 5.47Height: 2.78

    $30.00

  • 42 - Searing Side Burner Control Panel
    SKU #120850002852

    Part #42Searing Side Burner Control Panel
    Length: 12.59Width: 7.48Height: 2.76

    $25.48

  • 43 - Lighting Rod
    SKU #05001153A0

    Part #43Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 44 & 48 - Searing Side Burner Igniter Pin & Side Burner Igniter Wire
    SKU #120850002851

    Part #44 & 48Searing Side Burner Igniter Pin & Side Burner Igniter Wire
    Length: 3.94Width: 3.94Height: 1.26

    $6.99

  • 45 - Main Manifold
    SKU #120870002364

    Part #45Main Manifold
    Length: 23.78Width: 7.09Height: 0.75

    $35.00

  • 46 - Tank Heat Shield Panel
    SKU #0127559000AP

    Part #46Tank Heat Shield Panel
    Length: 19.13Width: 11.81Height: 1.77

    $23.10

  • 47 - Back Panel Top
    SKU #120870002366

    Part #47Back Panel Top
    Length: 25.43Width: 11.77Height: 0.78

    $17.22

  • 49 - Gas Inlet Rubber Ring
    SKU #17000006A0

    Part #49Gas Inlet Rubber Ring
    Length: 5.94Width: 1.61Height: 0.75

    $5.00

  • 50 - Back Panel Bottom
    SKU #120870002359

    Part #50Back Panel Bottom
    Length: 25.43Width: 11.81Height: 0.79

    $23.10

  • 51 - Side Panel Left
    SKU #120850002633

    Part #51Side Panel Left
    Length: 25.43Width: 11.77Height: 0.79

    $25.48

  • 52 - Cart Frame Front
    SKU #120850002632

    Part #52Cart Frame Front
    Length: 24.53Width: 19.69Height: 0.79

    $21.28

  • 53 - Triangle Bracket Left
    SKU #120870002354

    Part #53Triangle Bracket Left
    Length: 26.89Width: 1.38Height: 0.98

    $15.68

  • 54 - Door Magnet
    SKU #05000010A0

    Part #54Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 55 - Triangle Bracket Right
    SKU #120870002355

    Part #55Triangle Bracket Right
    Length: 1.58Width: 0.57Height: 0.39

    $15.68

  • 56 - Pulse Igniter Module
    SKU #07000662A1

    Part #56Pulse Igniter Module
    Length: 4.72Width: 2.56Height: 0.47

    $12.60

  • 57 - Side Panel Right
    SKU #120850002640

    Part #57Side Panel Right
    Length: 2.76Width: 2.05Height: 2.76

    $25.48

  • 58 - Door Hinge Bracket
    SKU #120870002352

    Part #58Door Hinge Bracket
    Length: 24.53Width: 19.69Height: 0.79

    $11.34

  • 59 - Swivel Caster with Brake
    SKU #05000737A1

    Part #59Swivel Caster with Brake
    Length: 2.95Width: 1.22Height: 4.17

    $10.50

  • 60 - Swivel Caster
    SKU #05000736A1

    Part #60Swivel Caster
    Length: 2.95Width: 1.22Height: 4.17

    $14.00

  • 61 - Bottom Panel
    SKU #120850002639

    Part #61Bottom Panel
    Length: 3.7Width: 2.52Height: 4.17

    $31.50

  • 62 - Caster
    SKU #05000735A0

    Part #62Caster
    Length: 3.7Width: 2.52Height: 4.17

    $8.68

  • 63 - Gas Tank Tray Slide Bracket Left
    SKU #120850002642

    Part #63Gas Tank Tray Slide Bracket Left
    Length: 3.7Width: 2.52Height: 4.17

    $13.30

  • 64 - Gas Tank Tray Block Piece
    SKU #120870000795

    Part #64Gas Tank Tray Block Piece
    Length: 10.04Width: 1.77Height: 0.79

    $9.10

  • 65 - Gas Tank Tray Slide
    SKU #05000171A0

    Part #65Gas Tank Tray Slide
    Length: 12.99Width: 2.44Height: 1.2

    $9.74

  • 66 - Tank Tray
    SKU #120850002641

    Part #66Tank Tray
    Length: 10Width: 1.77Height: 0.49

    $15.68

  • 67 - Tank Tray Bolt
    SKU #20000760A0

    Part #67Tank Tray Bolt
    Length: 8.07Width: 1.97Height: 0.01

    $6.44

  • 68 - Gas Tank Tray Slide Bracket Right
    SKU #120850002643

    Part #68Gas Tank Tray Slide Bracket Right
    Length: 2.23Width: 1.6Height: 0.75

    $13.30

  • 69 - Door Hinge
    SKU #0126558000AP

    Part #69Door Hinge
    Length: 10.04Width: 1.77Height: 0.79

    $22.68

  • 70 - Door Left
    SKU #120850002644

    Part #70Door Left
    Length: 2.95Width: 2.44Height: 1.3

    $17.92

  • 71 - Door Right
    SKU #120850002645

    Part #71Door Right
    Length: 22.91Width: 13.46Height: 1.22

    $23.52

  • 72 - Door Handle Assembly
    SKU #0170094000AP

    Part #72Door Handle Assembly
    Length: 22.91Width: 13.46Height: 1.22

    $13.10

  • 73 - NG Orifice Pack
    SKU #120850003188

    Part #73NG Orifice Pack
    Length: 9.92Width: 2.48Height: 1.18

    $2.80

  • 75 - Grill Cover
    SKU #120870002367

    Part #75Grill Cover
    Length: 13.78Width: 11.02Height: 3.94

    $25.90

  • 76 - Hardware Pack
    SKU #120850002634

    Part #76Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $4.90
