Replacement Parts For KitchenAid 720-0709C Sold at Sam's Club Puerto Rico and Sam's Club USA in 2013

Find replacement grill parts for your 2013 KitchenAid 720-0709C 5 Burner Propane Gas Grill with Sear Burner in Stainless Steel model number 720-0709C grill using the replacement parts diagram below. The KitchenAid 720-0709C grill was sold at Sam's Club Puerto Rico and Sam's Club USA in 2013. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

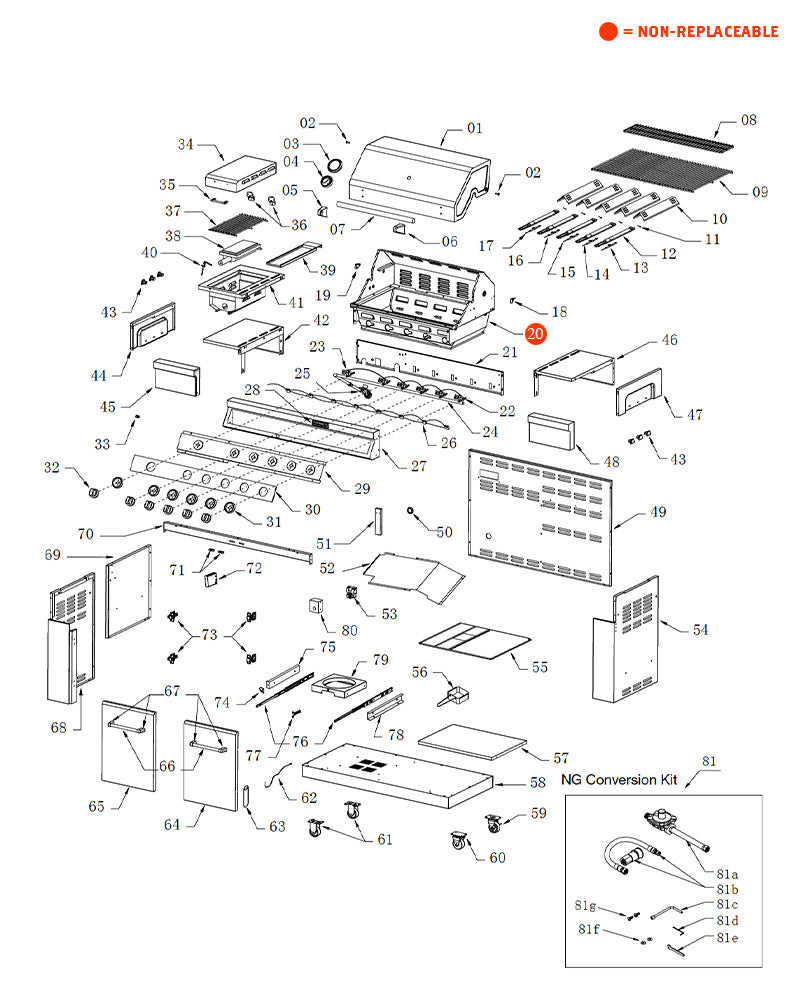

replacement grill parts for your KitchenAid 720-0709C

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #20002552A0

    Part #1Main Lid
    Length: 20.08Width: 14.65Height: 3.62

    $119.99

  • 2 - Main Lid Screw
    SKU #20001428A0

    Part #2Main Lid Screw
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Temperature Gauge Seat
    SKU #05001278A0

    Part #3Temperature Gauge Seat
    Length: 3.88Width: 3.88Height: 0.72

    $5.00

  • 4 - Temperature Gauge
    SKU #05001263A0

    Part #4Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 5 - Main Lid Handle Seat Left
    SKU #20001939A0

    Part #5Main Lid Handle Seat Left
    Length: 3.27Width: 2.72Height: 1.65

    $10.87

  • 6 - Main Lid Handle Seat Right
    SKU #20001940A0

    Part #6Main Lid Handle Seat Right
    Length: 3.27Width: 2.72Height: 1.65

    $10.87

  • 7 - Main Lid Handle Tube
    SKU #12000651A0

    Part #7Main Lid Handle Tube
    Length: 23.58Width: 1.26Height: 0.02

    $22.40

  • 8 - Warming Rack
    SKU #13000291A0

    Part #8Warming Rack
    Length: 30.55Width: 6.14Height: 0.24

    $24.99

  • 9 - Cooking Grid with Hole
    SKU #13000382A0

    Part #9Cooking Grid with Hole
    Length: 18.82Width: 10.43Height: 0.59

    $35.02

  • 10 - Flame Tamer
    SKU #04006325A0

    Part #10Flame Tamer
    Length: 30.71Width: 6.14Height: 1.1

    $13.99

  • 11 - Burner Pin Assembly
    SKU #06000865A0

    Part #11Burner Pin Assembly
    Length: 1.1Width: 0.26Height: 1.42

    $3.50

  • 12 - Main Burner
    SKU #20002439A0

    Part #12Main Burner
    Length: 16.89Width: 1.54Height: 0.98

    $9.25

  • 13 - Main Burner Igniter Wire A
    SKU #10001396A1

    Part #13Main Burner Igniter Wire A
    Length: 4.53Width: 1.06Height: 0.47

    $6.99

  • 14 - Main Burner Igniter Wire B
    SKU #10001397A1

    Part #14Main Burner Igniter Wire B
    Length: 24.8Width: 1.06Height: 0.47

    $6.99

  • 15 - Main Burner Igniter Wire C
    SKU #10001445A0

    Part #15Main Burner Igniter Wire C
    Length: 19.53Width: 1.85Height: 1.18

    $6.99

  • 16 - Main Burner Igniter Wire D
    SKU #10001444A0

    Part #16Main Burner Igniter Wire D
    Length: 20.47Width: 1.07Height: 0.31

    $6.99

  • 17 - Main Burner Igniter Wire E
    SKU #10001399A1

    Part #17Main Burner Igniter Wire E
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 18 - Main Lid Bracket Right
    SKU #04005331A0

    Part #18Main Lid Bracket Right
    Length: 1.57Width: 1.18Height: 0.47

    $5.33

  • 19 - Main Lid Bracket Left
    SKU #04005330A0

    Part #19Main Lid Bracket Left
    Length: 1.57Width: 1.18Height: 0.47

    $4.80

  • 21 - Front Baffle
    SKU #20002553A0

    Part #21Front Baffle
    Length: 45.29Width: 6.5Height: 0.82

    $59.99

  • 22 - Main Gas Valve
    SKU #09000545A0

    Part #22Main Gas Valve
    Length: 5.05Width: 2.09Height: 1.93

    $20.45

  • 23 - Searing Gas Valve
    SKU #09000399A0

    Part #23Searing Gas Valve
    Length: 5.28Width: 2.09Height: 2.06

    $35.99

  • 24 - Main Manifold
    SKU #11000282A0

    Part #24Main Manifold
    Length: 40.82Width: 9.76Height: 0.63

    $55.99

  • 25 - Regulator LP
    SKU #09000123A0

    Part #25Regulator LP
    Length: 4.25Width: 3.15Height: 2.84

    $35.87

  • 26 - Control Panel Light
    SKU #07000918A0

    Part #26Control Panel Light
    Length: 14.69Width: 0.44Height: 0.2

    $8.96

  • 27 - Main Control Panel
    SKU #20002554A0

    Part #27Main Control Panel
    Length: 8.11Width: 2.8Height: 45.51

    $59.99

  • 28 - Logo
    SKU #20001941A0

    Part #28Logo
    Length: 5.12Width: 1.42Height: 0.59

    $5.00

  • 29 - Tempered Glass Fix Panel
    SKU #20002555A0

    Part #29Tempered Glass Fix Panel
    Length: 44.29Width: 0.85Height: 5.83

    $20.00

  • 30 - Tempered Glass
    SKU #15000037A0

    Part #30Tempered Glass
    Length: 44.09Width: 4.29Height: 0.24

    $99.99

  • 31 - Control Knob Bezel
    SKU #14000229A1

    Part #31Control Knob Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $10.86

  • 32 - Control Knob
    SKU #14000133A0

    Part #32Control Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.47

  • 33 - Light Switch
    SKU #07000503A0

    Part #33Light Switch
    Length: 2.5Width: 2.36Height: 1.42

    $5.00

  • 34 - Sear Burner Lid
    SKU #20002556A0

    Part #34Sear Burner Lid
    Length: 7.4Width: 3.98Height: 2.99

    $29.99

  • 35 - Sear Burner Lid Handle
    SKU #20001489A0

    Part #35Sear Burner Lid Handle
    Length: 1.48Width: 0.39Height: 4.4

    $10.00

  • 36 - Sear Burner Lid Hinge
    SKU #06000840A0

    Part #36Sear Burner Lid Hinge
    Length: 2.32Width: 1.77Height: 0.59

    $5.00

  • 37 - Sear Burner Cooking Grid
    SKU #13000614A1

    Part #37Sear Burner Cooking Grid
    Length: 14.88Width: 8.8Height: 0.55

    $35.99

  • 38 - Sear Burner
    SKU #20001486A0

    Part #38Sear Burner
    Length: 10.79Width: 5.47Height: 2.78

    $30.00

  • 39 - Sear Burner Grease Tray
    SKU #04005282A0

    Part #39Sear Burner Grease Tray
    Length: 4.41Width: 0.79Height: 19.09

    $12.18

  • 40 - Sear Burner Igniter Wire
    SKU #10001528A0

    Part #40Sear Burner Igniter Wire
    Length: 3.92Width: 3.6Height: 1.2

    $6.99

  • 41 - Sear Burner Bowl Assembly
    SKU #20002584A0

    Part #41Sear Burner Bowl Assembly
    Length: 15.04Width: 8.88Height: 6.02

    $40.00

  • 42 - Side Shelf Left
    SKU #20002557A0

    Part #42Side Shelf Left
    Length: 19.69Width: 11.73Height: 7.48

    $59.99

  • 43 - Hooks
    SKU #05001054A0

    Part #43Hooks
    Length: 1.93Width: 1.18Height: 1.02

    $5.00

  • 44 - Side Shelf End Cap Left
    SKU #04006712A0

    Part #44Side Shelf End Cap Left
    Length: 19.69Width: 7.48Height: 0.79

    $9.52

  • 45 - Side Shelf Front Panel Left
    SKU #20002206A0

    Part #45Side Shelf Front Panel Left
    Length: 55.39Width: 2.7Height: 1.3

    $39.14

  • 46 - Side Shelf Right
    SKU #20002583A0

    Part #46Side Shelf Right
    Length: 19.69Width: 11.73Height: 7.48

    $59.99

  • 47 - Side Shelf End Cap Right
    SKU #04006713A0

    Part #47Side Shelf End Cap Right
    Length: 19.69Width: 7.48Height: 0.79

    $9.52

  • 48 - Side Shelf Control Panel Right
    SKU #20002587A0

    Part #48Side Shelf Control Panel Right
    Length: 12.57Width: 7.48Height: 2.76

    $35.99

  • 49 - Back Panel
    SKU #04006740A0

    Part #49Back Panel
    Length: 43.86Width: 29.63Height: 0.79

    $59.99

  • 50 - Rubber Grommet
    SKU #17000006A0

    Part #50Rubber Grommet
    Length: 5.94Width: 1.61Height: 0.75

    $5.00

  • 51 - Firebox Support
    SKU #04006742A0

    Part #51Firebox Support
    Length: 1.57Width: 0.92Height: 0.97

    $12.04

  • 52 - Heat Shield Left
    SKU #04006749A0

    Part #52Heat Shield Left
    Length: 23.07Width: 18.9Height: 2.83

    $17.50

  • 53 - Electronic Igniter Modular
    SKU #07000030A2

    Part #53Electronic Igniter Modular
    Length: 2.64Width: 2.36Height: 2.58

    $15.99

  • 54 - Side Panel Right
    SKU #20002589A0

    Part #54Side Panel Right
    Length: 29.61Width: 20.59Height: 6.5

    $59.99

  • 55 - Heat Shield Right
    SKU #20002866A0

    Part #55Heat Shield Right
    Length: 21.77Width: 19.8Height: 0.47

    $17.50

  • 56 - Grease Box
    SKU #20002323A0

    Part #56Grease Box
    Length: 10.44Width: 5.15Height: 3.39

    $18.27

  • 57 - Clapboard
    SKU #04006751A0

    Part #57Clapboard
    Length: 20.35Width: 20.04Height: 0.79

    $9.52

  • 58 - Bottom Panel
    SKU #20002590A0

    Part #58Bottom Panel
    Length: 45.55Width: 20.59Height: 3.15

    $59.99

  • 59 - Swivel Caster with Brake
    SKU #05001195A0

    Part #59Swivel Caster with Brake
    Length: 4.17Width: 3.68Height: 2.5

    $10.50

  • 60 - Swivel Caster
    SKU #05001196A0

    Part #60Swivel Caster
    Length: 4.17Width: 3.68Height: 2.5

    $14.00

  • 61 - Casters
    SKU #05000735A0

    Part #61Casters
    Length: 3.7Width: 2.52Height: 4.17

    $8.68

  • 62 - Lighting Rod
    SKU #05001137AO

    Part #62Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 63 - Lighting Rod Cover
    SKU #17000186A0

    Part #63Lighting Rod Cover
    Length: 1.97Width: 0.59Height: 8.06

    $5.00

  • 64 - Door Right
    SKU #20002591A0

    Part #64Door Right
    Length: 22.05Width: 16.04Height: 1.22

    $29.99

  • 65 - Door Left
    SKU #20002592A0

    Part #65Door Left
    Length: 22.05Width: 16.04Height: 1.22

    $29.99

  • 66 - Door Handle Tube
    SKU #12000650A0

    Part #66Door Handle Tube
    Length: 9.06Width: 0.71Height: 0.02

    $14.99

  • 67 - Door Handle Seat
    SKU #20002522A0

    Part #67Door Handle Seat
    Length: 1.66Width: 0.93Height: 1.1

    $6.72

  • 68 - Side Panel Left
    SKU #20002588A0

    Part #68Side Panel Left
    Length: 29.61Width: 22.17Height: 6.5

    $59.99

  • 69 - Center Panel
    SKU #20002594A0

    Part #69Center Panel
    Length: 22.95Width: 16.14Height: 0.79

    $49.99

  • 70 - Cart Frame
    SKU #20002593A0

    Part #70Cart Frame
    Length: 45.28Width: 2.69Height: 0.98

    $49.99

  • 71 - Door Magnet
    SKU #05000010A0

    Part #71Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 72 - Battery Box
    SKU #20002513A0

    Part #72Battery Box
    Length: 2.76Width: 2.52Height: 0.85

    $6.30

  • 73 - Door Hinge
    SKU #05001421A0

    Part #73Door Hinge
    Length: 11.81Width: 1.2Height: 2.45

    $5.42

  • 74 - Tank Tray Block Piece
    SKU #04004071A0

    Part #74Tank Tray Block Piece
    Length: 1.1Width: 1.5Height: 0.59

    $16.00

  • 75 - Gas Tank Tray Slide Bracket Left
    SKU #04004324A0

    Part #75Gas Tank Tray Slide Bracket Left
    Length: 10Width: 0.79Height: 1.77

    $5.00

  • 76 - Gas Tank Tray Slide
    SKU #05000171A0

    Part #76Gas Tank Tray Slide
    Length: 12.99Width: 2.44Height: 1.2

    $9.74

  • 77 - Tank Bolt
    SKU #20000760A0

    Part #77Tank Bolt
    Length: 8.07Width: 1.97Height: 0.01

    $6.44

  • 78 - Gas Tank Tray Slide Bracket Right
    SKU #04004325A0

    Part #78Gas Tank Tray Slide Bracket Right
    Length: 10Width: 1.77Height: 0.79

    $5.00

  • 79 - Gas Tank Tray
    SKU #20002597A0

    Part #79Gas Tank Tray
    Length: 10.24Width: 10.24Height: 1.77

    $25.99

  • 80 - Electronic Igniter Modular Cover
    SKU #04005354A0

    Part #80Electronic Igniter Modular Cover
    Length: 3.14Width: 2.68Height: 1.97

    $10.00
