Replacement Parts For Kenmore 720-0830S Sold at Sears Kmart USA in 2018

Find replacement grill parts for your 2018 Kenmore 720-0830S 4 Burner Propane Gas Grill with Searing Side Burner in Stainless Steel model number 720-0830S grill using the replacement parts diagram below. The Kenmore 720-0830S grill was sold at Sears Kmart USA in 2018. If this is not your grill model, you can view all Kenmore Replacement Parts or use the button below to search for your model number.

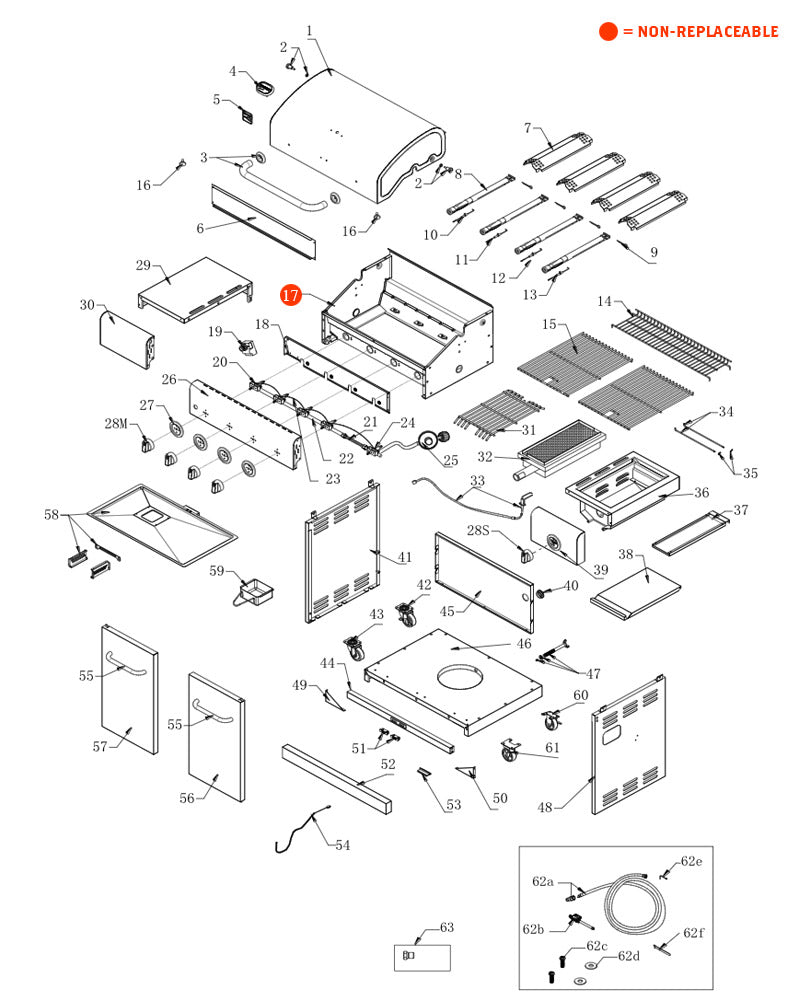

replacement grill parts for your Kenmore 720-0830S

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127384000AP

    Part #1Main Lid
    Length: 27Width: 10.69Height: 17.59

    $87.00

  • 2 - Main Lid Screw
    SKU #20002991A0

    Part #2Main Lid Screw
    Length: 0.95Width: 0.63Height: 0.63

    $5.00

  • 3 - Main Lid Handle
    SKU #20002925A0

    Part #3Main Lid Handle
    Length: 20.67Width: 3.24Height: 0.98

    $12.04

  • 4 - Temperature Gauge
    SKU #2002073000AW

    Part #4Temperature Gauge
    Length: 3Width: 1.89Height: 1.54

    $6.72

  • 5 - Logo
    SKU #08000056A0

    Part #5Logo
    Length: 2.36Width: 2.36Height: 0.53

    $5.00

  • 6 - Back Panel Top
    SKU #0312364000AC

    Part #6Back Panel Top
    Length: 27Width: 4.33Height: 0.59

    $18.75

  • 7 - Flame Tamer
    SKU #04007677A0

    Part #7Flame Tamer
    Length: 14.57Width: 4.26Height: 1.40

    $7.00

  • 8 & 9 - Main Burner & Burner Pin Assembly
    SKU #20002904A0

    Part #8 & 9Main Burner & Burner Pin Assembly
    Length: 0.98Width: 14.84Height: 0.03

    $9.25

  • 10 - Main Burner Igniter Wire A
    SKU #10001461A0

    Part #10Main Burner Igniter Wire A
    Length: 20.47Width: 3.5Height: 0.31

    $6.99

  • 11 - Main Burner Igniter Wire B
    SKU #10001462A0

    Part #11Main Burner Igniter Wire B
    Length: 9.5Width: 1.06Height: 0.26

    $6.99

  • 12 - Main Burner Igniter Wire C
    SKU #10001463A0

    Part #12Main Burner Igniter Wire C
    Length: 14.2Width: 1.06Height: 0.26

    $6.99

  • 13 - Main Burner Igniter Wire D
    SKU #10001464A0

    Part #13Main Burner Igniter Wire D
    Length: 20.7Width: 1.06Height: 0.26

    $6.99

  • 14 - Warming Rack
    SKU #13000299A0

    Part #14Warming Rack
    Length: 26.38Width: 6.18Height: 1.75

    $14.39

  • 15 - Cooking Grid with Hole
    SKU #0901138081AP

    Part #15Cooking Grid with Hole
    Length: 17.13Width: 13.31Height: 0.55

    $18.72

  • 16 - Hood Buffer
    SKU #17000106A0

    Part #16Hood Buffer
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 18 - Front Baffle
    SKU #20002938A0

    Part #18Front Baffle
    Length: 26.85Width: 4.96Height: 0.61

    $21.00

  • 19 - Electronic Igniter Module
    SKU #07000662A1

    Part #19Electronic Igniter Module
    Length: 4.72Width: 2.56Height: 0.47

    $12.60

  • 20 - Main Gas Valve
    SKU #09000543A0

    Part #20Main Gas Valve
    Length: 4.99Width: 1.91Height: 1.56

    $20.45

  • 21 - Side Burner Flex Gas Line
    SKU #11000894A0

    Part #21Side Burner Flex Gas Line
    Length: 7.87Width: 0.74Height: 0.82

    $9.97

  • 22 - Main Manifold
    SKU #11000300A0

    Part #22Main Manifold
    Length: 4.33Width: 1.58Height: 1.97

    $35.00

  • 23 - Igniter Junction Wire
    SKU #07000729A0

    Part #23Igniter Junction Wire
    Length: 40.16Width: 1.18Height: 1.18

    $6.99

  • 24 - Side Burner Gas Valve
    SKU #0120916000AW

    Part #24Side Burner Gas Valve
    Length: 4.6Width: 1.9Height: 1.56

    $13.76

  • 25 - LP Regulator
    SKU #09000262A0

    Part #25LP Regulator
    Length: 26.18Width: 2.97Height: 2.9

    $22.84

  • 26 - Control Panel
    SKU #0151021003AS

    Part #26Control Panel
    Length: 27.04Width: 7Height: 2

    $29.76

  • 27 - Bezel
    SKU #14000236A0

    Part #27Bezel
    Length: 3.35Width: 0.31Height: 0.03

    $9.99

  • 28M - Main Burner Control Knob
    SKU #0108082000AP

    Part #28MMain Burner Control Knob
    Length: 2.28Width: 1.26Height: 1.57

    $5.25

  • 28S - Sear Burner Control Knob
    SKU #0108083000AP

    Part #28SSear Burner Control Knob
    Length: 2.28Width: 1.26Height: 1.57

    $5.12

  • 29 - Side Shelf
    SKU #20002932A0

    Part #29Side Shelf
    Length: 17.72Width: 12.01Height: 4.8

    $10.72

  • 30 - Side Shelf Control Panel
    SKU #0151024000AP

    Part #30Side Shelf Control Panel
    Length: 12Width: 7Height: 2.36

    $24.32

  • 31 - Sear Burner Cooking Grid
    SKU #13000619A0

    Part #31Sear Burner Cooking Grid
    Length: 13.78Width: 8.46Height: 0.9

    $39.14

  • 32 - Sear Burner
    SKU #20001954A0

    Part #32Sear Burner
    Length: 14.53Width: 6.33Height: 3.13

    $30.00

  • 33 - Sear Burner Igniter Wire
    SKU #20002922A0

    Part #33Sear Burner Igniter Wire
    Length: 37.47Width: 3.6Height: 1.2

    $6.99

  • 34 & 35 - Sear Burner Lid Hinge Rod & Pin
    SKU #0126552000AP

    Part #34 & 35Sear Burner Lid Hinge Rod & Pin
    Length: 9.76Width: 0.55Height: 0.16

    $5.00

  • 36 - Sear Burner Bowl Assembly
    SKU #20002930A0

    Part #36Sear Burner Bowl Assembly
    Length: 16.05Width: 12.01Height: 6.89

    $40.00

  • 37 - Sear Burner Grease Tray
    SKU #04007264A0

    Part #37Sear Burner Grease Tray
    Length: 15.67Width: 4.41Height: 0.79

    $15.00

  • 38 - Sear Burner Lid
    SKU #0302049000AH

    Part #38Sear Burner Lid
    Length: 14.84Width: 0.79Height: 8.89

    $16.20

  • 39 - Sear Burner Control Panel
    SKU #0170089000AP

    Part #39Sear Burner Control Panel
    Length: 12Width: 7Height: 2.36

    $24.32

  • 40 - Rubber Grommet
    SKU #17000006A0

    Part #40Rubber Grommet
    Length: 5.94Width: 1.61Height: 0.75

    $5.00

  • 41 - Side Panel Left
    SKU #0127407000AP

    Part #41Side Panel Left
    Length: 24.76Width: 18.38Height: 0.95

    $17.99

  • 42 - Swivel Caster with Brake
    SKU #05001574A0

    Part #42Swivel Caster with Brake
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 43 - Swivel Caster
    SKU #05000733A0

    Part #43Swivel Caster
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 44 - Cart Beam Front
    SKU #20002931A0

    Part #44Cart Beam Front
    Length: 26.89Width: 1.38Height: 1.01

    $3.50

  • 45 - Back Panel Bottom
    SKU #0151416000AP

    Part #45Back Panel Bottom
    Length: 25.4Width: 11.81Height: 0.79

    $18.75

  • 46 - Bottom Panel
    SKU #20003258A0

    Part #46Bottom Panel
    Length: 27.05Width: 19.29Height: 2.56

    $33.75

  • 47 - Tank Bolt
    SKU #06000731A0

    Part #47Tank Bolt
    Length: 6.26Width: 1.69Height: 8.07

    $6.44

  • 48 - Side Panel Right
    SKU #0127408000AP

    Part #48Side Panel Right
    Length: 24.7Width: 18.39Height: 0.95

    $17.99

  • 49 - Triangle Bracket Left
    SKU #04006982A0

    Part #49Triangle Bracket Left
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 50 - Triangle Bracket Right
    SKU #04006983A0

    Part #50Triangle Bracket Right
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 51 - Door Magnet
    SKU #05000010A0

    Part #51Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 52 - Bottom Panel Trim Piece
    SKU #0151163000AP

    Part #52Bottom Panel Trim Piece
    Length: 27.05Width: 2.56Height: 1.38

    $23.68

  • 53 - Door Iron Piece
    SKU #04007306A0

    Part #53Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.49

    $4.99

  • 54 - Lighting Rod
    SKU #0904133081AW

    Part #54Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 55 - Door Handle
    SKU #12000660A0

    Part #55Door Handle
    Length: 0.75Width: 8.86Height: 2.06

    $7.00

  • 56 - Door Right
    SKU #0127406000AP

    Part #56Door Right
    Length: 23.6Width: 13.46Height: 1.14

    $20.99

  • 57 - Door Left
    SKU #20002939A0

    Part #57Door Left
    Length: 23.62Width: 13.46Height: 1.14

    $15.33

  • 58 - Grease Tray
    SKU #0129011000AP

    Part #58Grease Tray
    Length: 25.56Width: 14.25Height: 3.78

    $17.50

  • 59 - Grease Cup
    SKU #0151346000AP

    Part #59Grease Cup
    Length: 10.25Width: 5.15Height: 2.16

    $11.40

  • 60 - Stationary Caster with Brake
    SKU #2005072000AW

    Part #60Stationary Caster with Brake
    Length: 3Width: 1.04Height: 3.66

    $11.52

  • 61 - Stationary Caster
    SKU #05000734A0

    Part #61Stationary Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 63 - NG Orifice Pack Sear Burner NG Orifice 1.9mm
    SKU #2006416000AP

    Part #63NG Orifice Pack Sear Burner NG Orifice 1.9mm
    Length: 0.01Width: 0.01Height: 0.01

    $3.75

  • 64 - KD Hardware Pack
    SKU #2006415000AP

    Part #64KD Hardware Pack
    Length: 9.45Width: 6.1Height: 0.98

    $3.15
