Replacement Parts For Expert Grill 720-0789C Sold at Walmart USA in 2019

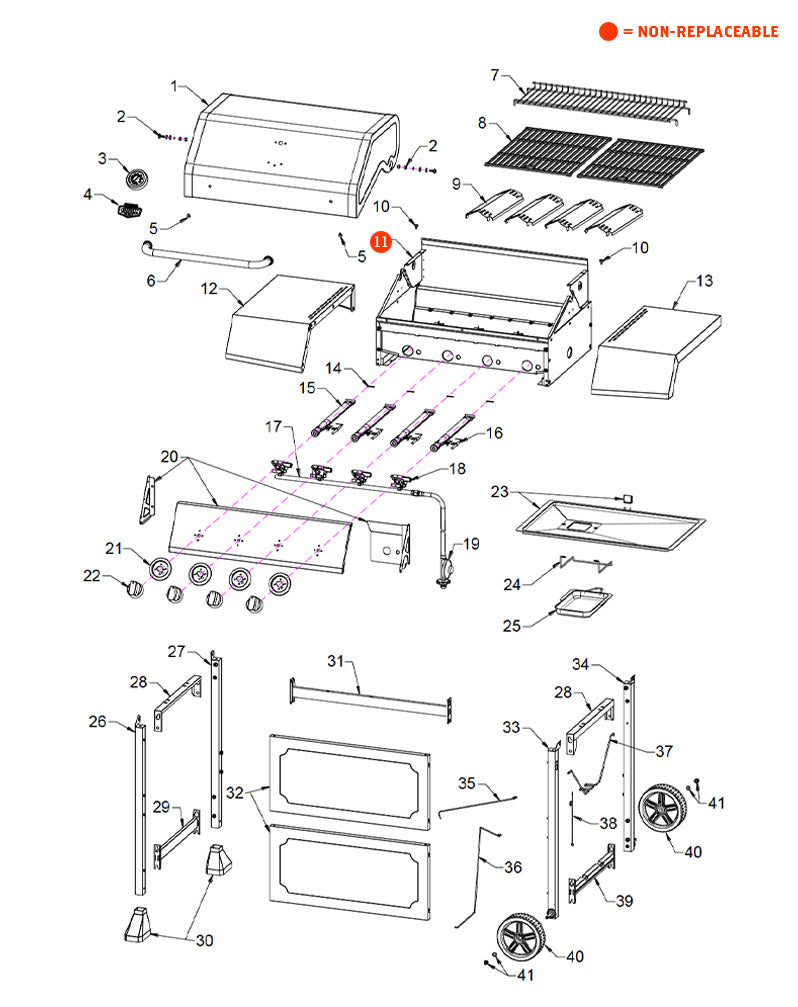

Find replacement grill parts for your 2019 Expert Grill 720-0789C 4 Burner Propane Gas Grill in Black/Stainless Steel model number 720-0789C grill using the replacement parts diagram below. The Expert Grill 720-0789C grill was sold at Walmart USA in 2019. If this is not your grill model, you can view all Expert Grill Replacement Parts or use the button below to search for your model number.


Manual No. / Part
Price Each
Qty
1 - Main Lid
SKU #0127991000APPart #1Main LidLength: 26.94Width: 17.04Height: 8.13$53.90
2 - Main Lid Screw
SKU #20002991A0Part #2Main Lid ScrewLength: 0.95Width: 0.63Height: 0.63$5.00
3 - Temperature Gauge
SKU #2002074000BWPart #3Temperature GaugeLength: 3.74Width: 3.23Height: 1.38$5.76
4 - Logo
SKU #120850002132Part #4LogoLength: 5Width: 1.58Height: 0.47$5.00
5 - Hood Buffer A
SKU #17000106A0Part #5Hood Buffer ALength: 0.47Width: 0.47Height: 0.47$4.29
6 - Main Lid Handle Assembly
SKU #0129015000APPart #6Main Lid Handle AssemblyLength: 20.28Width: 3.19Height: 3.24$12.04
7 - Warming Rack
SKU #0903154900AEPart #7Warming RackLength: 25.55Width: 7.28Height: 1.79$12.88
8 - Cooking Grid with Hole
SKU #13000421A0Part #8Cooking Grid with HoleLength: 17.21Width: 13.23Height: 0.35$45.99
9 - Flame Tamer
SKU #04007620A0Part #9Flame TamerLength: 14.567Width: 4.331Height: 1.417$7.00
10 - Hood Buffer B
SKU #17000001A0Part #10Hood Buffer BLength: 0.47Width: 0.47Height: 0.47$4.78
12 - Side Shelf Left
SKU #120850002222Part #12Side Shelf LeftLength: 17.72Width: 12.01Height: 0.98$59.99
13 - Side Shelf Right
SKU #0170315000APPart #13Side Shelf RightLength: 21.81Width: 12.01Height: 6.5$17.64
14 & 15 - Main Burner & Burner Pin Assembly
SKU #0127992000APPart #14 & 15Main Burner & Burner Pin AssemblyLength: 14.77Width: 1.54Height: 0.98$9.25
16 - Main Burner Igniter Wire
SKU #0127689000APPart #16Main Burner Igniter WireLength: 10.1Width: 1Height: 1.14$6.99
17 - Main Manifold
SKU #11000226A0Part #17Main ManifoldLength: 22.44Width: 0.87Height: 0.75$35.00
18 - Main Gas Valve
SKU #0120956000AWPart #18Main Gas ValveLength: 5.12Width: 3.07Height: 2.01$20.45
19 - Regulator LP
SKU #09000264A0Part #19Regulator LPLength: 24.8Width: 2.54Height: 2.5$25.20
20 - Main Control Panel
SKU #120850002226Part #20Main Control PanelLength: 27.07Width: 7.2Height: 3.88$59.99
21 - Bezel
SKU #14000213A0Part #21BezelLength: 2.97Width: 2.97Height: 0.28$6.24
22 - Control Knob
SKU #0108090000APPart #22Control KnobLength: 1.94Width: 1.81Height: 1.71$5.22
23 - Grease Tray
SKU #120850002227Part #23Grease TrayLength: 24.52Width: 14.25Height: 2.79$26.00
24 - Grease Box Bracket
SKU #120870002032Part #24Grease Box BracketLength: 5.43Width: 6.14Height: 2.5$11.90
25 - Grease Box
SKU #120870002029Part #25Grease BoxLength: 11.9Width: 6.51Height: 1.04$12.04
26 - Cart Leg Front Left
SKU #0127996000APPart #26Cart Leg Front LeftLength: 27.14Width: 2.13Height: 1.18$12.46
27 - Cart Leg Rear Left
SKU #0127997000APPart #27Cart Leg Rear LeftLength: 27.14Width: 2.13Height: 1.18$12.46
28 - Cart Frame Top Right & Left
SKU #0212688902AQPart #28Cart Frame Top Right & LeftLength: 16.46Width: 1.14Height: 3.18$18.90
29 - Cart Frame Bottom Left
SKU #0107417902AQPart #29Cart Frame Bottom LeftLength: 16.46Width: 0.95Height: 3.74$12.60
30 - Cart Foot
SKU #1201157000AWPart #30Cart FootLength: 4.49Width: 2.72Height: 0.39$4.00
31 - Rear Cart Frame
SKU #0170316000APPart #31Rear Cart FrameLength: 24.73Width: 3.74Height: 0.95$13.44
32 - Front Panel
SKU #0206505902AQPart #32Front PanelLength: 24.72Width: 11.59Height: 0.82$17.50
33 - Cart Leg Front Right
SKU #120850002223Part #33Cart Leg Front RightLength: 14.17Width: 6.54Height: 4.45$12.46
34 - Cart Leg Rear Right
SKU #0129022000APPart #34Cart Leg Rear RightLength: 27.14Width: 3.39Height: 1.18$12.46
35 - Second Tank Wire A
SKU #0907076902AQPart #35Second Tank Wire ALength: 19.59Width: 1.13Height: 0.5$6.99
36 - Second Tank Wire B
SKU #0907077902AQPart #36Second Tank Wire BLength: 19.59Width: 1.13Height: 0.5$6.99
37 - Tank Wire
SKU #0907075002AXPart #37Tank WireLength: 18.89Width: 5.35Height: 1.65$10.00
38 - Lighting Rod
SKU #05000011A0Part #38Lighting RodLength: 22.76Width: 0.71Height: 0.12$5.00
39 - Cart Frame Bottom Right
SKU #0107418902AQPart #39Cart Frame Bottom RightLength: 16.46Width: 3.74Height: 0.95$14.91
40 & 41 - Wheel and Wheel Hardware
SKU #120850002228Part #40 & 41Wheel and Wheel HardwareLength: 27.09Width: 21.06Height: 1.98$9.52
42 - Hardware Pack
SKU #120850002224Part #42Hardware PackLength: 3.8Width: 3.8Height: 3.8$6.72
43 - Manual
SKU #120850002225Part #43ManualLength: 12.8Width: 8.66Height: 1.57$5.00
