Replacement Parts For BBQ Pro 720-0894C Sold at Sears Kmart USA in 2017

Find replacement grill parts for your 2017 BBQ Pro 720-0894C 3 Burner Propane Gas Grill with Side Burner in Red model number 720-0894C grill using the replacement parts diagram below. The BBQ Pro 720-0894C grill was sold at Sears Kmart USA in 2017. If this is not your grill model, you can view all BBQ Pro Replacement Parts or use the button below to search for your model number.

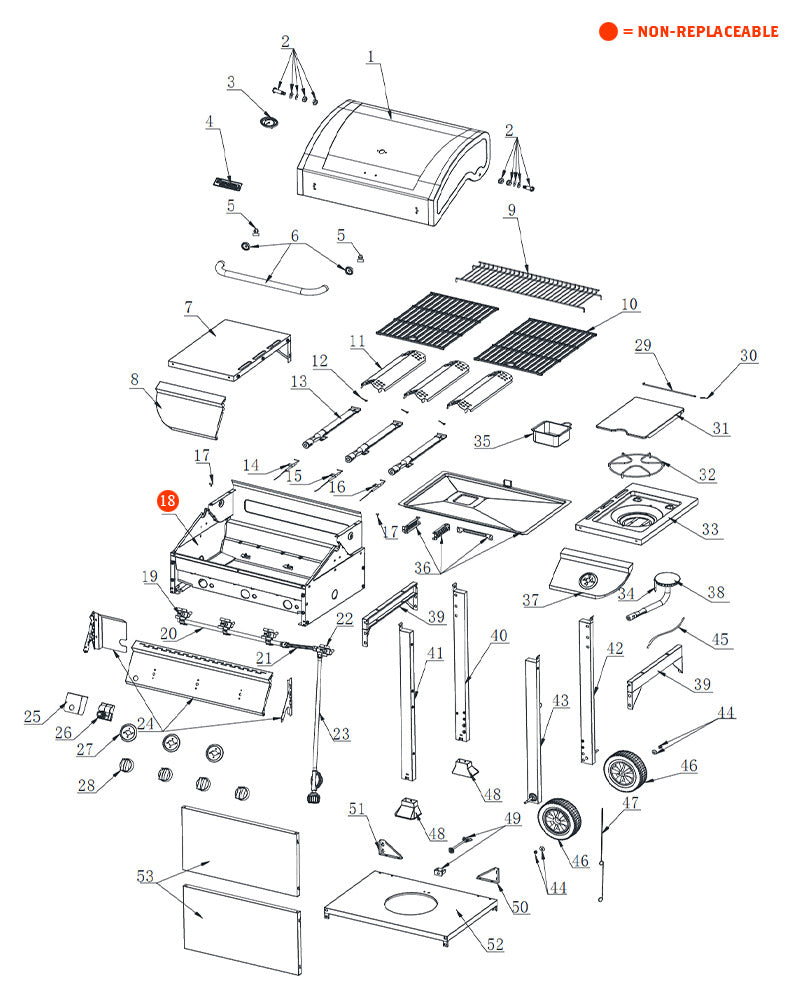

replacement grill parts for your BBQ Pro 720-0894C

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127177000AP

    Part #1Main Lid
    Length: 25Width: 17.91Height: 10.83

    $50.96

  • 2 - Main Lid Screw
    SKU #20002997A0

    Part #2Main Lid Screw
    Length: 0.95Width: 0.63Height: 0.63

    $5.00

  • 3 - Temperature Gauge
    SKU #05000572A0

    Part #3Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $14.00

  • 4 - Logo
    SKU #20003319A0

    Part #4Logo
    Length: 4.72Width: 1.4Height: 0.59

    $5.00

  • 5 - Hood Buffer A
    SKU #17000106A0

    Part #5Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 6 - Main Lid Handle
    SKU #0127485000AP

    Part #6Main Lid Handle
    Length: 18.9Width: 3.23Height: 1.38

    $12.04

  • 7 - Side Shelf
    SKU #20003109A0

    Part #7Side Shelf
    Length: 17.71Width: 12Height: 4.76

    $32.00

  • 8 - Side Shelf Control Panel
    SKU #20003290A0

    Part #8Side Shelf Control Panel
    Length: 12.01Width: 7.46Height: 2.66

    $30.39

  • 9 - Warming Rack
    SKU #13000285A0

    Part #9Warming Rack
    Length: 23.3Width: 5.86Height: 1.37

    $24.99

  • 10 - Cooking Grid with Hole
    SKU #13000409A0

    Part #10Cooking Grid with Hole
    Length: 17.16Width: 12.25Height: 0.35

    $45.99

  • 11 - Flame Tamer
    SKU #04007620A0

    Part #11Flame Tamer
    Length: 14.567Width: 4.331Height: 1.417

    $7.00

  • 12 & 13 - Main Burner & Burner Pin Assembly
    SKU #20003087A0

    Part #12 & 13Main Burner & Burner Pin Assembly
    Length: 14.96Width: 1.97Height: 0.04

    $9.25

  • 14 - Main Burner Igniter Wire A
    SKU #10001743A0

    Part #14Main Burner Igniter Wire A
    Length: 9.44Width: 1.22Height: 0.32

    $6.99

  • 15 - Main Burner Igniter Wire B
    SKU #10001730A0

    Part #15Main Burner Igniter Wire B
    Length: 22.84Width: 1.22Height: 0.32

    $6.99

  • 16 - Main Burner Igniter Wire C
    SKU #10001736A0

    Part #16Main Burner Igniter Wire C
    Length: 29.19Width: 1.22Height: 0.32

    $6.99

  • 17 - Hood Buffer B
    SKU #17000001A0

    Part #17Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 19 - Main Gas Valve
    SKU #09000578A0

    Part #19Main Gas Valve
    Length: 4.32Width: 1.55Height: 1.89

    $20.45

  • 20 - Main Manifold
    SKU #11000900A0

    Part #20Main Manifold
    Length: 19.53Width: 16.02Height: 6.93

    $35.00

  • 21 - Side Burner Flex Gas Line
    SKU #11000464A0

    Part #21Side Burner Flex Gas Line
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 22 - Side Burner Gas Valve
    SKU #0120850000AW

    Part #22Side Burner Gas Valve
    Length: 4.252Width: 3.15Height: 2.835

    $25.20

  • 23 - Regulator LP
    SKU #09000577A0

    Part #23Regulator LP
    Length: 26.38Width: 2.97Height: 2.9

    $25.20

  • 24 - Control Panel
    SKU #0127180000AP

    Part #24Control Panel
    Length: 25.02Width: 4.47Height: 7.36

    $15.80

  • 25 - Igniter Module Heat Shield
    SKU #04007962A0

    Part #25Igniter Module Heat Shield
    Length: 3.11Width: 2.68Height: 1.77

    $22.99

  • 26 - Pulse Igniter Module
    SKU #07800069A0

    Part #26Pulse Igniter Module
    Length: 2.64Width: 2.64Height: 2.04

    $12.60

  • 27 - Bezel
    SKU #14000023A0

    Part #27Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 28 - Control Knob
    SKU #14000062A0

    Part #28Control Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.09

  • 29 & 30 - Side Burner Lid Hinge Rod & Pin
    SKU #20002471A0

    Part #29 & 30Side Burner Lid Hinge Rod & Pin
    Length: 9.76Width: 0.59Height: 0.16

    $5.00

  • 31 - Side Burner Lid
    SKU #04007667A0

    Part #31Side Burner Lid
    Length: 12.5Width: 8.98Height: 0.75

    $17.50

  • 32 - Side Burner Cooking Grid
    SKU #13000922A0

    Part #32Side Burner Cooking Grid
    Length: 8.86Width: 8.86Height: 0.91

    $7.39

  • 33 - Side Burner Bowl Assembly
    SKU #20003309A0

    Part #33Side Burner Bowl Assembly
    Length: 17.72Width: 12.01Height: 4.76

    $29.12

  • 35 - Grease Cup
    SKU #0145237901AQ

    Part #35Grease Cup
    Length: 9.76Width: 0.59Height: 2.17

    $6.48

  • 36 - Grease Tray Assembly
    SKU #0127588000AP

    Part #36Grease Tray Assembly
    Length: 23.56Width: 14.25Height: 3.05

    $18.90

  • 37 - Side Burner Control Panel
    SKU #20003294A0

    Part #37Side Burner Control Panel
    Length: 12.01Width: 7.46Height: 2.66

    $25.20

  • 38 - Side Burner Pipe
    SKU #20003414A0

    Part #38Side Burner Pipe
    Length: 10.57Width: 4.72Height: 3.4

    $6.31

  • 39 - Cart Frame
    SKU #20003318A0

    Part #39Cart Frame
    Length: 15.67Width: 5.12Height: 0.79

    $13.44

  • 40 - Cart Leg Rear Left
    SKU #0127181000AP

    Part #40Cart Leg Rear Left
    Length: 28.68Width: 2Height: 1

    $10.00

  • 41 - Cart Leg Front Left
    SKU #20003313A0

    Part #41Cart Leg Front Left
    Length: 28.68Width: 2Height: 1

    $12.04

  • 42 - Cart Leg Rear Right
    SKU #0127182000AP

    Part #42Cart Leg Rear Right
    Length: 27.38Width: 2Height: 3.19

    $7.20

  • 43 - Cart Leg Front Right
    SKU #0127183000AP

    Part #43Cart Leg Front Right
    Length: 27.38Width: 2Height: 3.19

    $7.20

  • 44 & 46 - Wheel & Wheel Screw Assembly
    SKU #20003119A0

    Part #44 & 46Wheel & Wheel Screw Assembly
    Length: 6.8Width: 6.8Height: 1.98

    $12.00

  • 45 - Side Burner Ignition Wire
    SKU #07000803A0

    Part #45Side Burner Ignition Wire
    Length: 39.37Width: 3.54Height: 0.91

    $6.99

  • 47 - Lighting Rod
    SKU #0904133081AW

    Part #47Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 48 - Cart Caster Insert
    SKU #1201134000AW

    Part #48Cart Caster Insert
    Length: 3.5Width: 2.64Height: 2.32

    $8.42

  • 49 - Tank Bolt
    SKU #20003108A0

    Part #49Tank Bolt
    Length: 6.26Width: 1.69Height: 2.56

    $6.44

  • 50 - Triangle Bracket Right
    SKU #04007675A0

    Part #50Triangle Bracket Right
    Length: 3.94Width: 2.56Height: 0.51

    $5.00

  • 51 - Triangle Bracket Left
    SKU #04007674A0

    Part #51Triangle Bracket Left
    Length: 3.94Width: 2.56Height: 0.51

    $5.00

  • 52 - Cart Bottom Panel
    SKU #20003316A0

    Part #52Cart Bottom Panel
    Length: 22.44Width: 15.66Height: 1.93

    $27.30

  • 53 - Cart Front Panel
    SKU #04007957A0

    Part #53Cart Front Panel
    Length: 20.98Width: 11.59Height: 0.81

    $22.40

  • 54 - Manual
    SKU #19000580A1

    Part #54Manual
    Length: 12.8Width: 8.66Height: 1.57

    $5.00

  • 55 - Hardware Pack
    SKU #2006386000AP

    Part #55Hardware Pack
    Length: 13.03Width: 5.98Height: 1.1

    $6.00
