Replacement Parts For Backyard Grill 720-0789DC Sold at Walmart USA in 2020

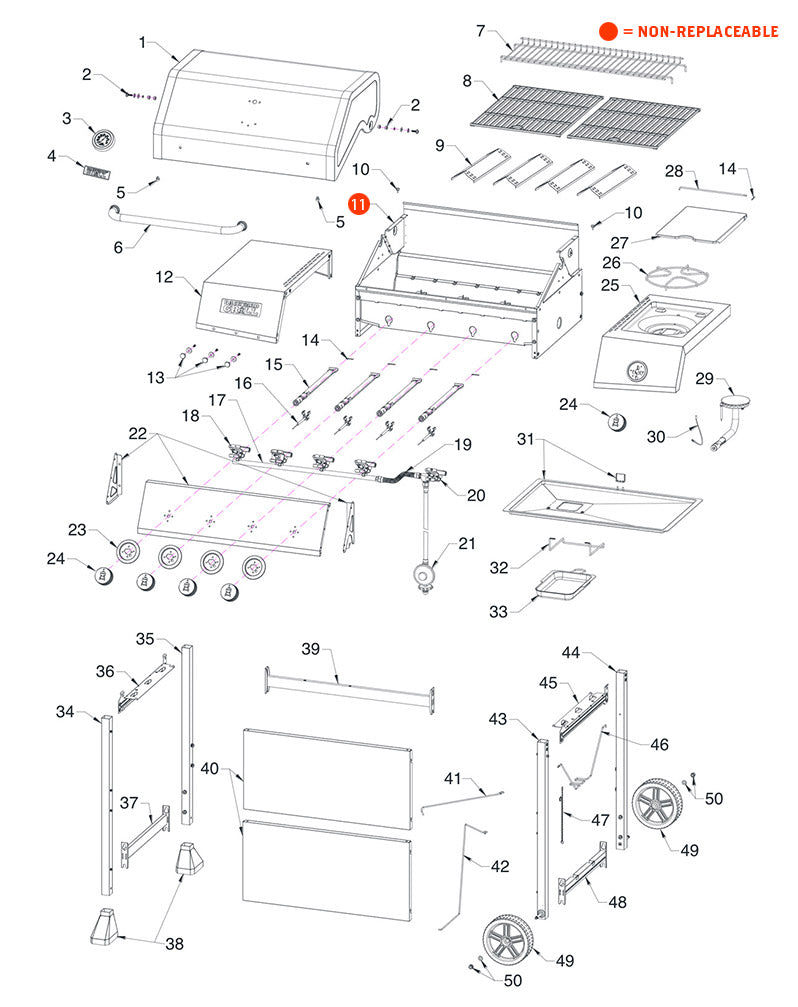

Find replacement grill parts for your 2020 Backyard Grill 720-0789DC 4 Burner Propane Gas Grill with Side Burner in Black with Red Lid model number 720-0789DC grill using the replacement parts diagram below. The Backyard Grill 720-0789DC grill was sold at Walmart USA in 2020. If this is not your grill model, you can view all Backyard Grill Replacement Parts or use the button below to search for your model number.

720-0789DC

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850002672

    Part #1Main Lid
    Length: 26.94Width: 17.04Height: 8.13

    $53.90

  • 2 - Main Lid Screw
    SKU #20002991A0

    Part #2Main Lid Screw
    Length: 0.95Width: 0.63Height: 0.63

    $5.00

  • 3 - Temperature Gauge
    SKU #2002074000BW

    Part #3Temperature Gauge
    Length: 3.74Width: 3.23Height: 1.38

    $5.76

  • 4 - Logo
    SKU #120850002249

    Part #4Logo
    Length: 3.66Width: 1.22Height: 0.51

    $5.00

  • 5 - Hood Buffer A
    SKU #17000106A0

    Part #5Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 6 - Main Lid Handle Assembly
    SKU #0129015000AP

    Part #6Main Lid Handle Assembly
    Length: 20.28Width: 3.19Height: 3.24

    $12.04

  • 7 - Warming Rack
    SKU #0903154900AE

    Part #7Warming Rack
    Length: 25.55Width: 7.28Height: 1.79

    $12.88

  • 8 - Cooking Grid
    SKU #13000421A0

    Part #8Cooking Grid
    Length: 17.21Width: 13.23Height: 0.35

    $45.99

  • 9 - Flame Tamer
    SKU #0406041900AE

    Part #9Flame Tamer
    Length: 14.57Width: 3.35Height: 1.32

    $5.40

  • 10 - Hood Buffer B
    SKU #17000001A0

    Part #10Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 12 - Side Shelf Left
    SKU #120850002674

    Part #12Side Shelf Left
    Length: 17.72Width: 12.13Height: 4.85

    $27.30

  • 13 - Tool Hooks
    SKU #0127212000AP

    Part #13Tool Hooks
    Length: 0.78Width: 0.75Height: 0.75

    $5.00

  • 14 & 15 - Main Burner & Burner Pin Assembly
    SKU #120850002665

    Part #14 & 15Main Burner & Burner Pin Assembly
    Length: 15Width: 1.3Height: 0.87

    $9.52

  • 16 - Main Burner Igniter Wire
    SKU #120870002379

    Part #16Main Burner Igniter Wire
    Length: 4.72Width: 1Height: 1.14

    $6.99

  • 17 - Main Manifold
    SKU #11000226A0

    Part #17Main Manifold
    Length: 22.44Width: 0.87Height: 0.75

    $35.00

  • 18 - Main Gas Valve
    SKU #0120956000AW

    Part #18Main Gas Valve
    Length: 5.12Width: 3.07Height: 2.01

    $20.45

  • 19 - Side Burner Flex Gas Line
    SKU #11000464A0

    Part #19Side Burner Flex Gas Line
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 20 - Side Burner Gas Valve
    SKU #120870002021

    Part #20Side Burner Gas Valve
    Length: 4.1Width: 4.4Height: 1.89

    $24.50

  • 21 - LP Regulator with Hose
    SKU #09000259A0

    Part #21LP Regulator with Hose
    Length: 21.65Width: 2.53Height: 2.5

    $35.87

  • 22 - Main Control Panel
    SKU #120850002673

    Part #22Main Control Panel
    Length: 18.2Width: 6.9Height: 3.28

    $35.42

  • 23 - Bezel
    SKU #14000213A0

    Part #23Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.24

  • 24 - Control Knob
    SKU #120850002676

    Part #24Control Knob
    Length: 1.6Width: 1.6Height: 1.6

    $8.12

  • 25 - Side Burner Shelf Right
    SKU #120850002675

    Part #25Side Burner Shelf Right
    Length: 39.76Width: 7.48Height: 2.76

    $31.64

  • 26 - Side Burner Cooking Grid
    SKU #13000922A0

    Part #26Side Burner Cooking Grid
    Length: 8.86Width: 8.86Height: 0.91

    $7.39

  • 27 - Side Burner Lid
    SKU #120870002026

    Part #27Side Burner Lid
    Length: 12.5Width: 9Height: 0.47

    $19.04

  • 28 - Side Burner Lid Hinge Rod
    SKU #20002471A0

    Part #28Side Burner Lid Hinge Rod
    Length: 9.76Width: 0.59Height: 0.16

    $5.00

  • 29 - Side Burner
    SKU #20003414A0

    Part #29Side Burner
    Length: 10.57Width: 4.72Height: 3.4

    $6.31

  • 30 - Side Burner Igniter Wire
    SKU #2001699000AW

    Part #30Side Burner Igniter Wire
    Length: 13.3Width: 1.12Height: 1.12

    $6.99

  • 31 - Grease Tray
    SKU #120850002511

    Part #31Grease Tray
    Length: 24.52Width: 14.25Height: 2.79

    $21.28

  • 32 - Grease Box Bracket
    SKU #120870002032

    Part #32Grease Box Bracket
    Length: 5.43Width: 6.14Height: 2.5

    $11.90

  • 33 - Grease Box
    SKU #120870002277

    Part #33Grease Box
    Length: 7.6Width: 5.16Height: 5

    $12.46

  • 34 - Cart Leg Front Left
    SKU #120850002216

    Part #34Cart Leg Front Left
    Length: 25.98Width: 1.18Height: 1.18

    $12.46

  • 35 - Cart Leg Rear Left
    SKU #120850002517

    Part #35Cart Leg Rear Left
    Length: 25.98Width: 1.18Height: 1.18

    $17.50

  • 36 - Cart Frame Top Left
    SKU #120870002039

    Part #36Cart Frame Top Left
    Length: 1.78Width: 1.97Height: 2.71

    $14.70

  • 37 - Cart Frame Bottom Left
    SKU #0107417902AQ

    Part #37Cart Frame Bottom Left
    Length: 16.46Width: 0.95Height: 3.74

    $12.60

  • 38 - Cart Foot
    SKU #1201157000AW

    Part #38Cart Foot
    Length: 4.49Width: 2.72Height: 0.39

    $4.00

  • 39 - Rear Cart Frame
    SKU #0170316000AP

    Part #39Rear Cart Frame
    Length: 24.73Width: 3.74Height: 0.95

    $13.44

  • 40 - Front Panel
    SKU #120870001946

    Part #40Front Panel
    Length: 24.8Width: 11.6Height: 0.81

    $20.44

  • 41 - Second Tank Wire A
    SKU #0907076902AQ

    Part #41Second Tank Wire A
    Length: 19.59Width: 1.13Height: 0.5

    $6.99

  • 42 - Second Tank Wire B
    SKU #0907077902AQ

    Part #42Second Tank Wire B
    Length: 19.59Width: 1.13Height: 0.5

    $6.99

  • 43 - Cart Leg Front Right
    SKU #120850002219

    Part #43Cart Leg Front Right
    Length: 25.98Width: 1.18Height: 3.3

    $12.88

  • 44 - Cart Leg Rear Right
    SKU #120850002518

    Part #44Cart Leg Rear Right
    Length: 25.8Width: 1.18Height: 3.3

    $17.50

  • 45 - Cart Frame Top Right
    SKU #120870002040

    Part #45Cart Frame Top Right
    Length: 25.98Width: 1.18Height: 1.18

    $12.88

  • 46 - Tank Wire
    SKU #0907075002AX

    Part #46Tank Wire
    Length: 18.89Width: 5.35Height: 1.65

    $10.00

  • 47 - Lighting Rod
    SKU #05000011A0

    Part #47Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $5.00

  • 48 - Cart Frame Bottom Right
    SKU #0107418902AQ

    Part #48Cart Frame Bottom Right
    Length: 16.46Width: 3.74Height: 0.95

    $14.91

  • 49 & 50 - Wheel & Wheel Hardware
    SKU #120850002228

    Part #49 & 50Wheel & Wheel Hardware
    Length: 27.09Width: 21.06Height: 1.98

    $9.52

  • 51 - Hardware Pack
    SKU #120850002670

    Part #51Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $6.00
