Replacement Parts For Nexgrill 720-0607 Sold at Fred Meyer USA in 2008

Find replacement grill parts for your 2008 Nexgrill 720-0607 4 Burner Propane Gas Grill with Searing Side Burner & Rear Burner & Rotisserie Kit in Stainless Steel model number 720-0607 grill using the replacement parts diagram below. The Nexgrill 720-0607 grill was sold at Fred Meyer USA in 2008. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

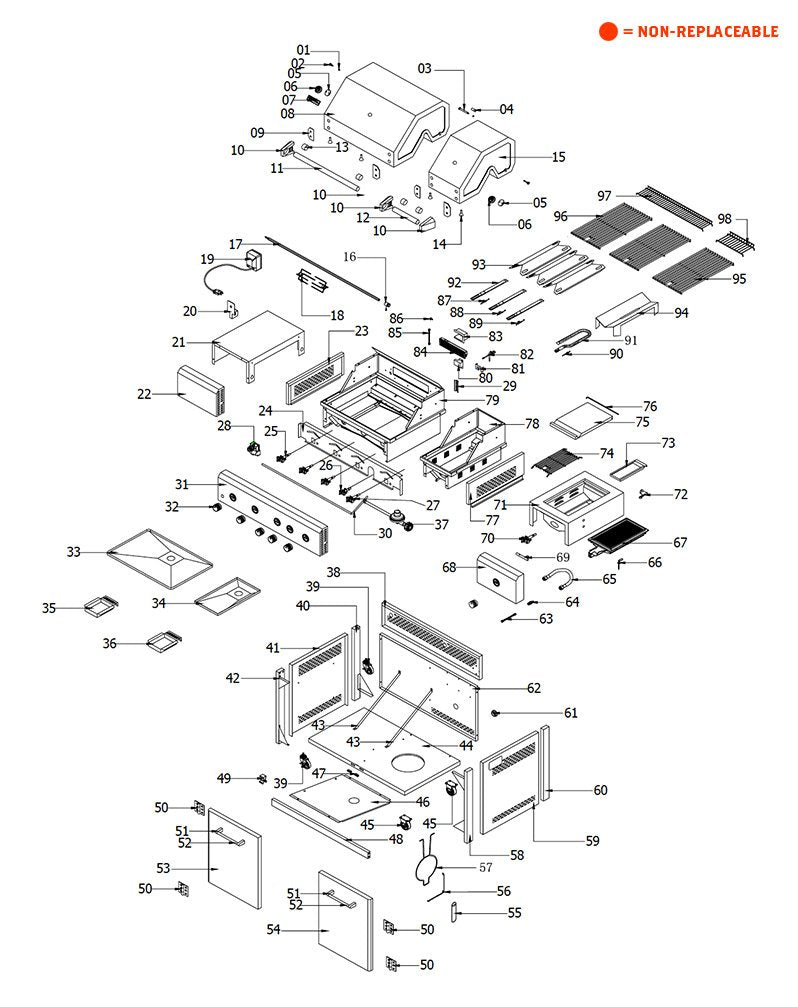

replacement grill parts for your Nexgrill 720-0607

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid Screw Cover
    SKU #06000025A0

    Part #1Main Lid Screw Cover
    Length: 0.63Width: 0.63Height: 1.1

    $5.00

  • 2 - Main Lid Screw A
    SKU #06000001A0

    Part #2Main Lid Screw A
    Length: 0.63Width: 0.63Height: 1.1

    $5.00

  • 3 - Main Lid Screw B
    SKU #06000098A0

    Part #3Main Lid Screw B
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 4 - Main Lid Hinge Spacer
    SKU #06000096A0

    Part #4Main Lid Hinge Spacer
    Length: 1.26Width: 22.52Height: 0.03

    $7.00

  • 5 - Temperature Gauge Heat Insulating Spacer
    SKU #05000114A0

    Part #5Temperature Gauge Heat Insulating Spacer
    Length: 3.58Width: 2.52Height: 0.28

    $5.00

  • 6 - Temperature Gauge
    SKU #05000001A0

    Part #6Temperature Gauge
    Length: 5.83Width: 1.16Height: 13.35

    $14.00

  • 7 - Logo
    SKU #08000004A0

    Part #7Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 9 - Main Lid Handle Heat Insulating Spacer
    SKU #05000113A0

    Part #9Main Lid Handle Heat Insulating Spacer
    Length: 2.66Width: 1.24Height: 0.08

    $5.00

  • 10 - Main Lid Handle Seat
    SKU #12000075A0

    Part #10Main Lid Handle Seat
    Length: 2.76Width: 1.36Height: 3.35

    $5.00

  • 11 - Main Lid Handle Tube
    SKU #12000076A0

    Part #11Main Lid Handle Tube
    Length: 1.26Width: 22.52Height: 0.03

    $22.40

  • 12 - Small Main Lid Handle Tube
    SKU #12000077A0

    Part #12Small Main Lid Handle Tube
    Length: 1.26Width: 8.54Height: 0.03

    $15.00

  • 13 - Main Lid Handle Heat Insulating Cover
    SKU #17000009A0

    Part #13Main Lid Handle Heat Insulating Cover
    Length: 15.47Width: 1.38Height: 1.38

    $5.00

  • 14 - Hood Buffer
    SKU #17000001A0

    Part #14Hood Buffer
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 16 - Shaft Collar
    SKU #05000158A0

    Part #16Shaft Collar
    Length: 0.79Width: 0.98Height: 2.55

    $7.00

  • 17 - Spit Rod
    SKU #05000188A0

    Part #17Spit Rod
    Length: 28.35Width: 0.31Height: 0.31

    $10.00

  • 18 - Spit Fork
    SKU #05000325A0

    Part #18Spit Fork
    Length: 3.99Width: 4.47Height: 3.99

    $14.00

  • 19 - Rotisserie Motor
    SKU #07000026A0

    Part #19Rotisserie Motor
    Length: 4.72Width: 3.54Height: 2.76

    $24.00

  • 20 - Rotisserie Motor Bracket
    SKU #04001584A0

    Part #20Rotisserie Motor Bracket
    Length: 2.93Width: 2.56Height: 5.87

    $10.20

  • 23 - Top Side Panel with Bracket Left
    SKU #04001617A0

    Part #23Top Side Panel with Bracket Left
    Length: 19.69Width: 8.62Height: 1.42

    $25.00

  • 25 - Main Gas Valve
    SKU #09000086A0

    Part #25Main Gas Valve
    Length: 4.44Width: 2.05Height: 1.91

    $20.45

  • 26 - Rotisserie Gas Valve
    SKU #09000081A0

    Part #26Rotisserie Gas Valve
    Length: 4.17Width: 2.09Height: 1.97

    $28.00

  • 27 - Small Main Gas Valve
    SKU #09000091A0

    Part #27Small Main Gas Valve
    Length: 4.76Width: 2.05Height: 1.91

    $28.00

  • 28 - Electronic Igniter Module
    SKU #07000062A0

    Part #28Electronic Igniter Module
    Length: 4.04Width: 2.09Height: 1.97

    $20.55

  • 29 - Igniter Wire Cover
    SKU #04000017A0

    Part #29Igniter Wire Cover
    Length: 9.92Width: 0.47Height: 0.16

    $10.66

  • 30 - Main Manifold
    SKU #11000039A0

    Part #30Main Manifold
    Length: 31Width: 6.8Height: 23.23

    $35.00

  • 32 - Control Knob
    SKU #20000565A0

    Part #32Control Knob
    Length: 0.09Width: 0.06Height: 2.95

    $14.00

  • 33 - Grease Slide Panel Bottom
    SKU #20000568A0

    Part #33Grease Slide Panel Bottom
    Length: 14.25Width: 8.27Height: 1.1

    $35.00

  • 34 - Small Main Burner Grease Slide Panel
    SKU #20000569A0

    Part #34Small Main Burner Grease Slide Panel
    Length: 15.16Width: 8.27Height: 1.46

    $14.00

  • 35 - Grease Tray
    SKU #20000163A0

    Part #35Grease Tray
    Length: 0.19Width: 0.08Height: 0.05

    $16.80

  • 36 - Small Main Burner Grease Tray
    SKU #20000163A0

    Part #36Small Main Burner Grease Tray
    Length: 0.19Width: 0.08Height: 0.05

    $16.80

  • 37 - Regulator LP
    SKU #09000119A0

    Part #37Regulator LP
    Length: 6.15Width: 2.9Height: 16

    $32.99

  • 38 - Back Panel Top
    SKU #04001653A0

    Part #38Back Panel Top
    Length: 34.57Width: 7.32Height: 1.02

    $21.00

  • 39 - Swivel Caster with Brake
    SKU #05000182A0

    Part #39Swivel Caster with Brake
    Length: 4.8Width: 3.35Height: 2.56

    $10.50

  • 45 - Caster
    SKU #05000009A0

    Part #45Caster
    Length: 3.66Width: 3.26Height: 2.05

    $21.00

  • 47 - Door Magnet
    SKU #05000010A0

    Part #47Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 49 - Tank Gas Hook Clamp
    SKU #04000072A0

    Part #49Tank Gas Hook Clamp
    Length: 3.35Width: 0.98Height: 0.98

    $7.00

  • 50 - Door Hinge
    SKU #06000105A0

    Part #50Door Hinge
    Length: 0.05Width: 0.03Height: 0.01

    $7.00

  • 51 - Door Handle Seat
    SKU #12000078A0

    Part #51Door Handle Seat
    Length: 0.98Width: 0.79Height: 1.81

    $7.00

  • 52 - Door Handle Tube
    SKU #12000079A0

    Part #52Door Handle Tube
    Length: 0.71Width: 12.46Height: 0.03

    $10.00

  • 56 - Lighting Rod
    SKU #05000011A0

    Part #56Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $5.00

  • 57 - Gas Tank Retention Clamp
    SKU #05000033A0

    Part #57Gas Tank Retention Clamp
    Length: 0.24Width: 15.06Height: 1.2

    $7.00

  • 61 - Rubber Grommet
    SKU #17000006A0

    Part #61Rubber Grommet
    Length: 5.94Width: 1.61Height: 0.75

    $5.00

  • 63 - Side Burner Flex Gas Line
    SKU #11000037A0

    Part #63Side Burner Flex Gas Line
    Length: 25.59Width: 0.79Height: 0.79

    $21.32

  • 64 - Side Burner Brass Connector
    SKU #05000024A0

    Part #64Side Burner Brass Connector
    Length: 44.8Width: 6.3Height: 0.79

    $14.00

  • 65 - Side Burner Hose
    SKU #11000058A0

    Part #65Side Burner Hose
    Length: 18.9Width: 0.83Height: 0.83

    $14.00

  • 66 - Searing Burner Igniter Wire
    SKU #10000138A0

    Part #66Searing Burner Igniter Wire
    Length: 0.11Width: 11.81Height: 8.61

    $6.99

  • 67 - Sear Burner
    SKU #10000056A0

    Part #67Sear Burner
    Length: 16.2Width: 3.5Height: 1.77

    $30.00

  • 69 - Side Manifold
    SKU #11000081A0

    Part #69Side Manifold
    Length: 4.92Width: 0.9Height: 1.17

    $15.00

  • 70 - Side Gas Valve
    SKU #09000088A0

    Part #70Side Gas Valve
    Length: 4.04Width: 2.5Height: 1.87

    $28.00

  • 71 - Side Burner Bowl Assembly Frame
    SKU #20000567A0

    Part #71Side Burner Bowl Assembly Frame
    Length: 19.69Width: 13.78Height: 5.51

    $42.00

  • 72 - Bottle Opener
    SKU #04001557A0

    Part #72Bottle Opener
    Length: 2.81Width: 1.53Height: 1.27

    $5.00

  • 73 - Side Burner Grease Tray
    SKU #04000035A0

    Part #73Side Burner Grease Tray
    Length: 4.06Width: 1.18Height: 5.12

    $38.00

  • 75 - Side Burner Lid
    SKU #04000029A0

    Part #75Side Burner Lid
    Length: 20.87Width: 18.7Height: 1.97

    $28.00

  • 76 - Side Burner Lid Hinge Rod
    SKU #05000005A0

    Part #76Side Burner Lid Hinge Rod
    Length: 5.43Width: 0.79Height: 8.19

    $5.00

  • 77 - Top Side Panel with Bracket Right
    SKU #04001638A0

    Part #77Top Side Panel with Bracket Right
    Length: 19.69Width: 8.62Height: 1.42

    $25.00

  • 80 - Rotisserie Burner Pilot Cover
    SKU #04000079A0

    Part #80Rotisserie Burner Pilot Cover
    Length: 15.75Width: 2.7Height: 1.3

    $5.00

  • 81 - Rotisserie Burner Pilot Bracket
    SKU #04000078A0

    Part #81Rotisserie Burner Pilot Bracket
    Length: 15.75Width: 2.99Height: 1.3

    $5.00

  • 83 - Rear Baffle
    SKU #04000015A0

    Part #83Rear Baffle
    Length: 9.6Width: 3.6Height: 1.6

    $38.00

  • 84 - Rotisserie Burner
    SKU #10000002A0

    Part #84Rotisserie Burner
    Length: 15.55Width: 3.35Height: 2.36

    $55.00

  • 85 - Rotisserie Burner Flex Gas Line
    SKU #11000040A0

    Part #85Rotisserie Burner Flex Gas Line
    Length: 1.39Width: 0.01Height: 33.46

    $10.00

  • 86 - Rotisserie Orifice with Brass Elbow
    SKU #05000023A0

    Part #86Rotisserie Orifice with Brass Elbow
    Length: 1.97Width: 1.5Height: 0.91

    $14.00

  • 87 - Main Burner Igniter Wire A
    SKU #10000134A0

    Part #87Main Burner Igniter Wire A
    Length: 0.13Width: 25.2Height: 0.64

    $6.99

  • 88 - Main Burner Igniter Wire B
    SKU #10000164A0

    Part #88Main Burner Igniter Wire B
    Length: 0.06Width: 17.32Height: 0.12

    $6.99

  • 89 - Main Burner Igniter Wire C
    SKU #10000136A0

    Part #89Main Burner Igniter Wire C
    Length: 0.06Width: 25.2Height: 0.47

    $6.99

  • 91 - Question Mark Main Burner
    SKU #10000117A0

    Part #91Question Mark Main Burner
    Length: 1.54Width: 1.54Height: 16.89

    $27.50

  • 92 - Main Burner
    SKU #10000213A0

    Part #92Main Burner
    Length: 16.6Width: 2.45Height: 1.06

    $35.99

  • 93 - Flame Tamer
    SKU #04000504A0

    Part #93Flame Tamer
    Length: 17.32Width: 6.3Height: 1.86

    $22.05

  • 94 - Flame Tamer in Small Firebox
    SKU #20000168A0

    Part #94Flame Tamer in Small Firebox
    Length: 17.32Width: 6.3Height: 0.83

    $14.00

  • 97 - Warming Rack
    SKU #13000056A0

    Part #97Warming Rack
    Length: 23.74Width: 6.18Height: 1.57

    $35.00

  • 98 - Warming Rack in Small Firebox
    SKU #13000058A0

    Part #98Warming Rack in Small Firebox
    Length: 9.92Width: 6.18Height: 1.57

    $14.00
