Replacement Parts For Nexgrill 720-0896E Sold at Home Depot USA in 2018

Find replacement grill parts for your 2018 Nexgrill 720-0896E Deluxe 6 Burner Propane Gas Grill with Searing Side Burner & Rotisserie Kit in Brown/Stainless Steel model number 720-0896E grill using the replacement parts diagram below. The Nexgrill 720-0896E grill was sold at Home Depot USA in 2018. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

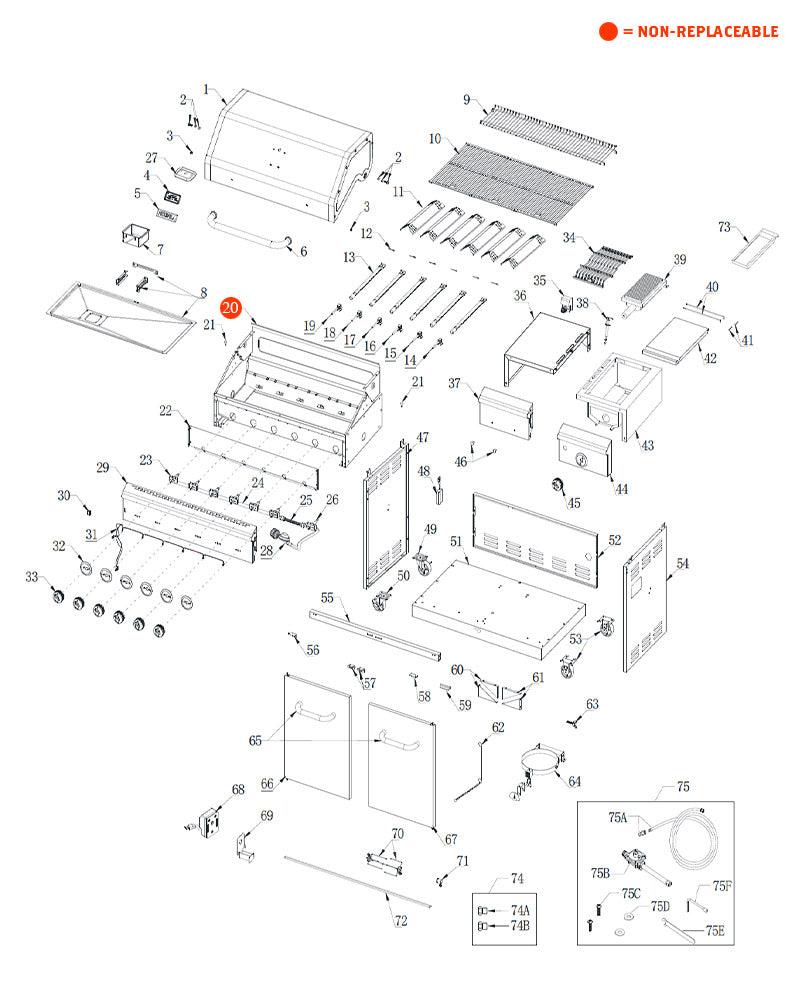

replacement grill parts for your Nexgrill 720-0896E

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127633000AP

    Part #1Main Lid
    Length: 34.02Width: 11.55Height: 17.77

    $104.30

  • 2 - Main Lid Screw
    SKU #0127494000AP

    Part #2Main Lid Screw
    Length: 0.63Width: 0.94Height: 0.63

    $5.00

  • 3 - Hood Buffer A
    SKU #1306050000AW

    Part #3Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $17.50

  • 4 - Temperature Gauge
    SKU #2002059000AW

    Part #4Temperature Gauge
    Length: 3.74Width: 2.42Height: 1.85

    $5.76

  • 5 - Logo
    SKU #20002506A0

    Part #5Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 6 - Main Lid Handle Assembly
    SKU #0127522000AP

    Part #6Main Lid Handle Assembly
    Length: 20.94Width: 3.96Height: 1.25

    $12.04

  • 7 - Grease Box
    SKU #0145237902AQ

    Part #7Grease Box
    Length: 7.6Width: 5.16Height: 2.17

    $7.54

  • 8 - Grease Pan Assembly
    SKU #0127202000AP

    Part #8Grease Pan Assembly
    Length: 31.65Width: 14.25Height: 4.43

    $30.85

  • 9 - Warming Rack
    SKU #0903143900AE

    Part #9Warming Rack
    Length: 32.46Width: 1.38Height: 7.09

    $15.59

  • 10 - Cooking Grid
    SKU #1021074901AE

    Part #10Cooking Grid
    Length: 17.16Width: 0.04Height: 15.11

    $18.00

  • 11 - Flame Tamer
    SKU #0406041900AE

    Part #11Flame Tamer
    Length: 14.57Width: 3.35Height: 1.32

    $5.40

  • 12 & 13 - Main Burner & Burner Pin Assembly
    SKU #0127199000AP

    Part #12 & 13Main Burner & Burner Pin Assembly
    Length: 14.9Width: 1.3Height: 0.83

    $9.25

  • 14 - Main Burner Igniter Wire A
    SKU #2001661000AW

    Part #14Main Burner Igniter Wire A
    Length: 16.26Width: 1.18Height: 1.18

    $6.99

  • 15 - Main Burner Igniter Wire B
    SKU #2001664000AW

    Part #15Main Burner Igniter Wire B
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 16 - Main Burner Igniter Wire C
    SKU #2001666000AW

    Part #16Main Burner Igniter Wire C
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 17 - Main Burner Igniter Wire D
    SKU #2001668000AW

    Part #17Main Burner Igniter Wire D
    Length: 29.92Width: 1.18Height: 1.18

    $6.99

  • 18 - Main Burner Igniter Wire E
    SKU #2001670000AW

    Part #18Main Burner Igniter Wire E
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 19 - Main Burner Igniter Wire F
    SKU #2001671000AW

    Part #19Main Burner Igniter Wire F
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 21 - Hood Buffer B
    SKU #17000001A0

    Part #21Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 22 - Front Baffle
    SKU #0125356000AP

    Part #22Front Baffle
    Length: 33.94Width: 2.17Height: 5.89

    $21.00

  • 23 - Main Gas Valve
    SKU #120870002547

    Part #23Main Gas Valve
    Length: 3.8Width: 2.1Height: 1.6

    $24.00

  • 24 - Main Manifold
    SKU #0116208900AW

    Part #24Main Manifold
    Length: 29.92Width: 0.75Height: 0.83

    $35.00

  • 25 - Ceramic Side Burner Flex Gas Line
    SKU #11000454A0

    Part #25Ceramic Side Burner Flex Gas Line
    Length: 6.5Width: 0.75Height: 0.87

    $8.57

  • 26 - Ceramic Side Burner Gas Valve
    SKU #0120821000AW

    Part #26Ceramic Side Burner Gas Valve
    Length: 4.45Width: 2.01Height: 3.37

    $9.00

  • 27 - Temperature Gauge Housing
    SKU #0308217000BH

    Part #27Temperature Gauge Housing
    Length: 5.12Width: 3.25Height: 0.43

    $5.00

  • 28 - Regulator LP
    SKU #0119158000AW

    Part #28Regulator LP
    Length: 21.65Width: 2.53Height: 2.5

    $14.00

  • 29 - Main Control Panel
    SKU #0127610000AP

    Part #29Main Control Panel
    Length: 23.2Width: 7.5Height: 6.9

    $35.70

  • 30 - Light Switch
    SKU #2004115000AW

    Part #30Light Switch
    Length: 31.69Width: 0.87Height: 0.63

    $5.00

  • 31 - LED Light
    SKU #2001675000AW

    Part #31LED Light
    Length: 48.43Width: 10.24Height: 0.39

    $7.25

  • 32 - Main Burner Bezel
    SKU #14000023A0

    Part #32Main Burner Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 33 - Control Knob A
    SKU #0108069000AP

    Part #33Control Knob A
    Length: 1.94Width: 1.81Height: 1.25

    $5.22

  • 34 - Ceramic Side Burner Cooking Grid
    SKU #1021076901AE

    Part #34Ceramic Side Burner Cooking Grid
    Length: 13.76Width: 8.42Height: 0.88

    $17.40

  • 35 - Pulse Igniter Module
    SKU #2001648000AW

    Part #35Pulse Igniter Module
    Length: 2.64Width: 2.05Height: 2.64

    $9.36

  • 36 - Side Shelf
    SKU #0127988000AP

    Part #36Side Shelf
    Length: 21.9Width: 12.8Height: 6.5

    $26.04

  • 37 - Side Shelf Control Panel
    SKU #0151645000AS

    Part #37Side Shelf Control Panel
    Length: 12.83Width: 2.66Height: 7.3

    $30.00

  • 38 - Ceramic Side Burner Igniter Wire
    SKU #10001532A0

    Part #38Ceramic Side Burner Igniter Wire
    Length: 9.13Width: 1.19Height: 3.5

    $6.99

  • 39 - Ceramic Side Burner
    SKU #10000343A0

    Part #39Ceramic Side Burner
    Length: 14.17Width: 2.95Height: 6.34

    $76.11

  • 40 & 41 - Ceramic Side Burner Lid Hinge Rod & Pin
    SKU #20002785A0

    Part #40 & 41Ceramic Side Burner Lid Hinge Rod & Pin
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 42 - Ceramic Side Burner Lid
    SKU #0302049000AH

    Part #42Ceramic Side Burner Lid
    Length: 14.84Width: 0.79Height: 8.89

    $16.20

  • 43 - Ceramic Side Burner Bowl Assembly
    SKU #0127989000AP

    Part #43Ceramic Side Burner Bowl Assembly
    Length: 12.83Width: 2.66Height: 12.83

    $33.04

  • 44 - Ceramic Side Burner Control Panel
    SKU #0170261000AP

    Part #44Ceramic Side Burner Control Panel
    Length: 12.83Width: 2.66Height: 7.3

    $17.22

  • 45 - Control Knob B
    SKU #0108070000AP

    Part #45Control Knob B
    Length: 2.28Width: 1.26Height: 2.28

    $7.00

  • 46 - Utensil Hook
    SKU #0127212000AP

    Part #46Utensil Hook
    Length: 0.78Width: 0.75Height: 0.75

    $5.00

  • 47 - Side Panel Left
    SKU #0127630000AP

    Part #47Side Panel Left
    Length: 24.53Width: 19.69Height: 0.79

    $23.52

  • 48 - Battery Box
    SKU #1201143900AW

    Part #48Battery Box
    Length: 4.33Width: 2.36Height: 1.89

    $6.30

  • 49 - Swivel Caster with Brake
    SKU #05001574A0

    Part #49Swivel Caster with Brake
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 50 - Swivel Caster
    SKU #05000733A0

    Part #50Swivel Caster
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 51 - Bottom Panel
    SKU #0127228000AP

    Part #51Bottom Panel
    Length: 3.7Width: 2.52Height: 4.17

    $19.20

  • 52 - Rear Panel
    SKU #0145274501AQ

    Part #52Rear Panel
    Length: 25.43Width: 11.81Height: 0.79

    $18.72

  • 53 - Caster
    SKU #05000734A0

    Part #53Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 54 - Side Panel Right
    SKU #0127631000AP

    Part #54Side Panel Right
    Length: 24.53Width: 19.69Height: 0.79

    $23.52

  • 55 - Cart Frame Front
    SKU #0127205000AP

    Part #55Cart Frame Front
    Length: 34Width: 1.38Height: 0.98

    $14.16

  • 56 - Door Hinge Fixed Plate Left
    SKU #0210246501AQ

    Part #56Door Hinge Fixed Plate Left
    Length: 1.87Width: 0.87Height: 0.87

    $5.85

  • 57 - Door Magnet
    SKU #05000010A0

    Part #57Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 58 - Door Hinge Fixed Plate Right
    SKU #0210247501AQ

    Part #58Door Hinge Fixed Plate Right
    Length: 1.87Width: 0.87Height: 0.87

    $6.76

  • 59 - Door Iron Piece
    SKU #04007695A0

    Part #59Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.93

    $4.99

  • 60 - Triangle Bracket A
    SKU #0212343505AQ

    Part #60Triangle Bracket A
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 61 - Triangle Bracket B
    SKU #0212342505AQ

    Part #61Triangle Bracket B
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 62 - Lighting Rod
    SKU #0904133081AW

    Part #62Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 63 - Tank Bolt
    SKU #0127232000AP

    Part #63Tank Bolt
    Length: 5.1Width: 2.5Height: 2

    $6.44

  • 64 - Tank Frame Assembly
    SKU #0127229000AP

    Part #64Tank Frame Assembly
    Length: 12.33Width: 8.43Height: 1.28

    $15.00

  • 65 - Door Handle Assembly
    SKU #0125611000AP

    Part #65Door Handle Assembly
    Length: 9.84Width: 1Height: 3.18

    $2.73

  • 66 - Door Left
    SKU #0125403000AP

    Part #66Door Left
    Length: 22.91Width: 14.94Height: 3

    $16.80

  • 67 - Door Right
    SKU #0127231000AP

    Part #67Door Right
    Length: 22.91Width: 16.54Height: 0.79

    $16.80

  • 68 - Rotisserie Motor
    SKU #2004091001AW

    Part #68Rotisserie Motor
    Length: 4.72Width: 2.61Height: 3.54

    $24.00

  • 69 - Rotisserie Motor Bracket
    SKU #20002722A0

    Part #69Rotisserie Motor Bracket
    Length: 4.83Width: 3.35Height: 2.91

    $10.20

  • 70 - Spit Fork
    SKU #0904143002AW

    Part #70Spit Fork
    Length: 40Width: 0.4Height: 0.4

    $7.70

  • 71 - Shaft Collar
    SKU #0904042002AW

    Part #71Shaft Collar
    Length: 4.2Width: 3.6Height: 3.6

    $2.94

  • 72 - Spit Rod
    SKU #0904142002AW

    Part #72Spit Rod
    Length: 40Width: 0.4Height: 0.4

    $10.00

  • 73 - Ceramic Side Burner Grease Tray
    SKU #0211045902AQ

    Part #73Ceramic Side Burner Grease Tray
    Length: 15.66Width: 0.78Height: 4.4

    $17.50

  • 74 - NG Orifice Pack
    SKU #2006410000AP

    Part #74NG Orifice Pack
    Length: 0.02Width: 0.02Height: 0.02

    $5.00

  • 77 - Manual
    SKU #19000587A4

    Part #77Manual
    Length: 12.8Width: 8.66Height: 1.57

    $5.00
