Replacement Parts For Nexgrill 720-0882A Sold at Home Depot USA in 2018

Find replacement grill parts for your 2018 Nexgrill 720-0882A Evolution 5 Burner Propane Gas Grill with Side Burner in Stainless Steel model number 720-0882A grill using the replacement parts diagram below. The Nexgrill 720-0882A grill was sold at Home Depot USA in 2018. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

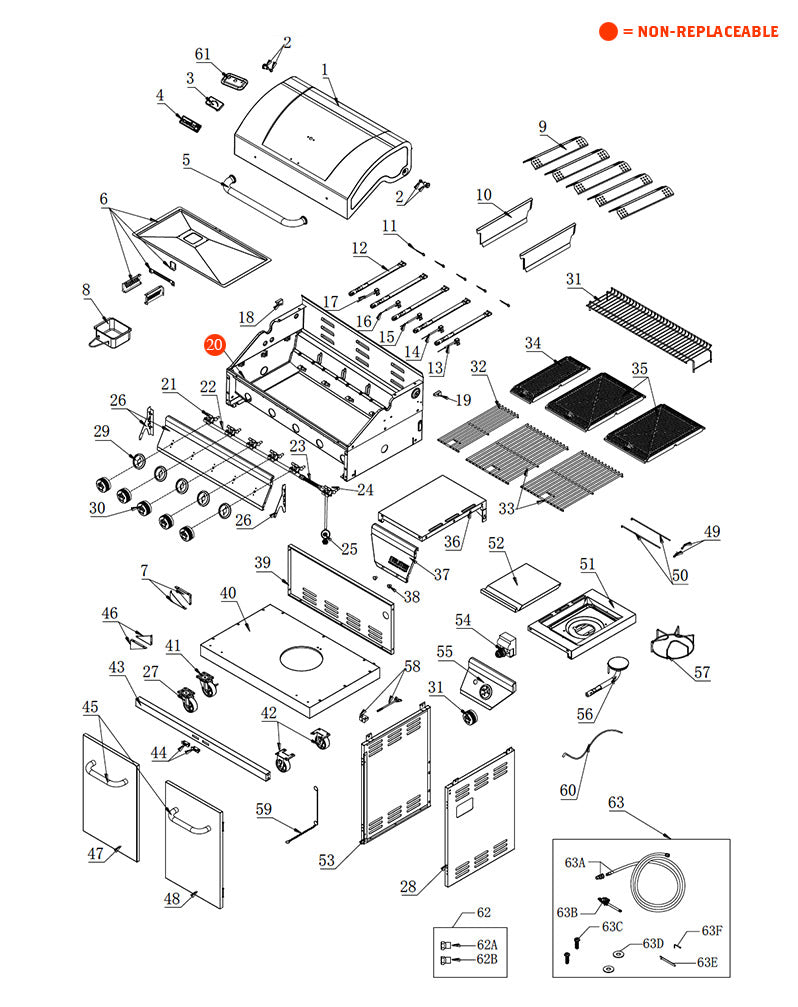

replacement grill parts for your Nexgrill 720-0882A

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127214000AP

    Part #1Main Lid
    Length: 31.09Width: 17.95Height: 8.17

    $76.80

  • 2 - Main Lid Screw
    SKU #20003225A0

    Part #2Main Lid Screw
    Length: 0.63Width: 0.63Height: 1.1

    $5.00

  • 3 - Temperature Gauge
    SKU #2002055000AW

    Part #3Temperature Gauge
    Length: 3.74Width: 1.85Height: 2.09

    $5.86

  • 4 - Logo
    SKU #20002506A0

    Part #4Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 5 - Main Lid Handle
    SKU #0127522000AP

    Part #5Main Lid Handle
    Length: 20.94Width: 3.96Height: 1.25

    $12.04

  • 6 - Grease Pan Assembly
    SKU #0127216000AP

    Part #6Grease Pan Assembly
    Length: 27.55Width: 14.25Height: 4.72

    $20.45

  • 7 - Triangle Bracket A
    SKU #04007700A0

    Part #7Triangle Bracket A
    Length: 1.22Width: 0.49Height: 2.36

    $5.00

  • 8 - Grease Box
    SKU #0145237501AQ

    Part #8Grease Box
    Length: 7.6Width: 5.16Height: 2.17

    $8.40

  • 9 - Flame Tamer
    SKU #0315132000AC

    Part #9Flame Tamer
    Length: 14.57Width: 3.35Height: 1.32

    $8.27

  • 10 - DIBS Heat Shield
    SKU #0306341000BC

    Part #10DIBS Heat Shield
    Length: 15Width: 4.73Height: 0.5

    $3.59

  • 11 & 12 - Main Burner & Burner Pin Assembly
    SKU #0127199000AP

    Part #11 & 12Main Burner & Burner Pin Assembly
    Length: 14.9Width: 1.3Height: 0.83

    $9.25

  • 13 - Main Burner Igniter Wire A
    SKU #2001661000AW

    Part #13Main Burner Igniter Wire A
    Length: 16.26Width: 1.18Height: 1.18

    $6.99

  • 14 - Main Burner Igniter Wire B
    SKU #2001664000AW

    Part #14Main Burner Igniter Wire B
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 15 - Main Burner Igniter Wire C
    SKU #2001666000AW

    Part #15Main Burner Igniter Wire C
    Length: 22.36Width: 1.12Height: 0.94

    $6.99

  • 16 - Main Burner Igniter Wire D
    SKU #2001668000AW

    Part #16Main Burner Igniter Wire D
    Length: 29.92Width: 1.18Height: 1.18

    $6.99

  • 17 - Main Burner Igniter Wire E
    SKU #2001670000AW

    Part #17Main Burner Igniter Wire E
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 18 - Lid Bracket Left
    SKU #04005330A0

    Part #18Lid Bracket Left
    Length: 1.57Width: 1.18Height: 0.47

    $4.80

  • 19 - Lid Bracket Right
    SKU #04005331A0

    Part #19Lid Bracket Right
    Length: 1.57Width: 1.18Height: 0.47

    $5.33

  • 21 - Main Gas Valve
    SKU #0120772000AW

    Part #21Main Gas Valve
    Length: 4.33Width: 1.96Height: 2.36

    $20.45

  • 22 - Main Manifold
    SKU #0116197900AW

    Part #22Main Manifold
    Length: 26.5748031Width: 0.86614173Height: 0.86614173

    $35.00

  • 23 - Side Burner Flex Gas Line
    SKU #11000454A0

    Part #23Side Burner Flex Gas Line
    Length: 6.5Width: 0.75Height: 0.87

    $8.57

  • 24 - Side Burner Gas Valve
    SKU #0120736000AW

    Part #24Side Burner Gas Valve
    Length: 4.13Width: 1.97Height: 1.97

    $9.36

  • 25 - Regulator LP
    SKU #09000262A0

    Part #25Regulator LP
    Length: 26.18Width: 2.97Height: 2.9

    $22.84

  • 26 - Main Control Panel
    SKU #0127535000AP

    Part #26Main Control Panel
    Length: 30.08Width: 6.89Height: 3.35

    $35.84

  • 27 - Swivel Caster
    SKU #05000733A0

    Part #27Swivel Caster
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 28 - Side Panel Right
    SKU #0127528000AP

    Part #28Side Panel Right
    Length: 24.803Width: 18.385Height: 1.102

    $26.04

  • 29 - Main Burner Bezel
    SKU #14000023A0

    Part #29Main Burner Bezel
    Length: 2.28Width: 2.28Height: 0.28

    $9.99

  • 30 - Control Knob
    SKU #0108069000AP

    Part #30Control Knob
    Length: 1.94Width: 1.81Height: 1.25

    $5.22

  • 31 - Warming Rack
    SKU #13000941A0

    Part #31Warming Rack
    Length: 28.82Width: 7.09Height: 2.99

    $19.33

  • 32 - Cooking Grid with Hole A
    SKU #0901148081AP

    Part #32Cooking Grid with Hole A
    Length: 16.929Width: 5.708Height: 0.551

    $18.00

  • 33 - Cooking Grid with Hole B
    SKU #0901147081AP

    Part #33Cooking Grid with Hole B
    Length: 16.929Width: 11.614Height: 0.551

    $18.00

  • 34 - Infrared Plus Heat Plate 6.0"W
    SKU #0151480000AP

    Part #34Infrared Plus Heat Plate 6.0"W
    Length: 17.13Width: 5.71Height: 0.98

    $12.88

  • 35 - Infrared Plus Heat Plate 12.0"W
    SKU #0151479000AP

    Part #35Infrared Plus Heat Plate 12.0"W
    Length: 17.13Width: 11.61Height: 0.98

    $13.00

  • 36 - Side Shelf Left
    SKU #0127218000AP

    Part #36Side Shelf Left
    Length: 17.72Width: 12.01Height: 1.97

    $2.53

  • 37 - Side Shelf Control Panel
    SKU #0151475000AS

    Part #37Side Shelf Control Panel
    Length: 12.007Width: 6.889Height: 3.346

    $20.44

  • 38 - Utensil Hook
    SKU #20002852A0

    Part #38Utensil Hook
    Length: 0.98Width: 0.98Height: 1.18

    $2.52

  • 39 - Rear Panel
    SKU #0206387501AQ

    Part #39Rear Panel
    Length: 28.46Width: 11.77Height: 0.81

    $13.50

  • 40 - Bottom Panel
    SKU #0127219000AP

    Part #40Bottom Panel
    Length: 30.12Width: 19.29Height: 2.56

    $31.02

  • 41 - Swivel Caster with Brake
    SKU #05001574A0

    Part #41Swivel Caster with Brake
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 42 - Caster
    SKU #05000734A0

    Part #42Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 43 - Cart Frame Front
    SKU #20003253A0

    Part #43Cart Frame Front
    Length: 29.96Width: 1.38Height: 0.98

    $11.20

  • 44 - Door Magnet
    SKU #05000010A0

    Part #44Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 45 - Door Handle Assembly
    SKU #0125611000AP

    Part #45Door Handle Assembly
    Length: 9.84Width: 1Height: 3.18

    $2.73

  • 46 - Triangle Bracket B
    SKU #04007701A0

    Part #46Triangle Bracket B
    Length: 0.98Width: 3.66Height: 2.95

    $5.00

  • 47 - Door Left
    SKU #0125298000AP

    Part #47Door Left
    Length: 22.91Width: 14.94Height: 0.79

    $9.48

  • 48 - Door Right
    SKU #0127165000AP

    Part #48Door Right
    Length: 22.91Width: 14.94Height: 0.79

    $18.96

  • 49 & 50 - Side Burner Lid Hinge Rod & Pin
    SKU #20003125A0

    Part #49 & 50Side Burner Lid Hinge Rod & Pin
    Length: 5.43Width: 0.79Height: 8.19

    $5.00

  • 51 - Side Burner Bowl Assembly Right
    SKU #0127223000AP

    Part #51Side Burner Bowl Assembly Right
    Length: 17.72Width: 12.01Height: 1.97

    $15.84

  • 52 - Side Burner Lid
    SKU #0302048000AH

    Part #52Side Burner Lid
    Length: 12.5Width: 9.55Height: 0.78

    $6.99

  • 53 - Side Panel Left
    SKU #0127530000AP

    Part #53Side Panel Left
    Length: 0.976Width: 0.723Height: 0.043

    $26.04

  • 54 - Pulse Igniter Module
    SKU #07800057A0

    Part #54Pulse Igniter Module
    Length: 2.78Width: 2.67Height: 2.05

    $8.99

  • 55 - Side Burner Control Panel
    SKU #0125598000AP

    Part #55Side Burner Control Panel
    Length: 12.007Width: 6.889Height: 3.346

    $20.44

  • 56 - Side Burner
    SKU #0117219000AP

    Part #56Side Burner
    Length: 10.62Width: 3.97Height: 3.89

    $8.64

  • 57 - Side Burner Cooking Grid
    SKU #0903084000AJ

    Part #57Side Burner Cooking Grid
    Length: 8.45Width: 8.45Height: 2.36

    $17.22

  • 58 - Tank Bolt
    SKU #0127220000AP

    Part #58Tank Bolt
    Length: 5.944Width: 1.614Height: 0.748

    $6.44

  • 59 - Lighting Rod
    SKU #0904133081AW

    Part #59Lighting Rod
    Length: 7.87Width: 0.79Height: 0.39

    $5.00

  • 60 - Side Burner Igniter Wire
    SKU #2001649000BW

    Part #60Side Burner Igniter Wire
    Length: 13.77Width: 3.54Height: 0.91

    $6.99

  • 61 - Temperature Gauge Housing
    SKU #0127410000AP

    Part #61Temperature Gauge Housing
    Length: 5.16Width: 3.25Height: 0.43

    $4.90

  • 62 - NG Orifice Pack
    SKU #2006435000AP

    Part #62NG Orifice Pack
    Length: 9.45Width: 6.1Height: 0.98

    $5.00

  • 64 - K/D Hardware Pack
    SKU #2006429000AP

    Part #64K/D Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $4.48

  • 65 - Manual
    SKU #19000585A6

    Part #65Manual
    Length: 12.8Width: 8.66Height: 1.57

    $5.00
