Replacement Parts For Nexgrill 720-0864RA Sold at Online Retailers in 2021

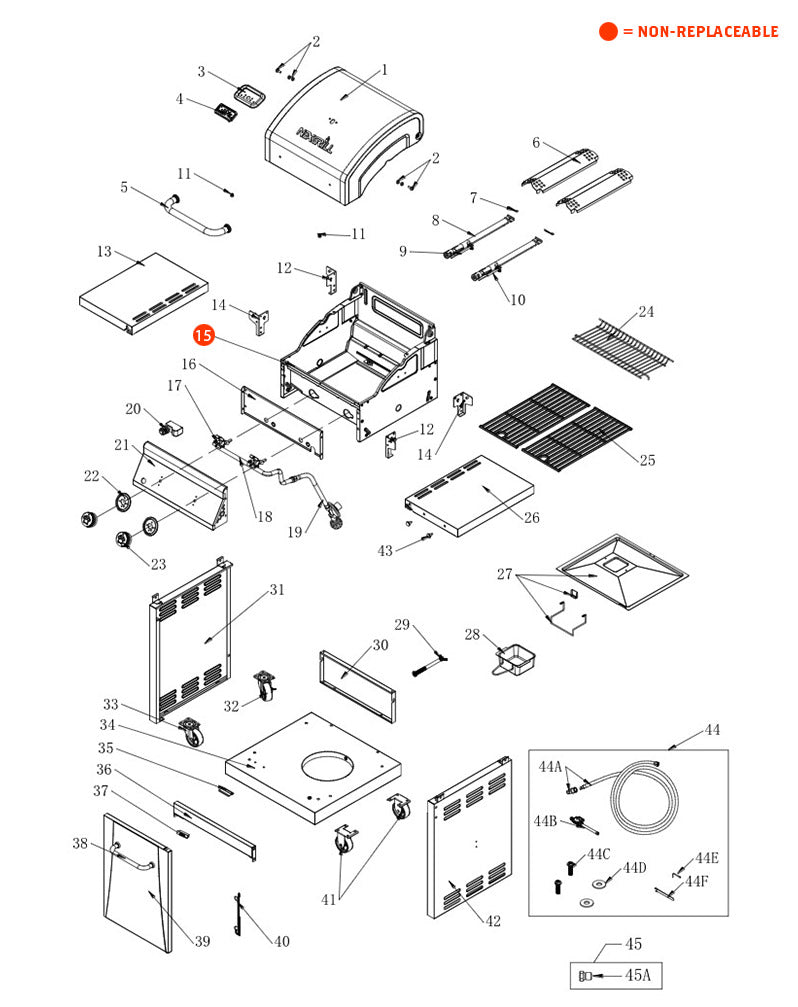

Find replacement grill parts for your 2021 Nexgrill 720-0864RA Deluxe 2 Burner Propane Gas Grill in Black/Stainless Steel model number 720-0864RA grill using the replacement parts diagram below. The Nexgrill 720-0864RA grill was sold at Online Retailers in 2021. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual
720-0864RA

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850003012

    Part #1Main Lid
    Length: 18.1Width: 17.9Height: 9.8

    $31.50

  • 2 - Main Lid Screw
    SKU #0127507000AP

    Part #2Main Lid Screw
    Length: 0.94Width: 0.94Height: 0.63

    $5.00

  • 3 - Temperature Gauge Housing
    SKU #0308217000BH

    Part #3Temperature Gauge Housing
    Length: 5.12Width: 3.25Height: 0.43

    $5.00

  • 4 - Temperature Gauge
    SKU #2002063000AW

    Part #4Temperature Gauge
    Length: 3.74Width: 1.85Height: 2.42

    $5.76

  • 5 - Main Lid Handle Assembly
    SKU #0127498000AP

    Part #5Main Lid Handle Assembly
    Length: 13Width: 3.95Height: 1.25

    $12.04

  • 6 - Flame Tamer
    SKU #0315174000AC

    Part #6Flame Tamer
    Length: 14.56Width: 4.26Height: 1.39

    $5.74

  • 7 & 8 - Main Burner & Burner Pin Assembly
    SKU #120850002526

    Part #7 & 8Main Burner & Burner Pin Assembly
    Length: 14.84Width: 2.02Height: 1.04

    $9.25

  • 9 - Main Burner Igniter Wire A
    SKU #120850002527

    Part #9Main Burner Igniter Wire A
    Length: 7.8Width: 0.02Height: 0.02

    $6.99

  • 10 - Main Burner Igniter Wire B
    SKU #120850002595

    Part #10Main Burner Igniter Wire B
    Length: 1.1Width: 0.26Height: 1.42

    $6.99

  • 11 - Hood Buffer A
    SKU #17000106A0

    Part #11Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 12 - Side Shelf Support Bracket A
    SKU #20003085A0

    Part #12Side Shelf Support Bracket A
    Length: 4Width: 2.16Height: 2.18

    $5.00

  • 13 - Side Shelf Left
    SKU #20003092A0

    Part #13Side Shelf Left
    Length: 17.43Width: 12Height: 1.59

    $10.72

  • 14 - Side Shelf Support Bracket B
    SKU #20003086A0

    Part #14Side Shelf Support Bracket B
    Length: 4Width: 2.16Height: 2.18

    $5.00

  • 16 - Front Baffle
    SKU #04007627A0

    Part #16Front Baffle
    Length: 18Width: 5.3Height: 0.61

    $21.00

  • 17 - Main Gas Valve
    SKU #0120867000AW

    Part #17Main Gas Valve
    Length: 4.15Width: 1.9Height: 1.55

    $20.45

  • 18 - Main Manifold
    SKU #11000890A0

    Part #18Main Manifold
    Length: 11.83Width: 7.95Height: 2.58

    $35.00

  • 19 - LP Regulator
    SKU #0119151000AW

    Part #19LP Regulator
    Length: 21.65Width: 2.53Height: 2.5

    $17.50

  • 20 - Pulse Igniter Module
    SKU #120870002323

    Part #20Pulse Igniter Module
    Length: 2.86Width: 2.75Height: 2.04

    $5.32

  • 21 - Main Control Panel
    SKU #120850002597

    Part #21Main Control Panel
    Length: 18.2Width: 6.9Height: 3.28

    $59.99

  • 22 - Bezel
    SKU #14000213A0

    Part #22Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.24

  • 23 - Control Knob
    SKU #0108069000AP

    Part #23Control Knob
    Length: 1.94Width: 1.81Height: 1.25

    $5.22

  • 24 - Warming Rack
    SKU #120870002324

    Part #24Warming Rack
    Length: 16.85Width: 6.86Height: 1.18

    $16.10

  • 25 - Cooking Grid with Hole
    SKU #13000923A0

    Part #25Cooking Grid with Hole
    Length: 17.16Width: 10Height: 0.27

    $10.72

  • 26 - Side Shelf Right
    SKU #120870002325

    Part #26Side Shelf Right
    Length: 18.33Width: 12Height: 1.59

    $19.88

  • 27 - Grease Pan Assembly
    SKU #120850002600

    Part #27Grease Pan Assembly
    Length: 4.8Width: 13.85Height: 3.56

    $10.60

  • 28 - Grease Box
    SKU #120870001945

    Part #28Grease Box
    Length: 7.6Width: 5.16Height: 2.17

    $10.34

  • 29 - Tank Bolt
    SKU #20001181A0

    Part #29Tank Bolt
    Length: 5.32Width: 1.69Height: 0.75

    $6.44

  • 30 - Rear Panel
    SKU #0206406901AQ

    Part #30Rear Panel
    Length: 16.38Width: 5.98Height: 0.78

    $20.72

  • 31 - Side Panel Left
    SKU #20003094A0

    Part #31Side Panel Left
    Length: 23.88Width: 17.7Height: 1.79

    $30.00

  • 32 - Swivel Caster with Brake
    SKU #05001574A0

    Part #32Swivel Caster with Brake
    Length: 3.35Width: 2.68Height: 3.66

    $10.50

  • 33 - Swivel Caster
    SKU #05000733A0

    Part #33Swivel Caster
    Length: 3.35Width: 2.28Height: 1.38

    $14.37

  • 34 - Bottom Panel
    SKU #20003097A0

    Part #34Bottom Panel
    Length: 20.47Width: 19.68Height: 2.36

    $21.53

  • 35 - Door Iron Piece
    SKU #04007695A0

    Part #35Door Iron Piece
    Length: 2.36Width: 1.22Height: 0.93

    $4.99

  • 36 - Cart Frame
    SKU #20003095A0

    Part #36Cart Frame
    Length: 17.97Width: 2.87Height: 0.93

    $14.25

  • 37 - Door Magnet
    SKU #05000010A0

    Part #37Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 38 - Door Handle Assembly
    SKU #0125730000AP

    Part #38Door Handle Assembly
    Length: 8.5Width: 2.28Height: 0.62

    $7.28

  • 39 - Door
    SKU #0127500000AP

    Part #39Door
    Length: 20.87Width: 14.74Height: 0.8

    $23.10

  • 40 - Lighting Rod
    SKU #05000011A0

    Part #40Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $5.00

  • 41 - Caster
    SKU #05000734A0

    Part #41Caster
    Length: 3.66Width: 2.32Height: 3.66

    $4.50

  • 42 - Side Panel Right
    SKU #0127506000AP

    Part #42Side Panel Right
    Length: 23.88Width: 17.7Height: 1.79

    $21.42

  • 43 - Tool Hooks
    SKU #0127212000AP

    Part #43Tool Hooks
    Length: 0.78Width: 0.75Height: 0.75

    $5.00

  • 45 - NG Orifice Pack
    SKU #120850003015

    Part #45NG Orifice Pack
    Length: 5.91Width: 7.87Height: 5.91

    $5.00

  • 46 - Hardware Pack
    SKU #120850003013

    Part #46Hardware Pack
    Length: 9.84Width: 7.05Height: 5.91

    $3.50
