Replacement Parts For Nexgrill 720-0785 Sold at Home Depot USA in 2020

Find replacement grill parts for your 2020 Nexgrill 720-0785 2 Burner Propane Gas Grill with Griddle Top in Black model number 720-0785 grill using the replacement parts diagram below. The Nexgrill 720-0785 grill was sold at Home Depot USA in 2020. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

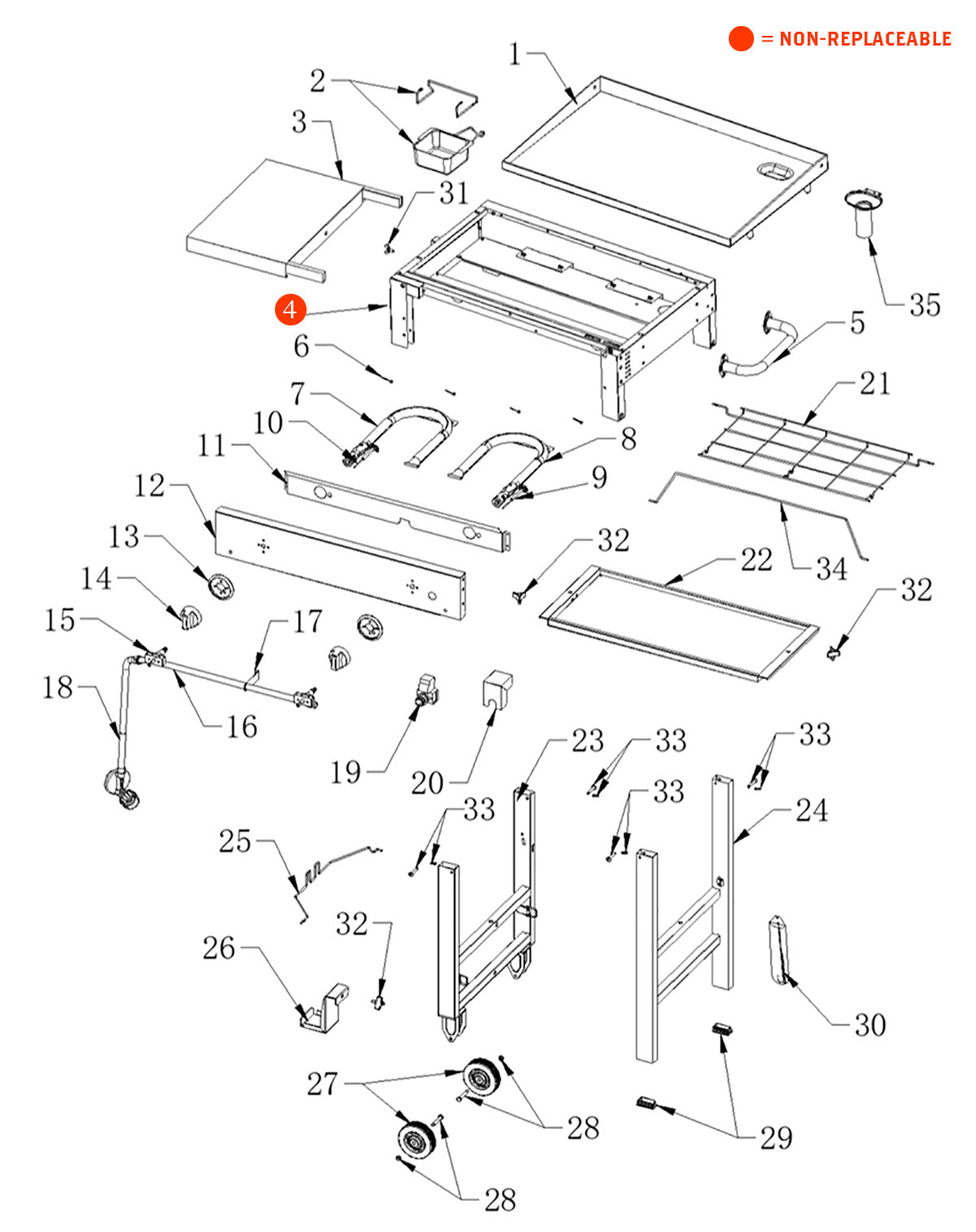

replacement grill parts for your Nexgrill 720-0785

Manual No. / Part

Price Each

Qty

  • 1 - Griddle
    SKU #120870002540

    Part #1Griddle
    Length: 29.01Width: 18.31Height: 3.15

    $70.00

  • 2 - Grease Box
    SKU #120850002813

    Part #2Grease Box
    Length: 9.57Width: 6.3Height: 2.85

    $5.70

  • 3 - Side Shelf
    SKU #120850002005

    Part #3Side Shelf
    Length: 17.86Width: 16.18Height: 1.77

    $24.30

  • 5 - Side Handle
    SKU #120850002003

    Part #5Side Handle
    Length: 11.81Width: 4.25Height: 2.64

    $15.00

  • 6 & 8 - U Shape Main Burner Assembly 2 & Burner Pin Assembly
    SKU #120850001999

    Part #6 & 8U Shape Main Burner Assembly 2 & Burner Pin Assembly
    Length: 13.48Width: 7.59Height: 0.98

    $12.90

  • 6 & 7 - U Shape Main Burner Assembly 1 & Burner Pin Assembly
    SKU #120850001998

    Part #6 & 7U Shape Main Burner Assembly 1 & Burner Pin Assembly
    Length: 13.48Width: 7.59Height: 0.98

    $12.90

  • 9 - Burner Igniter Wire A
    SKU #120850002021

    Part #9Burner Igniter Wire A
    Length: 11.22Width: 0.59Height: 0.47

    $6.99

  • 10 - Burner Igniter Wire B
    SKU #120850002001

    Part #10Burner Igniter Wire B
    Length: 26.18Width: 0.59Height: 0.47

    $6.99

  • 11 - Control Panel Heat Shield
    SKU #120870001865

    Part #11Control Panel Heat Shield
    Length: 26.74Width: 3.35Height: 1.46

    $13.20

  • 12 - Control Panel
    SKU #120850002002

    Part #12Control Panel
    Length: 29.13Width: 5.24Height: 1.24

    $25.35

  • 13 - Bezel
    SKU #120870001870

    Part #13Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.30

  • 14 - Control Knob
    SKU #120850002004

    Part #14Control Knob
    Length: 0.2Width: 0.02Height: 1.61

    $7.00

  • 15 - Gas Valve
    SKU #120870001868

    Part #15Gas Valve
    Length: 3.82Width: 2.09Height: 1.57

    $20.45

  • 16 - Manifold
    SKU #120870001867

    Part #16Manifold
    Length: 22.05Width: 2.28Height: 0.79

    $35.00

  • 17 - Manifold Fixing Plate
    SKU #120870001869

    Part #17Manifold Fixing Plate
    Length: 31.89Width: 0.94Height: 0.47

    $35.00

  • 18 - LP Regulator
    SKU #120870001866

    Part #18LP Regulator
    Length: 20.67Width: 3.15Height: 2.83

    $18.75

  • 19 - Igniter Module
    SKU #120870001863

    Part #19Igniter Module
    Length: 2.76Width: 2.05Height: 2.72

    $5.00

  • 20 - Pulse Igniter Module Heat Shield
    SKU #120870001864

    Part #20Pulse Igniter Module Heat Shield
    Length: 2.95Width: 2.56Height: 2.12

    $7.20

  • 21 - Warming Rack
    SKU #120870001873

    Part #21Warming Rack
    Length: 26.3Width: 9.74Height: 1.34

    $12.30

  • 22 - Frame Bottom Plate
    SKU #120870001871

    Part #22Frame Bottom Plate
    Length: 27.19Width: 11.81Height: 0.79

    $4.20

  • 23 - Left Cart Leg Assembly
    SKU #120850001995

    Part #23Left Cart Leg Assembly
    Length: 22.72Width: 18.04Height: 1.97

    $12.90

  • 24 - Right Cart Leg Assembly
    SKU #120850001996

    Part #24Right Cart Leg Assembly
    Length: 25.31Width: 18.04Height: 1.97

    $12.90

  • 25 - Cylinder Fixing Line
    SKU #120870001861

    Part #25Cylinder Fixing Line
    Length: 17.35Width: 3.72Height: 1.65

    $6.30

  • 26 - Cylinder Hanger
    SKU #120870001875

    Part #26Cylinder Hanger
    Length: 4.61Width: 4.13Height: 2.99

    $6.30

  • 27 - Caster
    SKU #120850002006

    Part #27Caster
    Length: 1.26Width: 1.26Height: 2.05

    $9.52

  • 28 - Caster Axle Assembly
    SKU #120850002007

    Part #28Caster Axle Assembly
    Length: 2.05Width: 0.47Height: 0.53

    $8.90

  • 29 - Cart Caster Insert
    SKU #120870001862

    Part #29Cart Caster Insert
    Length: 1.99Width: 1.01Height: 0.65

    $8.42

  • 30 - Lighting Rod
    SKU #05001137A0

    Part #30Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 31 - Wing Screw
    SKU #120870001877

    Part #31Wing Screw
    Length: 1.04Width: 0.7Height: 0.63

    $4.50

  • 32 - Cylinder Hanger Connecting Knob
    SKU #120870001876

    Part #32Cylinder Hanger Connecting Knob
    Length: 0.2Width: 0.02Height: 1.22

    $6.30

  • 33 - Pin Combination
    SKU #120850001997

    Part #33Pin Combination
    Length: 1.54Width: 1.1Height: 0.5

    $4.50

  • 34 - Warming Rack Pivot Leg Bracket
    SKU #120870001872

    Part #34Warming Rack Pivot Leg Bracket
    Length: 25.98Width: 4.13Height: 0.2

    $8.00

  • 35 - Grease Funnel
    SKU #120870002541

    Part #35Grease Funnel
    Length: 4.24Width: 4.13Height: 3.44

    $15.60

  • 36 - Manual
    SKU #19000727A0

    Part #36Manual
    Length: 12.8Width: 8.66Height: 1.57

    $5.00
