Replacement Parts For Nexgrill 720-0617 Sold at Costco USA in 2008

Find replacement grill parts for your 2008 Nexgrill 720-0617 4 Burner Propane Gas Grill with Main Sear Burner & Side Burner & Rear Burner & Rotisserie Kit in Stainless Steel model number 720-0617 grill using the replacement parts diagram below. The Nexgrill 720-0617 grill was sold at Costco USA in 2008. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

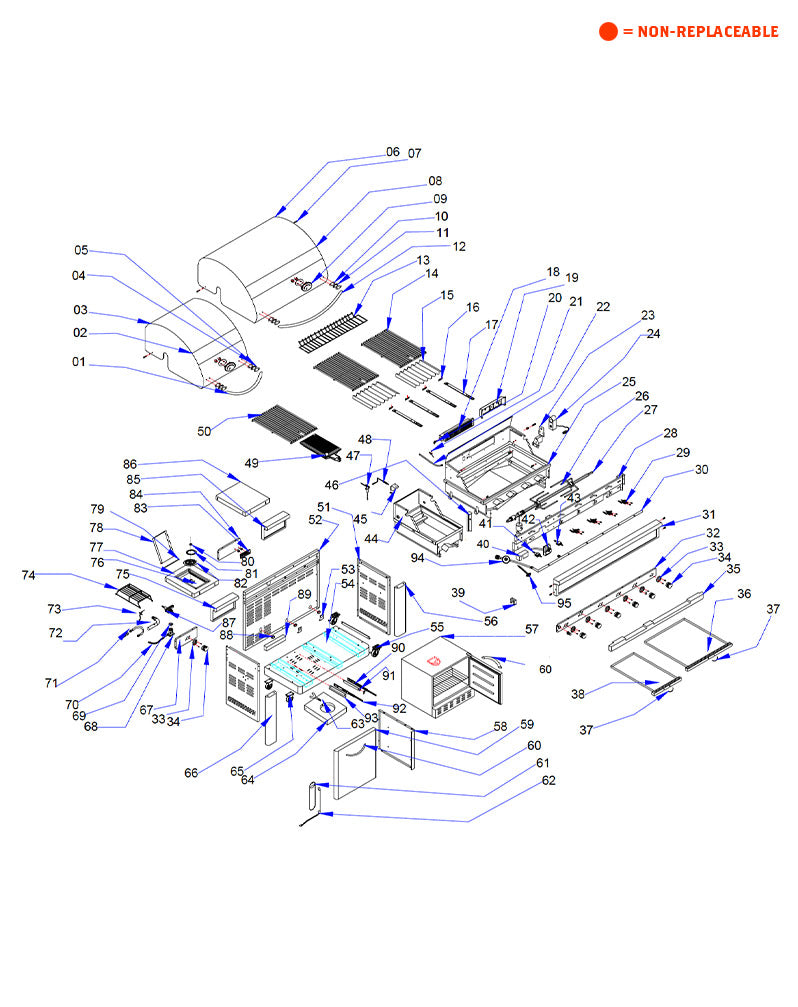

replacement grill parts for your Nexgrill 720-0617

Manual No. / Part

Price Each

Qty

  • 1 - Small Main Lid Handle Tube
    SKU #12000410A0

    Part #1Small Main Lid Handle Tube
    Length: 9.8Width: 3.15Height: 1.1

    $14.00

  • 2 - Small Main Lid Trim Piece
    SKU #04005014A0

    Part #2Small Main Lid Trim Piece
    Length: 12.5Width: 9.55Height: 0.78

    $10.00

  • 3 - Small Main Lid
    SKU #20001145A0

    Part #3Small Main Lid
    Length: 3.54Width: 6.14Height: 21.65

    $45.00

  • 4 - Small Main Lid Handle Heat Insulating Spacer
    SKU #05001331A0

    Part #4Small Main Lid Handle Heat Insulating Spacer
    Length: 1.24Width: 1.17Height: 0.04

    $15.00

  • 5 - Small Main Lid Handle Seat
    SKU #12000249A0

    Part #5Small Main Lid Handle Seat
    Length: 1.21Width: 1.13Height: 0.3

    $15.00

  • 6 - Main Lid
    SKU #20001146A0

    Part #6Main Lid
    Length: 29.69Width: 20.9Height: 20.26

    $120.00

  • 7 - Main Lid Screw
    SKU #06000700A0

    Part #7Main Lid Screw
    Length: 0.63Width: 0.37Height: 1.14

    $5.00

  • 8 - Main Lid Trim Piece
    SKU #04005015A0

    Part #8Main Lid Trim Piece
    Length: 12.5Width: 9.55Height: 0.78

    $10.00

  • 9 - Temperature Gauge
    SKU #05001256A0

    Part #9Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $5.76

  • 10 - Main Lid Handle Heat Insulating Spacer
    SKU #05001330A0

    Part #10Main Lid Handle Heat Insulating Spacer
    Length: 2.58Width: 1.17Height: 0.04

    $5.00

  • 11 - Main Lid Handle Seat
    SKU #12000248A0

    Part #11Main Lid Handle Seat
    Length: 2.54Width: 1.12Height: 0.25

    $8.00

  • 12 - Main Lid Handle Tube
    SKU #12000409A0

    Part #12Main Lid Handle Tube
    Length: 24.84Width: 3.15Height: 1.1

    $22.40

  • 13 - Warming Rack
    SKU #13000266A0

    Part #13Warming Rack
    Length: 28.35Width: 6.24Height: 1.02

    $16.00

  • 14 - Cooking Grid with Hole
    SKU #13000373A0

    Part #14Cooking Grid with Hole
    Length: 18.11Width: 9.8Height: 0.55

    $15.00

  • 15 - Flame Tamer
    SKU #20001147A0

    Part #15Flame Tamer
    Length: 17.32Width: 13.1Height: 1.69

    $30.00

  • 16 - Main Burner Bracket
    SKU #04005016A0

    Part #16Main Burner Bracket
    Length: 4.13Width: 1.93Height: 0.51

    $5.00

  • 17 - Main Burner
    SKU #10000659A0

    Part #17Main Burner
    Length: 16.93Width: 1.54Height: 0.98

    $9.25

  • 18 - Rotisserie Burner
    SKU #10000506A0

    Part #18Rotisserie Burner
    Length: 15.55Width: 3.35Height: 2.36

    $40.00

  • 19 - Rotisserie Burner Gas Collector
    SKU #20001148A0

    Part #19Rotisserie Burner Gas Collector
    Length: 16.97Width: 3.03Height: 1.93

    $7.00

  • 20 - Rotisserie Orifice with Brass Elbow
    SKU #05000116A0

    Part #20Rotisserie Orifice with Brass Elbow
    Length: 1.96Width: 1.38Height: 0.91

    $3.22

  • 21 - Rotisserie Burner Igniter Wire
    SKU #10001507A0

    Part #21Rotisserie Burner Igniter Wire
    Length: 1.26Width: 2.56Height: 53.54

    $6.00

  • 22 - Rotisserie Burner Flex Gas Line
    SKU #11000458A0

    Part #22Rotisserie Burner Flex Gas Line
    Length: 1.39Width: 0.01Height: 33.46

    $10.00

  • 23 - Rotisserie Motor Bracket
    SKU #20001149A0

    Part #23Rotisserie Motor Bracket
    Length: 6.02Width: 3.35Height: 2.41

    $10.20

  • 24 - Rotisserie Motor
    SKU #07000234A0

    Part #24Rotisserie Motor
    Length: 4.72Width: 2.61Height: 3.54

    $24.00

  • 26 - Spit Fork
    SKU #05001065A0

    Part #26Spit Fork
    Length: 3.74Width: 3.15Height: 4.29

    $5.00

  • 27 - Spit Rod
    SKU #05001098A0

    Part #27Spit Rod
    Length: 4.53Width: 1.97Height: 1.77

    $28.00

  • 28 - Front Baffle
    SKU #20001151A0

    Part #28Front Baffle
    Length: 43.5Width: 5.29Height: 0.79

    $21.00

  • 29 - Main Gas Valve
    SKU #09000490A0

    Part #29Main Gas Valve
    Length: 5.51Width: 3.39Height: 2.17

    $20.45

  • 30 - Main Manifold
    SKU #11000218A0

    Part #30Main Manifold
    Length: 37.8Width: 8.27Height: 1.97

    $35.00

  • 31 - Main Control Panel
    SKU #20001152A0

    Part #31Main Control Panel
    Length: 42Width: 4.23Height: 0.51

    $40.00

  • 32 - Main Control Trim Piece
    SKU #04005017A0

    Part #32Main Control Trim Piece
    Length: 43.54Width: 7.48Height: 3.54

    $28.00

  • 33 - Bezel
    SKU #14000106A0

    Part #33Bezel
    Length: 2.95Width: 2.95Height: 0.59

    $8.00

  • 34 - Control Knob
    SKU #14000049A0

    Part #34Control Knob
    Length: 0.09Width: 0.06Height: 2.95

    $16.00

  • 35 - Cart Frame Front
    SKU #20001153A0

    Part #35Cart Frame Front
    Length: 43.64Width: 2.08Height: 2.67

    $16.00

  • 36 - Grease Tray
    SKU #20001154A0

    Part #36Grease Tray
    Length: 17.87Width: 19.76Height: 0.6

    $24.00

  • 37 - Grease Tray Handle
    SKU #12000618A0

    Part #37Grease Tray Handle
    Length: 4.21Width: 0.35Height: 0.94

    $7.00

  • 38 - Small Main Burner Grease Tray
    SKU #20001155A0

    Part #38Small Main Burner Grease Tray
    Length: 17.84Width: 10.81Height: 0.76

    $14.00

  • 39 - Regulator Clamp
    SKU #04003403A0

    Part #39Regulator Clamp
    Length: 7.87Width: 0.74Height: 0.82

    $7.00

  • 41 - Sear Burner Gas Valve
    SKU #09000039A0

    Part #41Sear Burner Gas Valve
    Length: 4.49Width: 3.37Height: 2

    $28.00

  • 42 - Pulse Igniter Module
    SKU #07000007A0

    Part #42Pulse Igniter Module
    Length: 2.64Width: 2.05Height: 2.64

    $15.99

  • 43 - Rotisserie Gas Valve
    SKU #09000421A0

    Part #43Rotisserie Gas Valve
    Length: 4.41Width: 2.36Height: 1.3

    $48.00

  • 44 - Searing Burner Bowl Assembly
    SKU #20001156A0

    Part #44Searing Burner Bowl Assembly
    Length: 19.7Width: 13.74Height: 8.61

    $32.00

  • 45 - Sear Burner Thermocouple Heat Shield
    SKU #04005019A0

    Part #45Sear Burner Thermocouple Heat Shield
    Length: 1.5Width: 1.19Height: 0.59

    $4.00

  • 46 - Supporting
    SKU #04005020A0

    Part #46Supporting
    Length: 7.01Width: 1.8Height: 0.42

    $4.00

  • 47 - Sear Burner Thermocouple
    SKU #10001510A0

    Part #47Sear Burner Thermocouple
    Length: 1.57Width: 1.38Height: 0.39

    $7.00

  • 48 - Sear Burner Igniter Wire
    SKU #10001508A0

    Part #48Sear Burner Igniter Wire
    Length: 13.78Width: 0.12Height: 1.2

    $6.99

  • 49 - Sear Burner
    SKU #10000337A0

    Part #49Sear Burner
    Length: 16.2Width: 3.5Height: 1.77

    $69.99

  • 50 - Sear Burner Cooking Grid
    SKU #13000374A0

    Part #50Sear Burner Cooking Grid
    Length: 19.13Width: 9.69Height: 0.51

    $50.00

  • 51 - Side Panel Right
    SKU #04005021A0

    Part #51Side Panel Right
    Length: 30.47Width: 19.69Height: 0.78

    $36.00

  • 52 - Back Panel
    SKU #04005022A0

    Part #52Back Panel
    Length: 43.5Width: 30.46Height: 1.25

    $45.00

  • 53 - Refrigerator Bracket
    SKU #04005023A0

    Part #53Refrigerator Bracket
    Length: 4.13Width: 1.93Height: 0.51

    $5.00

  • 54 - Bottom Panel LP
    SKU #20001157A0

    Part #54Bottom Panel LP
    Length: 43.59Width: 21.74Height: 3.15

    $80.00

  • 55 - Swivel Caster with Brake
    SKU #05001174A0

    Part #55Swivel Caster with Brake
    Length: 4.53Width: 3.15Height: 4.09

    $10.50

  • 56 - Front Trim Panel Right
    SKU #20001158A0

    Part #56Front Trim Panel Right
    Length: 21.26Width: 2.64Height: 2.64

    $16.00

  • 58 - Center Panel
    SKU #04005025A0

    Part #58Center Panel
    Length: 21.65Width: 21.26Height: 2.4

    $50.00

  • 59 - Tank House Door
    SKU #20001159A0

    Part #59Tank House Door
    Length: 20.98Width: 15.75Height: 0.79

    $80.00

  • 60 - Door Handle
    SKU #12000617A0

    Part #60Door Handle
    Length: 11.61Width: 0.98Height: 2.95

    $10.00

  • 61 - Lighting Rod Cover
    SKU #17000014A0

    Part #61Lighting Rod Cover
    Length: 8.07Width: 1.97Height: 0.04

    $5.00

  • 62 - Lighting Rod
    SKU #05001133A0

    Part #62Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $6.00

  • 63 - Tank Bolt
    SKU #06000116A0

    Part #63Tank Bolt
    Length: 4.96Width: 1.6Height: 0.87

    $6.44

  • 64 - Tank Tray
    SKU #04005026A0

    Part #64Tank Tray
    Length: 14.17Width: 12.2Height: 1.77

    $18.00

  • 65 - Caster
    SKU #05001176A0

    Part #65Caster
    Length: 3.66Width: 2.36Height: 4.09

    $8.00

  • 66 - Front Trim Panel Left
    SKU #20001160A0

    Part #66Front Trim Panel Left
    Length: 1.14Width: 0.32Height: 0.04

    $7.00

  • 67 - Side Burner Control Trim Piece
    SKU #04005027A0

    Part #67Side Burner Control Trim Piece
    Length: 10.94Width: 4.25Height: 0.47

    $12.00

  • 68 - Side Burner Orifice Base
    SKU #10000249A0

    Part #68Side Burner Orifice Base
    Length: 3.66Width: 1.81Height: 2.56

    $10.00

  • 70 - Side Burner Flex Gas Line
    SKU #11000459A0

    Part #70Side Burner Flex Gas Line
    Length: 0.31Width: 9.76Height: 9.06

    $10.00

  • 72 - Side Manifold
    SKU #11000358A0

    Part #72Side Manifold
    Length: 3.94Width: 1.54Height: 0.63

    $10.00

  • 73 - Side Burner Igniter Wire
    SKU #10000074A0

    Part #73Side Burner Igniter Wire
    Length: 27.01Width: 3.54Height: 0.91

    $6.99

  • 74 - Side Burner Cooking Grid
    SKU #13000603A0

    Part #74Side Burner Cooking Grid
    Length: 13.23Width: 7.09Height: 2.4

    $40.00

  • 75 - Side Burner Control Panel
    SKU #20001161A0

    Part #75Side Burner Control Panel
    Length: 10.99Width: 7.07Height: 0.51

    $10.00

  • 76 - Side Burner Bowl Assembly Fire Box
    SKU #20001162A0

    Part #76Side Burner Bowl Assembly Fire Box
    Length: 15Width: 8.9Height: 1.85

    $12.00

  • 77 - Side Burner Bowl Assembly Frame
    SKU #04005029A0

    Part #77Side Burner Bowl Assembly Frame
    Length: 17.72Width: 14.61Height: 3.7

    $20.00

  • 78 - Side Burner Lid
    SKU #04005030A0

    Part #78Side Burner Lid
    Length: 14.8Width: 8.86Height: 0.77

    $10.00

  • 79 - Side Burner Lid Hinge Rod
    SKU #05001184A0

    Part #79Side Burner Lid Hinge Rod
    Length: 0.16Width: 9.8Height: 0.16

    $5.00

  • 80 - Side Burner Head
    SKU #10000107A0

    Part #80Side Burner Head
    Length: 6.5Width: 5Height: 3

    $12.18

  • 81 - Side Burner Ring
    SKU #10000106A0

    Part #81Side Burner Ring
    Length: 16.26Width: 1.18Height: 1.18

    $5.00

  • 83 - Logo
    SKU #08000004A0

    Part #83Logo
    Length: 5Width: 1.57Height: 1.8

    $5.00

  • 84 - Side Shelf Front Trim Piece
    SKU #04005031A0

    Part #84Side Shelf Front Trim Piece
    Length: 15.74Width: 12.59Height: 2.36

    $21.00

  • 85 - Side Shelf Front Panel Right
    SKU #20001163A0

    Part #85Side Shelf Front Panel Right
    Length: 55.39Width: 2.7Height: 1.3

    $35.99

  • 86 - Side Shelf Right
    SKU #04005032A0

    Part #86Side Shelf Right
    Length: 17.72Width: 14.61Height: 3.7

    $32.00

  • 87 - Side Gas Valve
    SKU #09000161A0

    Part #87Side Gas Valve
    Length: 5.91Width: 2.32Height: 2.01

    $35.99

  • 88 - Rubber Grommet
    SKU #17000027A0

    Part #88Rubber Grommet
    Length: 1.77Width: 1.77Height: 0.47

    $5.00

  • 89 - Weighted Base
    SKU #05001236A0

    Part #89Weighted Base
    Length: 10.04Width: 3.07Height: 2.17

    $10.00

  • 90 - Tank Tray Slide Right
    SKU #05001138A0

    Part #90Tank Tray Slide Right
    Length: 13.98Width: 1.77Height: 0.47

    $5.00

  • 91 - Tank Tray Slide Bracket Right
    SKU #04005024A0

    Part #91Tank Tray Slide Bracket Right
    Length: 13.98Width: 1.77Height: 0.79

    $5.00

  • 93 - Tank Tray Slide Bracket Left
    SKU #05001138A0

    Part #93Tank Tray Slide Bracket Left
    Length: 13.98Width: 1.77Height: 0.47

    $5.00

  • 94 - Regulator LP
    SKU #09000107A0

    Part #94Regulator LP
    Length: 6.15Width: 2.9Height: 16

    $36.29

  • 95 - Pulse Igniter Module
    SKU #07000007A0

    Part #95Pulse Igniter Module
    Length: 2.64Width: 2.05Height: 2.64

    $15.99

Checkout
Secure Payment Grill Part Payment Options
Shipping Information

Our estimated shipping and delivery lead time is 1-2 weeks from date of order. Click for more details regarding our Shipping & Delivery Terms and Return Policy.

More Frequently Asked Questions

How long will it take for my grill part(s) to be delivered?

Please read our Shipping & Delivery page for more information.

What's your return policy?

Please read our Returns & Exchanges page for more information.

Can someone help me find replacement part(s) not shown on your site?

That’s what we’re here for! Call us at 855-634-2627 and one of our Customer Care Associates will be happy to help you find the exact grill parts you’re looking for or point you in the right direction.

Customer Reviews

The stock temp gauge on my expert grill gave out after 5 years of diligent service. Luckily, the universal temperature gauge I ordered from My Grill Parts works just as well. I didn’t think installing the thing would be so easy either. 5 stars.

Gerald S

If you own a portable grill, consider Nexgrill’s 1lb. tank adapter a must buy. Basically it lets you hook your portable grill up to a MUCH more transportable 1 lb. propane cylinder. Perfect for camping, float trips, etc. Super affordable and shipping was fast!

Emily K

I ordered the 65 inch premium grill cover and it showed up on time and exactly as described. It’s made of thick, heavy duty material that repels water like a champ. It even has velcro strips on the side that give it a nice clean look.

Andy H
