Replacement Parts For KitchenAid 720-0954 Sold at Online Retailers and Home Depot USA in 2021

Find replacement grill parts for your 2021 KitchenAid 720-0954 4 Burner Propane Gas Grill with Searing Side Burner & Rear Burner in Stainless Steel model number 720-0954 grill using the replacement parts diagram below. The KitchenAid 720-0954 grill was sold at Online Retailers and Home Depot USA in 2021. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

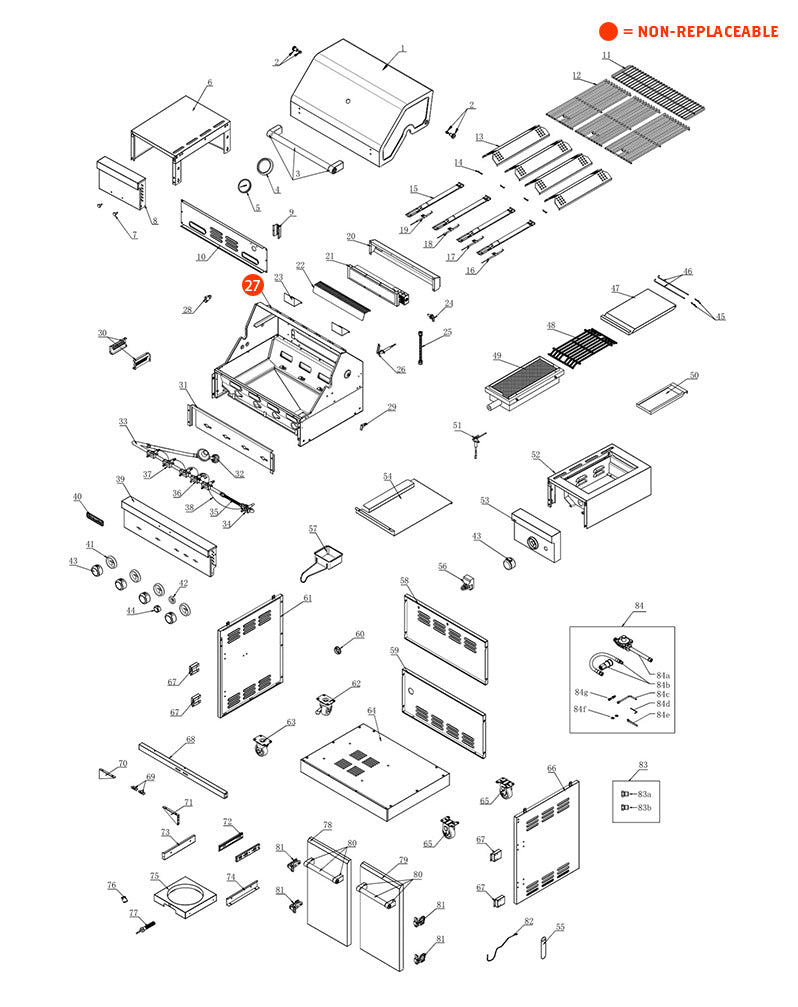

replacement grill parts for your KitchenAid 720-0954

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #120850000639

    Part #1Main Lid
    Length: 28Width: 16.93Height: 12.6

    $112.00

  • 2 - Main Lid Screw
    SKU #20001428A0

    Part #2Main Lid Screw
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Main Lid Handle Assembly
    SKU #0127556000AP

    Part #3Main Lid Handle Assembly
    Length: 23.48Width: 3.61Height: 1.65

    $12.04

  • 4 - Temperature Gauge Housing
    SKU #05001280A0

    Part #4Temperature Gauge Housing
    Length: 3.9Width: 3.9Height: 0.75

    $5.00

  • 5 - Temperature Gauge
    SKU #05001263A0

    Part #5Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 6 - Side Shelf Left
    SKU #0125789000AP

    Part #6Side Shelf Left
    Length: 19.69Width: 12.6Height: 7.48

    $20.44

  • 7 - Tool Hook
    SKU #0126008001AP

    Part #7Tool Hook
    Length: 1.06Width: 0.75Height: 0.75

    $4.90

  • 8 - Side Shelf Front Panel Left
    SKU #0151519000AP

    Part #8Side Shelf Front Panel Left
    Length: 12.6Width: 7.48Height: 2.76

    $21.28

  • 9 - Igniter Wire Cover
    SKU #04000017A0

    Part #9Igniter Wire Cover
    Length: 9.92Width: 0.47Height: 0.16

    $10.66

  • 10 - Firebox Rear Cover
    SKU #0209523901AQ

    Part #10Firebox Rear Cover
    Length: 26.97Width: 6.52Height: 0.98

    $13.72

  • 11 - Warming Rack
    SKU #13000290A0

    Part #11Warming Rack
    Length: 25.75Width: 6.14Height: 0.39

    $24.99

  • 12 - Cooking Grid with Hole
    SKU #0901164081AP

    Part #12Cooking Grid with Hole
    Length: 18.82Width: 8.9Height: 0.55

    $17.50

  • 13 - Flame Tamer
    SKU #0315157000AC

    Part #13Flame Tamer
    Length: 14.56Width: 4.26Height: 1.39

    $13.72

  • 14 & 15 - Main Burner & Burner Pin Assembly
    SKU #20002439A0

    Part #14 & 15Main Burner & Burner Pin Assembly
    Length: 16.89Width: 1.54Height: 0.98

    $9.25

  • 16 - Main Burner Igniter Wire A
    SKU #10001444A0

    Part #16Main Burner Igniter Wire A
    Length: 20.47Width: 1.07Height: 0.31

    $6.99

  • 17 - Main Burner Igniter Wire B
    SKU #10001398A1

    Part #17Main Burner Igniter Wire B
    Length: 1Width: 16.89Height: 0.04

    $6.99

  • 18 - Main Burner Igniter Wire C
    SKU #10001446A0

    Part #18Main Burner Igniter Wire C
    Length: 12.64Width: 2.44Height: 1.18

    $6.99

  • 19 - Main Burner Igniter Wire D
    SKU #10001396A1

    Part #19Main Burner Igniter Wire D
    Length: 4.53Width: 1.06Height: 0.47

    $6.99

  • 20 - Rotisserie Burner Rear Cover
    SKU #04004219A0

    Part #20Rotisserie Burner Rear Cover
    Length: 20.47Width: 3.54Height: 1.77

    $24.36

  • 21 - Rotisserie Burner
    SKU #20001495A0

    Part #21Rotisserie Burner
    Length: 15.55Width: 3.35Height: 2.36

    $33.11

  • 22 - Rotisserie Burner Heat Shield
    SKU #04004296A0

    Part #22Rotisserie Burner Heat Shield
    Length: 2Width: 2Height: 2

    $5.00

  • 23 - Rotisserie Burner Igniter Bracket
    SKU #04004297A0

    Part #23Rotisserie Burner Igniter Bracket
    Length: 3.15Width: 2.56Height: 2.36

    $5.00

  • 24 - Rotisserie Burner Orifice with Brass Elbow
    SKU #05000865A0

    Part #24Rotisserie Burner Orifice with Brass Elbow
    Length: 1.97Width: 1.5Height: 0.91

    $5.31

  • 25 - Rotisserie Burner Flex Gas Line
    SKU #11000025A0

    Part #25Rotisserie Burner Flex Gas Line
    Length: 36.22Width: 0.64Height: 0.55

    $10.00

  • 26 - Rotisserie Burner Ignition Wire
    SKU #10000332A1

    Part #26Rotisserie Burner Ignition Wire
    Length: 5.91Width: 2.76Height: 1.3

    $10.00

  • 30 - Grease Box Bracket
    SKU #0212661901AQ

    Part #30Grease Box Bracket
    Length: 4.13Width: 1.97Height: 0.43

    $8.68

  • 31 - Front Baffle
    SKU #0501196000AC

    Part #31Front Baffle
    Length: 26.73Width: 6.19Height: 1.23

    $21.00

  • 32 - LP Regulator with Hose
    SKU #09000265A0

    Part #32LP Regulator with Hose
    Length: 24.8Width: 2.54Height: 2.5

    $32.99

  • 33 - Main Manifold
    SKU #0116222900AW

    Part #33Main Manifold
    Length: 24.59Width: 6.89Height: 3.86

    $35.00

  • 34 - Searing Side Burner Gas Valve
    SKU #0120865000AW

    Part #34Searing Side Burner Gas Valve
    Length: 5.32Width: 2.62Height: 1.42

    $12.04

  • 35 - Searing Side Burner Flex Gas Line
    SKU #11000894A0

    Part #35Searing Side Burner Flex Gas Line
    Length: 7.87Width: 0.74Height: 0.82

    $9.97

  • 36 - Rotisserie Burner Gas Valve
    SKU #0120803000AW

    Part #36Rotisserie Burner Gas Valve
    Length: 4.37Width: 2.28Height: 2.24

    $15.00

  • 37 - Main Gas Valve
    SKU #09000569A0

    Part #37Main Gas Valve
    Length: 3.74Width: 2.09Height: 1.92

    $10.00

  • 38 - Igniter Junction Wire
    SKU #2001686000AW

    Part #38Igniter Junction Wire
    Length: 3.74Width: 2.24Height: 2.36

    $6.30

  • 39 - Main Control Panel
    SKU #0151515000AS

    Part #39Main Control Panel
    Length: 27.22Width: 7.48Height: 2.76

    $31.50

  • 40 - Logo
    SKU #0127261000AP

    Part #40Logo
    Length: 19.92Width: 6.52Height: 0.82

    $5.00

  • 41 - Bezel
    SKU #0308186001AH

    Part #41Bezel
    Length: 4.96Width: 1.26Height: 0.59

    $3.36

  • 42 - Control Knob Bezel Rotisserie Burner
    SKU #0308187001AH

    Part #42Control Knob Bezel Rotisserie Burner
    Length: 2.28Width: 2.28Height: 0.46

    $7.80

  • 43 - Control Knob
    SKU #0108066000AP

    Part #43Control Knob
    Length: 4.96Width: 1.26Height: 0.52

    $10.68

  • 44 - Control Knob Rotisserie Burner
    SKU #0108067000AP

    Part #44Control Knob Rotisserie Burner
    Length: 1Width: 0.75Height: 0.78

    $8.54

  • 45 & 46 - Searing Side Burner Lid Hinge Rod & Pin
    SKU #20002785A0

    Part #45 & 46Searing Side Burner Lid Hinge Rod & Pin
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 47 - Searing Side Burner Lid
    SKU #20001557A0

    Part #47Searing Side Burner Lid
    Length: 14.88Width: 8.9Height: 0.79

    $12.18

  • 48 - Searing Side Burner Cooking Grid
    SKU #13000939A0

    Part #48Searing Side Burner Cooking Grid
    Length: 13.78Width: 8.43Height: 0.75

    $22.40

  • 49 - Searing Side Burner
    SKU #10000343A0

    Part #49Searing Side Burner
    Length: 14.17Width: 2.95Height: 6.34

    $76.11

  • 50 - Searing Side Burner Grease Tray
    SKU #120870001891

    Part #50Searing Side Burner Grease Tray
    Length: 4.45Width: 16.85Height: 0.79

    $21.30

  • 51 - Searing Side Burner Igniter Wire
    SKU #0127557000AP

    Part #51Searing Side Burner Igniter Wire
    Length: 5.91Width: 3.74Height: 1.22

    $3.50

  • 52 - Searing Side Burner Bowl Assembly
    SKU #0127558000AP

    Part #52Searing Side Burner Bowl Assembly
    Length: 19.69Width: 12.6Height: 7.48

    $29.82

  • 53 - Searing Side Burner Control Panel
    SKU #0125790000AP

    Part #53Searing Side Burner Control Panel
    Length: 12.6Width: 7.48Height: 2.76

    $23.52

  • 54 - Tank Heat Shield Panel
    SKU #0127559000AP

    Part #54Tank Heat Shield Panel
    Length: 19.13Width: 11.81Height: 1.77

    $23.10

  • 55 - Lighting Rod Cover
    SKU #17000186A0

    Part #55Lighting Rod Cover
    Length: 1.97Width: 0.59Height: 8.06

    $5.00

  • 56 - Electronic Igniter Module
    SKU #7000030A3

    Part #56Electronic Igniter Module
    Length: 2.64Width: 2.36Height: 2.74

    $10.92

  • 57 - Grease Box
    SKU #20002323A0

    Part #57Grease Box
    Length: 10.44Width: 5.15Height: 3.39

    $18.27

  • 58 - Back Panel Top
    SKU #0145335901AQ

    Part #58Back Panel Top
    Length: 25.43Width: 11.81Height: 0.79

    $19.04

  • 59 - Back Panel Bottom
    SKU #0145336901AQ

    Part #59Back Panel Bottom
    Length: 25.43Width: 11.81Height: 0.79

    $19.04

  • 60 - Gas Inlet Rubber Ring
    SKU #17000006A0

    Part #60Gas Inlet Rubber Ring
    Length: 5.94Width: 1.61Height: 0.75

    $5.00

  • 61 - Side Panel Left
    SKU #0127560000AP

    Part #61Side Panel Left
    Length: 24.53Width: 19.69Height: 0.79

    $17.64

  • 62 - Swivel Caster with Brake
    SKU #05000737A1

    Part #62Swivel Caster with Brake
    Length: 2.95Width: 1.22Height: 4.17

    $10.50

  • 63 - Swivel Caster
    SKU #05000736A1

    Part #63Swivel Caster
    Length: 2.95Width: 1.22Height: 4.17

    $14.00

  • 64 - Bottom Panel
    SKU #120850000176

    Part #64Bottom Panel
    Length: 27.09Width: 21.06Height: 3.15

    $31.64

  • 65 - Caster
    SKU #05000735A0

    Part #65Caster
    Length: 3.7Width: 2.52Height: 4.17

    $8.68

  • 66 - Side Panel Right
    SKU #0127562000AP

    Part #66Side Panel Right
    Length: 24.53Width: 19.69Height: 0.79

    $20.30

  • 67 - Door Hinge Bracket
    SKU #04006284A0

    Part #67Door Hinge Bracket
    Length: 2.6Width: 1.97Height: 0.79

    $5.42

  • 68 - Cart Frame Front
    SKU #0127563000AP

    Part #68Cart Frame Front
    Length: 26.91Width: 1.38Height: 0.98

    $17.64

  • 69 - Door Magnet
    SKU #05000010A0

    Part #69Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 70 - Triangle Bracket Left
    SKU #0212342903AQ

    Part #70Triangle Bracket Left
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 71 - Triangle Bracket Right
    SKU #0212343903AQ

    Part #71Triangle Bracket Right
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 72 - Gas Tank Tray Slide
    SKU #05000171A0

    Part #72Gas Tank Tray Slide
    Length: 12.99Width: 2.44Height: 1.2

    $9.74

  • 73 - Gas Tank Tray Slide Bracket Left
    SKU #20001471A0

    Part #73Gas Tank Tray Slide Bracket Left
    Length: 6.73Width: 1.97Height: 1.97

    $5.00

  • 74 - Gas Tank Tray Slide Bracket Right
    SKU #20001768A0

    Part #74Gas Tank Tray Slide Bracket Right
    Length: 10Width: 1.77Height: 0.79

    $5.00

  • 75 - Tank Tray
    SKU #20001470A0

    Part #75Tank Tray
    Length: 10.24Width: 10.24Height: 1.77

    $12.18

  • 76 - Gas Tank Tray Block Piece
    SKU #04006694A0

    Part #76Gas Tank Tray Block Piece
    Length: 2.23Width: 1.62Height: 0.75

    $9.52

  • 77 - Tank Tray Bolt
    SKU #20000760A0

    Part #77Tank Tray Bolt
    Length: 8.07Width: 1.97Height: 0.01

    $6.44

  • 78 - Door Left
    SKU #0127564000AP

    Part #78Door Left
    Length: 22.91Width: 13.46Height: 1.22

    $22.68

  • 79 - Door Right
    SKU #0127565000AP

    Part #79Door Right
    Length: 22.91Width: 13.46Height: 1.22

    $22.68

  • 80 - Door Handle Assembly
    SKU #0127566000AP

    Part #80Door Handle Assembly
    Length: 9.89Width: 2.44Height: 1.22

    $6.30

  • 81 - Door Hinge
    SKU #05001421A0

    Part #81Door Hinge
    Length: 11.81Width: 1.2Height: 2.45

    $5.42

  • 82 - Lighting Rod
    SKU #05001153A0

    Part #82Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 83 - NG Orifice Pack
    SKU #120850003495

    Part #83NG Orifice Pack
    Length: 0.31Width: 0.24Height: 0.31

    $5.00

  • 85 - KD Assembly Hardware Pack
    SKU #2006461000AP

    Part #85KD Assembly Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $5.88
