Replacement Parts For KitchenAid 720-0893G Sold at Sam's Club USA in 2020

Find replacement grill parts for your 2020 KitchenAid 720-0893G 5 Burner Gas Grill with Ceramic Searing Side Burner model number 720-0893G grill using the replacement parts diagram below. The KitchenAid 720-0893G grill was sold at Sam's Club USA in 2020. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

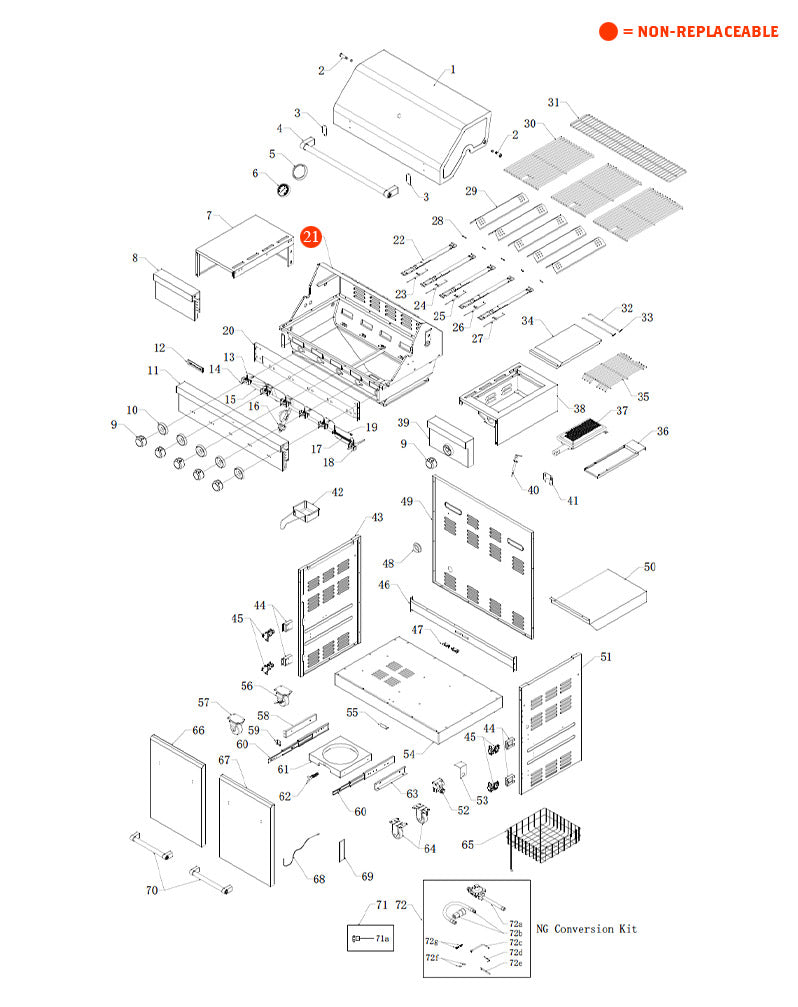

replacement grill parts for your KitchenAid 720-0893G

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127258000AP

    Part #1Main Lid
    Length: 35.01Width: 16.93Height: 12.6

    $107.99

  • 2 - Main Lid Screw
    SKU #20001428A0

    Part #2Main Lid Screw
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Main Lid Heat Shield Spacer
    SKU #120870002198

    Part #3Main Lid Heat Shield Spacer
    Length: 3.03Width: 1.26Height: 0.02

    $5.00

  • 4 - Main Lid Handle Assembly
    SKU #120850002840

    Part #4Main Lid Handle Assembly
    Length: 20.94Width: 4Height: 1.26

    $12.04

  • 5 - Temperature Gauge Housing
    SKU #05001280A0

    Part #5Temperature Gauge Housing
    Length: 3.9Width: 3.9Height: 0.75

    $5.00

  • 6 - Temperature Gauge
    SKU #05001263A0

    Part #6Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 7 - Side Shelf Left
    SKU #120850002635

    Part #7Side Shelf Left
    Length: 19.69Width: 12.59Height: 7.48

    $25.90

  • 8 - Side Shelf Control Panel
    SKU #120870002560

    Part #8Side Shelf Control Panel
    Length: 17.72Width: 12.01Height: 0.98

    $32.00

  • 9 - Control Knob
    SKU #0108066000AP

    Part #9Control Knob
    Length: 4.96Width: 1.26Height: 0.52

    $10.68

  • 10 - Bezel
    SKU #0308186001AH

    Part #10Bezel
    Length: 4.96Width: 1.26Height: 0.59

    $3.36

  • 11 - Main Control Panel
    SKU #120850002841

    Part #11Main Control Panel
    Length: 27.07Width: 7.2Height: 3.88

    $59.99

  • 12 - Logo
    SKU #0127261000AP

    Part #12Logo
    Length: 19.92Width: 6.52Height: 0.82

    $5.00

  • 13 - Igniter Junction Wire
    SKU #120870002554

    Part #13Igniter Junction Wire
    Length: 3.74Width: 2.24Height: 2.36

    $6.30

  • 14 - Main Burner Gas Valve
    SKU #0120469000AW

    Part #14Main Burner Gas Valve
    Length: 3.74Width: 2.09Height: 1.77

    $15.00

  • 15 - Main Burner Manifold
    SKU #120870002555

    Part #15Main Burner Manifold
    Length: 31.89Width: 8.66Height: 1.18

    $5.46

  • 16 - Regulator LP
    SKU #09000570A0

    Part #16Regulator LP
    Length: 26.18Width: 2.95Height: 2.76

    $13.25

  • 17 - Searing Side Burner Flex Gas Line
    SKU #11000894A0

    Part #17Searing Side Burner Flex Gas Line
    Length: 7.87Width: 0.74Height: 0.82

    $9.97

  • 18 - Searing Side Burner Gas Valve
    SKU #0120865000AW

    Part #18Searing Side Burner Gas Valve
    Length: 5.32Width: 2.62Height: 1.42

    $12.04

  • 20 - Front Baffle
    SKU #120850002842

    Part #20Front Baffle
    Length: 26.91Width: 5.35Height: 0.61

    $42.00

  • 22 & 28 - Main Burner & Burner Pin Assembly
    SKU #20002439A0

    Part #22 & 28Main Burner & Burner Pin Assembly
    Length: 16.89Width: 1.54Height: 0.98

    $9.25

  • 23 - Main Burner Igniter Wire A
    SKU #10001396A1

    Part #23Main Burner Igniter Wire A
    Length: 4.53Width: 1.06Height: 0.47

    $6.99

  • 24 - Main Burner Igniter Wire B
    SKU #10001397A1

    Part #24Main Burner Igniter Wire B
    Length: 24.8Width: 1.06Height: 0.47

    $6.99

  • 25 - Main Burner Igniter Wire C
    SKU #10001398A1

    Part #25Main Burner Igniter Wire C
    Length: 1Width: 16.89Height: 0.04

    $6.99

  • 26 - Main Burner Igniter Wire D
    SKU #10001399A1

    Part #26Main Burner Igniter Wire D
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 27 - Main Burner Igniter Wire E
    SKU #10001443A0

    Part #27Main Burner Igniter Wire E
    Length: 16.2Width: 3.5Height: 1.77

    $6.99

  • 29 - Flame Tamer
    SKU #0315156000AC

    Part #29Flame Tamer
    Length: 10Width: 2.75Height: 0.66

    $13.72

  • 30 - Cooking Grid with Hole
    SKU #13000936A0

    Part #30Cooking Grid with Hole
    Length: 18.82Width: 11.18Height: 0.63

    $38.38

  • 31 - Warming Rack
    SKU #13000935A0

    Part #31Warming Rack
    Length: 32.87Width: 6.14Height: 0.39

    $8.20

  • 32 & 33 - Side Burner Lid Hinge Rod & Pin
    SKU #20002785A0

    Part #32 & 33Side Burner Lid Hinge Rod & Pin
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 34 - Searing Side Burner Lid
    SKU #20001951A0

    Part #34Searing Side Burner Lid
    Length: 9.84Width: 0.79Height: 0.59

    $32.61

  • 35 - Searing Side Burner Cooking Grid
    SKU #13000619A0

    Part #35Searing Side Burner Cooking Grid
    Length: 13.78Width: 8.46Height: 0.9

    $39.14

  • 36 - Searing Side Burner Grease Tray
    SKU #120870001891

    Part #36Searing Side Burner Grease Tray
    Length: 4.45Width: 16.85Height: 0.79

    $21.30

  • 37 - Searing Side Burner
    SKU #20001486A0

    Part #37Searing Side Burner
    Length: 10.79Width: 5.47Height: 2.78

    $30.00

  • 38 & 41 - Searing Side Burner Bowl Assembly & Wind Plate Bracket
    SKU #120850002850

    Part #38 & 41Searing Side Burner Bowl Assembly & Wind Plate Bracket
    Length: 19.68Width: 12.59Height: 7.48

    $37.10

  • 39 - Searing Side Burner Control Panel
    SKU #120850002852

    Part #39Searing Side Burner Control Panel
    Length: 12.59Width: 7.48Height: 2.76

    $25.48

  • 40 - Searing Side Burner Igniter Wire
    SKU #120850002851

    Part #40Searing Side Burner Igniter Wire
    Length: 3.94Width: 3.94Height: 1.26

    $6.99

  • 42 - Grease Cup
    SKU #20002323A0

    Part #42Grease Cup
    Length: 10.44Width: 5.15Height: 3.39

    $18.27

  • 43 - Side Panel Left
    SKU #120850002847

    Part #43Side Panel Left
    Length: 24.76Width: 18.39Height: 0.95

    $30.00

  • 44 - Door Hinge Bracket Assembly
    SKU #120870002558

    Part #44Door Hinge Bracket Assembly
    Length: 3.7Width: 2.52Height: 4.17

    $7.84

  • 45 - Door Hinge Assembly
    SKU #05001421A0

    Part #45Door Hinge Assembly
    Length: 11.81Width: 1.2Height: 2.45

    $5.42

  • 46 - Cart Frame Front
    SKU #120870002556

    Part #46Cart Frame Front
    Length: 27.01Width: 3.54Height: 0.91

    $20.00

  • 47 - Door Magnet
    SKU #05000010A0

    Part #47Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 48 - Gas Inlet Rubber Ring
    SKU #17000006A0

    Part #48Gas Inlet Rubber Ring
    Length: 5.94Width: 1.61Height: 0.75

    $5.00

  • 49 - Back Panel
    SKU #120870002557

    Part #49Back Panel
    Length: 25.45Width: 11.81Height: 0.79

    $8.48

  • 50 - Tank Heat Shield
    SKU #120850002843

    Part #50Tank Heat Shield
    Length: 15.59Width: 8.27Height: 0.47

    $13.02

  • 51 - Side Panel Right
    SKU #120850002848

    Part #51Side Panel Right
    Length: 29.13Width: 21.65Height: 0.86

    $59.99

  • 52 - Battery Box
    SKU #07000030A3

    Part #52Battery Box
    Length: 2.95Width: 2.6Height: 1.97

    $16.79

  • 53 - Battery Box Heat Shield
    SKU #120850002849

    Part #53Battery Box Heat Shield
    Length: 3.4Width: 2.8Height: 2.6

    $16.52

  • 54 - Bottom Panel
    SKU #120850002844

    Part #54Bottom Panel
    Length: 27.05Width: 19.29Height: 2.56

    $33.75

  • 55 - Door Iron Piece
    SKU #0309369000AC

    Part #55Door Iron Piece
    Length: 1.77Width: 0.79Height: 0.03

    $5.40

  • 56 - Swivel Caster with Brake
    SKU #05000737A1

    Part #56Swivel Caster with Brake
    Length: 2.95Width: 1.22Height: 4.17

    $10.50

  • 57 - Swivel Caster
    SKU #05000736A1

    Part #57Swivel Caster
    Length: 2.95Width: 1.22Height: 4.17

    $14.00

  • 58 - Gas Tank Tray Slide Bracket Left
    SKU #120850002306

    Part #58Gas Tank Tray Slide Bracket Left
    Length: 10.03Width: 1.77Height: 0.79

    $22.42

  • 59 - Gas Tank Tray Block Piece
    SKU #04006694A0

    Part #59Gas Tank Tray Block Piece
    Length: 2.23Width: 1.62Height: 0.75

    $9.52

  • 60 - Gas Tank Tray Slide
    SKU #05000171A0

    Part #60Gas Tank Tray Slide
    Length: 12.99Width: 2.44Height: 1.2

    $9.74

  • 61 - Tank Tray
    SKU #120850002308

    Part #61Tank Tray
    Length: 10.24Width: 10.24Height: 1.77

    $34.02

  • 62 - Tank Tray Bolt
    SKU #20000760A0

    Part #62Tank Tray Bolt
    Length: 8.07Width: 1.97Height: 0.01

    $6.44

  • 63 - Gas Tank Tray Slide Bracket Right
    SKU #120850002307

    Part #63Gas Tank Tray Slide Bracket Right
    Length: 10.03Width: 1.77Height: 0.79

    $17.13

  • 64 - Caster
    SKU #05000735A0

    Part #64Caster
    Length: 3.7Width: 2.52Height: 4.17

    $8.68

  • 65 - Cart Basket
    SKU #120870002559

    Part #65Cart Basket
    Length: 2.76Width: 2.52Height: 0.85

    $6.30

  • 66 - Door Left
    SKU #120850002845

    Part #66Door Left
    Length: 22.44Width: 14.94Height: 0.71

    $17.92

  • 67 - Door Right
    SKU #120850002846

    Part #67Door Right
    Length: 22.44Width: 14.94Height: 0.71

    $17.92

  • 68 - Lighting Rod
    SKU #05001153A0

    Part #68Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 70 - Door Handle Assembly
    SKU #0127264000AP

    Part #70Door Handle Assembly
    Length: 11.57Width: 2.48Height: 1.18

    $10.32

  • 71 - NG Orifice Pack
    SKU #120850002853

    Part #71NG Orifice Pack
    Length: 0.02Width: 0.02Height: 0.02

    $5.00

  • 73 - Manual
    SKU #120870002561

    Part #73Manual
    Length: 12.8Width: 8.66Height: 1.57

    $5.00
