Replacement Parts For KitchenAid 720-0893 Sold at Home Depot USA in 2017

Find replacement grill parts for your 2017 KitchenAid 720-0893 5 Burner Propane Gas Grill with Side Burner & Searing Side Burner in Stainless Steel model number 720-0893 grill using the replacement parts diagram below. The KitchenAid 720-0893 grill was sold at Home Depot USA in 2017. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

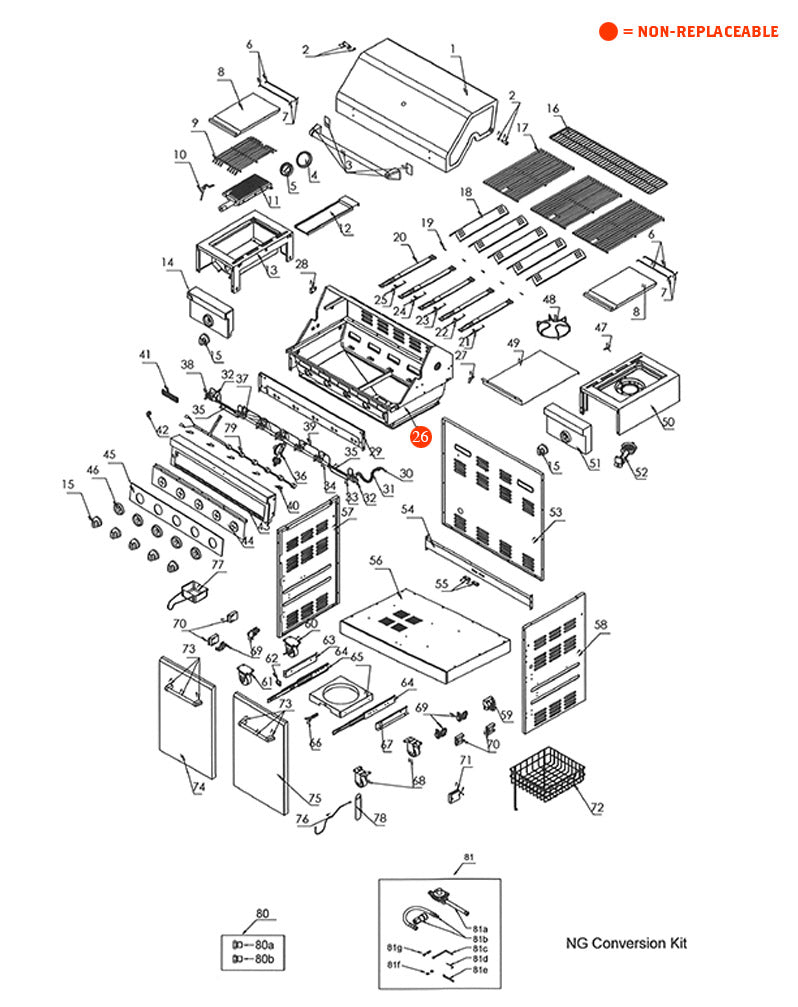

replacement grill parts for your KitchenAid 720-0893

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #20003188A0

    Part #1Main Lid
    Length: 27.99Width: 17.64Height: 10.75

    $87.70

  • 2 - Main Lid Screw
    SKU #20001428A0

    Part #2Main Lid Screw
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Main Lid Handle Assembly
    SKU #20003185A0

    Part #3Main Lid Handle Assembly
    Length: 10.83Width: 2.91Height: 0.98

    $12.04

  • 4 - Temperature Gauge Housing
    SKU #05001280A0

    Part #4Temperature Gauge Housing
    Length: 3.9Width: 3.9Height: 0.75

    $5.00

  • 5 - Temperature Gauge
    SKU #05001263A0

    Part #5Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 6 - Side Burner Lid Hinge Rod
    SKU #20002785A0

    Part #6Side Burner Lid Hinge Rod
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 8 - Side Burner Lid
    SKU #20001557A0

    Part #8Side Burner Lid
    Length: 14.88Width: 8.9Height: 0.79

    $12.18

  • 9 - Searing Side Burner Cooking Grid
    SKU #13000619A0

    Part #9Searing Side Burner Cooking Grid
    Length: 13.78Width: 8.46Height: 0.9

    $39.14

  • 10 - Searing Side Burner Igniter Wire
    SKU #20003201A0

    Part #10Searing Side Burner Igniter Wire
    Length: 5.91Width: 1.18Height: 1.18

    $6.99

  • 11 - Searing Side Burner
    SKU #20001486A0

    Part #11Searing Side Burner
    Length: 10.79Width: 5.47Height: 2.78

    $30.00

  • 12 - Searing Side Burner Grease Tray
    SKU #04003925A0

    Part #12Searing Side Burner Grease Tray
    Length: 16.87Width: 4.41Height: 0.79

    $12.18

  • 13 - Searing Side Burner Bowl Assembly
    SKU #20003195A0

    Part #13Searing Side Burner Bowl Assembly
    Length: 19.69Width: 12.6Height: 7.48

    $57.97

  • 14 - Searing Side Burner Control Panel Left
    SKU #20003192A0

    Part #14Searing Side Burner Control Panel Left
    Length: 27.07Width: 7.2Height: 3.88

    $13.09

  • 15 - Control Knob
    SKU #14000133A0

    Part #15Control Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.47

  • 16 - Warming Rack
    SKU #13000935A0

    Part #16Warming Rack
    Length: 32.87Width: 6.14Height: 0.39

    $8.20

  • 17 - Cooking Grid with Hole
    SKU #13000936A0

    Part #17Cooking Grid with Hole
    Length: 18.82Width: 11.18Height: 0.63

    $38.38

  • 18 - Flame Tamer
    SKU #0315157000AC

    Part #18Flame Tamer
    Length: 14.56Width: 4.26Height: 1.39

    $13.72

  • 19 - Burner Pin Assembly
    SKU #06000865A0

    Part #19Burner Pin Assembly
    Length: 1.1Width: 0.26Height: 1.42

    $3.50

  • 20 - Main Burner
    SKU #20002439A0

    Part #20Main Burner
    Length: 16.89Width: 1.54Height: 0.98

    $9.25

  • 21 - Main Burner Igniter Wire A
    SKU #10001443A0

    Part #21Main Burner Igniter Wire A
    Length: 16.2Width: 3.5Height: 1.77

    $6.99

  • 22 - Main Burner Igniter Wire B
    SKU #10001399A1

    Part #22Main Burner Igniter Wire B
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 23 - Main Burner Igniter Wire C
    SKU #10001398A1

    Part #23Main Burner Igniter Wire C
    Length: 1Width: 16.89Height: 0.04

    $6.99

  • 24 - Main Burner Igniter Wire D
    SKU #10001397A1

    Part #24Main Burner Igniter Wire D
    Length: 24.8Width: 1.06Height: 0.47

    $6.99

  • 25 - Main Burner Igniter Wire E
    SKU #10001396A1

    Part #25Main Burner Igniter Wire E
    Length: 4.53Width: 1.06Height: 0.47

    $6.99

  • 27 - Main Lid Bracket Right
    SKU #04005331A0

    Part #27Main Lid Bracket Right
    Length: 1.57Width: 1.18Height: 0.47

    $5.33

  • 28 - Main Lid Bracket Left
    SKU #04005330A0

    Part #28Main Lid Bracket Left
    Length: 1.57Width: 1.18Height: 0.47

    $4.80

  • 29 - Front Baffle
    SKU #04007811A0

    Part #29Front Baffle
    Length: 33.94Width: 5.8Height: 1.18

    $21.00

  • 30 - Side Burner Orifice Brass Connector
    SKU #05000213A0

    Part #30Side Burner Orifice Brass Connector
    Length: 44.8Width: 6.3Height: 0.79

    $8.00

  • 31 - Side Burner Flex Gas Line B
    SKU #11000037A0

    Part #31Side Burner Flex Gas Line B
    Length: 25.59Width: 0.79Height: 0.79

    $21.32

  • 32 - Side Manifold
    SKU #11000361A0

    Part #32Side Manifold
    Length: 7.88Width: 0.83Height: 0.75

    $15.00

  • 33 - Side Burner Gas Valve
    SKU #09000345A0

    Part #33Side Burner Gas Valve
    Length: 2.35Width: 2.35Height: 1.89

    $35.99

  • 34 - Main Burner Manifold
    SKU #11000895A0

    Part #34Main Burner Manifold
    Length: 31.89Width: 8.66Height: 1.18

    $5.46

  • 35 - Side Burner Flex Gas Line A
    SKU #11000464A0

    Part #35Side Burner Flex Gas Line A
    Length: 6.5Width: 0.83Height: 0.75

    $5.15

  • 36 - Regulator LP
    SKU #09000570A0

    Part #36Regulator LP
    Length: 26.18Width: 2.95Height: 2.76

    $13.25

  • 37 - Main Burner Gas Valve
    SKU #09000569A0

    Part #37Main Burner Gas Valve
    Length: 3.74Width: 2.09Height: 1.92

    $10.00

  • 38 - Searing Side Burner Gas Valve
    SKU #20002210A0

    Part #38Searing Side Burner Gas Valve
    Length: 5.32Width: 2.09Height: 1.91

    $28.00

  • 39 - Igniter Junction Wire
    SKU #07800061A0

    Part #39Igniter Junction Wire
    Length: 4Width: 2Height: 1

    $6.30

  • 40 - Tempered Glass Strengthen Bracket
    SKU #04007825A0

    Part #40Tempered Glass Strengthen Bracket
    Length: 1.58Width: 0.98Height: 0.89

    $10.00

  • 41 - Logo
    SKU #20001941A0

    Part #41Logo
    Length: 5.12Width: 1.42Height: 0.59

    $5.00

  • 42 - Light Switch
    SKU #2004115000AW

    Part #42Light Switch
    Length: 31.69Width: 0.87Height: 0.63

    $5.00

  • 44 - Main Control Temper Glass Fix Panel
    SKU #20003190A0

    Part #44Main Control Temper Glass Fix Panel
    Length: 32.2Width: 5.33Height: 0.91

    $6.33

  • 45 - Tempered Glass
    SKU #15000117A0

    Part #45Tempered Glass
    Length: 32.09Width: 4.65Height: 0.24

    $99.99

  • 46 - Bezel
    SKU #14000240A0

    Part #46Bezel
    Length: 2.95Width: 2.95Height: 0.59

    $9.99

  • 47 - Side Burner Igniter Wire
    SKU #20002417A0

    Part #47Side Burner Igniter Wire
    Length: 0.06Width: 1.34Height: 1.02

    $6.99

  • 48 - Side Burner Cooking Grid
    SKU #13000625A0

    Part #48Side Burner Cooking Grid
    Length: 7.56Width: 1.87Height: 0.24

    $35.99

  • 49 - Tank Heat Shield
    SKU #04006286A0

    Part #49Tank Heat Shield
    Length: 19.33Width: 12.6Height: 1.4

    $7.31

  • 50 - Side Burner Bowl Assembly
    SKU #20003198A0

    Part #50Side Burner Bowl Assembly
    Length: 19.69Width: 12.6Height: 7.48

    $53.34

  • 51 - Side Burner Control Panel Right
    SKU #20003191A0

    Part #51Side Burner Control Panel Right
    Length: 19.69Width: 12.6Height: 7.48

    $14.71

  • 52 - Side Burner
    SKU #10001740A0

    Part #52Side Burner
    Length: 10.57Width: 4.72Height: 3.4

    $14.00

  • 53 - Back Panel
    SKU #04007813A0

    Part #53Back Panel
    Length: 32.48Width: 30.3Height: 0.79

    $22.89

  • 54 - Cart Frame Front
    SKU #20003196A0

    Part #54Cart Frame Front
    Length: 33.98Width: 3.94Height: 0.79

    $5.00

  • 55 - Door Magnet
    SKU #05000010A0

    Part #55Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 56 - Bottom Panel
    SKU #20003197A0

    Part #56Bottom Panel
    Length: 34.06Width: 21.06Height: 3.15

    $47.45

  • 57 - Side Panel Left
    SKU #0125354000AP

    Part #57Side Panel Left
    Length: 30.3Width: 19.69Height: 0.79

    $27.60

  • 58 - Side Panel Right
    SKU #0125355000AP

    Part #58Side Panel Right
    Length: 30.3Width: 19.69Height: 0.79

    $27.60

  • 59 - Electric Igniter Module
    SKU #07000208A2

    Part #59Electric Igniter Module
    Length: 2.76Width: 2.05Height: 2.76

    $8.44

  • 60 - Swivel Caster with Brake
    SKU #05000737A1

    Part #60Swivel Caster with Brake
    Length: 2.95Width: 1.22Height: 4.17

    $10.50

  • 61 - Swivel Caster
    SKU #05000736A1

    Part #61Swivel Caster
    Length: 2.95Width: 1.22Height: 4.17

    $14.00

  • 62 - Gas Tank Tray Block Piece
    SKU #04004071A0

    Part #62Gas Tank Tray Block Piece
    Length: 1.1Width: 1.5Height: 0.59

    $16.00

  • 63 - Gas Tank Tray Slide Bracket Left
    SKU #20001471A0

    Part #63Gas Tank Tray Slide Bracket Left
    Length: 6.73Width: 1.97Height: 1.97

    $5.00

  • 64 - Gas Tank Tray Slide
    SKU #05000171A0

    Part #64Gas Tank Tray Slide
    Length: 12.99Width: 2.44Height: 1.2

    $9.74

  • 65 - Tank Tray
    SKU #20001470A0

    Part #65Tank Tray
    Length: 10.24Width: 10.24Height: 1.77

    $12.18

  • 66 - Tank Tray Bolt
    SKU #20000760A0

    Part #66Tank Tray Bolt
    Length: 8.07Width: 1.97Height: 0.01

    $6.44

  • 67 - Gas Tank Tray Slide Bracket Right
    SKU #20001768A0

    Part #67Gas Tank Tray Slide Bracket Right
    Length: 10Width: 1.77Height: 0.79

    $5.00

  • 68 - Caster
    SKU #05000735A0

    Part #68Caster
    Length: 3.7Width: 2.52Height: 4.17

    $8.68

  • 69 - Door Hinge Assembly
    SKU #05001421A0

    Part #69Door Hinge Assembly
    Length: 11.81Width: 1.2Height: 2.45

    $5.42

  • 70 - Door Hinge Bracket Assembly
    SKU #04006284A0

    Part #70Door Hinge Bracket Assembly
    Length: 2.6Width: 1.97Height: 0.79

    $5.42

  • 71 - Battery Box
    SKU #20002513A0

    Part #71Battery Box
    Length: 2.76Width: 2.52Height: 0.85

    $6.30

  • 72 - Cart Basket
    SKU #13000937A0

    Part #72Cart Basket
    Length: 12.99Width: 12.4Height: 11.54

    $4.93

  • 73 - Door Handle Assembly
    SKU #20002778A0

    Part #73Door Handle Assembly
    Length: 10.63Width: 1.97Height: 0.93

    $14.99

  • 74 - Door Left
    SKU #20003199A0

    Part #74Door Left
    Length: 22.44Width: 14.94Height: 0.71

    $43.21

  • 75 - Door Right
    SKU #20003200A0

    Part #75Door Right
    Length: 22.95Width: 13.42Height: 0.71

    $43.21

  • 76 - Lighting Rod
    SKU #05001153A0

    Part #76Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 77 - Grease Cup
    SKU #20002323A0

    Part #77Grease Cup
    Length: 10.44Width: 5.15Height: 3.39

    $18.27

  • 78 - Lighting Rod Cover
    SKU #17000186A0

    Part #78Lighting Rod Cover
    Length: 1.97Width: 0.59Height: 8.06

    $5.00

  • 79 - Control Panel Light
    SKU #07800060A0

    Part #79Control Panel Light
    Length: 11.81Width: 2.36Height: 1.97

    $10.33

  • 80 - NG Orifice Pack
    SKU #2006489000AP

    Part #80NG Orifice Pack
    Length: 0.02Width: 0.02Height: 0.02

    $5.00

  • 82 - Grill Cover
    SKU #2009127001AW

    Part #82Grill Cover
    Length: 15.7Width: 15.7Height: 3.3

    $25.20

  • 83 - Manual
    SKU #19000472A1

    Part #83Manual
    Length: 12.8Width: 8.66Height: 1.57

    $5.00
