Replacement Parts For KitchenAid 720-0891H Sold at Online Retailers in 2018

Find replacement grill parts for your 2018 KitchenAid 720-0891H 2-Burner Blue - Red Medallion No cover model number 720-0891H grill using the replacement parts diagram below. The KitchenAid 720-0891H grill was sold at Online Retailers in 2018. If this is not your grill model, you can view all KitchenAid Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

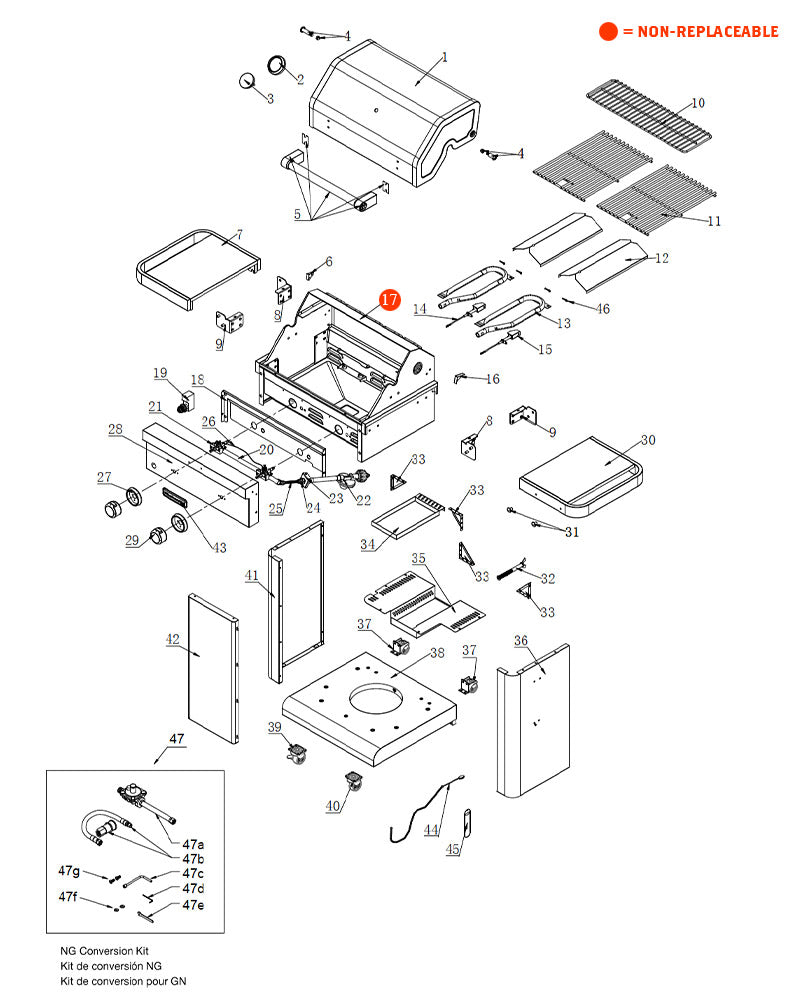

replacement grill parts for your KitchenAid 720-0891H

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0129149000AP

    Part #1Main Lid
    Length: 27.99Width: 17.64Height: 10.75

    $112.00

  • 2 - Temperature Gauge Housing
    SKU #05001577A0

    Part #2Temperature Gauge Housing
    Length: 3.9Width: 3.9Height: 0.74

    $5.00

  • 3 - Temperature Gauge
    SKU #05001581A0

    Part #3Temperature Gauge
    Length: 10.83Width: 2.91Height: 2.28

    $5.76

  • 4 - Main Lid Screw
    SKU #20001428A0

    Part #4Main Lid Screw
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 5 - Main Lid Handle Assembly
    SKU #0127541000AP

    Part #5Main Lid Handle Assembly
    Length: 20.94Width: 3.96Height: 1.25

    $12.04

  • 6 - Main Lid Support Bracket Left
    SKU #04005330A0

    Part #6Main Lid Support Bracket Left
    Length: 1.57Width: 1.18Height: 0.47

    $4.80

  • 7 - Side Shelf Left
    SKU #0170478000AP

    Part #7Side Shelf Left
    Length: 17.72Width: 12.01Height: 0.98

    $59.99

  • 8 - Side Shelf Support Bracket B
    SKU #20003157A0

    Part #8Side Shelf Support Bracket B
    Length: 3.14Width: 2.95Height: 2.95

    $5.00

  • 9 - Side Shelf Support Bracket A
    SKU #20003156A0

    Part #9Side Shelf Support Bracket A
    Length: 3.14Width: 2.95Height: 2.95

    $5.00

  • 10 - Warming Rack
    SKU #13000930A0

    Part #10Warming Rack
    Length: 21.41Width: 6.14Height: 0.39

    $8.00

  • 11 - Cooking Grid with Hole
    SKU #13000931A0

    Part #11Cooking Grid with Hole
    Length: 15.07Width: 10.8Height: 0.55

    $28.00

  • 12 - Flame Tamer
    SKU #0315155000AC

    Part #12Flame Tamer
    Length: 13.14Width: 5.98Height: 1.77

    $12.88

  • 13 & 46 - Main Burner & Burner Pin Assembly
    SKU #0127134000AP

    Part #13 & 46Main Burner & Burner Pin Assembly
    Length: 13.58Width: 5.19Height: 0.86

    $9.25

  • 14 - Main Burner Igniter Wire A
    SKU #10001737A0

    Part #14Main Burner Igniter Wire A
    Length: 9.84Width: 1.22Height: 0.32

    $6.99

  • 15 - Main Burner Igniter Wire B
    SKU #10001738A0

    Part #15Main Burner Igniter Wire B
    Length: 19.68Width: 1.18Height: 0.32

    $6.99

  • 16 - Main Lid Support Bracket Right
    SKU #04005331A0

    Part #16Main Lid Support Bracket Right
    Length: 1.57Width: 1.18Height: 0.47

    $5.33

  • 18 - Front Baffle
    SKU #04007740A0

    Part #18Front Baffle
    Length: 21.85Width: 5.7Height: 1.1

    $21.00

  • 19 - Electronic Igniter Module
    SKU #07000101A2

    Part #19Electronic Igniter Module
    Length: 4.04Width: 2.09Height: 1.97

    $15.58

  • 20 - Main Manifold
    SKU #11000893A0

    Part #20Main Manifold
    Length: 12.59Width: 1.53Height: 0.82

    $35.00

  • 21 - Main Gas Valve
    SKU #09000568A0

    Part #21Main Gas Valve
    Length: 2.24Width: 2.24Height: 2.83

    $20.45

  • 22 - Regulator LP
    SKU #09000259A0

    Part #22Regulator LP
    Length: 21.65Width: 2.53Height: 2.5

    $35.87

  • 23 - Manifold Extension Bracket
    SKU #0209463501AQ

    Part #23Manifold Extension Bracket
    Length: 1.77Width: 1.5Height: 0.71

    $13.44

  • 24 - Manifold Extension Connector
    SKU #05001582A0

    Part #24Manifold Extension Connector
    Length: 1.81Width: 0.86Height: 0.98

    $5.00

  • 25 - Main Burner Flex Gas Line
    SKU #11000894A0

    Part #25Main Burner Flex Gas Line
    Length: 7.87Width: 0.74Height: 0.82

    $9.97

  • 26 - Igniter Junction Wire
    SKU #07800059A0

    Part #26Igniter Junction Wire
    Length: 7.08Width: 17.71Height: 1.57

    $6.30

  • 27 - Bezel
    SKU #0308186001AH

    Part #27Bezel
    Length: 4.96Width: 1.26Height: 0.59

    $3.36

  • 28 - Main Control Panel
    SKU #0151317001AS

    Part #28Main Control Panel
    Length: 21.98Width: 7.8Height: 2.75

    $31.50

  • 29 - Control Knob
    SKU #0108066000AP

    Part #29Control Knob
    Length: 4.96Width: 1.26Height: 0.52

    $10.68

  • 30 - Side Shelf Right
    SKU #0129150000AP

    Part #30Side Shelf Right
    Length: 15.74Width: 12.59Height: 2.36

    $25.01

  • 31 - Utensil Hook
    SKU #06001110A0

    Part #31Utensil Hook
    Length: 0.98Width: 0.98Height: 1.18

    $5.00

  • 32 - Tank Bolt
    SKU #20002393A0

    Part #32Tank Bolt
    Length: 5.35Width: 1.85Height: 0.74

    $6.44

  • 33 - Triangle Bracket
    SKU #0212576501AQ

    Part #33Triangle Bracket
    Length: 2.75Width: 2.75Height: 0.47

    $5.00

  • 34 - Grease Cup
    SKU #0211105901AQ

    Part #34Grease Cup
    Length: 16.65Width: 4.25Height: 0.79

    $12.04

  • 35 - Gas Tank Heat Shield
    SKU #04007772A0

    Part #35Gas Tank Heat Shield
    Length: 16.29Width: 9.4Height: 2.36

    $3.03

  • 36 - Side Panel Right
    SKU #0129151000AP

    Part #36Side Panel Right
    Length: 29.13Width: 21.65Height: 0.86

    $59.99

  • 37 - Swivel Caster
    SKU #2005081000AW

    Part #37Swivel Caster
    Length: 3.14Width: 1.96Height: 3.42

    $14.00

  • 38 - Bottom Panel
    SKU #0129153000AP

    Part #38Bottom Panel
    Length: 27.05Width: 19.29Height: 2.56

    $33.75

  • 39 - Swivel Caster with Brake
    SKU #05001580A0

    Part #39Swivel Caster with Brake
    Length: 2.75Width: 2.36Height: 2.36

    $10.50

  • 40 - Swivel Caster
    SKU #05001579A0

    Part #40Swivel Caster
    Length: 2.75Width: 2.36Height: 1.85

    $14.00

  • 41 - Side Panel Left
    SKU #0129152000AP

    Part #41Side Panel Left
    Length: 24.76Width: 18.39Height: 0.95

    $30.00

  • 42 - Front Panel
    SKU #04007750A0

    Part #42Front Panel
    Length: 21.85Width: 5.7Height: 1.1

    $9.04

  • 43 - Logo
    SKU #0127261000AP

    Part #43Logo
    Length: 19.92Width: 6.52Height: 0.82

    $5.00

  • 44 - Lighting Rod
    SKU #120870001822

    Part #44Lighting Rod
    Length: 6.6Width: 0.79Height: 0.2

    $5.00

  • 45 - Lighting Rod Cover
    SKU #17000186A0

    Part #45Lighting Rod Cover
    Length: 1.97Width: 0.59Height: 8.06

    $5.00

  • 48 - Manual
    SKU #19000632A3

    Part #48Manual
    Length: 11.2Width: 8.3Height: 0.39

    $5.00

  • 49 - Hardware Pack
    SKU #20003168A0

    Part #49Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $6.00
