Replacement Parts For Kenmore 720-0340 Sold at Sears Kmart USA in 2007

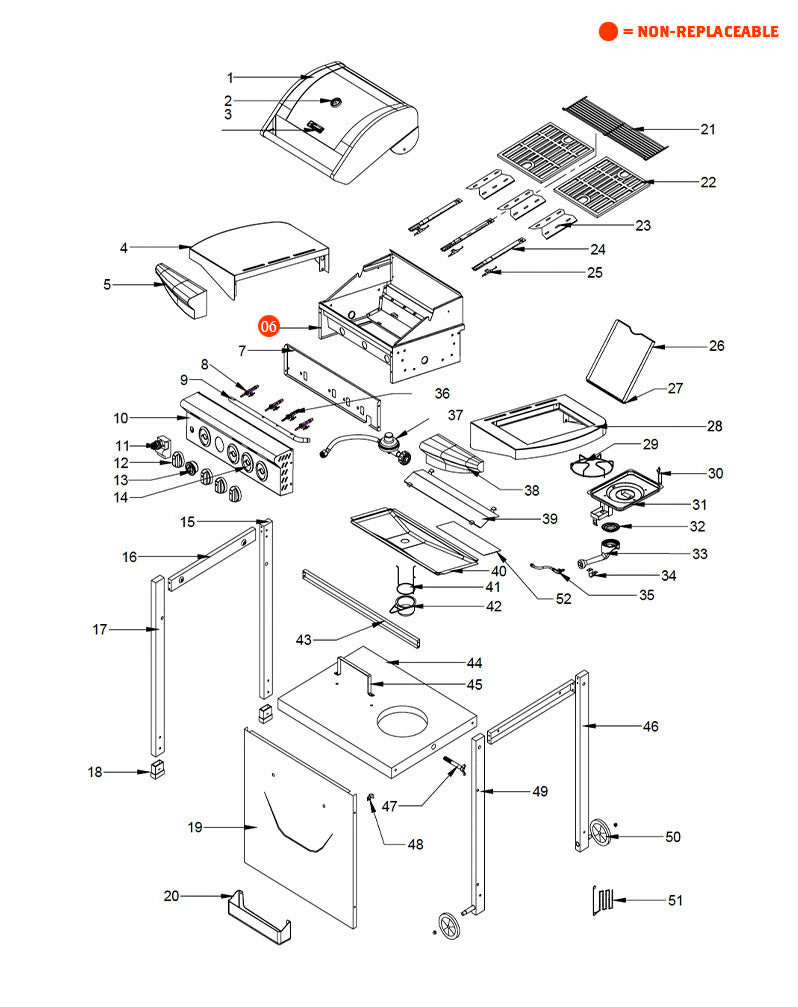

Find replacement grill parts for your 2007 Kenmore 720-0340 3 Burner Propane Gas Grill with Side Burner in Stainless Steel model number 720-0340 grill using the replacement parts diagram below. The Kenmore 720-0340 grill was sold at Sears Kmart USA in 2007. If this is not your grill model, you can view all Kenmore Replacement Parts or use the button below to search for your model number.

View Parts Download Manual
replacement grill parts for your Kenmore 720-0340

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #20000907A0

    Part #1Main Lid
    Length: 27.99Width: 17.64Height: 10.75

    $112.00

  • 2 - Temperature Gauge
    SKU #05000538A0

    Part #2Temperature Gauge
    Length: 0.08Width: 0.08Height: 0.08

    $9.99

  • 3 - Logo
    SKU #08000047A0

    Part #3Logo
    Length: 4.02Width: 2.46Height: 0.39

    $5.00

  • 4 - Side Shelf Left
    SKU #20000908A0

    Part #4Side Shelf Left
    Length: 17.72Width: 12.01Height: 0.98

    $59.99

  • 5 - Side Shelf Front Panel Left
    SKU #04004742A0

    Part #5Side Shelf Front Panel Left
    Length: 15.74Width: 12.59Height: 2.36

    $21.00

  • 7 - Front Baffle
    SKU #04004743A0

    Part #7Front Baffle
    Length: 33.94Width: 2.17Height: 5.89

    $42.00

  • 8 - Main Gas Valve
    SKU #09000186A0

    Part #8Main Gas Valve
    Length: 24.14Width: 0.12Height: 0.07

    $35.99

  • 9 - Main Manifold
    SKU #11000157A0

    Part #9Main Manifold
    Length: 0.15Width: 0.04Height: 0.04

    $55.00

  • 10 - Main Control Panel
    SKU #20000910A0

    Part #10Main Control Panel
    Length: 27.07Width: 7.2Height: 3.88

    $59.99

  • 11 - Pulse Igniter Module
    SKU #07000170A0

    Part #11Pulse Igniter Module
    Length: 2.64Width: 2.05Height: 2.64

    $15.99

  • 12 - Control Knob
    SKU #14000103A0

    Part #12Control Knob
    Length: 0.09Width: 0.06Height: 2.95

    $14.00

  • 13 - Timer
    SKU #07000142A0

    Part #13Timer
    Length: 2.26Width: 0.04Height: 1.3

    $7.00

  • 14 - Bezel
    SKU #14000102A0

    Part #14Bezel
    Length: 0.12Width: 0.12Height: 0.02

    $9.99

  • 15 - Left Side Panel Cart Leg Rear
    SKU #04004744A0

    Part #15Left Side Panel Cart Leg Rear
    Length: 12.54Width: 0.39Height: 6.89

    $25.00

  • 16 - Cart Frame Left
    SKU #04004745A0

    Part #16Cart Frame Left
    Length: 13.65Width: 0.02Height: 0.87

    $20.00

  • 17 - Left Side Panel Cart Leg Front
    SKU #20000912A0

    Part #17Left Side Panel Cart Leg Front
    Length: 55.39Width: 2.7Height: 1.3

    $35.99

  • 18 - Cart Caster Insert
    SKU #17000081A0

    Part #18Cart Caster Insert
    Length: 2.76Width: 1.38Height: 1.77

    $8.82

  • 19 - Front Panel
    SKU #04004746A0

    Part #19Front Panel
    Length: 25.03Width: 0.02Height: 21.19

    $21.00

  • 20 - Condiment Tray
    SKU #17000291A0

    Part #20Condiment Tray
    Length: 21.31Width: 3.56Height: 3.78

    $59.99

  • 21 - Warming Rack
    SKU #13000157A0

    Part #21Warming Rack
    Length: 0.92Width: 0.27Height: 0.04

    $35.99

  • 22 - Cooking Grid with Hole
    SKU #13000120A0

    Part #22Cooking Grid with Hole
    Length: 17.32Width: 0.41Height: 12.22

    $13.40

  • 23 - Flame Tamer
    SKU #04004747A0

    Part #23Flame Tamer
    Length: 0.6Width: 0.17Height: 0.06

    $28.00

  • 24 - Main Burner
    SKU #10000651A0

    Part #24Main Burner
    Length: 14.37Width: 1.54Height: 0.94

    $9.25

  • 25.1 - Main Burner Igniter Wire A
    SKU #10000252A0

    Part #25.1Main Burner Igniter Wire A
    Length: 0.16Width: 0.04Height: 0.02

    $7.00

  • 25.2 - Main Burner Igniter Wire B
    SKU #10000253A0

    Part #25.2Main Burner Igniter Wire B
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 25.3 - Main Burner Igniter Wire C
    SKU #10000254A0

    Part #25.3Main Burner Igniter Wire C
    Length: 29.92Width: 1.18Height: 1.18

    $6.99

  • 26 - Side Burner Lid
    SKU #04004748A0

    Part #26Side Burner Lid
    Length: 12.5Width: 9.07Height: 0.75

    $27.00

  • 27 - Side Burner Lid Hinge Rod
    SKU #05000858A0

    Part #27Side Burner Lid Hinge Rod
    Length: 10.39Width: 0.55Height: 0.16

    $5.00

  • 28 - Side Burner Bowl Assembly Frame
    SKU #20000913A0

    Part #28Side Burner Bowl Assembly Frame
    Length: 21.65Width: 13.98Height: 7.2

    $50.00

  • 29 - Side Burner Cooking Grate
    SKU #13000158A0

    Part #29Side Burner Cooking Grate
    Length: 0.34Width: 0.33Height: 0.06

    $14.00

  • 30 - Side Burner Igniter Wire
    SKU #10001203A0

    Part #30Side Burner Igniter Wire
    Length: 13.77Width: 3.54Height: 0.91

    $7.00

  • 31 - Side Burner Bowl Assembly Firebox
    SKU #20000914A0

    Part #31Side Burner Bowl Assembly Firebox
    Length: 36.61Width: 1.18Height: 1.18

    $6.99

  • 32 - Side Burner Head
    SKU #10000184A0

    Part #32Side Burner Head
    Length: 0.14Width: 0.14Height: 0.03

    $10.00

  • 33 - Side Burner Pipe
    SKU #10000179A0

    Part #33Side Burner Pipe
    Length: 13.58Width: 4.33Height: 0.83

    $28.00

  • 34 - Side Burner Bracket
    SKU #04004749A0

    Part #34Side Burner Bracket
    Length: 0.09Width: 0.04Height: 0.04

    $5.00

  • 35 - Side Burner Manifold
    SKU #20000622A0

    Part #35Side Burner Manifold
    Length: 0.74Width: 0.03Height: 0.02

    $15.00

  • 36 - Side Gas Valve
    SKU #09000187A0

    Part #36Side Gas Valve
    Length: 0.16Width: 0.09Height: 0.08

    $35.99

  • 37 - Regulator LP
    SKU #09000123A0

    Part #37Regulator LP
    Length: 4.25Width: 3.15Height: 2.84

    $35.87

  • 38 - Side Shelf Front Panel Right
    SKU #04004750A0

    Part #38Side Shelf Front Panel Right
    Length: 15.74Width: 12.59Height: 2.36

    $21.00

  • 39 - Grease Slide Panel Top
    SKU #20000915A0

    Part #39Grease Slide Panel Top
    Length: 25.56Width: 14.25Height: 4.06

    $21.00

  • 40 - Grease Slide Panel Bottom
    SKU #20000916A0

    Part #40Grease Slide Panel Bottom
    Length: 24.61Width: 9.45Height: 3.02

    $10.00

  • 41 - Grease Cup Holder
    SKU #05000445A0

    Part #41Grease Cup Holder
    Length: 1.89Width: 0.12Height: 0.12

    $7.00

  • 42 - Grease Cup
    SKU #20000917A0

    Part #42Grease Cup
    Length: 10.44Width: 5.16Height: 2.17

    $10.00

  • 43 - Cart Frame Rear
    SKU #04004751A0

    Part #43Cart Frame Rear
    Length: 25.7Width: 3.74Height: 0.94

    $15.40

  • 44 - Bottom Panel
    SKU #20000918A0

    Part #44Bottom Panel
    Length: 38.98Width: 21.65Height: 3.94

    $70.00

  • 45 - Gas Tank Supporting
    SKU #04004752A0

    Part #45Gas Tank Supporting
    Length: 21.93Width: 0.04Height: 0.47

    $7.00

  • 46 - Right Side Panel Cart Leg Rear
    SKU #20000919A0

    Part #46Right Side Panel Cart Leg Rear
    Length: 31.61Width: 0.03Height: 1.97

    $21.00

  • 47 - Tank Bolt
    SKU #06000468A0

    Part #47Tank Bolt
    Length: 0.25Width: 0.07Height: 0.03

    $7.00

  • 48 - Gas Hose Retention Clamp
    SKU #04004753A0

    Part #48Gas Hose Retention Clamp
    Length: 1.34Width: 0.59Height: 0.71

    $7.00

  • 49 - Right Side Panel Cart Leg Front
    SKU #20000920A0

    Part #49Right Side Panel Cart Leg Front
    Length: 31.61Width: 0.03Height: 1.97

    $21.00

  • 50 - Wheel
    SKU #05000543A0

    Part #50Wheel
    Length: 0.27Width: 0.27Height: 0.08

    $19.99

  • 51 - Lighting Rod
    SKU #05000513A0

    Part #51Lighting Rod
    Length: 5.95Width: 1.6Height: 0.75

    $5.00

  • 52 - Tank Heat Shield
    SKU #04004754A0

    Part #52Tank Heat Shield
    Length: 19.33Width: 12.6Height: 1.4

    $29.99

  • 54 - Hardware Pack
    SKU #20000921A0

    Part #54Hardware Pack
    Length: 3.8Width: 3.8Height: 3.8

    $6.72
