Replacement Parts For Nexgrill 720-0786 Sold at Home Depot USA in 2019

Find replacement grill parts for your 2019 Nexgrill 720-0786 4 Burner Propane Gas Grill with Griddle Top in Black model number 720-0786 grill using the replacement parts diagram below. The Nexgrill 720-0786 grill was sold at Home Depot USA in 2019. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

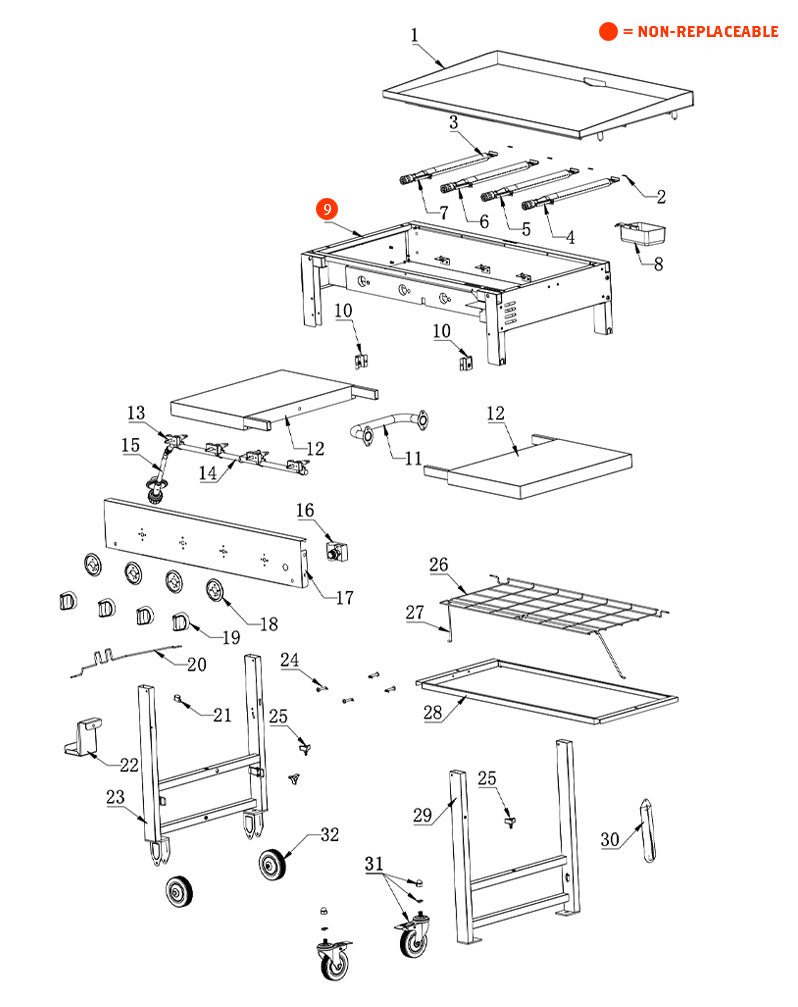

replacement grill parts for your Nexgrill 720-0786

Manual No. / Part

Price Each

Qty

  • 1 - Griddle
    SKU #120870001880

    Part #1Griddle
    Length: 36.02Width: 20.89Height: 3.15

    $85.00

  • 2 & 3 - Main Burner & Burner Pin Assembly
    SKU #120850002008

    Part #2 & 3Main Burner & Burner Pin Assembly
    Length: 16.6Width: 2.45Height: 1.06

    $9.25

  • 4 - Main Burner Igniter Wire A
    SKU #120850002000

    Part #4Main Burner Igniter Wire A
    Length: 11.02Width: 0.85Height: 0.43

    $6.99

  • 5 - Main Burner Igniter Wire B
    SKU #120850002009

    Part #5Main Burner Igniter Wire B
    Length: 16.14Width: 0.85Height: 0.43

    $6.99

  • 6 - Main Burner Igniter Wire C
    SKU #120850002010

    Part #6Main Burner Igniter Wire C
    Length: 23.62Width: 0.85Height: 0.43

    $6.99

  • 7 - Main Burner Igniter Wire D
    SKU #120850002011

    Part #7Main Burner Igniter Wire D
    Length: 31.1Width: 0.85Height: 0.43

    $6.99

  • 8 - Grease Box
    SKU #120870001874

    Part #8Grease Box
    Length: 7.3Width: 4.13Height: 2.48

    $5.70

  • 10 - Side Shelf Bracket
    SKU #120850002017

    Part #10Side Shelf Bracket
    Length: 2.1Width: 1.54Height: 0.51

    $5.40

  • 11 - Side Handle
    SKU #120850002003

    Part #11Side Handle
    Length: 11.81Width: 4.25Height: 2.64

    $15.00

  • 12 - Side Shelf
    SKU #120850002018

    Part #12Side Shelf
    Length: 20.28Width: 17.72Height: 1.77

    $10.72

  • 13 - Gas Valve
    SKU #120870001882

    Part #13Gas Valve
    Length: 3.82Width: 2.09Height: 1.55

    $20.45

  • 14 - Manifold
    SKU #120850002013

    Part #14Manifold
    Length: 26.75Width: 3.78Height: 0.94

    $35.00

  • 15 - LP Regulator
    SKU #120870001881

    Part #15LP Regulator
    Length: 25.98Width: 2.8Height: 3.15

    $18.75

  • 16 - Igniter Module
    SKU #120870001712

    Part #16Igniter Module
    Length: 2.64Width: 2.64Height: 2.05

    $5.00

  • 17 - Control Panel
    SKU #120850002012

    Part #17Control Panel
    Length: 36.17Width: 6.35Height: 1.24

    $25.20

  • 18 - Bezel
    SKU #120870001870

    Part #18Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.30

  • 19 - Control Knob
    SKU #120850002004

    Part #19Control Knob
    Length: 0.2Width: 0.02Height: 1.61

    $7.00

  • 20 - Cylinder Fixing Line
    SKU #120870001886

    Part #20Cylinder Fixing Line
    Length: 19.59Width: 4.86Height: 1.65

    $3.75

  • 21 - Regulator Hose Buckle
    SKU #1206013900AW

    Part #21Regulator Hose Buckle
    Length: 1.43Width: 0.5Height: 0.83

    $5.00

  • 22 - Cylinder Hanger
    SKU #120870001875

    Part #22Cylinder Hanger
    Length: 4.61Width: 4.13Height: 2.99

    $6.30

  • 23 - Left Cart Leg Assembly
    SKU #120850002014

    Part #23Left Cart Leg Assembly
    Length: 24.07Width: 20.39Height: 1.97

    $12.90

  • 24 - Pin Combination
    SKU #120850001997

    Part #24Pin Combination
    Length: 1.54Width: 1.1Height: 0.5

    $4.50

  • 25 - Cylinder Hanging Connecting Knob
    SKU #120870001876

    Part #25Cylinder Hanging Connecting Knob
    Length: 0.2Width: 0.02Height: 1.22

    $6.30

  • 26 - Warming Rack
    SKU #120870001884

    Part #26Warming Rack
    Length: 33.23Width: 12.59Height: 1.24

    $12.30

  • 27 - Warming Rack Pivot Leg Bracket
    SKU #120870001885

    Part #27Warming Rack Pivot Leg Bracket
    Length: 32.56Width: 6.69Height: 0.2

    $7.20

  • 28 - Frame Bottom Panel
    SKU #120870001883

    Part #28Frame Bottom Panel
    Length: 34.15Width: 14.17Height: 0.83

    $21.00

  • 29 - Right Cart Leg Assembly
    SKU #120850002015

    Part #29Right Cart Leg Assembly
    Length: 22.83Width: 20.39Height: 1.97

    $12.90

  • 30 - Lighting Rod
    SKU #05001137A0

    Part #30Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 31 - Swivel Caster with Brake
    SKU #120850002016

    Part #31Swivel Caster with Brake
    Length: 5.83Width: 5.16Height: 2.13

    $14.00

  • 32 - Caster
    SKU #120850002006

    Part #32Caster
    Length: 1.26Width: 1.26Height: 2.05

    $9.52
