Replacement Parts For Nexgrill 720-0536 Sold at Home Depot USA in 2008

Find replacement grill parts for your 2008 Nexgrill 720-0536 4 Burner Propane Gas Grill with Searing Main Burner & Side Burner & Rear Burner & Oven in Stainless Steel model number 720-0536 grill using the replacement parts diagram below. The Nexgrill 720-0536 grill was sold at Home Depot USA in 2008. If this is not your grill model, you can view all Nexgrill Replacement Parts or use the button below to search for your model number.

View Parts Download Manual

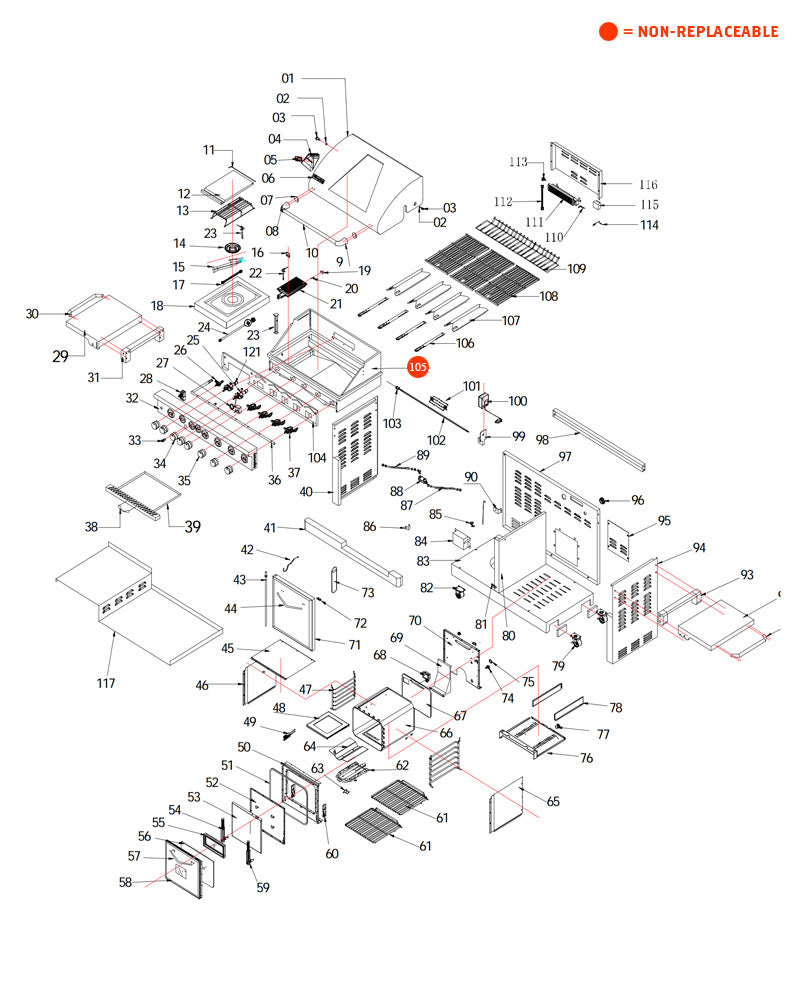

replacement grill parts for your Nexgrill 720-0536

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #20000586A0

    Part #1Main Lid
    Length: 27.99Width: 17.64Height: 10.75

    $112.00

  • 2 - Main Lid Screw Cover
    SKU #06000395A0

    Part #2Main Lid Screw Cover
    Length: 0.49Width: 0.43Height: 0.47

    $5.00

  • 3 - Main Lid Screw
    SKU #06000394A0

    Part #3Main Lid Screw
    Length: 0.94Width: 0.94Height: 0.63

    $5.00

  • 4 - Temperature Gauge Housing
    SKU #05000129A0

    Part #4Temperature Gauge Housing
    Length: 0.16Width: 0.13Height: 0.2

    $10.00

  • 5 - Heat Indicator
    SKU #05000572A0

    Part #5Heat Indicator
    Length: 2.95Width: 1.89Height: 1.53

    $14.00

  • 6 - Logo
    SKU #08000029A0

    Part #6Logo
    Length: 4.72Width: 1.4Height: 0.59

    $5.00

  • 7 - Main Lid Handle Heat Insulating Spacer
    SKU #05000574A0

    Part #7Main Lid Handle Heat Insulating Spacer
    Length: 0.02Width: 0.02Height: 0.02

    $7.00

  • 8 - Main Lid Handle Seat Left
    SKU #12000150A0

    Part #8Main Lid Handle Seat Left
    Length: 3.01Width: 3.41Height: 1.81

    $8.00

  • 9 - Main Lid Handle Seat Right
    SKU #12000151A0

    Part #9Main Lid Handle Seat Right
    Length: 3.01Width: 3.41Height: 1.81

    $8.00

  • 10 - Main Lid Handle Tube
    SKU #12000152A0

    Part #10Main Lid Handle Tube
    Length: 1.25Width: 18.62Height: 0.02

    $22.40

  • 11 - Side Burner Lid Hinge Rod
    SKU #05000586A0

    Part #11Side Burner Lid Hinge Rod
    Length: 9.76Width: 0.55Height: 0.16

    $7.00

  • 12 - Side Burner Lid
    SKU #04003104A0

    Part #12Side Burner Lid
    Length: 12.5Width: 9.55Height: 0.78

    $10.00

  • 13 - Side Burner Cooking Grid
    SKU #13000149A0

    Part #13Side Burner Cooking Grid
    Length: 8.45Width: 8.45Height: 2.36

    $35.00

  • 14 - Side Burner Head
    SKU #10000209A0

    Part #14Side Burner Head
    Length: 2.35Width: 2.35Height: 1.89

    $15.00

  • 15 - Side Burner Pipe
    SKU #10000208A0

    Part #15Side Burner Pipe
    Length: 3.07Width: 1.57Height: 8.78

    $12.00

  • 16 - Side Burner Pipe Bracket
    SKU #04003109A0

    Part #16Side Burner Pipe Bracket
    Length: 4.13Width: 1.93Height: 0.51

    $5.00

  • 17 - Side Burner Flex Gas Line
    SKU #11000054A0

    Part #17Side Burner Flex Gas Line
    Length: 29.92Width: 1.18Height: 1.18

    $8.00

  • 18 - Side Burner Bowl Assembly
    SKU #20000587A0

    Part #18Side Burner Bowl Assembly
    Length: 17.72Width: 12.01Height: 2.17

    $21.50

  • 19 - Sear Burner Thermocouple Heat Shield
    SKU #04003012A0

    Part #19Sear Burner Thermocouple Heat Shield
    Length: 15.59Width: 8.27Height: 0.47

    $9.60

  • 20 - Sear Burner Thermocouple
    SKU #07000187A0

    Part #20Sear Burner Thermocouple
    Length: 1.14Width: 0.32Height: 0.04

    $7.00

  • 21 - Sear Burner
    SKU #10000211A0

    Part #21Sear Burner
    Length: 16.2Width: 3.5Height: 1.77

    $69.99

  • 22 - Sear Burner Igniter Wire
    SKU #10000212A0

    Part #22Sear Burner Igniter Wire
    Length: 9.09Width: 0.85Height: 0.43

    $7.00

  • 24 - Regulator LP
    SKU #09000107A0

    Part #24Regulator LP
    Length: 6.15Width: 2.9Height: 16

    $36.29

  • 25 - Thermocouple Gas Valve
    SKU #09000156A0

    Part #25Thermocouple Gas Valve
    Length: 3.82Width: 2.09Height: 1.55

    $35.99

  • 26 - Side Burner Gas Valve
    SKU #09000161A0

    Part #26Side Burner Gas Valve
    Length: 5.91Width: 2.32Height: 2.01

    $35.99

  • 27 - Thermostat Valve
    SKU #09000096A0

    Part #27Thermostat Valve
    Length: 1.67Width: 2.42Height: 2.73

    $21.00

  • 28 - Pulse Igniter Module
    SKU #07000007A0

    Part #28Pulse Igniter Module
    Length: 2.64Width: 2.05Height: 2.64

    $15.99

  • 29 - Side Shelf Left
    SKU #04003082A0

    Part #29Side Shelf Left
    Length: 18.66Width: 12.16Height: 4.57

    $7.50

  • 30 - Side Shelf Push Bar Left
    SKU #12000153A0

    Part #30Side Shelf Push Bar Left
    Length: 20.87Width: 3.23Height: 1.38

    $21.00

  • 31 - Side Shelf Mount Bracket Left
    SKU #04003084A0

    Part #31Side Shelf Mount Bracket Left
    Length: 4.13Width: 1.93Height: 0.51

    $14.00

  • 32 - Main Control Panel
    SKU #04003031A0

    Part #32Main Control Panel
    Length: 27.07Width: 7.2Height: 3.88

    $59.99

  • 33 - Indicating Light
    SKU #07000304A0

    Part #33Indicating Light
    Length: 0.63Width: 1.35Height: 1.34

    $4.00

  • 35 - Control Knob
    SKU #20000590A0

    Part #35Control Knob
    Length: 0.2Width: 0.02Height: 1.61

    $14.00

  • 36 - Main Manifold
    SKU #11000145A0

    Part #36Main Manifold
    Length: 26.75Width: 3.78Height: 0.94

    $55.99

  • 38 - Grease Tray Handle
    SKU #12000083A0

    Part #38Grease Tray Handle
    Length: 1.09Width: 0.43Height: 4.39

    $14.00

  • 39 - Grease Tray
    SKU #20000557A0

    Part #39Grease Tray
    Length: 25.56Width: 14.25Height: 4.06

    $26.00

  • 40 - Side Panel Left
    SKU #04003110A0

    Part #40Side Panel Left
    Length: 24.76Width: 18.39Height: 0.95

    $30.00

  • 41 - Cart Frame Front
    SKU #20000591A0

    Part #41Cart Frame Front
    Length: 38.86Width: 1.97Height: 1.18

    $20.00

  • 42 - Lighting Rod
    SKU #05000590A0

    Part #42Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $5.00

  • 43 - Door Hinge
    SKU #06000105A0

    Part #43Door Hinge
    Length: 0.05Width: 0.03Height: 0.01

    $7.00

  • 44 - Door Handle
    SKU #12000154A0

    Part #44Door Handle
    Length: 25.56Width: 14.25Height: 4.06

    $14.99

  • 45 - Smoke Canister Outer Cover Upper Plate
    SKU #04003051A0

    Part #45Smoke Canister Outer Cover Upper Plate
    Length: 4.13Width: 1.77Height: 1.02

    $4.00

  • 46 - Smoke Canister Outer Cover Left Plate
    SKU #04003052A0

    Part #46Smoke Canister Outer Cover Left Plate
    Length: 4.13Width: 1.77Height: 1.02

    $4.00

  • 47 - Oven Base Support
    SKU #13000151A0

    Part #47Oven Base Support
    Length: 0.02Width: 0.02Height: 0.02

    $10.00

  • 48 - Oven Bottom Cover
    SKU #20000588A0

    Part #48Oven Bottom Cover
    Length: 0.02Width: 2.33Height: 0.02

    $12.50

  • 49 - Igniter Hot Surface
    SKU #07000180A0

    Part #49Igniter Hot Surface
    Length: 16.51Width: 0.28Height: 0.04

    $36.94

  • 50 - Door Frame Inner
    SKU #04003061A0

    Part #50Door Frame Inner
    Length: 17.33Width: 2.51Height: 19.76

    $14.00

  • 51 - Door Gasket
    SKU #15000006A0

    Part #51Door Gasket
    Length: 3.11Width: 2.68Height: 1.77

    $10.60

  • 52 - Rear Plate for Oven Door
    SKU #04003062A0

    Part #52Rear Plate for Oven Door
    Length: 17.17Width: 1.12Height: 19.17

    $21.00

  • 53 - Oven Back Panel Inside Liner
    SKU #04003064A0

    Part #53Oven Back Panel Inside Liner
    Length: 0.25Width: 0.06Height: 0.13

    $21.00

  • 54 - Door Hinge Left
    SKU #05000592A0

    Part #54Door Hinge Left
    Length: 2.99Width: 2Height: 10.22

    $13.00

  • 55 - Oven Window
    SKU #20000580A0

    Part #55Oven Window
    Length: 22.44Width: 14.94Height: 0.71

    $50.00

  • 56 - Oven Window Glass
    SKU #15000023A0

    Part #56Oven Window Glass
    Length: 22.44Width: 14.94Height: 0.71

    $50.00

  • 57 - Oven Door Handle
    SKU #12000154A0

    Part #57Oven Door Handle
    Length: 25.56Width: 14.25Height: 4.06

    $14.99

  • 58 - Oven Door
    SKU #04003065A0

    Part #58Oven Door
    Length: 22.44Width: 14.94Height: 0.71

    $16.00

  • 59 - Door Hinge Right
    SKU #05000592A0

    Part #59Door Hinge Right
    Length: 2.99Width: 2Height: 10.22

    $13.00

  • 60 - Hinge Receptacle
    SKU #05000593A0

    Part #60Hinge Receptacle
    Length: 2Width: 3Height: 2

    $5.00

  • 61 - Oven Rack
    SKU #13000150A0

    Part #61Oven Rack
    Length: 6.41Width: 4.12Height: 0.71

    $20.00

  • 62 - Oven Burner U Shape
    SKU #10000210A0

    Part #62Oven Burner U Shape
    Length: 16.26Width: 1.18Height: 1.18

    $50.00

  • 63 - Igniter Hot Surface Bracket
    SKU #04003042A0

    Part #63Igniter Hot Surface Bracket
    Length: 4.13Width: 1.93Height: 0.51

    $7.00

  • 64 - Flame Tamer Oven
    SKU #04003041A0

    Part #64Flame Tamer Oven
    Length: 14.57Width: 4.26Height: 1.4

    $6.00

  • 65 - Smoke Canister Outer Cover Right Plate
    SKU #04003053A0

    Part #65Smoke Canister Outer Cover Right Plate
    Length: 4.13Width: 1.77Height: 1.02

    $4.00

  • 66 - Oven
    SKU #04003055A0

    Part #66Oven
    Length: 0.25Width: 0.06Height: 0.13

    $92.00

  • 67 - Oven Plate Rear
    SKU #04003050A0

    Part #67Oven Plate Rear
    Length: 17.13Width: 1.5Height: 19.13

    $21.00

  • 68 - Oven Lamp
    SKU #07000181A0

    Part #68Oven Lamp
    Length: 6.39Width: 1.48Height: 3.18

    $21.04

  • 69 - Oven Flue
    SKU #04003048A0

    Part #69Oven Flue
    Length: 7.52Width: 4.14Height: 12.24

    $14.00

  • 70 - Oven Grill Inside Liner
    SKU #04003046A0

    Part #70Oven Grill Inside Liner
    Length: 17.28Width: 1.57Height: 19.57

    $14.00

  • 71 - Front Door Left
    SKU #20000592A0

    Part #71Front Door Left
    Length: 20.47Width: 18.7Height: 1.22

    $56.00

  • 72 - Door Magnet
    SKU #05000010A0

    Part #72Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 73 - Lighting Rod Cover
    SKU #17000014A0

    Part #73Lighting Rod Cover
    Length: 8.07Width: 1.97Height: 0.04

    $5.00

  • 74 - U Shape Burner Orifice
    SKU #05000154A0

    Part #74U Shape Burner Orifice
    Length: 0.02Width: 0.02Height: 0.02

    $7.00

  • 75 - Ceramic Hot Surface Ignitor Conduit Clip
    SKU #06000536A0

    Part #75Ceramic Hot Surface Ignitor Conduit Clip
    Length: 4.83Width: 3.35Height: 2.91

    $10.00

  • 76 - Oven Bottom Panel LP
    SKU #04003045A0

    Part #76Oven Bottom Panel LP
    Length: 17.82Width: 3.34Height: 19.69

    $21.00

  • 77 - Ceramic Hot Surface Ignitor Conduit
    SKU #11000015A0

    Part #77Ceramic Hot Surface Ignitor Conduit
    Length: 4.83Width: 3.35Height: 2.91

    $4.00

  • 79 - Swivel Caster with Brake
    SKU #05000587A0

    Part #79Swivel Caster with Brake
    Length: 3.66Width: 3.26Height: 2.67

    $5.88

  • 80 - Center Panel
    SKU #04003111A0

    Part #80Center Panel
    Length: 22.95Width: 16.14Height: 0.79

    $49.99

  • 81 - Door Magnet Bracket
    SKU #04003112A0

    Part #81Door Magnet Bracket
    Length: 2Width: 0.79Height: 0.04

    $2.37

  • 82 - Caster
    SKU #05000588A0

    Part #82Caster
    Length: 3.14Width: 1.96Height: 3.42

    $14.00

  • 83 - Bottom Panel LP
    SKU #20000593A0

    Part #83Bottom Panel LP
    Length: 43.59Width: 21.74Height: 3.15

    $80.00

  • 84 - Power Box
    SKU #04003037A0

    Part #84Power Box
    Length: 4.96Width: 2.76Height: 7.09

    $14.00

  • 85 - Cable Strainer
    SKU #06000448A0

    Part #85Cable Strainer
    Length: 1.1Width: 0.26Height: 1.42

    $5.00

  • 87 - Stainless Tube Safety Valve To Gas B
    SKU #11000147A0

    Part #87Stainless Tube Safety Valve To Gas B
    Length: 19.69Width: 2.24Height: 0.24

    $7.00

  • 88 - Safety Valve Bake
    SKU #09000163A0

    Part #88Safety Valve Bake
    Length: 2.24Width: 2.24Height: 2.83

    $35.99

  • 89 - Stainless Tube Safety Valve To Gas A
    SKU #11000011A0

    Part #89Stainless Tube Safety Valve To Gas A
    Length: 39.37Width: 1.96Height: 0.9

    $10.00

  • 90 - Cable Strainer Bracket
    SKU #04003036A0

    Part #90Cable Strainer Bracket
    Length: 4.13Width: 1.93Height: 0.51

    $2.40

  • 91 - Side Shelf Push Bar Right
    SKU #12000153A0

    Part #91Side Shelf Push Bar Right
    Length: 20.87Width: 3.23Height: 1.38

    $21.00

  • 92 - Side Shelf Right
    SKU #04003083A0

    Part #92Side Shelf Right
    Length: 17.72Width: 12.01Height: 4.77

    $32.00

  • 93 - Side Shelf Mounting Bracket Right
    SKU #04003085A0

    Part #93Side Shelf Mounting Bracket Right
    Length: 4.13Width: 1.93Height: 0.51

    $14.00

  • 94 - Side Panel Right
    SKU #04003087A0

    Part #94Side Panel Right
    Length: 29.13Width: 21.65Height: 0.86

    $59.99

  • 95 - Back Access Panel
    SKU #04003089A0

    Part #95Back Access Panel
    Length: 9.58Width: 0.39Height: 10.76

    $5.00

  • 96 - Rubber Grommet
    SKU #17000006A0

    Part #96Rubber Grommet
    Length: 5.94Width: 1.61Height: 0.75

    $5.00

  • 97 - Back Panel
    SKU #04003101A0

    Part #97Back Panel
    Length: 30.3Width: 25.51Height: 0.79

    $70.00

  • 98 - Cart Frame Rear
    SKU #04003103A0

    Part #98Cart Frame Rear
    Length: 22.62Width: 0.95Height: 3.74

    $15.40

  • 99 - Rotisserie Motor Bracket
    SKU #04003002A0

    Part #99Rotisserie Motor Bracket
    Length: 3.15Width: 1.57Height: 3.62

    $8.40

  • 100 - Rotisserie Motor
    SKU #07000178A0

    Part #100Rotisserie Motor
    Length: 4.72Width: 2.61Height: 3.54

    $24.00

  • 101 - Spit Fork
    SKU #05000581A0

    Part #101Spit Fork
    Length: 4.53Width: 1.97Height: 1.77

    $19.99

  • 102 - Spit Rod
    SKU #05000575A0

    Part #102Spit Rod
    Length: 4.53Width: 1.97Height: 1.77

    $28.00

  • 103 - Shaft Collar
    SKU #05000582A0

    Part #103Shaft Collar
    Length: 1.53Width: 1.06Height: 0.87

    $4.48

  • 104 - Front Baffle
    SKU #04003027A0

    Part #104Front Baffle
    Length: 33.94Width: 2.17Height: 5.89

    $42.00

  • 106 - Main Burner
    SKU #10000204A0

    Part #106Main Burner
    Length: 16.6Width: 2.45Height: 1.06

    $35.99

  • 107 - Flame Tamer
    SKU #04002995A0

    Part #107Flame Tamer
    Length: 14.57Width: 4.26Height: 1.4

    $28.00

  • 108 - Cooking Grid with Hole
    SKU #13000148A0

    Part #108Cooking Grid with Hole
    Length: 20.9Width: 20.9Height: 2.09

    $35.00

  • 109 - Warming Rack
    SKU #13000152A0

    Part #109Warming Rack
    Length: 33.23Width: 12.59Height: 1.24

    $35.00

  • 110 - Rotisserie Burner Igniter Wire
    SKU #10000207A0

    Part #110Rotisserie Burner Igniter Wire
    Length: 55.39Width: 2.7Height: 1.3

    $6.99

  • 111 - Rotisserie Burner
    SKU #10000089A0

    Part #111Rotisserie Burner
    Length: 15.55Width: 3.35Height: 2.36

    $55.00

  • 112 - Rotisserie Burner Flex Gas Line
    SKU #11000040A0

    Part #112Rotisserie Burner Flex Gas Line
    Length: 1.39Width: 0.01Height: 33.46

    $10.00

  • 113 - Rotisserie Burner with Brass Elbow
    SKU #05000211A0

    Part #113Rotisserie Burner with Brass Elbow
    Length: 1.97Width: 1.5Height: 0.91

    $7.00

  • 114 - Rotisserie Burner Thermocouple
    SKU #07000186A0

    Part #114Rotisserie Burner Thermocouple
    Length: 30.19Width: 1.57Height: 1.1

    $7.00

  • 115 - Rotisserie Burner Thermocouple Bracket
    SKU #04003001A0

    Part #115Rotisserie Burner Thermocouple Bracket
    Length: 4.13Width: 1.93Height: 0.51

    $4.00

  • 116 - Rear Baffle
    SKU #04002997A0

    Part #116Rear Baffle
    Length: 3.94Width: 4.33Height: 1.97

    $42.00

  • 117 - Oven Ceiling Heat Shield
    SKU #04003070A0

    Part #117Oven Ceiling Heat Shield
    Length: 0.25Width: 0.06Height: 0.13

    $10.00

  • 119 - Hardware Package
    SKU #20000585A0

    Part #119Hardware Package
    Length: 3.8Width: 3.8Height: 3.8

    $7.00

  • 120 - Rotisserie Gas Valve
    SKU #09000160A0

    Part #120Rotisserie Gas Valve
    Length: 2.08Width: 1.89Height: 4.34

    $35.99

Checkout
Secure Payment Grill Part Payment Options
Shipping Information

Our estimated shipping and delivery lead time is 1-2 weeks from date of order. Click for more details regarding our Shipping & Delivery Terms and Return Policy.

More Frequently Asked Questions

How long will it take for my grill part(s) to be delivered?

Please read our Shipping & Delivery page for more information.

What's your return policy?

Please read our Returns & Exchanges page for more information.

Can someone help me find replacement part(s) not shown on your site?

That’s what we’re here for! Call us at 855-634-2627 and one of our Customer Care Associates will be happy to help you find the exact grill parts you’re looking for or point you in the right direction.

Customer Reviews

The stock temp gauge on my expert grill gave out after 5 years of diligent service. Luckily, the universal temperature gauge I ordered from My Grill Parts works just as well. I didn’t think installing the thing would be so easy either. 5 stars.

Gerald S

If you own a portable grill, consider Nexgrill’s 1lb. tank adapter a must buy. Basically it lets you hook your portable grill up to a MUCH more transportable 1 lb. propane cylinder. Perfect for camping, float trips, etc. Super affordable and shipping was fast!

Emily K

I ordered the 65 inch premium grill cover and it showed up on time and exactly as described. It’s made of thick, heavy duty material that repels water like a champ. It even has velcro strips on the side that give it a nice clean look.

Andy H
