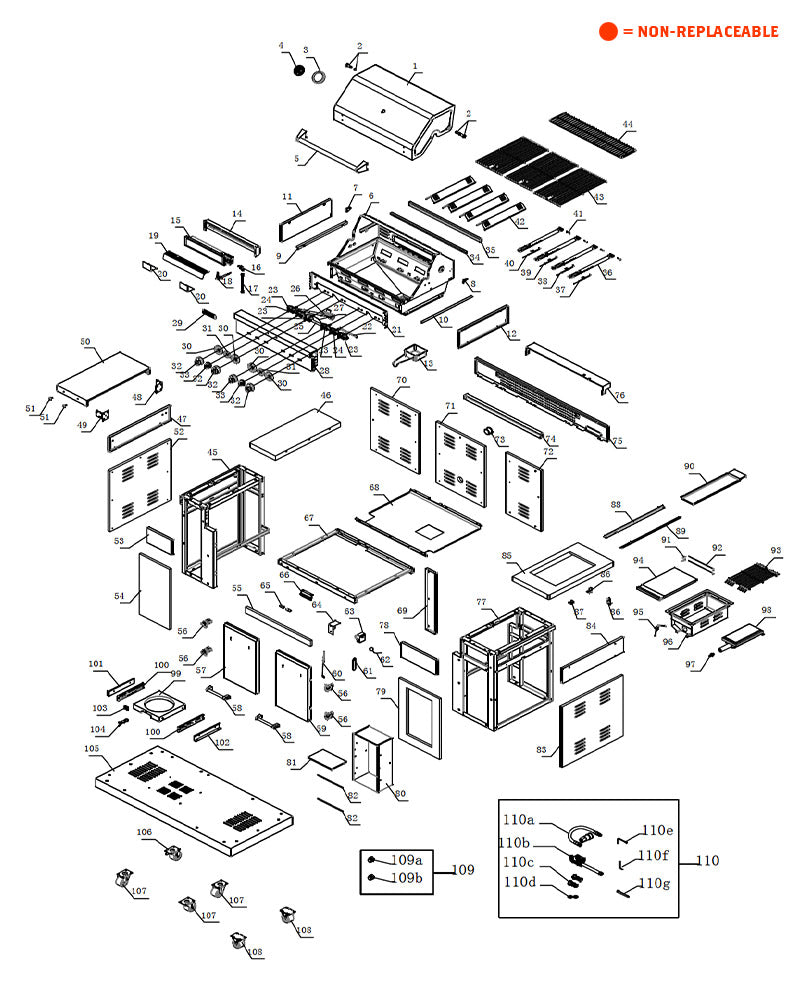

replacement grill parts for your KitchenAid 860-0012

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #0127747000AP

    Part #1Main Lid
    Length: 30.99Width: 17.01Height: 12.6

    $96.32

  • 2 - Main Lid Screw
    SKU #20001428A0

    Part #2Main Lid Screw
    Length: 0.59Width: 0.94Height: 0.95

    $5.00

  • 3 - Temperature Gauge Housing
    SKU #05001280A0

    Part #3Temperature Gauge Housing
    Length: 3.9Width: 3.9Height: 0.75

    $5.00

  • 4 - Temperature Gauge
    SKU #05001263A0

    Part #4Temperature Gauge
    Length: 10.83Width: 2.91Height: 0.98

    $10.50

  • 5 - Main Lid Handle
    SKU #0127648000AP

    Part #5Main Lid Handle
    Length: 1.77Width: 0.6Height: 0.6

    $12.04

  • 7 - Lid Bracket Left
    SKU #04005186A0

    Part #7Lid Bracket Left
    Length: 1.57Width: 1.18Height: 0.47

    $5.00

  • 8 - Lid Bracket Right
    SKU #04005187A0

    Part #8Lid Bracket Right
    Length: 1.57Width: 1.18Height: 0.47

    $5.00

  • 9 - Main Burner Bowl Trim Piece Left
    SKU #0312360000AC

    Part #9Main Burner Bowl Trim Piece Left
    Length: 19.8Width: 0.9Height: 0.78

    $40.04

  • 10 - Main Burner Bowl Trim Piece Right
    SKU #0312361000AC

    Part #10Main Burner Bowl Trim Piece Right
    Length: 19.8Width: 0.9Height: 0.78

    $6.38

  • 11 - Main Burner Bowl Supporter Left
    SKU #20003067A0

    Part #11Main Burner Bowl Supporter Left
    Length: 19.69Width: 6.5Height: 0.79

    $6.38

  • 12 - Main Burner Bowl Supporter Right
    SKU #20003066A0

    Part #12Main Burner Bowl Supporter Right
    Length: 19.69Width: 6.5Height: 0.79

    $6.38

  • 13 - Grease Box
    SKU #20002001A0

    Part #13Grease Box
    Length: 10.24Width: 5.16Height: 2.56

    $35.99

  • 14 - Rear Baffle
    SKU #04004219A0

    Part #14Rear Baffle
    Length: 20.47Width: 3.54Height: 1.77

    $24.36

  • 15 - Rotisserie Burner
    SKU #20001495A0

    Part #15Rotisserie Burner
    Length: 15.55Width: 3.35Height: 2.36

    $33.11

  • 16 - Rear Burner Orifice with Brass Elbow
    SKU #05000865A0

    Part #16Rear Burner Orifice with Brass Elbow
    Length: 1.97Width: 1.5Height: 0.91

    $5.31

  • 17 - Rear Burner Flex Gas Line
    SKU #0118066000AW

    Part #17Rear Burner Flex Gas Line
    Length: 46.06Width: 0.55Height: 0.64

    $22.68

  • 18 - Rotisserie Burner Igniter Wire
    SKU #0127748000AP

    Part #18Rotisserie Burner Igniter Wire
    Length: 39.37Width: 1.3Height: 2.76

    $4.90

  • 19 - Rotisserie Burner Heat Shield
    SKU #04004296A0

    Part #19Rotisserie Burner Heat Shield
    Length: 2Width: 2Height: 2

    $5.00

  • 20 - Rotisserie Burner Igniter Bracket
    SKU #04004297A0

    Part #20Rotisserie Burner Igniter Bracket
    Length: 3.15Width: 2.56Height: 2.36

    $5.00

  • 21 - Front Baffle
    SKU #0125491000AP

    Part #21Front Baffle
    Length: 30.03Width: 5.9Height: 1.18

    $21.00

  • 22 - Sear Side Burner Flex Gas Line
    SKU #0118015000AW

    Part #22Sear Side Burner Flex Gas Line
    Length: 21.45Width: 0.55Height: 0.64

    $22.68

  • 23 - Main Gas Valve
    SKU #0120812000AW

    Part #23Main Gas Valve
    Length: 3.81Width: 2.08Height: 1.89

    $20.45

  • 24 - Rotisserie Burner Gas Valve
    SKU #0120803000AW

    Part #24Rotisserie Burner Gas Valve
    Length: 4.37Width: 2.28Height: 2.24

    $15.00

  • 25 - Main Manifold
    SKU #0116211900AW

    Part #25Main Manifold
    Length: 23.81Width: 8.7Height: 3.46

    $35.00

  • 26 - Regulator LP
    SKU #0119137000AW

    Part #26Regulator LP
    Length: 20.27Width: 2.97Height: 2.9

    $32.90

  • 27 - Igniter Junction Wire
    SKU #2001678000AW

    Part #27Igniter Junction Wire
    Length: 4Width: 2Height: 1

    $6.30

  • 28 - Main Control Panel
    SKU #0127749000AP

    Part #28Main Control Panel
    Length: 30.24Width: 7.48Height: 2.76

    $45.92

  • 29 - Logo
    SKU #0127261000AP

    Part #29Logo
    Length: 19.92Width: 6.52Height: 0.82

    $5.00

  • 30 - Main Burner Bezel
    SKU #0308186001AH

    Part #30Main Burner Bezel
    Length: 4.96Width: 1.26Height: 0.59

    $3.36

  • 31 - Rotisserie Burner Bezel
    SKU #0308187001AH

    Part #31Rotisserie Burner Bezel
    Length: 2.28Width: 2.28Height: 0.46

    $7.80

  • 32 - Main Control Knob
    SKU #0108066000AP

    Part #32Main Control Knob
    Length: 4.96Width: 1.26Height: 0.52

    $10.68

  • 33 - Rotisserie Burner Knob
    SKU #0108067000AP

    Part #33Rotisserie Burner Knob
    Length: 1Width: 0.75Height: 0.78

    $8.54

  • 34 - Main Burner Bowl Trim Piece Front
    SKU #0308043000AC

    Part #34Main Burner Bowl Trim Piece Front
    Length: 30Width: 0.66Height: 0.82

    $6.38

  • 35 - Main Burner Bowl Supporter Rear
    SKU #0212572901AQ

    Part #35Main Burner Bowl Supporter Rear
    Length: 30.19Width: 1.57Height: 1.1

    $6.38

  • 36 & 41 - Main Burner & Pin Assembly
    SKU #20002439A0

    Part #36 & 41Main Burner & Pin Assembly
    Length: 16.89Width: 1.54Height: 0.98

    $9.25

  • 37 - Main Burner Igniter Wire A
    SKU #10001399A1

    Part #37Main Burner Igniter Wire A
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 38 - Main Burner Igniter Wire B
    SKU #10001398A1

    Part #38Main Burner Igniter Wire B
    Length: 1Width: 16.89Height: 0.04

    $6.99

  • 39 - Main Burner Igniter Wire C
    SKU #10001397A1

    Part #39Main Burner Igniter Wire C
    Length: 24.8Width: 1.06Height: 0.47

    $6.99

  • 40 - Main Burner Igniter Wire D
    SKU #10001396A1

    Part #40Main Burner Igniter Wire D
    Length: 4.53Width: 1.06Height: 0.47

    $6.99

  • 42 - Flame Tamer
    SKU #0315154000AC

    Part #42Flame Tamer
    Length: 16.14Width: 3.35Height: 1.32

    $14.28

  • 43 - Cooking Grid
    SKU #13000408A0

    Part #43Cooking Grid
    Length: 18.81Width: 9.84Height: 0.55

    $45.99

  • 44 - Warming Rack
    SKU #13000288A0

    Part #44Warming Rack
    Length: 28.85Width: 6.14Height: 0.39

    $24.99

  • 45 - Cart Frame Assembly Left
    SKU #0145268901AQ

    Part #45Cart Frame Assembly Left
    Length: 23.42Width: 13.04Height: 28.91

    $39.90

  • 46 - Granite Side Shelf Left
    SKU #2015022000BW

    Part #46Granite Side Shelf Left
    Length: 25.79Width: 10.2Height: 1.77

    $60.00

  • 47 - Cart Trim Piece Left
    SKU #0312358000AH

    Part #47Cart Trim Piece Left
    Length: 24.21Width: 5.64Height: 0.78

    $37.10

  • 48 - Left Side Shelf Fixed Plate A
    SKU #0151391000AP

    Part #48Left Side Shelf Fixed Plate A
    Length: 2.36Width: 2.83Height: 2.95

    $32.90

  • 49 - Left Side Shelf Fixed Plate B
    SKU #0151392000AP

    Part #49Left Side Shelf Fixed Plate B
    Length: 2.36Width: 2.83Height: 2.95

    $32.90

  • 50 - Left Side Shelf
    SKU #0151390000AP

    Part #50Left Side Shelf
    Length: 25Width: 12Height: 2.28

    $35.42

  • 51 - Left Side Shelf Hooks
    SKU #0127750000AP

    Part #51Left Side Shelf Hooks
    Length: 1.06Width: 0.75Height: 0.75

    $17.08

  • 52 - Faux Stone Side Panel Left
    SKU #2015004000AW

    Part #52Faux Stone Side Panel Left
    Length: 24.21Width: 23.11Height: 0.7

    $37.52

  • 53 - Control Panel Left
    SKU #0304393000AH

    Part #53Control Panel Left
    Length: 9.8Width: 5.61Height: 0.78

    $34.30

  • 54 - Faux Stone Front Panel Left
    SKU #2015003000AW

    Part #54Faux Stone Front Panel Left
    Length: 22.99Width: 12Height: 0.7

    $37.52

  • 55 - Faux Stone Cart Frame
    SKU #2015018000AW

    Part #55Faux Stone Cart Frame
    Length: 25.7Width: 2.16Height: 0.7

    $19.88

  • 56 - Cabinet Hinge
    SKU #05001421A0

    Part #56Cabinet Hinge
    Length: 11.81Width: 1.2Height: 2.45

    $5.42

  • 57 - Door Left
    SKU #0127751000AP

    Part #57Door Left
    Length: 20.51Width: 12.63Height: 1.22

    $26.04

  • 58 - Door Handle Assembly
    SKU #0127752000AP

    Part #58Door Handle Assembly
    Length: 8.2Width: 1.2Height: 2.45

    $9.52

  • 59 - Door Right
    SKU #0127753000AP

    Part #59Door Right
    Length: 20.51Width: 12.63Height: 1.22

    $26.04

  • 60 - Lighting Rod
    SKU #05001153A0

    Part #60Lighting Rod
    Length: 6.61Width: 0.59Height: 0.12

    $5.00

  • 61 - Lighting Rod Cover
    SKU #17000186A0

    Part #61Lighting Rod Cover
    Length: 1.97Width: 0.59Height: 8.06

    $5.00

  • 62 - Earth Conductor
    SKU #2001470000AW

    Part #62Earth Conductor
    Length: 11.81Width: 1.12Height: 0.03

    $18.48

  • 63 - Electric Igniter Modular
    SKU #07000030A3

    Part #63Electric Igniter Modular
    Length: 2.95Width: 2.6Height: 1.97

    $16.79

  • 64 - Electric Igniter Module Cover
    SKU #04005354A0

    Part #64Electric Igniter Module Cover
    Length: 3.14Width: 2.68Height: 1.97

    $10.00

  • 65 - Door Magnet
    SKU #05000010A0

    Part #65Door Magnet
    Length: 1.58Width: 0.57Height: 1.01

    $3.00

  • 66 - Door Magnet Plate Top
    SKU #0210199901AQ

    Part #66Door Magnet Plate Top
    Length: 4.13Width: 1.77Height: 1.02

    $5.00

  • 67 - Cart Frame Assembly Top
    SKU #0145191901AQ

    Part #67Cart Frame Assembly Top
    Length: 30.19Width: 23.42Height: 1.77

    $25.90

  • 68 - Gas Tank Heat Shield
    SKU #0503360000AC

    Part #68Gas Tank Heat Shield
    Length: 27.85Width: 22.91Height: 1

    $23.52

  • 69 - Cart Rear Panel Supporter Middle
    SKU #0212439901AQ

    Part #69Cart Rear Panel Supporter Middle
    Length: 23.14Width: 3.93Height: 0.78

    $17.64

  • 70 - Faux Stone Rear Panel Left
    SKU #2015019000AW

    Part #70Faux Stone Rear Panel Left
    Length: 23.11Width: 19.25Height: 0.7

    $37.52

  • 71 - Faux Stone Rear Panel Middle
    SKU #2015020000AW

    Part #71Faux Stone Rear Panel Middle
    Length: 23.11Width: 19.25Height: 0.7

    $37.52

  • 72 - Faux Stone Rear Panel Right
    SKU #2015021000AW

    Part #72Faux Stone Rear Panel Right
    Length: 23.11Width: 13.93Height: 0.7

    $37.52

  • 73 - NG Hole Rubber Plug
    SKU #17000161A0

    Part #73NG Hole Rubber Plug
    Length: 1.81Width: 1.81Height: 1.22

    $5.00

  • 74 - Cart Frame Rear
    SKU #0212572901AQ

    Part #74Cart Frame Rear
    Length: 30.19Width: 1.57Height: 1.1

    $6.38

  • 75 - Cart Trim Piece Rear
    SKU #0312363000AH

    Part #75Cart Trim Piece Rear
    Length: 52.36Width: 5.68Height: 1.57

    $37.10

  • 76 - Main Firebox Trim Piece Rear
    SKU #0312362000AH

    Part #76Main Firebox Trim Piece Rear
    Length: 30.23Width: 3.27Height: 3.07

    $40.04

  • 77 - Cart Frame Assembly Right
    SKU #0145269901AQ

    Part #77Cart Frame Assembly Right
    Length: 28.91Width: 23.42Height: 17.18

    $39.90

  • 78 - Control Panel Right
    SKU #0304394000AH

    Part #78Control Panel Right
    Length: 13.93Width: 5.61Height: 0.78

    $34.30

  • 79 - Faux Stone Front Panel Right
    SKU #2015017000AW

    Part #79Faux Stone Front Panel Right
    Length: 22.99Width: 16.14Height: 0.7

    $37.52

  • 80 - Condiment Tray
    SKU #0311115000AH

    Part #80Condiment Tray
    Length: 17.71Width: 10Height: 5.9

    $26.32

  • 81 - Condiment Tray Shelf
    SKU #0306355000AC

    Part #81Condiment Tray Shelf
    Length: 9.33Width: 5.86Height: 0.39

    $17.22

  • 82 - Condiment Tray Fixed Bar
    SKU #0606252000AC

    Part #82Condiment Tray Fixed Bar
    Length: 9.84Width: 0.31Height: 0.31

    $15.40

  • 83 - Faux Stone Side Panel Right
    SKU #2015010000AW

    Part #83Faux Stone Side Panel Right
    Length: 24.21Width: 23.11Height: 0.7

    $37.52

  • 84 - Cart Trim Piece Right
    SKU #0312359000AH

    Part #84Cart Trim Piece Right
    Length: 24.21Width: 5.64Height: 0.78

    $37.10

  • 85 - Granite Side Shelf Right
    SKU #2015023000BW

    Part #85Granite Side Shelf Right
    Length: 25.79Width: 14.33Height: 1.77

    $31.50

  • 86 - Sear Side Burner Fixed Bracket 1
    SKU #0310331000AC

    Part #86Sear Side Burner Fixed Bracket 1
    Length: 1.06Width: 0.85Height: 1.91

    $17.50

  • 87 - Sear Side Burner Fixed Bracket 2
    SKU #0310344000AC

    Part #87Sear Side Burner Fixed Bracket 2
    Length: 1.06Width: 0.85Height: 1.91

    $17.50

  • 88 - Sear Side Burner Grease Tray Bracket A
    SKU #0212646901AQ

    Part #88Sear Side Burner Grease Tray Bracket A
    Length: 23.34Width: 0.78Height: 0.74

    $17.50

  • 89 - Sear Side Burner Grease Tray Bracket B
    SKU #0212647901AQ

    Part #89Sear Side Burner Grease Tray Bracket B
    Length: 23.34Width: 0.78Height: 0.74

    $17.50

  • 90 - Sear Side Burner Grease Tray
    SKU #0211134901AQ

    Part #90Sear Side Burner Grease Tray
    Length: 21.07Width: 5.44Height: 0.78

    $26.04

  • 91 & 92 - Sear Side Burner Lid Hinge Rod & Pin
    SKU #20002785A0

    Part #91 & 92Sear Side Burner Lid Hinge Rod & Pin
    Length: 10.39Width: 0.16Height: 0.55

    $5.00

  • 93 - Sear Side Burner Cooking Grid
    SKU #13000619A0

    Part #93Sear Side Burner Cooking Grid
    Length: 13.78Width: 8.46Height: 0.9

    $39.14

  • 94 - Sear Side Burner Lid
    SKU #20001951A0

    Part #94Sear Side Burner Lid
    Length: 9.84Width: 0.79Height: 0.59

    $32.61

  • 95 - Sear Side Burner Igniter Wire
    SKU #0127667000AP

    Part #95Sear Side Burner Igniter Wire
    Length: 3.62Width: 1.22Height: 3.94

    $6.99

  • 96 - Sear Side Burner Bowl Assembly
    SKU #0127754000AP

    Part #96Sear Side Burner Bowl Assembly
    Length: 16.73Width: 10.55Height: 0.97

    $37.20

  • 97 - Sear Side Burner Orifice
    SKU #0120823000AW

    Part #97Sear Side Burner Orifice
    Length: 1.68Width: 0.9Height: 0.9

    $5.00

  • 98 - Sear Side Burner
    SKU #0127755000AP

    Part #98Sear Side Burner
    Length: 14.52Width: 6.33Height: 2.77

    $40.04

  • 99 - Gas Tank Tray
    SKU #20001470A0

    Part #99Gas Tank Tray
    Length: 10.24Width: 10.24Height: 1.77

    $12.18

  • 100 - Gas Tank Tray Slide
    SKU #05000171A0

    Part #100Gas Tank Tray Slide
    Length: 12.99Width: 2.44Height: 1.2

    $9.74

  • 101 - Gas Tank Tray Slide Bracket A
    SKU #20001471A0

    Part #101Gas Tank Tray Slide Bracket A
    Length: 6.73Width: 1.97Height: 1.97

    $5.00

  • 102 - Gas Tank Tray Slide Bracket B
    SKU #20001768A0

    Part #102Gas Tank Tray Slide Bracket B
    Length: 10Width: 1.77Height: 0.79

    $5.00

  • 103 - Gas Tank Tray Block Piece
    SKU #04006694A0

    Part #103Gas Tank Tray Block Piece
    Length: 2.23Width: 1.62Height: 0.75

    $9.52

  • 104 - Tank Tray Bolt
    SKU #20000760A0

    Part #104Tank Tray Bolt
    Length: 8.07Width: 1.97Height: 0.01

    $6.44

  • 105 - Bottom Panel
    SKU #0127756000AP

    Part #105Bottom Panel
    Length: 53.54Width: 24.6Height: 3.14

    $51.10

  • 106 - Swivel Caster with Brake
    SKU #05000045A0

    Part #106Swivel Caster with Brake
    Length: 3.96Width: 4.29Height: 3.74

    $14.00

  • 107 - Swivel Caster
    SKU #05000173A0

    Part #107Swivel Caster
    Length: 3.14Width: 1.96Height: 3.42

    $21.00

  • 108 - Caster
    SKU #05000052A0

    Part #108Caster
    Length: 3.94Width: 3.74Height: 2.97

    $21.00

  • 109 - NG Orifice Pack
    SKU #2006494000AP

    Part #109NG Orifice Pack
    Length: 9.45Width: 6.1Height: 0.98

    $5.00

  • 111 - PVC Cover
    SKU #2009135001AW

    Part #111PVC Cover
    Length: 58.46Width: 28.74Height: 46.65

    $36.40

Checkout
Secure Payment Grill Part Payment Options
Shipping Information

Our estimated shipping and delivery lead time is 1-2 weeks from date of order. Click for more details regarding our Shipping & Delivery Terms and Return Policy.

More Frequently Asked Questions

How long will it take for my grill part(s) to be delivered?

Please read our Shipping & Delivery page for more information.

What's your return policy?

Please read our Returns & Exchanges page for more information.

Can someone help me find replacement part(s) not shown on your site?

That’s what we’re here for! Call us at 855-634-2627 and one of our Customer Care Associates will be happy to help you find the exact grill parts you’re looking for or point you in the right direction.

Customer Reviews

The stock temp gauge on my expert grill gave out after 5 years of diligent service. Luckily, the universal temperature gauge I ordered from My Grill Parts works just as well. I didn’t think installing the thing would be so easy either. 5 stars.

Gerald S

If you own a portable grill, consider Nexgrill’s 1lb. tank adapter a must buy. Basically it lets you hook your portable grill up to a MUCH more transportable 1 lb. propane cylinder. Perfect for camping, float trips, etc. Super affordable and shipping was fast!

Emily K

I ordered the 65 inch premium grill cover and it showed up on time and exactly as described. It’s made of thick, heavy duty material that repels water like a champ. It even has velcro strips on the side that give it a nice clean look.

Andy H
