Replacement Parts For Grillmaster 720-0697 Sold at Lowe's USA in 2012

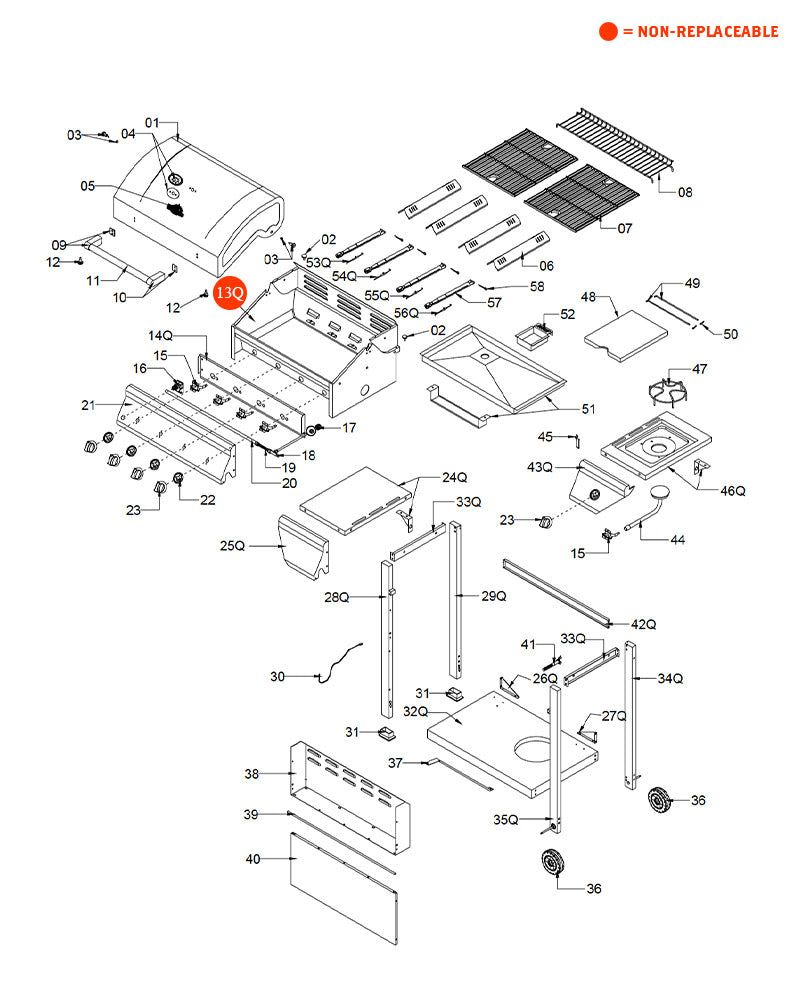

Find replacement grill parts for your 2012 Grillmaster 720-0697 4 Burner Propane Gas Grill with Side Burner in Black/Stainless Steel model number 720-0697 grill using the replacement parts diagram below. The Grillmaster 720-0697 grill was sold at Lowe's USA in 2012. If this is not your grill model, you can view all Grillmaster Replacement Parts or use the button below to search for your model number.

View Parts Download Manual
replacement grill parts for your Grillmaster 720-0697

Manual No. / Part

Price Each

Qty

  • 1 - Main Lid
    SKU #20001341A0

    Part #1Main Lid
    Length: 23.22Width: 13.38Height: 9.84

    $112.00

  • 2 - Hood Buffer B
    SKU #17000001A0

    Part #2Hood Buffer B
    Length: 0.47Width: 0.47Height: 0.47

    $4.78

  • 3 - Main Lid Screw
    SKU #20002402A0

    Part #3Main Lid Screw
    Length: 0.63Width: 0.98Height: 0.63

    $5.00

  • 4 - Temperature Gauge
    SKU #20002403A0

    Part #4Temperature Gauge
    Length: 2.95Width: 1.89Height: 1.53

    $5.76

  • 5 - Logo
    SKU #20002404A0

    Part #5Logo
    Length: 4.02Width: 2.46Height: 0.39

    $5.00

  • 6 - Flame Tamer
    SKU #04004007A0

    Part #6Flame Tamer
    Length: 16.54Width: 7.87Height: 0.98

    $12.00

  • 7 - Cooking Grid with Hole
    SKU #13000384A0

    Part #7Cooking Grid with Hole
    Length: 17.17Width: 13.82Height: 0.35

    $20.00

  • 8 - Warming Rack
    SKU #13000279A0

    Part #8Warming Rack
    Length: 24.4Width: 6.1Height: 1.37

    $20.00

  • 9 - Main Lid Handle Seat Left
    SKU #20002397A0

    Part #9Main Lid Handle Seat Left
    Length: 3.11Width: 1.38Height: 1.18

    $8.00

  • 10 - Main Lid Handle Seat Right
    SKU #20002398A0

    Part #10Main Lid Handle Seat Right
    Length: 3.11Width: 1.38Height: 1.18

    $8.00

  • 11 - Main Lid Handle Tube
    SKU #12000624A0

    Part #11Main Lid Handle Tube
    Length: 1Width: 1Height: 18.19

    $22.40

  • 12 - Hood Buffer A
    SKU #17000106A0

    Part #12Hood Buffer A
    Length: 0.47Width: 0.47Height: 0.47

    $4.29

  • 14Q - Front Baffle
    SKU #04006007A0

    Part #14QFront Baffle
    Length: 25.8Width: 5.96Height: 1.9

    $21.00

  • 15 - Main Gas Valve
    SKU #09000509A1

    Part #15Main Gas Valve
    Length: 3.74Width: 2.09Height: 1.89

    $20.45

  • 16 - Pulse Ignite Module
    SKU #07000171A1

    Part #16Pulse Ignite Module
    Length: 2.78Width: 2.67Height: 2.05

    $15.99

  • 17 - Regulator LP
    SKU #09000256A0

    Part #17Regulator LP
    Length: 41.33Width: 5Height: 1

    $32.99

  • 18 - Side Manifold
    SKU #11000360A0

    Part #18Side Manifold
    Length: 6.69Width: 0.87Height: 0.75

    $13.13

  • 19 - Side Burner Flex Gas Line
    SKU #11000454A0

    Part #19Side Burner Flex Gas Line
    Length: 6.5Width: 0.75Height: 0.87

    $8.57

  • 20 - Main Manifold
    SKU #11000226A0

    Part #20Main Manifold
    Length: 22.44Width: 0.87Height: 0.75

    $35.00

  • 21 - Main Control Panel
    SKU #20002125A0

    Part #21Main Control Panel
    Length: 26Width: 7.2Height: 3.8

    $24.40

  • 22 - Bezel
    SKU #14000213A0

    Part #22Bezel
    Length: 2.97Width: 2.97Height: 0.28

    $6.24

  • 23 - Control Knob
    SKU #14000062A0

    Part #23Control Knob
    Length: 2.28Width: 2.28Height: 1.58

    $7.09

  • 24Q - Side Shelf Left
    SKU #20001348A0

    Part #24QSide Shelf Left
    Length: 17.72Width: 12.01Height: 0.98

    $32.00

  • 25Q - Side Shelf Panel Front
    SKU #20002127A0

    Part #25QSide Shelf Panel Front
    Length: 12.03Width: 7.2Height: 5.04

    $32.00

  • 26Q - Triangle Bracket Left
    SKU #04004108A0

    Part #26QTriangle Bracket Left
    Length: 4.72Width: 2.56Height: 0.47

    $5.00

  • 27Q - Triangle Bracket Right
    SKU #04004109A0

    Part #27QTriangle Bracket Right
    Length: 3.51Width: 1.71Height: 0.79

    $5.00

  • 28Q - Cart Leg Front Left
    SKU #20002011A0

    Part #28QCart Leg Front Left
    Length: 34.76Width: 2.56Height: 0.98

    $3.00

  • 29Q - Cart Leg Rear Left
    SKU #20001959A0

    Part #29QCart Leg Rear Left
    Length: 34.76Width: 1.97Height: 0.98

    $10.00

  • 30 - Lighting Rod
    SKU #05000590A0

    Part #30Lighting Rod
    Length: 22.76Width: 0.71Height: 0.12

    $5.00

  • 31 - Cart Caster Insert
    SKU #17000062A1

    Part #31Cart Caster Insert
    Length: 2.76Width: 1.77Height: 1.38

    $8.42

  • 32Q - Bottom Panel LP
    SKU #20001984A0

    Part #32QBottom Panel LP
    Length: 25Width: 21.65Height: 2.92

    $23.00

  • 33Q - Cart Frame
    SKU #20001961A0

    Part #33QCart Frame
    Length: 26.97Width: 1.38Height: 1.01

    $19.20

  • 34Q - Cart Leg Rear Right
    SKU #20001962A0

    Part #34QCart Leg Rear Right
    Length: 32.6Width: 1.97Height: 1.26

    $10.00

  • 35Q - Cart Leg Front Right
    SKU #20002135A0

    Part #35QCart Leg Front Right
    Length: 32.6Width: 2.56Height: 1.26

    $10.00

  • 36 - Wheel
    SKU #20002394A0

    Part #36Wheel
    Length: 7.68Width: 7.68Height: 2.19

    $19.99

  • 37 - Diagonal Bar Barrier
    SKU #04006008A0

    Part #37Diagonal Bar Barrier
    Length: 6.89Width: 1.85Height: 0.93

    $5.00

  • 38 - Condiment Tray
    SKU #04006300A0

    Part #38Condiment Tray
    Length: 21.31Width: 3.56Height: 3.78

    $59.99

  • 39 - Fix Bar
    SKU #05001441A0

    Part #39Fix Bar
    Length: 25.55Width: 6.42Height: 0.55

    $22.40

  • 40 - Front Panel
    SKU #04004010A0

    Part #40Front Panel
    Length: 24.72Width: 11.59Height: 0.82

    $40.00

  • 41 - Tank Bolt
    SKU #20002393A0

    Part #41Tank Bolt
    Length: 5.35Width: 1.85Height: 0.74

    $6.44

  • 42Q - Cart Frame Rear
    SKU #04006011A0

    Part #42QCart Frame Rear
    Length: 20.86Width: 3.88Height: 0.59

    $20.00

  • 43Q - Side Burner Control Panel
    SKU #20002546A0

    Part #43QSide Burner Control Panel
    Length: 11.97Width: 7.2Height: 3.88

    $35.99

  • 44 - Side Burner Pipe
    SKU #10001005A0

    Part #44Side Burner Pipe
    Length: 10.5Width: 3.77Height: 3.37

    $10.00

  • 45 - Side Burner Igniter Wire
    SKU #20002488A0

    Part #45Side Burner Igniter Wire
    Length: 27.01Width: 3.54Height: 0.91

    $6.99

  • 47 - Side Burner Cooking Grid
    SKU #13000606A0

    Part #47Side Burner Cooking Grid
    Length: 8.42Width: 8.42Height: 2

    $30.62

  • 48 - Side Burner Lid
    SKU #20002406A0

    Part #48Side Burner Lid
    Length: 12.5Width: 9.55Height: 0.78

    $29.99

  • 49 - Side Burner Lid Hinge Rod
    SKU #20002472A0

    Part #49Side Burner Lid Hinge Rod
    Length: 9.76Width: 0.55Height: 0.16

    $5.00

  • 50 - Side Burner Lid Hinge Rod Pin
    SKU #06000864A0

    Part #50Side Burner Lid Hinge Rod Pin
    Length: 10.39Width: 0.55Height: 0.16

    $3.50

  • 51 - Grease Tray
    SKU #20002550A0

    Part #51Grease Tray
    Length: 27.56Width: 14.25Height: 3.35

    $35.99

  • 52 - Grease Box
    SKU #20001344A0

    Part #52Grease Box
    Length: 6.13Width: 5.51Height: 1.77

    $5.70

  • 53Q - Main Burner Igniter Wire A
    SKU #10001400A1

    Part #53QMain Burner Igniter Wire A
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 54Q - Main Burner Igniter Wire B
    SKU #10001404A1

    Part #54QMain Burner Igniter Wire B
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 55Q - Main Burner Igniter Wire C
    SKU #10001405A1

    Part #55QMain Burner Igniter Wire C
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 56Q - Main Burner Igniter Wire D
    SKU #10001406A1

    Part #56QMain Burner Igniter Wire D
    Length: 18.9Width: 1.06Height: 0.47

    $6.99

  • 57 - Main Burner
    SKU #20002437A0

    Part #57Main Burner
    Length: 13.58Width: 4.33Height: 0.83

    $9.25

  • 58 - Main Burner Pin Assembly
    SKU #06000865A0

    Part #58Main Burner Pin Assembly
    Length: 1.1Width: 0.26Height: 1.42

    $3.50
